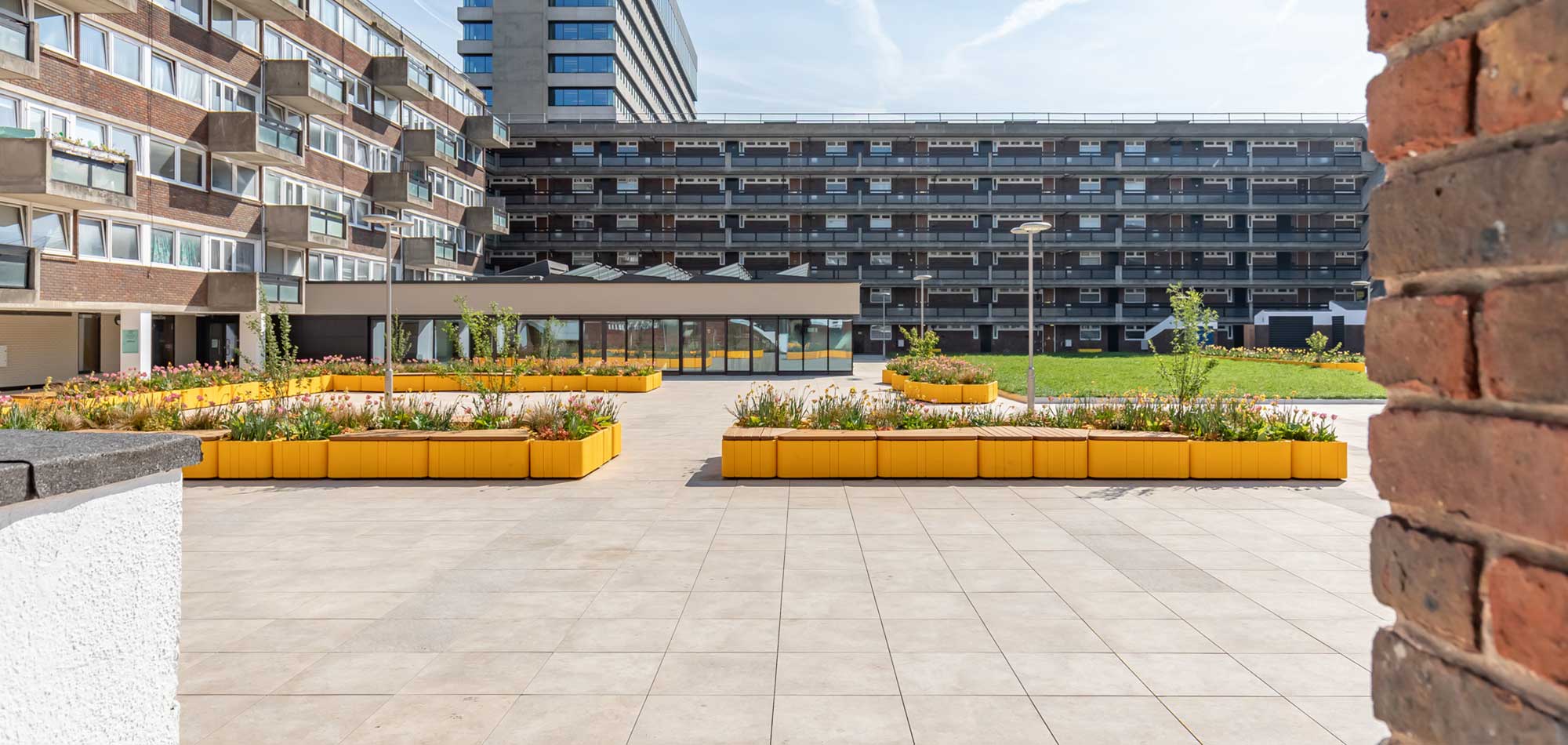

Ikea Oxford Street

TerraSmart® Rail Paving System

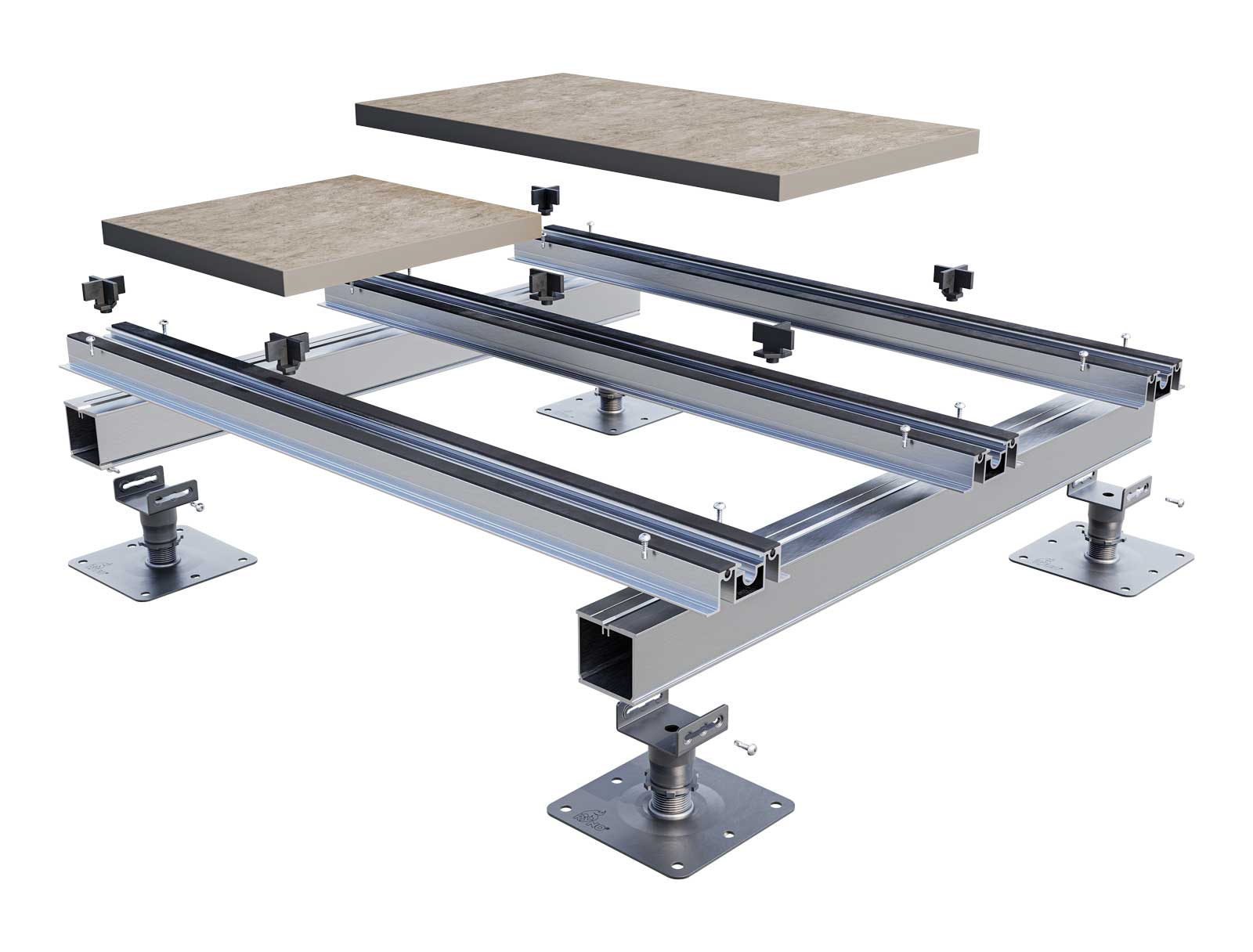

TerraSmart® Rail is made up of super-strong, 100% recyclable aluminium joists, which overlap to create a lattice framework, offering the maximum possible level of support for the paving surface. The system is fully non-combustible, achieving a Euroclass A1 fire rating.
View compatible finishes
View on NBS Source
TerraSmart Rail

System variants

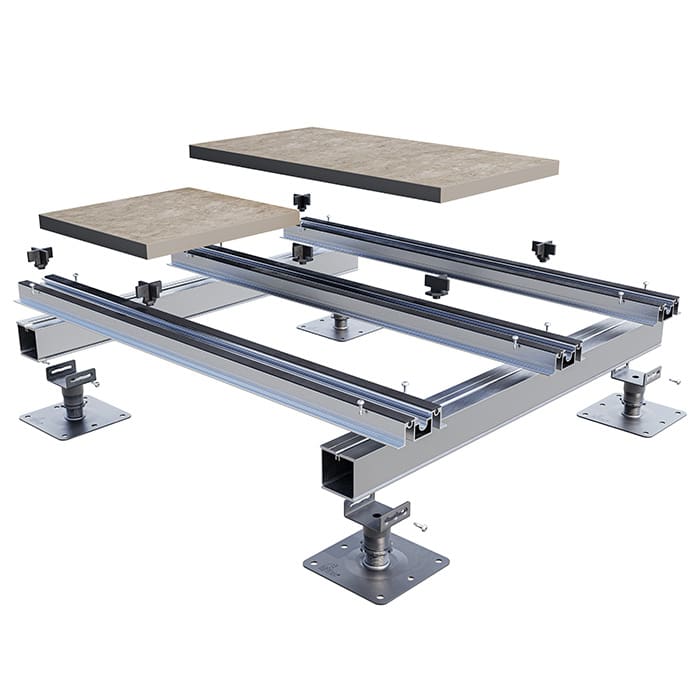

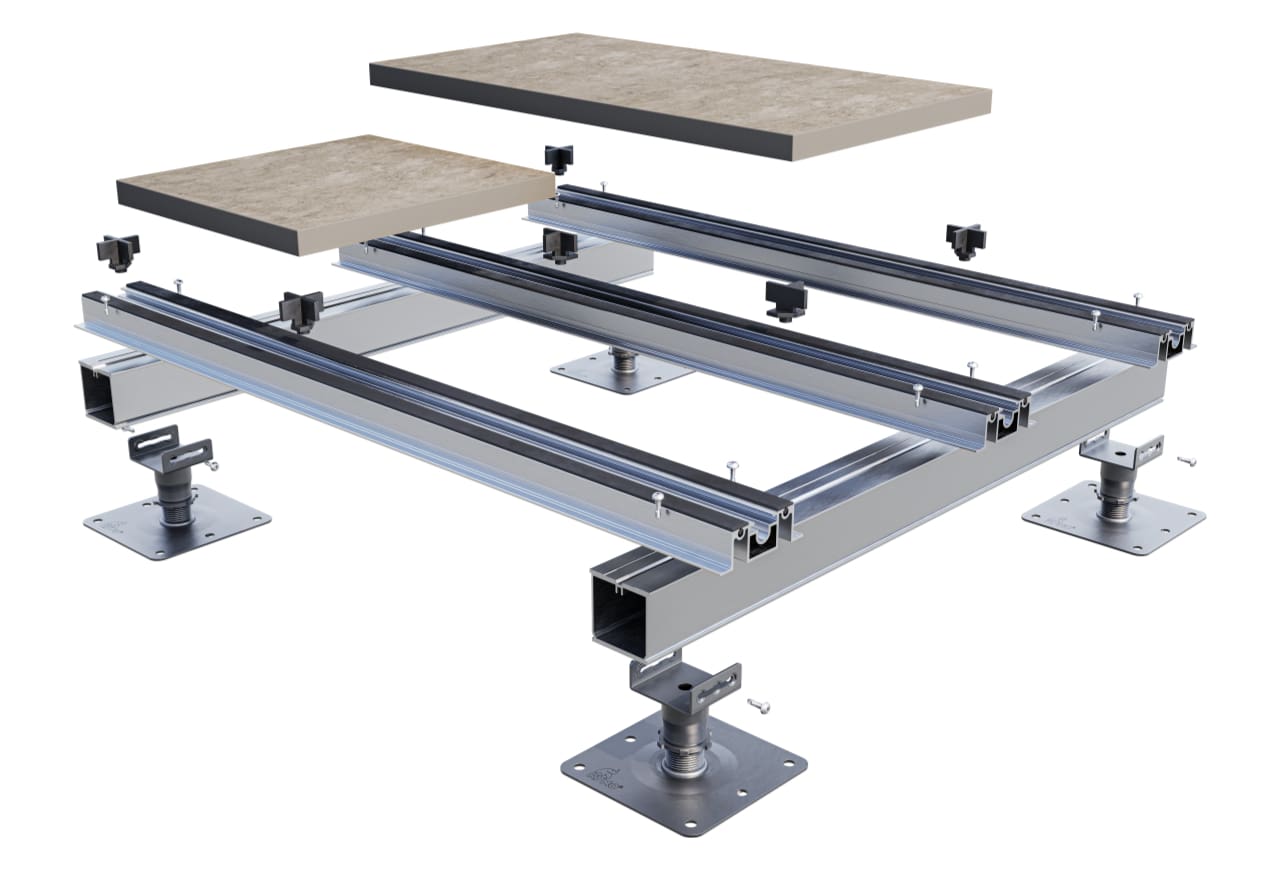

Lattice Frame

The Lattice Frame variant is the ultimate raised terrace system providing continuous and locked-in paver support. Catering to a wide range of paving layouts the lattice build-up offers outstanding lateral stability.

  • The gold standard in raised terrace support
  • Continuous lattice framework provides unrivalled stability
  • Maximum versatility
  • Made from inherently non-combustible materials

Downloads

Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 System overview PDF 2.04 MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 Install guide PDF 1.36 MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 O&M Manual
(Porcelain Pavers) PDF 0.05 MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 Technical drawings
(.dwg & .pdf) ZIP 3.69 MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 BIM Object RVT 3.63 MB

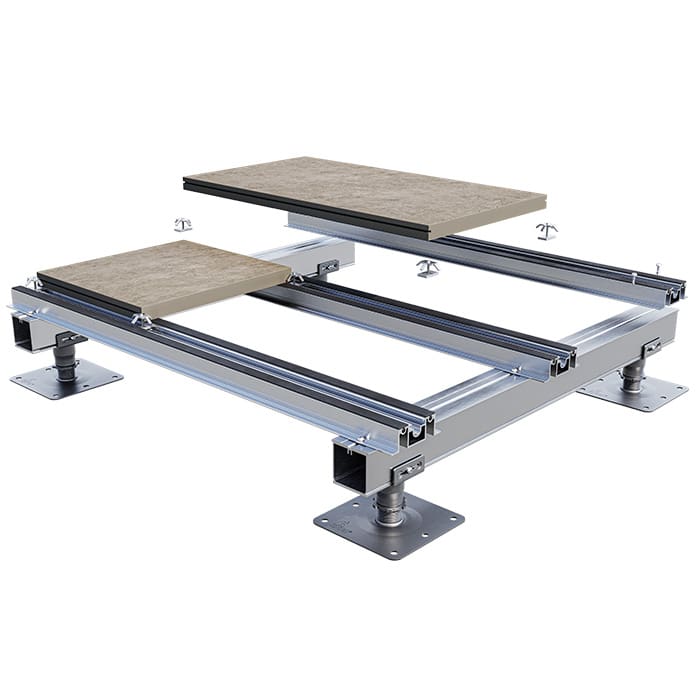

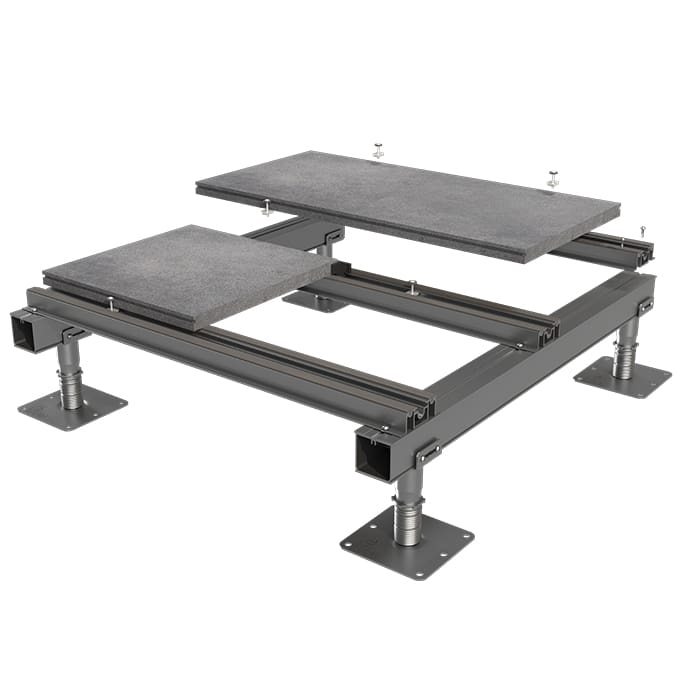

Hidden Wind Uplift Restraint

The Hidden Wind Uplift Restraint is specifically for areas with high wind loads. To ensure sufficient wind uplift mitigation, project specific calculations are recommended. RYNO® can assist with these calculations – let’s discuss.

  • Suitable for high-wind applications
  • Hidden mechanical restraint mechanism
  • Pavers removable for maintenance

Downloads

Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 System overview PDF 2.04 MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 Install guide PDF 1.36 MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 O&M Manual
(Porcelain Pavers) PDF 0.05 MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 Hidden Wind Uplift Fixing datasheet PDF 0.50 MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 Technical drawing
(.pdf) PDF 0.95 MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 Cyclic Wind Load Testing report PDF 6.39 MB

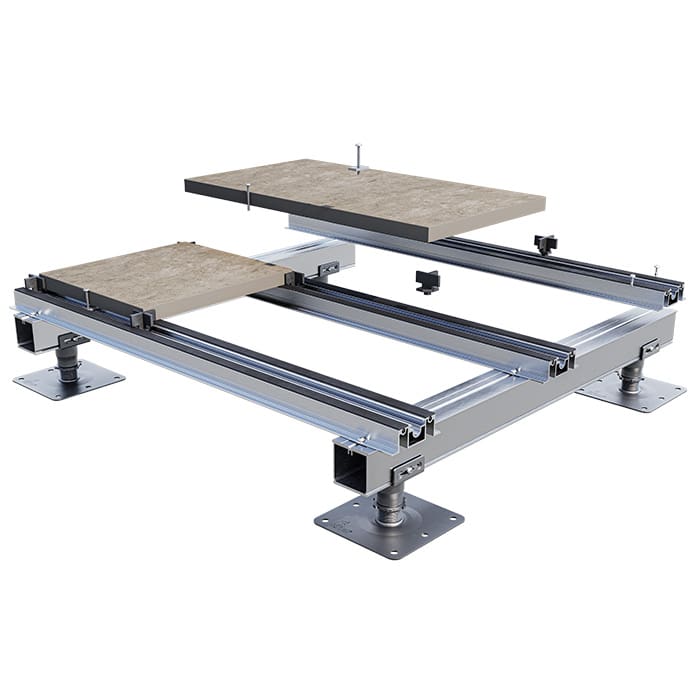

Visual Wind Uplift Restraint

The Visual Wind Uplift Restraint is the economical option for areas with high wind loads. To ensure sufficient wind uplift mitigation, project specific calculations are recommended. RYNO™ can assist with these calculations – let’s discuss.

  • Suitable for high-wind applications
  • Subtle, low cost mechanical restraint mechanism
  • Pavers removable for maintenance

Downloads

Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 System overview PDF 2.04 MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 Install guide PDF 1.36 MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 O&M Manual
(Porcelain Pavers) PDF 0.05 MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 Visual Wind Uplift Fixing datasheet PDF 0.24 MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 Technical Drawings
(.dwg & .pdf) ZIP 6.69 MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 Cyclic Wind Load Testing report PDF 6.39 MB

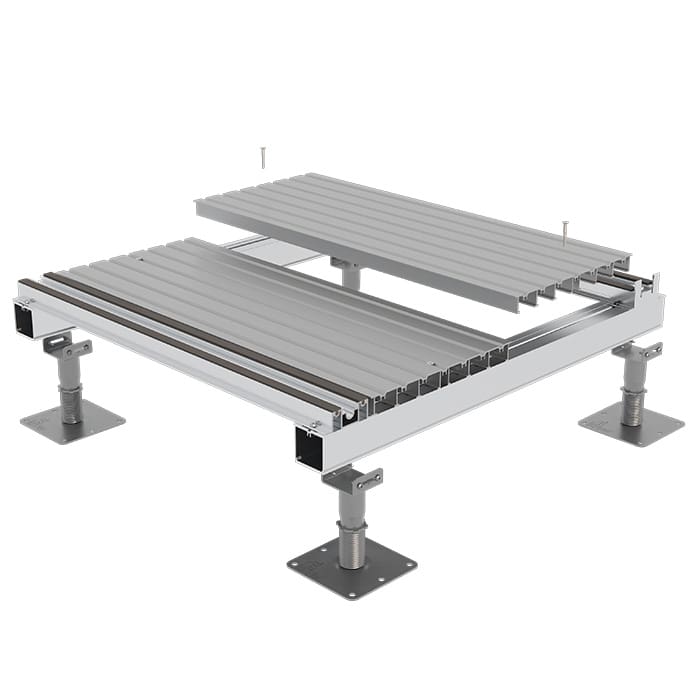

Baseboard

Baseboard

The Baseboard variant is a versatile solution that transforms the rail system into a complete yet free-draining sub-floor. Designed for use in localised areas or across a terrace to support planters, other flooring materials or small paving cuts.

  • Supports planters and other flooring surfaces
  • Creates a fall restraint layer for high-load applications
  • Supports small cuts and edge details

Downloads

Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 Install guide PDF 1.03 MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 O&M Manual
(Porcelain Pavers) PDF 0.05 MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 Technical Drawings
(.dwg & .pdf) ZIP 3.82 MB

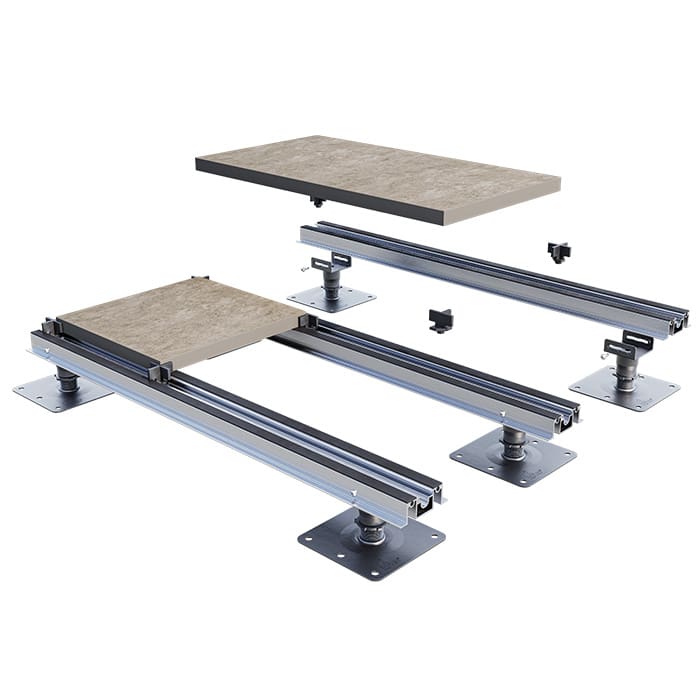

Single Rail

The Single Rail variant is a halfway house between a pedestal system and the ultimate Lattice Frame. The continuous rails support various paving layouts and allow for rapid installation.

  • Simple, low-cost rail paving solution
  • Top rails sit directly on supports
  • Rapid installation

Downloads

Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 System overview PDF 2.04 MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 Install guide PDF 1.36 MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 O&M Manual
(Porcelain Pavers) PDF 0.05 MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 Technical Drawings
(.dwg & .pdf) ZIP 6.08 MB

Lattice Frame – BROOF(t4)

The Lattice Frame variant is the ultimate raised terrace system providing continuous and locked-in paver support. Catering to a wide range of paving layouts the lattice build-up offers outstanding lateral stability. It features the OG Ryno polypropylene support pedestals, and has been tested, as part of a complete roof build up, in accordance with BS EN 13501-5 and achieved the highest classification – BROOF(t4)!

  • The ultimate compliance in raised terrace support system
  • Continuous lattice framework provides unrivalled stability
  • Maximum versatility of paving layouts achievable
  • BROOF(t4) classification achieved as part of complete roof build up

Downloads

Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 System overview PDF 2.16 MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 Install guide PDF 1.58 MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 O&M Manual
(Porcelain Pavers) PDF 0.05 MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 Technical drawings
(.dwg & .pdf) ZIP 2.73 MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 BIM Object RVT 4.60 MB

Technical Information

Reaction to fire
(to EN13501-1:2018)		A1
System overall height range50-692mm as standard, custom heights available (incl. paving)
Loading capability
(to EN 1991-1:2002)		Concentrated load: >2.0kN as standard, available up to 4.5kN if required
Uniformly distributed: >4.0kN as standard, available up to 7.5kN if required/m2
Approx. system weight50-60kg/m2 (with 20mm porcelain paving)
130-140kg/m2 (with 50mm concrete paving)
Wind uplift restraint availableYes
Warranty30 years*
Design Life60 years*
*Valid when used as part of a complete RYNO® system

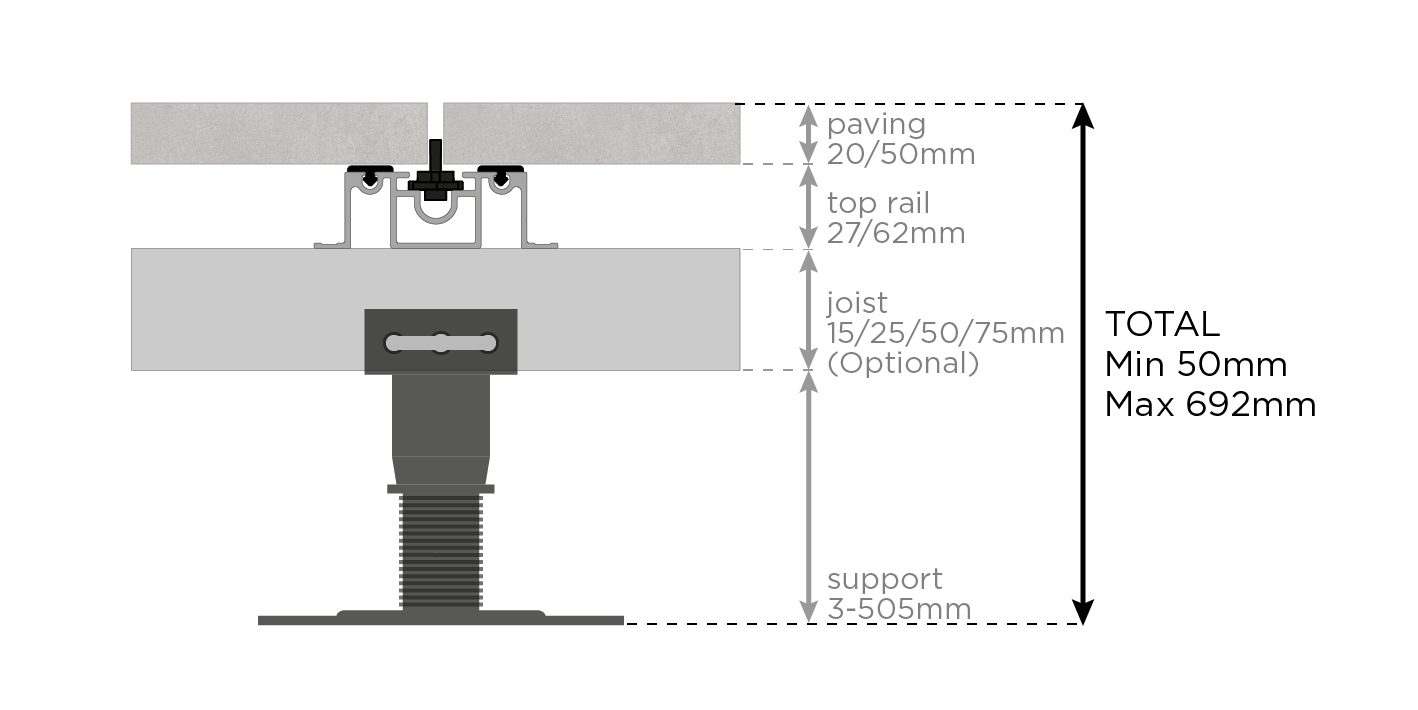

System Height Build Up
