RHF-WU

Rail Wind Uplift Restraint – Hidden Fixing

£0.00

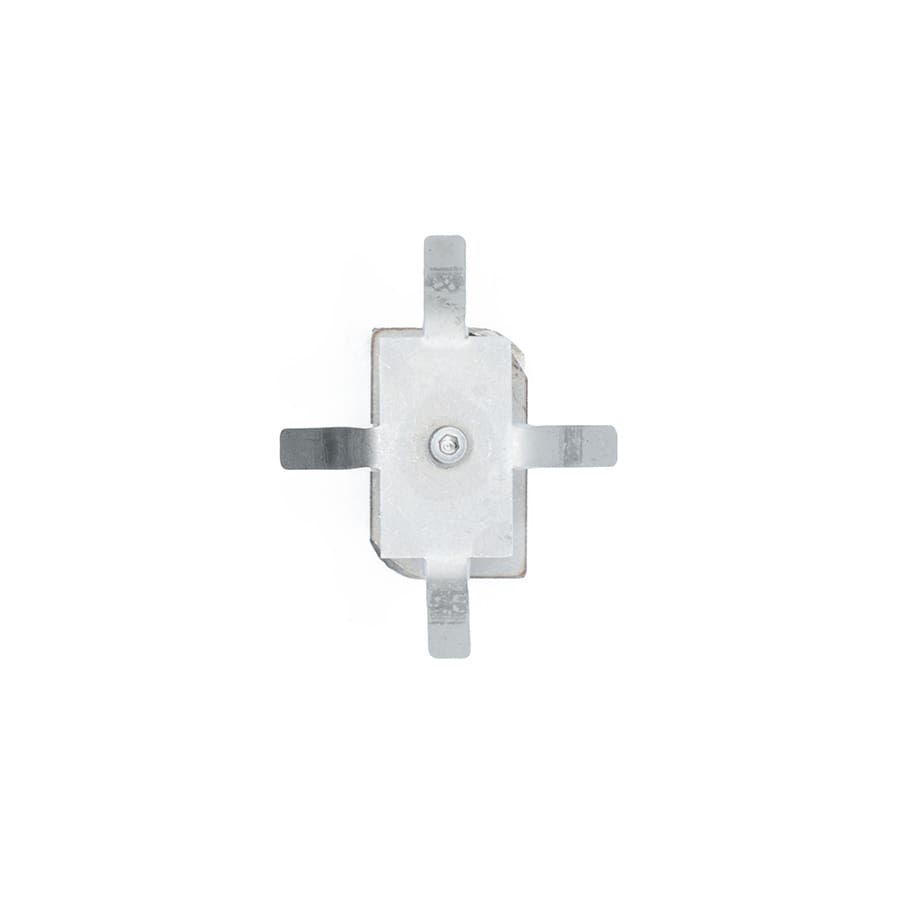

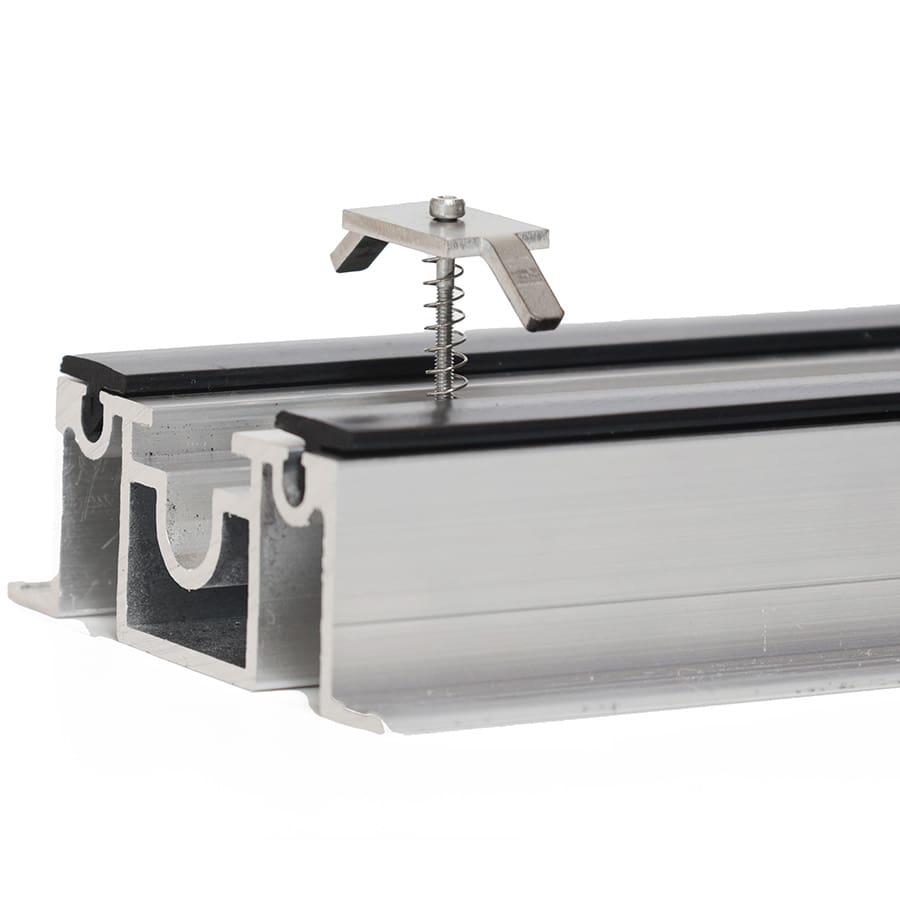

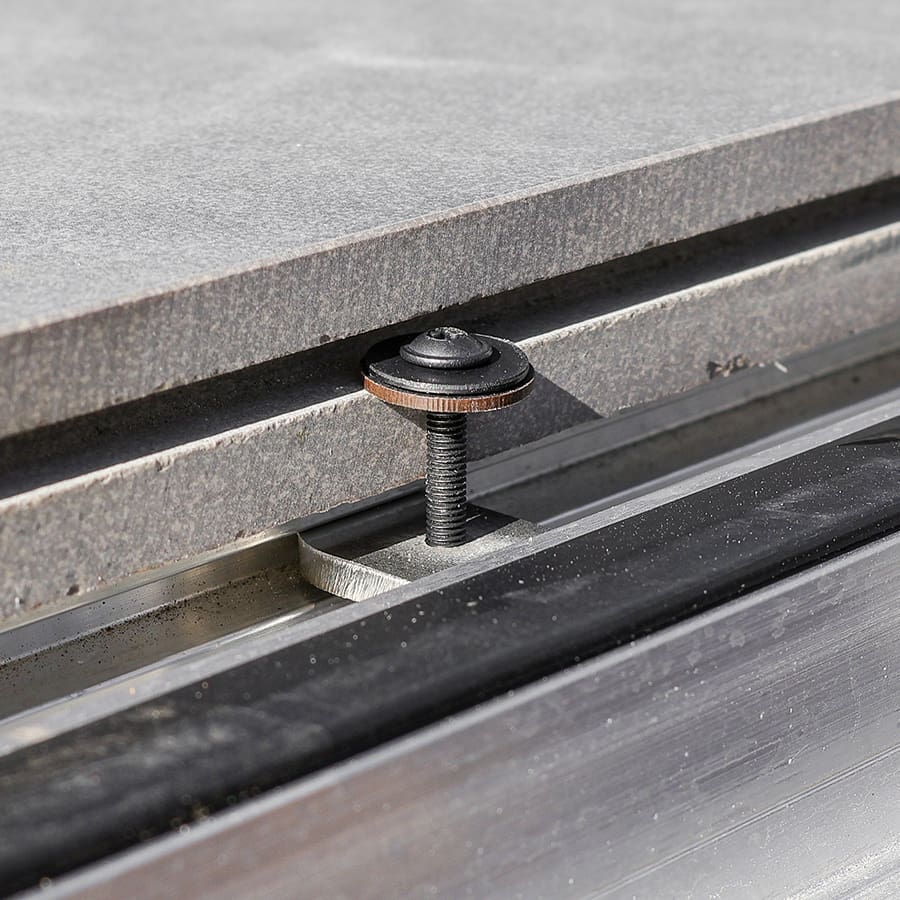

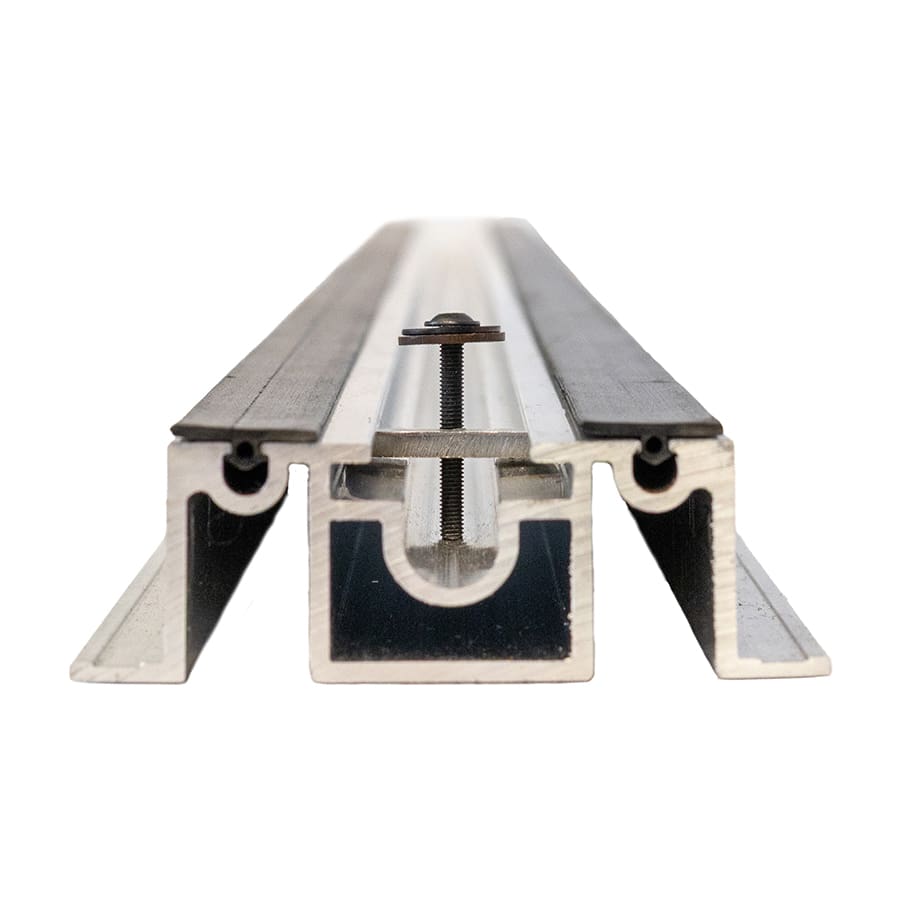

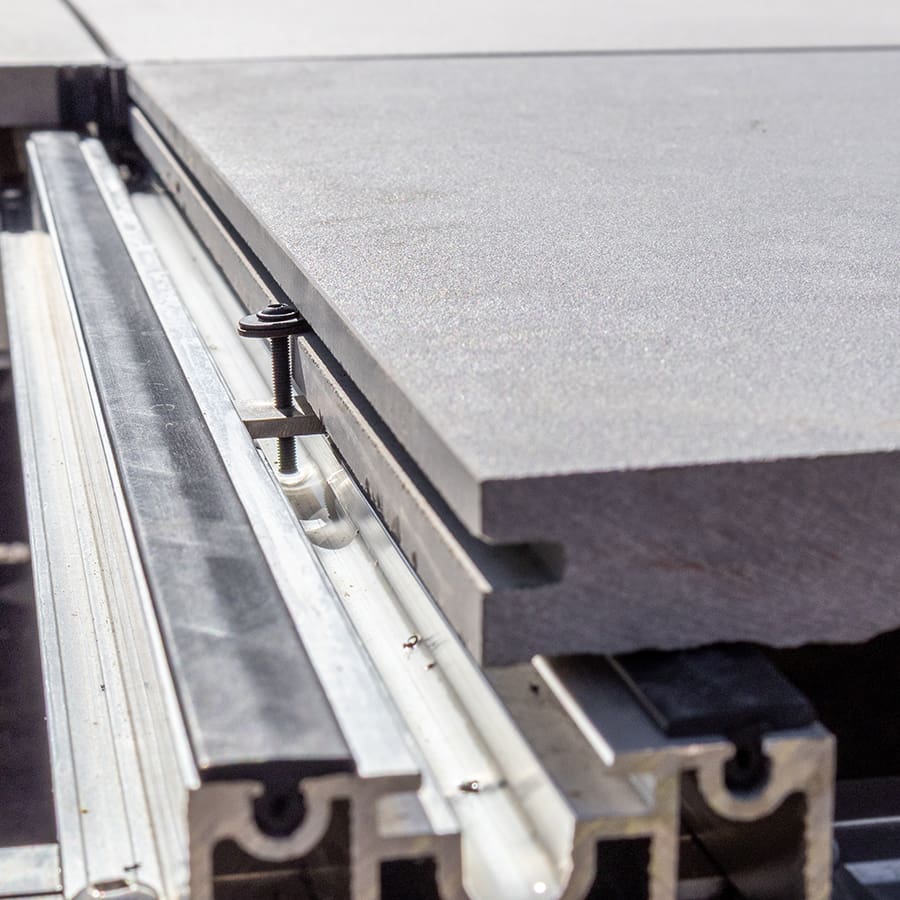

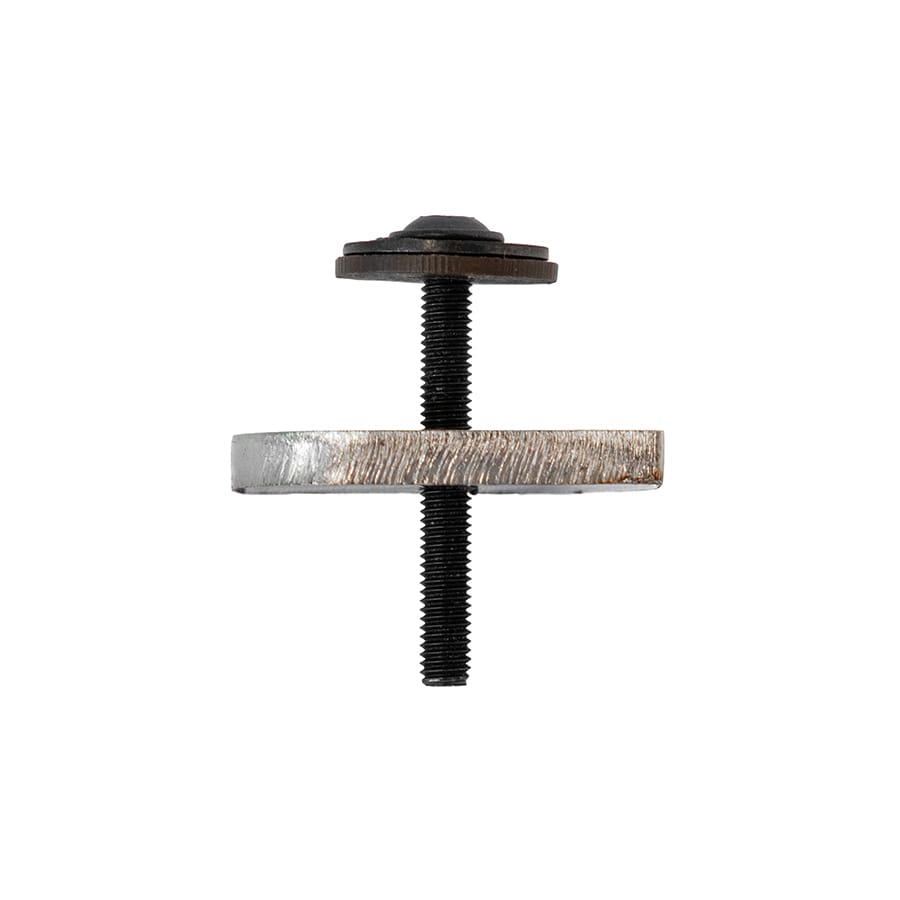

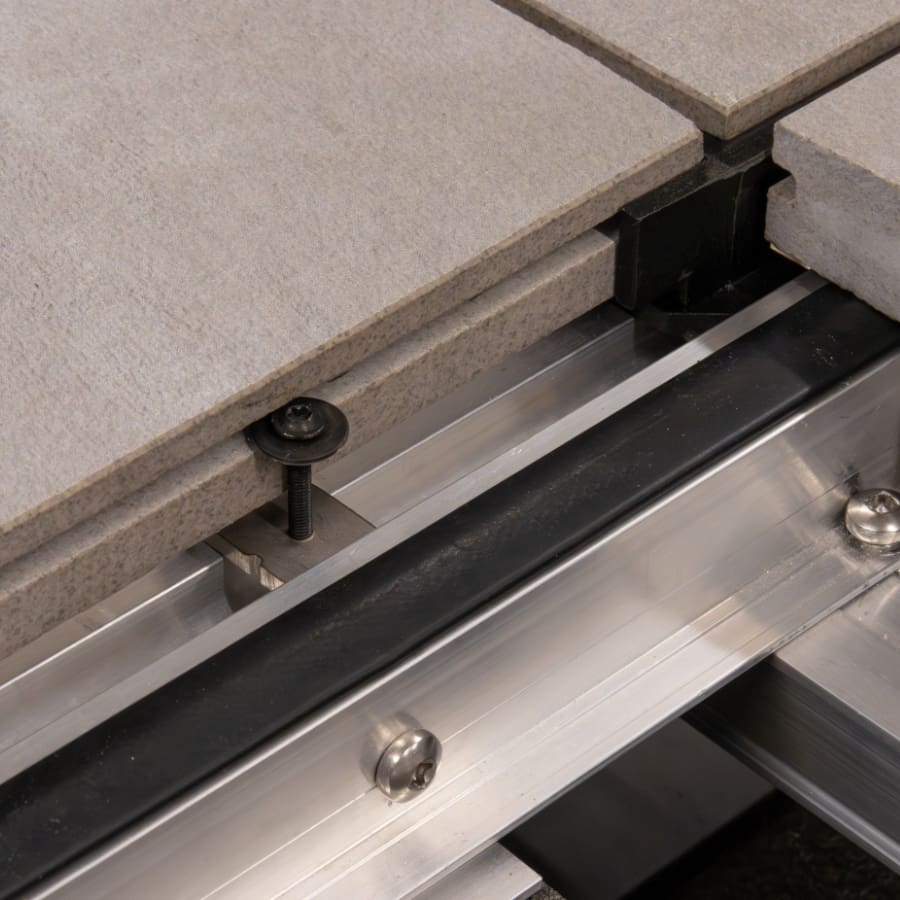

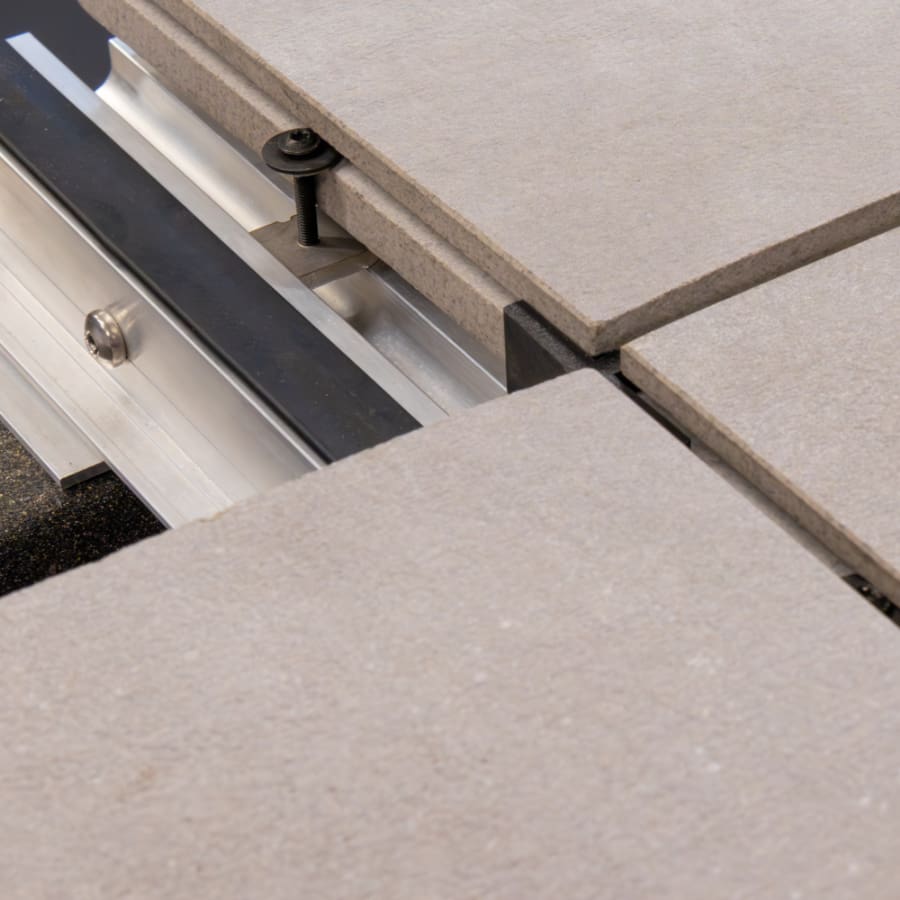

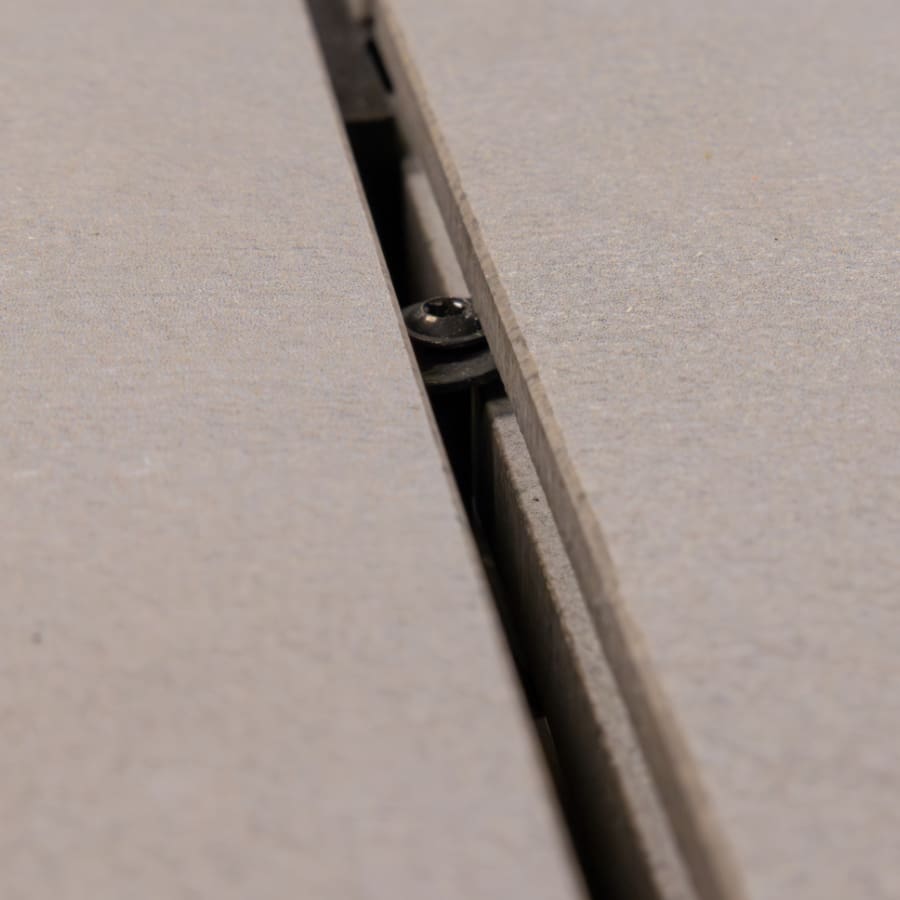

The Rail Wind Uplift Restraint – Hidden Fixing is a specialist stainless steel component that acts as an invisible wind uplift restraint and paving spacer when paired with the RST Aluminium Paving Support Rail and RYNO® kerfed porcelain pavers. The spacer part sits in the kerf of the porcelain, the bottom washer locks into the RST rail, while the machine screw secures the two together. Enabling straightforward installation, the innovative component utilizes spring tension, keeping the spacer part elevated until it’s in place and ready to be tightened.

  • Dual purpose – secure wind uplift restraint and paving spacer
  • Innovative spring tension mechanism for easy installation
  • Hidden fixing for a seamless appearance
  • Stainless steel A4
Download the datasheet

Compatible components

RHF-WU-Rail-Wind-Uplift-Restraint-HiddenFixing

RST

Aluminium Paving Support Rail

Tocco Concrete Coal Grey Porcelain Tile

PT-TC

Tocco Concrete Porcelain Paver

Tocco Core Warm Beige Porcelain Paver

PT-TCO

Tocco Core Porcelain Paver

Tocco Stone Chalk White Porcelain Paver

PT-TS

Tocco Stone Porcelain Paver

Dapello Saturn Beige Paving Tile

PT-DA

Dapello Porcelain Paver

Liddio Rock Black Porcelain Paver

PT-LI

Liddio Porcelain Paver

Grano Teak Oiled Oak Paving Tile

PT-GR

Grano Porcelain Paver

Legnoso Natural Oak Porcelain Paver

PT-LE

Legnoso Porcelain Paver

Details

MaterialStainless Steel A4
Drive typeHex key - 1.5mm
Spacer tab thicknessSee “Part information” below

Performance

Cyclic wind load testing (EOTA Technical Report TR005:2003)Product tested to a maximum of 6000 Pascals (6kPa) in pulsed cycles.
No detrimental effects to any of the systems were found and no failures were observed during testing.
Tested in accordance with EOTA Technical Report TR005:2003.
Test report available on request.
Biological and chemicalResistant to moulds, algae, alkali, bitumen, UV
Warranty30 years*
Design life60 years

*when used as part of a complete RYNO IGNO system

Part information

Part codeDescriptionSpacer tab thickness
Cross spacerDescription: To create ‘stackbond’ joints in the paved surfaceSpacer tab thickness: 4mm
T spacerDescription: For use where paving joints are staggeredSpacer tab thickness: 4mm
Straight spacerDescription: For use where paving joists are straight, or around the perimeterSpacer tab thickness: 4mm
