System Overview
PDF 3.12 MB
Technical information
| Reaction to fire (to EN13501-5:2018) | BROOF(t4)* |
|---|---|
| System overall height range | 103 – 1175mm + |
| Loading capability (to EN 1991-1:2002) | Concentrated load: >2.0kN as standard, available up to 4.5kN if required Uniformly distributed: >4.0kN as standard, available up to 7.5kN if required/m2 |
| Approx. system weight | 30-45kg/m2 (excluding sand) |
| Wind uplift restraint available | Yes |
| Warranty | 15 years |
*Silica sand must be applied to the finished surface at a rate of 8-10kg/m2 to achieve correct product specification and validate warranty

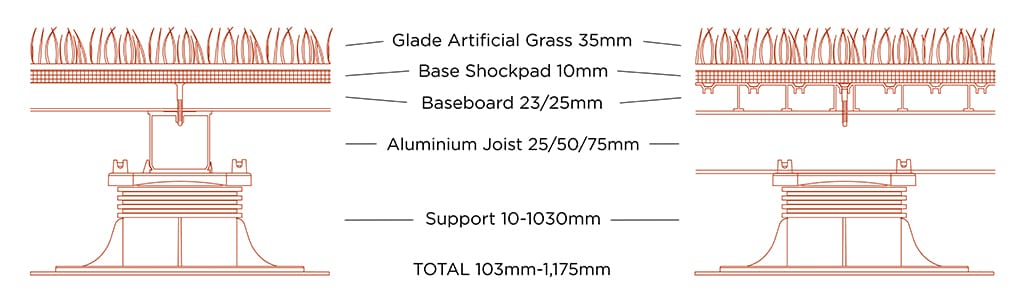

System height build up
The art of roof terraces
View more roof
terrace systems
We bring deep industry experience and a problem-solving mindset, offering clarity, insight and practical advice at every stage.
Integrated roof terrace systems designed for compliance, compatibility and ease of installation. From paving, decking and surfacing, to planters and balustrades – all you need for the perfect roof space.
