ADC | Low-Height Support Cleat
£0.00

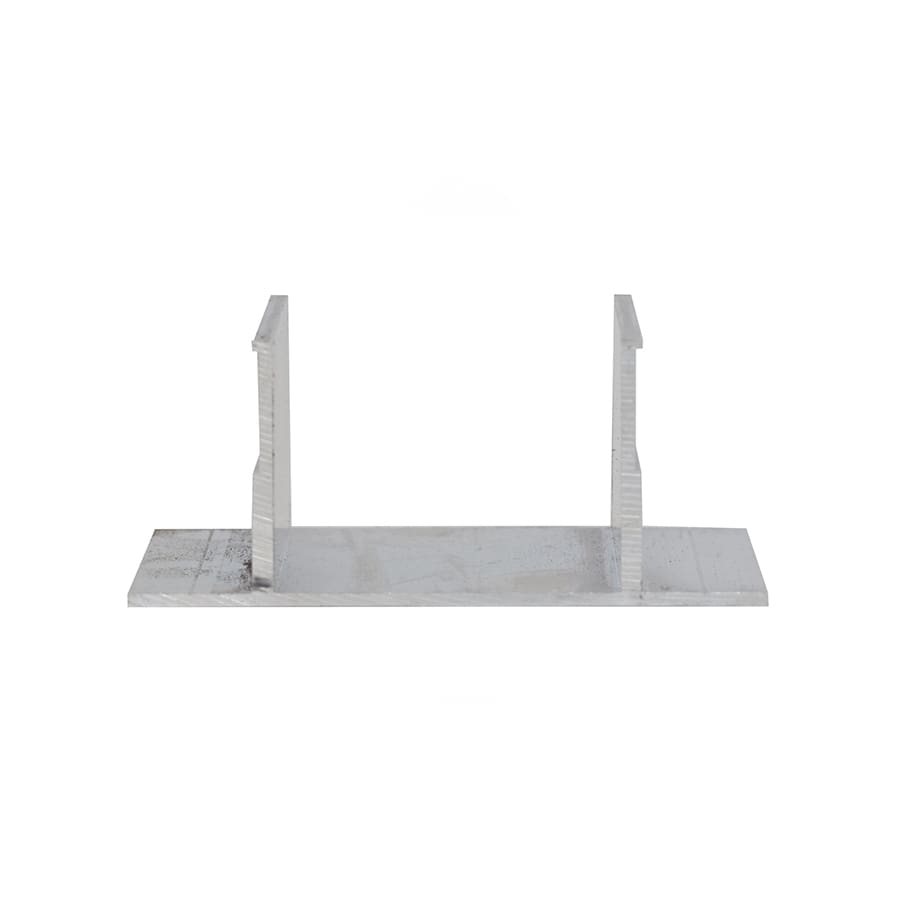

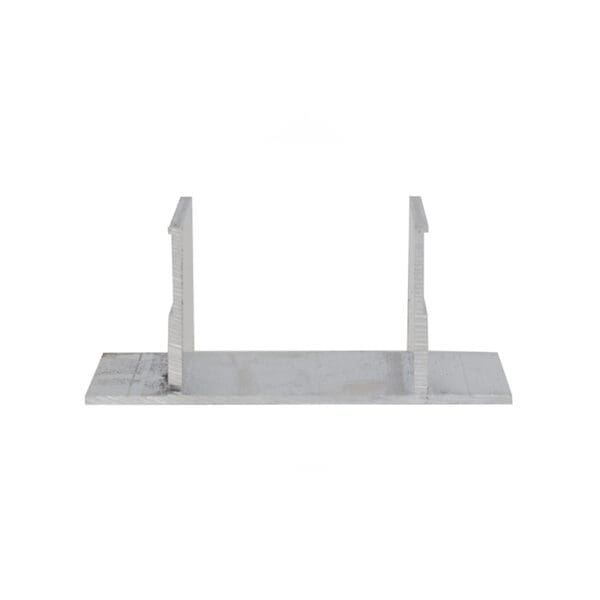

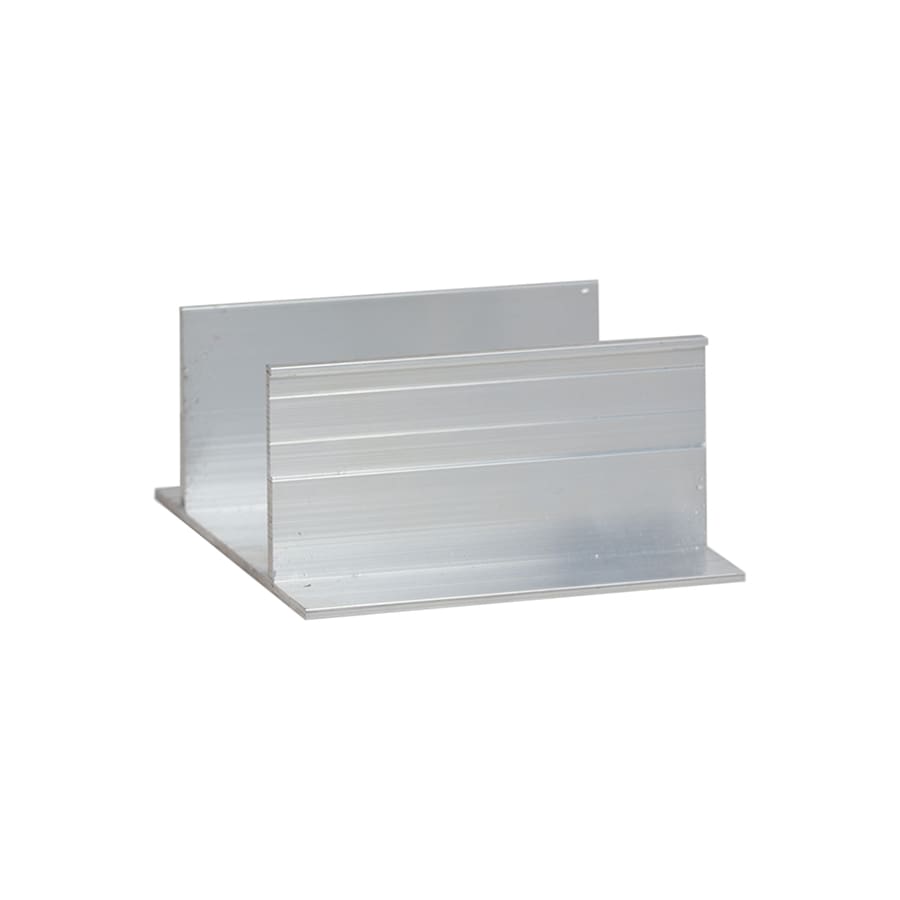

The design of the aluminium decking cleat allows you to create aluminium decking systems in the tightest of spaces by minimising the height build-up of your system. It can be used when a constricting height build-up restricts the available clearance between the waterproof substrate and the finished floor level; or where additional height is required on metal frame balconies. Joist cleats are height adjustable, catering for falls, or meeting door thresholds while contributing as little as 2mm build-up.
- Allows for height adjustment to cater for falls or to meet door thresholds
- Can attach directly to balcony frame for additional height build-up
- A large base spreads the weight evenly when laid on waterproofed substrates
- A1 reaction to fire
Accessories
Cleat/Joist Screw
4.2 x 13mm MX8 screw for fixing joist to pedestals. Stainless steel A2 304.
Base shock pad
Base shock-absorbent membrane pads can be installed under the pedestal/support base to enhance acoustic properties, or to provide additional protection to the waterproof system.
Technical Specification
| Allowable load | Uniformly distributed >4.0kN/m2, Concentrated 2kN |
|---|---|
| Aluminium grade | Aluminium alloy 6063 T6 |
| Biological/chemical | Resistant to moulds, algae, alkali, bitumen, UV |
| Compatible joists | DS joist range |
| Reaction to fire | Mill finish - A1 |
| Warranty | 30 years* |
| Design life | 60 years* |
*Valid when used as part of a complete RYNO IGNO system
Dimensions
| Code | Adjustable Height Range | Base Dimensions |
|---|---|---|
| ADC-0 | Adjustable Height Range: 2.5-7mm | Base Dimensions: 85 x 75mm |
| ADC-1 | Adjustable Height Range: 2-15mm | Base Dimensions: 90 x 75mm |
| ADC-2 | Adjustable Height Range: 2-28mm | Base Dimensions: 90 x 75mm |
| ADC-3 | Adjustable Height Range: 2-40mm | Base Dimensions: 90 x 75mm |
| ADC-4 | Adjustable Height Range: 15-78mm | Base Dimensions: 130 x 75mm |
Download
Datasheet - ADC Aluminium Joist Support Cleat
pdf 0.52 MB
Compatible Systems
TerraSmart®
Vitrified Composite™ Decking System
A1 fire-rated, wood effect decking systems for waterproofed substrates
