System Overview
pdf 1.49 MB
Technical Information
| Reaction to fire (to EN13501-1:2018) | A2-s1,d0 and A2fl-s1 |
|---|---|
| System overall height range | 20mm to 193mm as standard, custom heights available (incl. decking) |
| Loading capability (to EN 1991-1:2002) | Concentrated load: >2.0kN as standard, available up to 4.5kN if required Uniformly distributed: >4.0kN as standard, available up to 7.5kN if required/m2 |
| Approx. system weight | 10-15kg/m2 |
| Wind uplift restraint available | Yes |
| Warranty | 30 years* |
| Design Life | 60 years* |
*Valid when used as part of a complete RYNO® IGNO® system

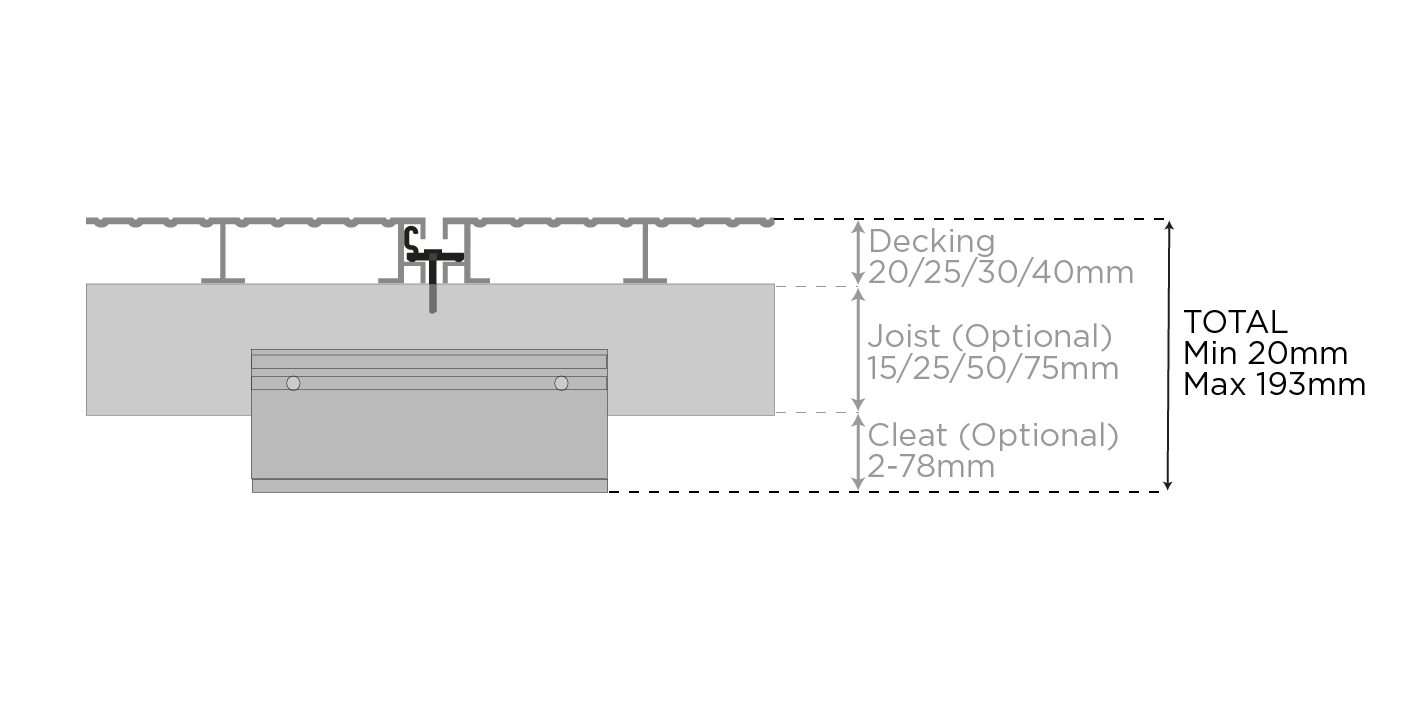

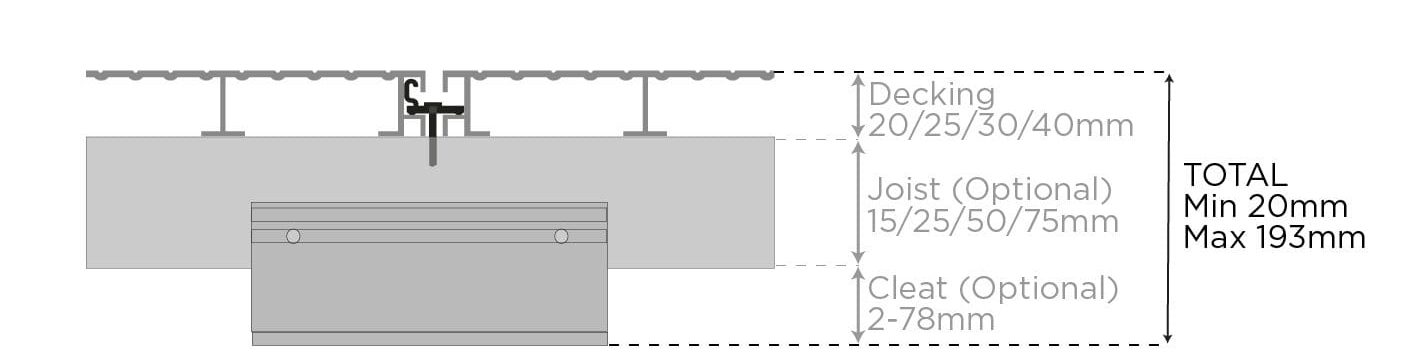

System Height Build Up
