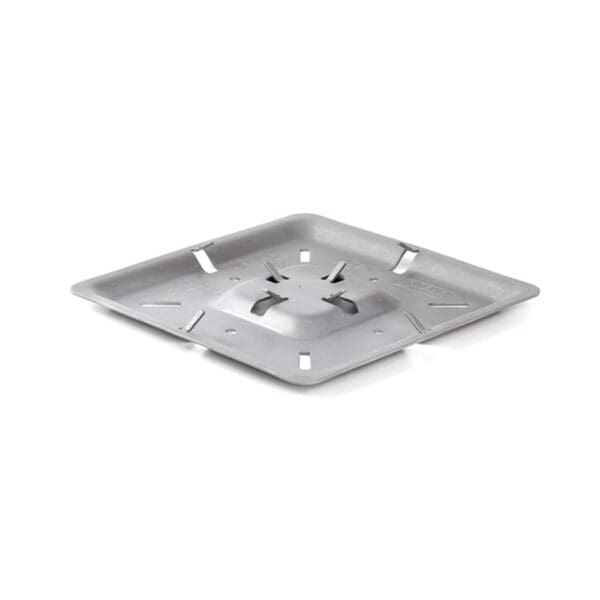

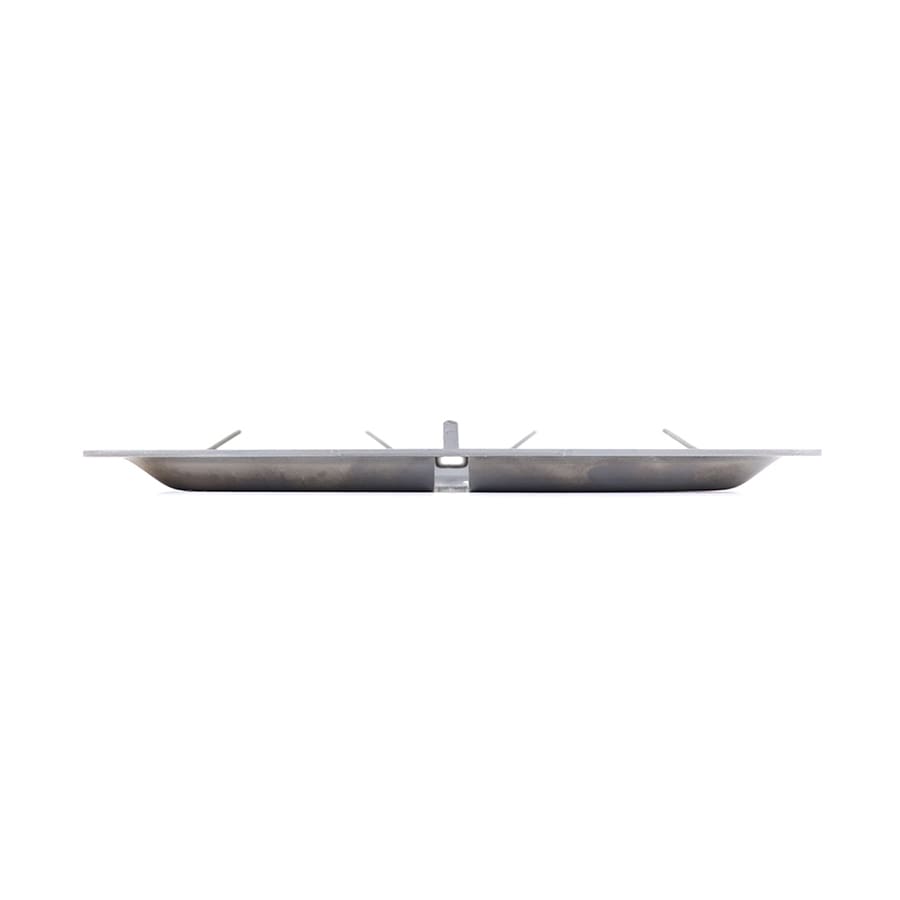

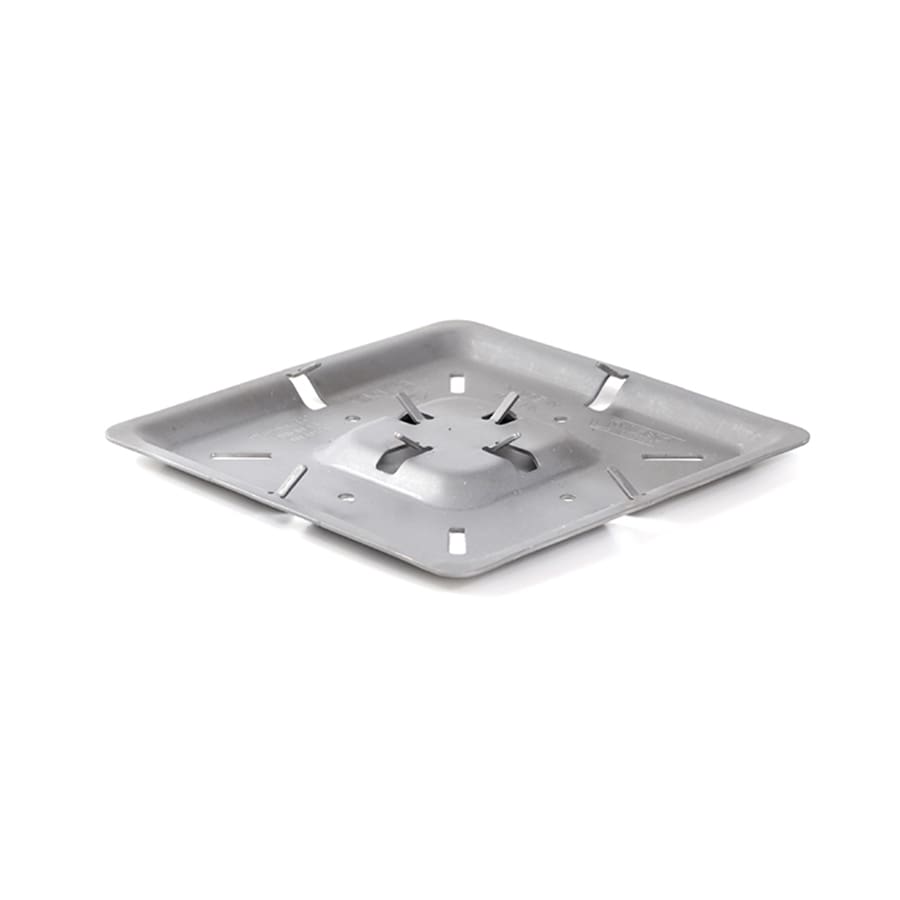

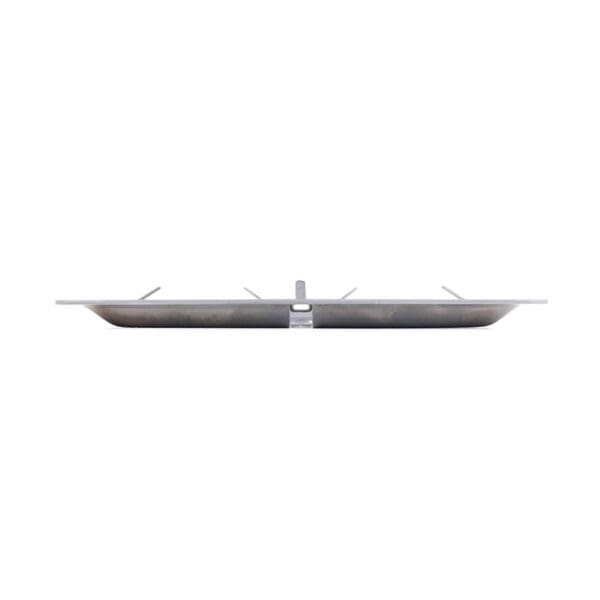

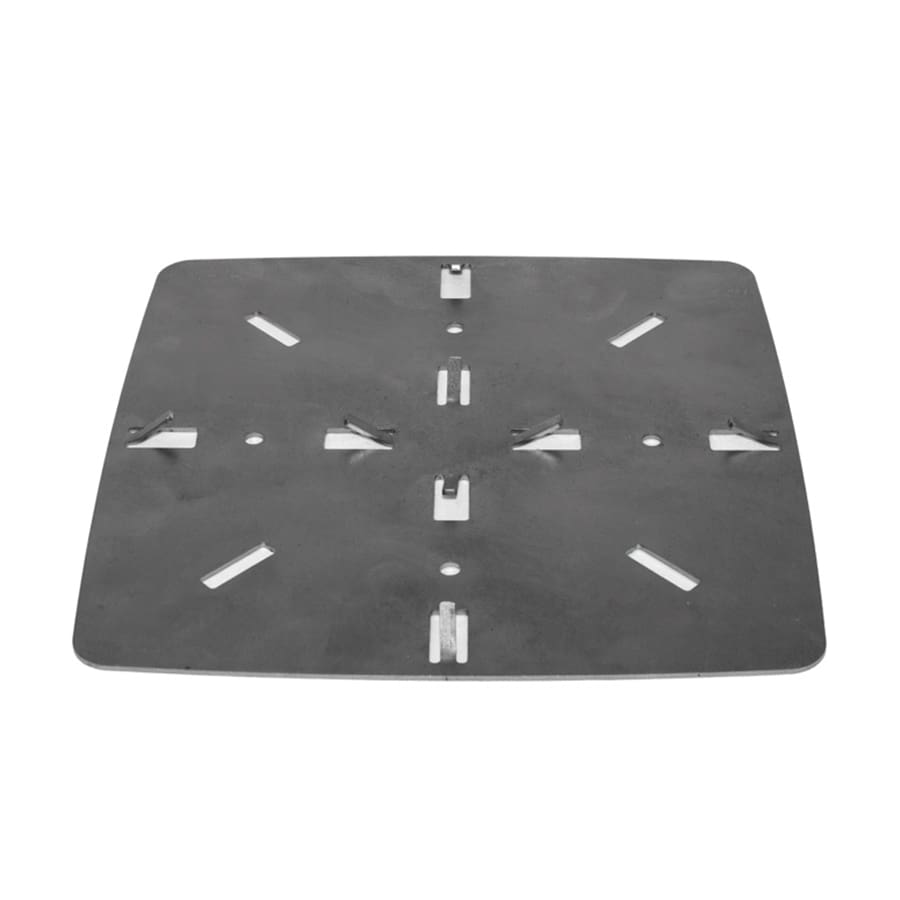

RPS-FR | Low-Height Paving Support

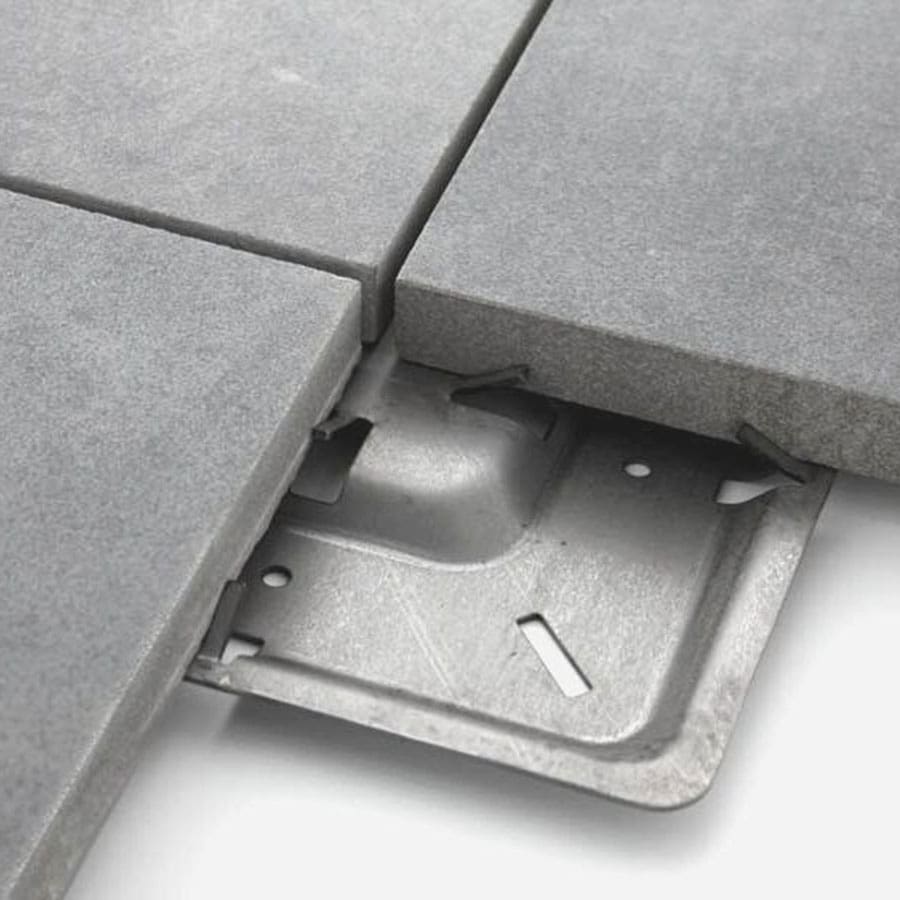

Euroclass A1 fire rated paving support specifically designed to enable very low-height paving applications. The RPS-FR non-combustible low-height paving support is an economical, simple to use and super-strong solution.

  • Suitable for all calibrated paving types, including natural stone, concrete and porcelain
  • Perfect for balconies, terraces, podiums, roof decks
  • Designed and manufactured in the UK

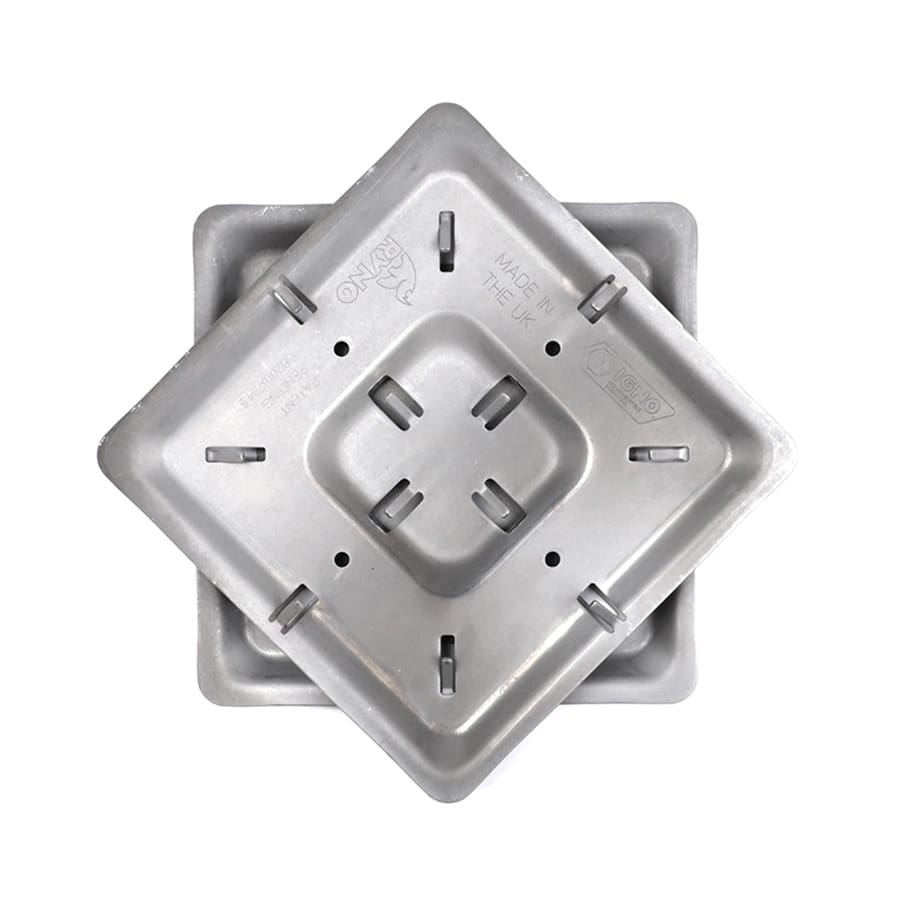

  • Can be stacked to achieve additional height build-up in 2mm or 10mm increments
  • 30-year warranty, 60-year design life
  • Perfect support system for balconies, terraces, podiums, roof decks and patio overlays
  • Suitable for all calibrated paving types, including natural stone, concrete and porcelain
Download the datasheet


Edge spring clip

The edge spring clip fits on top of paving supports around the periphery of paved areas to ensure uniform spacing against wall abutments, helping ensure rapid drainage. By tensioning the tile bed, it counteracts creepage and movement.

Head shock pads

Head shock-absorbent gaskets fit on top of the paving supports, cushioning tiles and removing the possibility for grit to cause grinding between tile and pedestal head.

Base shock pads

Base shock-absorbent membrane pads can be installed under the pedestal/support base to enhance acoustic properties, or to provide additional protection to the waterproof system.

Technical Specification

Product materialZinc-nickel electroplated mild steel
Reaction to fireA1
Height range10-100mm
Compressive strength1000kg+
Spacer tab thickness4mm
Biological/chemicalResistant to moulds, algae, alkali, bitumen, UV
Warranty30 years
Design life60 years

Build-up options

FormatHeight build-up
Directly stacked2mm increments
Stacked at 45 degrees10mm increments


Datasheet - RPS-FR Paving Support

pdf 0.57 MB

Download the overview for the system for more information

Download form
