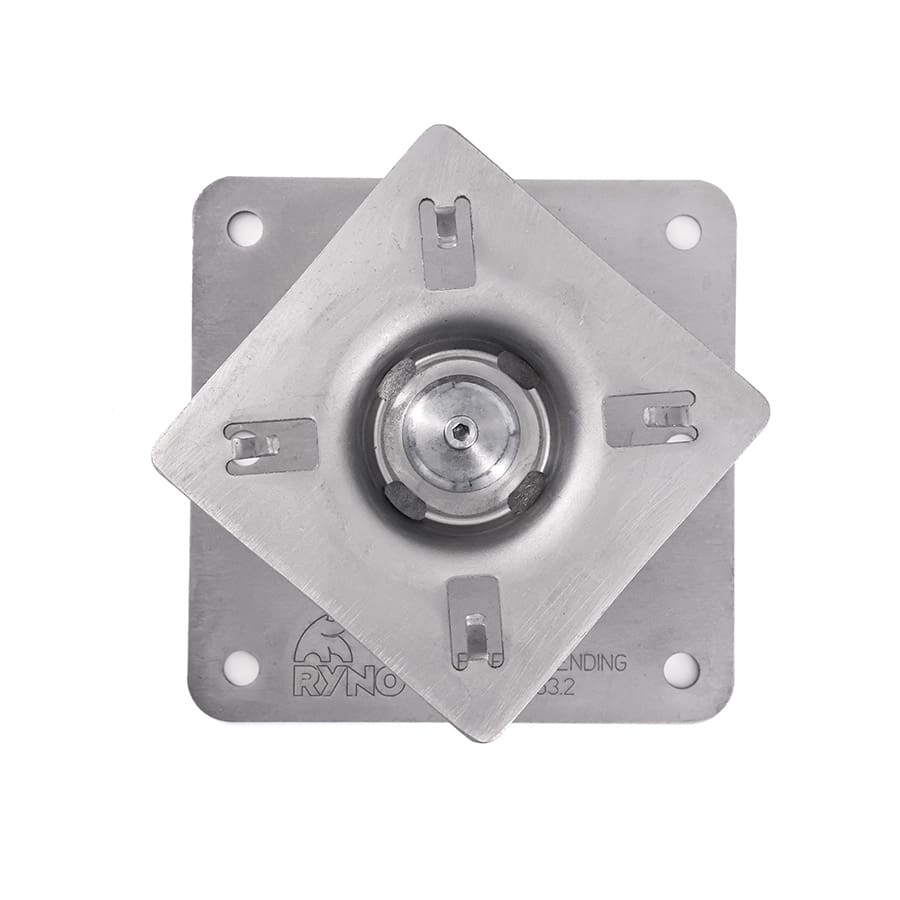

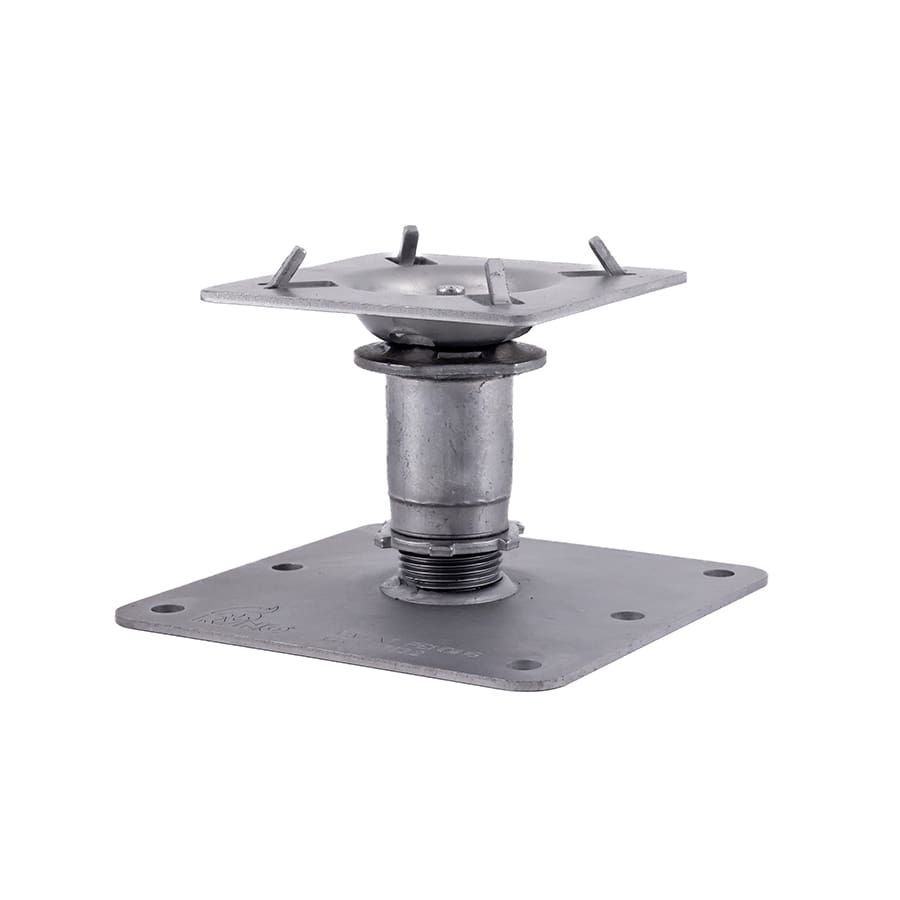

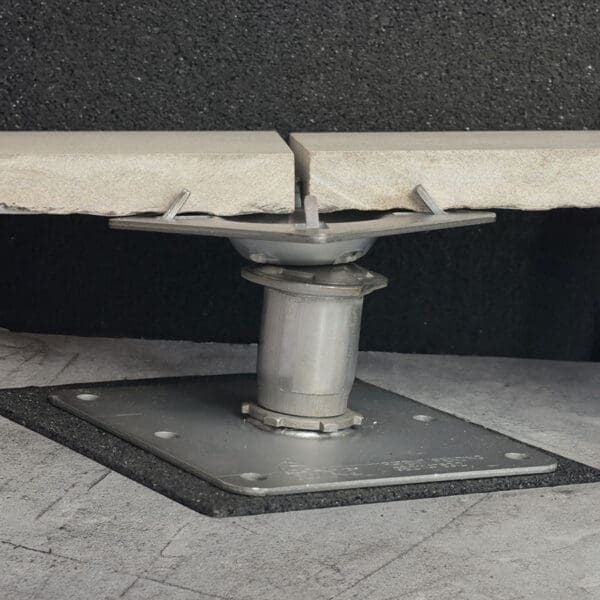

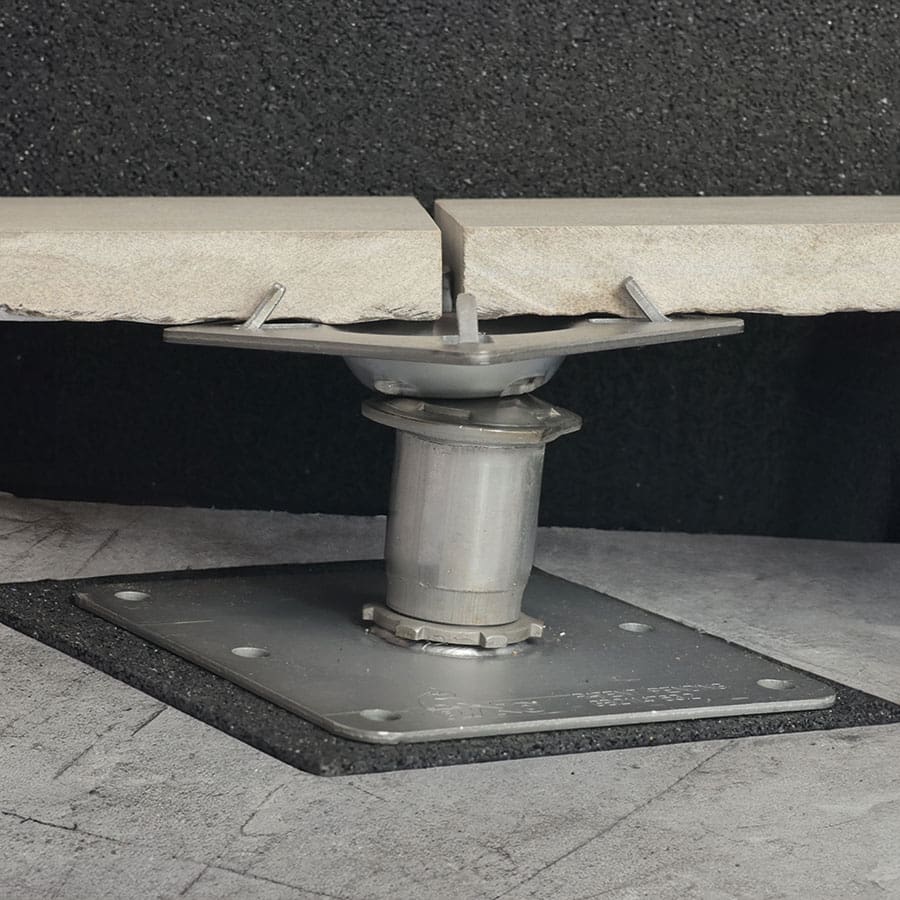

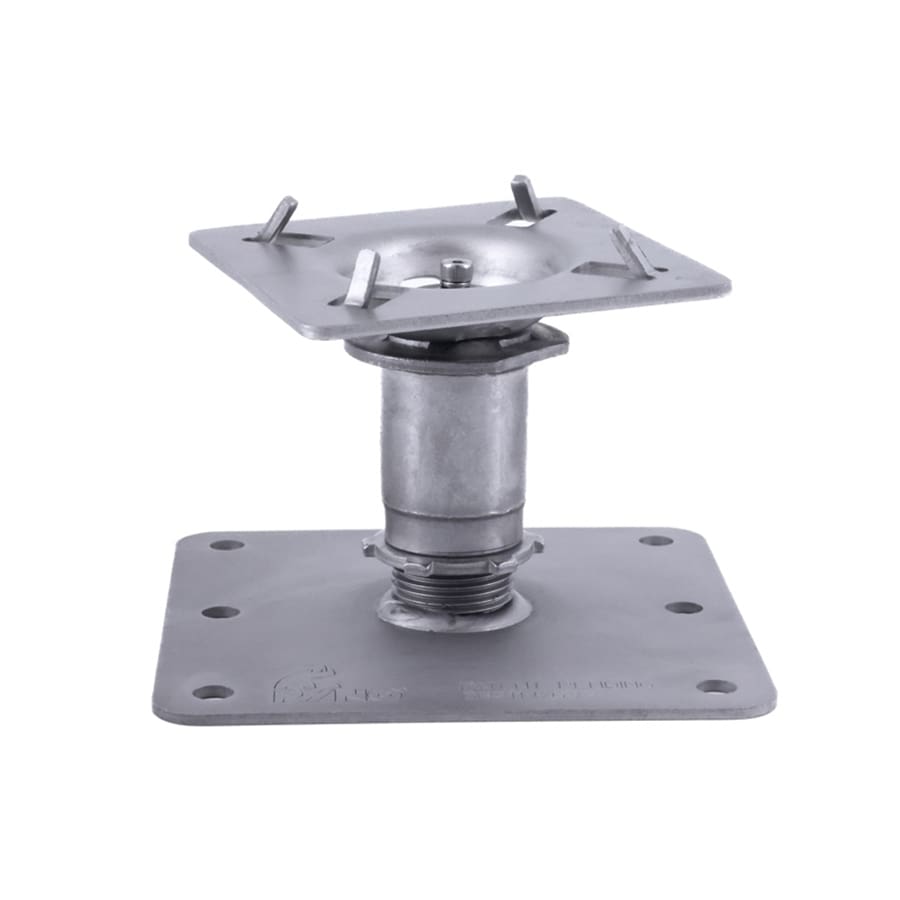

RPA-FR | Non-Combustible Self-Levelling Paving Support Pedestal


The RPA-FR is a non-combustible adjustable paving pedestal with built-in lockable slope correction. This paving support is manufactured from steel, with zinc-nickel electroplating for corrosion resistance.

  • Suitable for all calibrated paving types, including porcelain, concrete, and natural stone
  • The locking ring ensures absolute stability and secured the pedestal at the desired height
  • Integrated metal spacer tabs
  • Perfect for terraces, podiums, roof decks and inset balconies
  • Holes in the base for fixing to substrate if required.
  • Ball and socket securable head design for slope correction
Download the datasheet


Head shock pad

Head shock-absorbent gaskets fit on top of the paving supports, cushioning tiles and removing the possibility for grit to cause grinding between tile and pedestal head.

Base shock pads

Base shock-absorbent membrane pads can be installed under the pedestal/support base to enhance acoustic properties, or to provide additional protection to the waterproof system.

Edge spring clip

The edge spring clip fits on top of paving supports around the periphery of paved areas to ensure uniform spacing against wall abutments, helping ensure rapid drainage. By tensioning the tile bed, it counteracts creepage and movement.

Spreader plate

For applications where the substrate requires lower point pressure, the 170mm circular spreader plate can be attached to the underside of the pedestal base.

Technical Specification

Product materialZinc-nickel electroplated mild steel
Reaction to fireA1
Compressive strength2400kg
Base Dimensions124x124mm (170mm round spreader plate available)
Head dimensions90mm x 90mm
Biological/chemicalResistant to moulds, algae, alkali, bitumen, UV
Warranty30 years
Design life60 years
Maximum Slope Correction10.5% (6 degrees)


CodeHeight rangeWeightPackaging/pack sizes
RPA-FR-1Height range: 35-40mmWeight: 0.64kgPackaging/pack sizes: Boxes/bags of 25
RPA-FR-2Height range: 40-50mmWeight: 0.68kgPackaging/pack sizes: Boxes/bags of 25
RPA-FR-3Height range: 50-70mmWeight: 0.7kgPackaging/pack sizes: Boxes/bags of 25
RPA-FR-4Height range: 70-110mmWeight: 0.76kgPackaging/pack sizes: Boxes/bags of 25
RPA-FR-5Height range: 110-190mmWeight: 0.92kgPackaging/pack sizes: Boxes/bags of 25
RPA-FR-6Height range: 190-305mmWeight: 1.11kgPackaging/pack sizes: Boxes/bags of 15
RPA-FR-7Height range: 305-405mmWeight: 1.28kgPackaging/pack sizes: Boxes/bags of 15
RPA-FR-8Height range: 405-505mmWeight: 1.39kgPackaging/pack sizes: Boxes/bags of 15


Datasheet - RPA-FR Paving Pedestal

pdf 0.50 MB

Download the overview for the system for more information
