RP-FR-WU
Non-Combustible Wind Uplift Paving Support Pedestal
£0.00

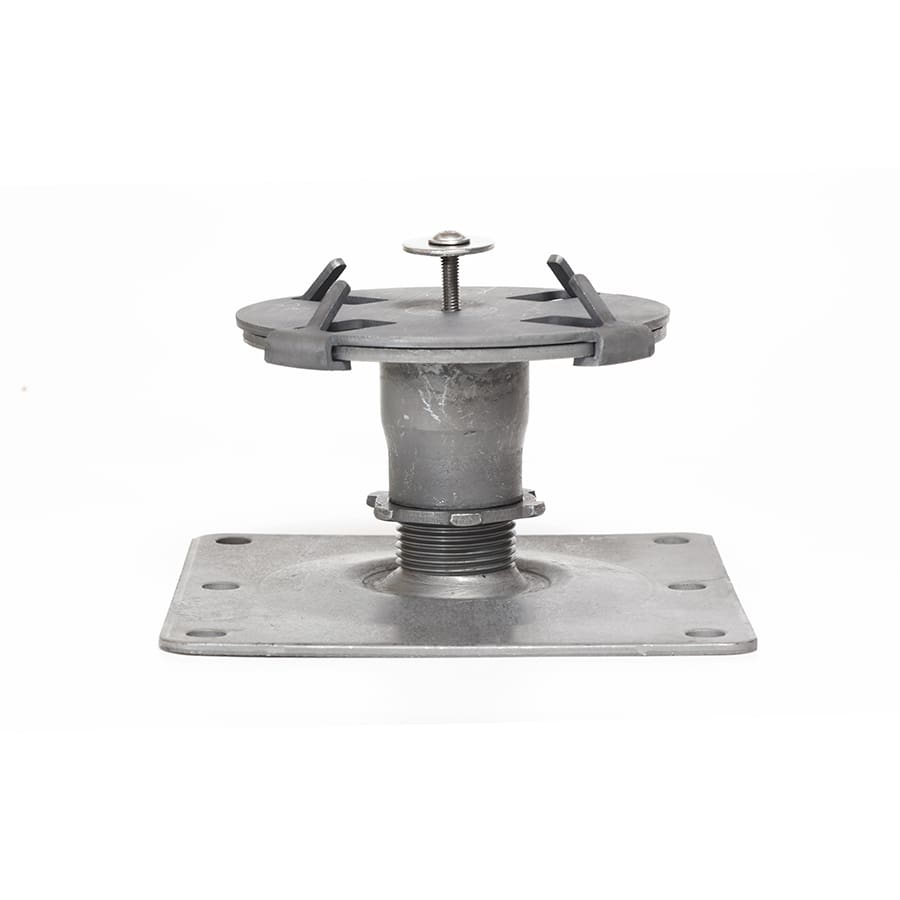

The Non-Combustible Wind Uplift Paving Support Pedestal is an adjustable paving pedestal featuring a subtle, visible wind uplift restraint. Crafted from steel and zinc-nickel electroplated for corrosion resistance, this fixed-head pedestal offers precise millimetric adjustment across a wide height range.
- Suitable for all calibrated paving types, including porcelain, concrete, and natural stone

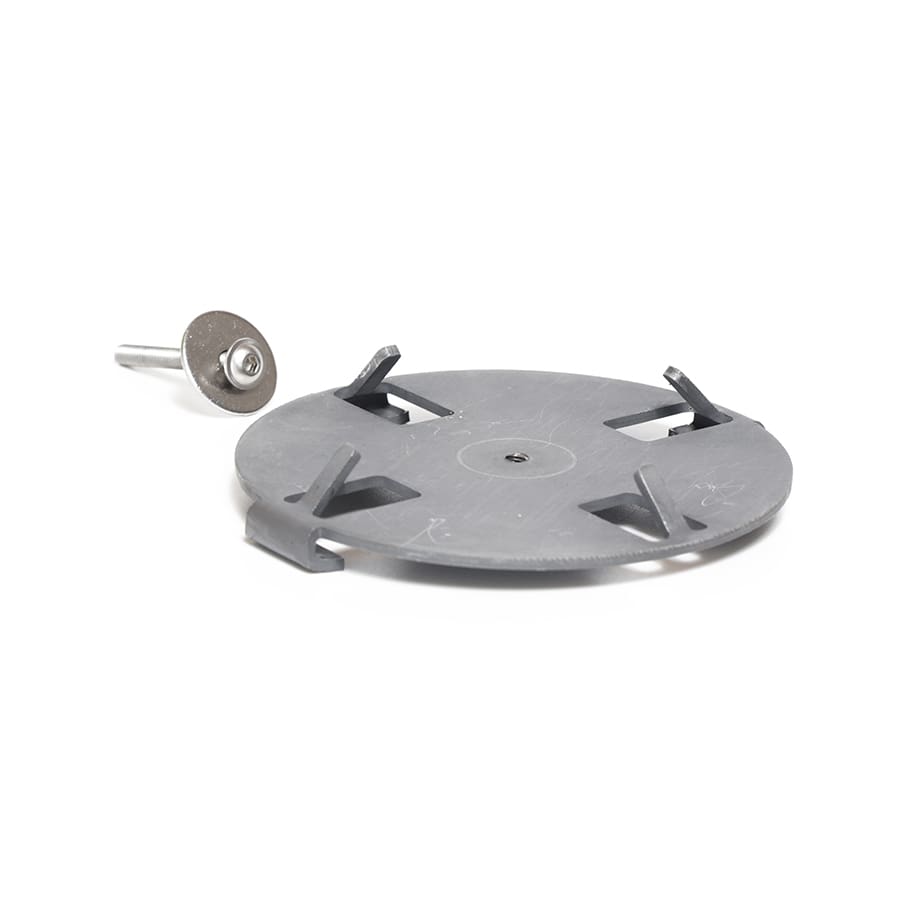

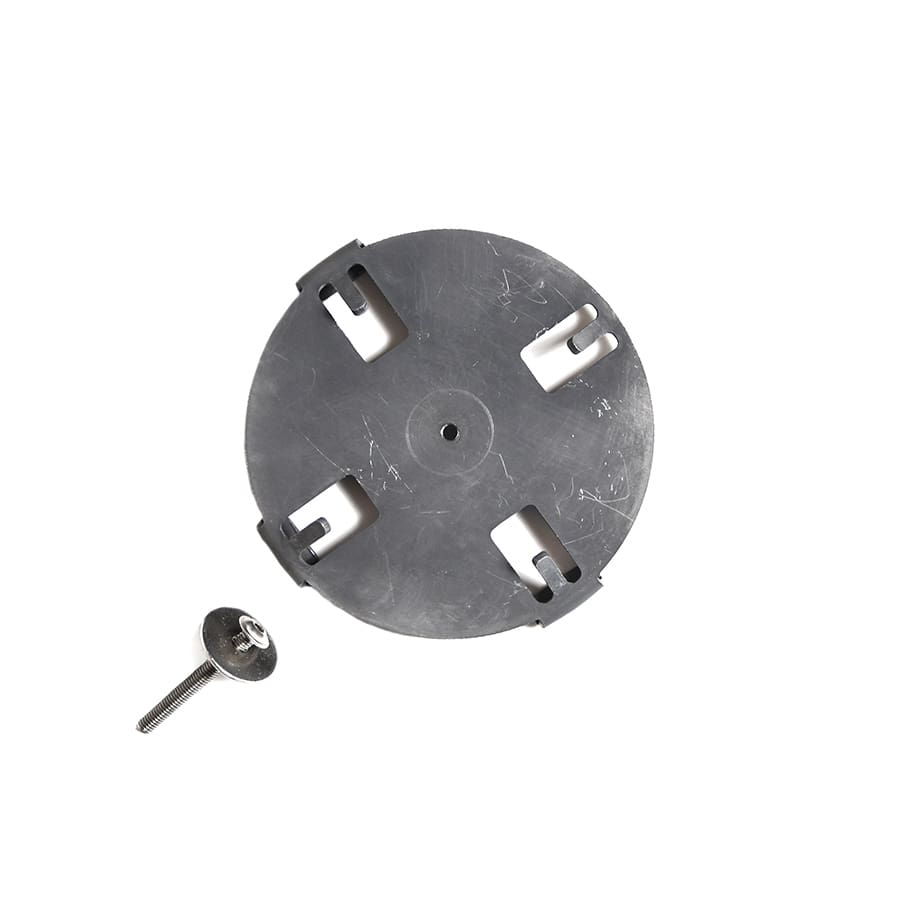

- Wind uplift restraint fixings included
- Locking ring ensures absolute stability
- Large height range available

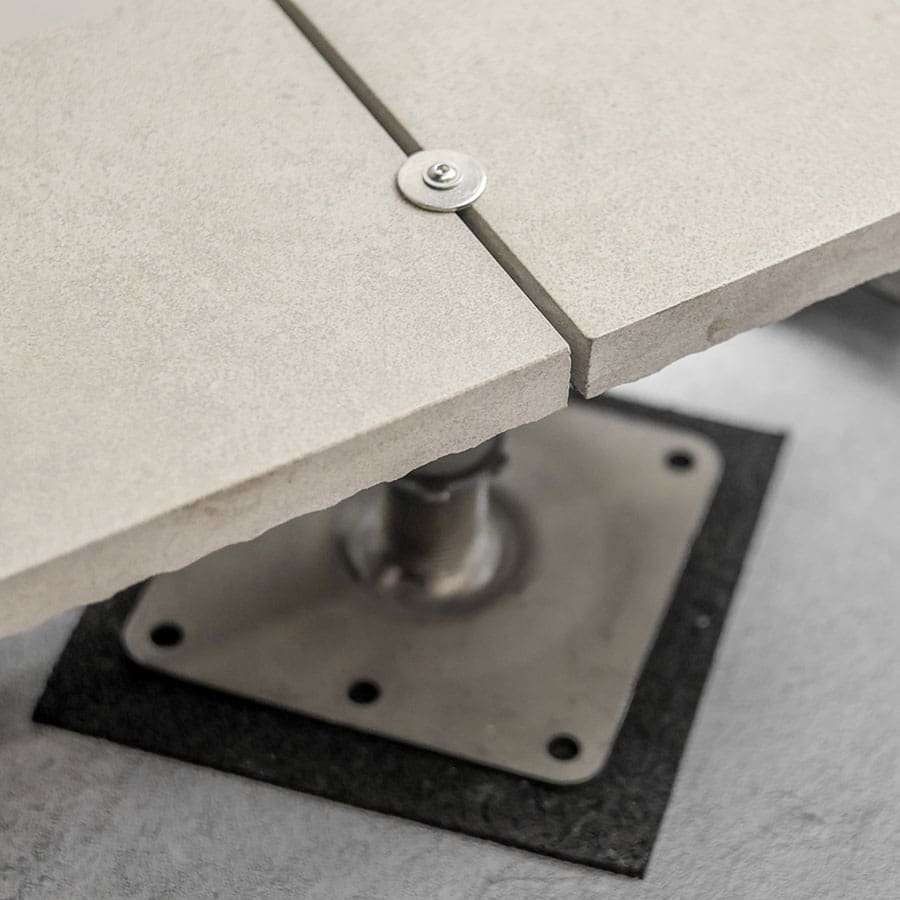

- Ideal for terraces, podiums, roof decks, and inset balconies

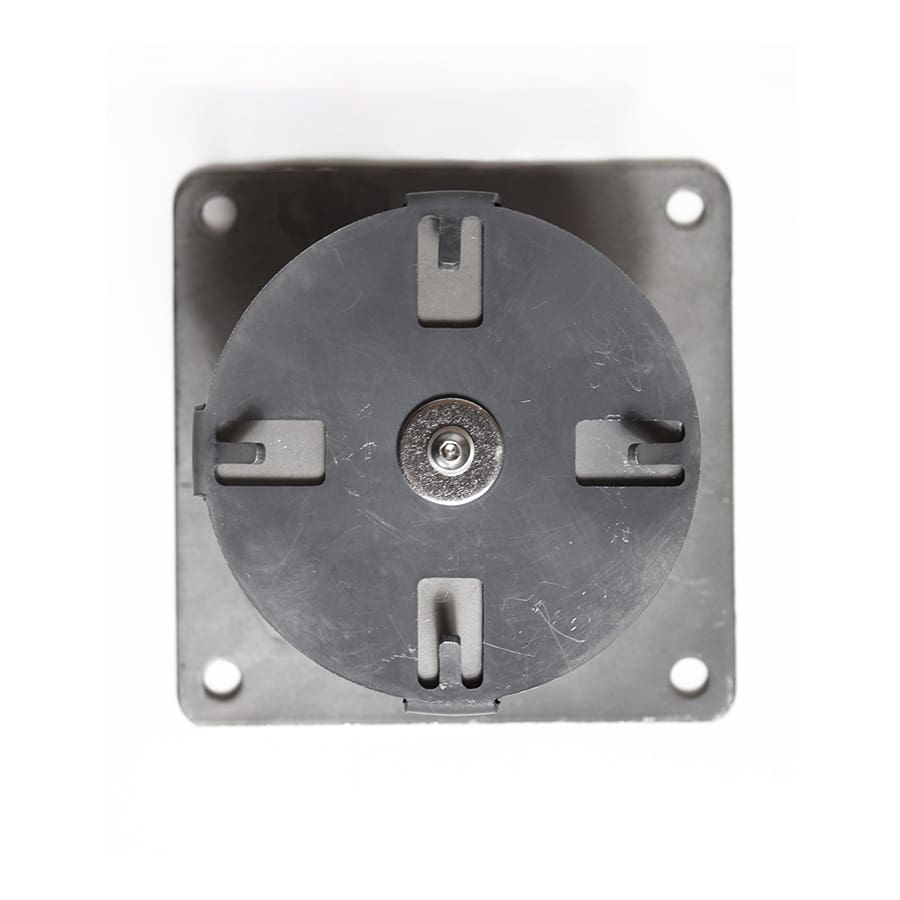

- Holes in the base for optional fixing to the substrate
Compatible components
HSP
Non-Combustible Head Shock Pad
BRSP
Base Rubber Shock Pad
ESC
Edge Spring Clip
SP
Spreader Plate
PT-QU
Quadro Porcelain Paver
Details
| Materials | Pedestal and Head: Zinc-nickel electroplated mild steel Fixing and Washer: Stainless Steel A2 |
|---|---|
| Dimensions | Base size: 120x120mm Fixing: M4x30mm Washer: M4x20mm |
| Drive Type | Hex key |
| Spacew Tab Thickness | 4mm |
| Height Range | See part information |
Performance
| Cyclic wind load testing (EOTA Technical Report TR005:2003) | Tested to a maximum uplift pressure of 6 kPa in pulsed cycles. No detrimental effects to any of the system were found and no failures were observed during testing* |
|---|---|
| Reaction to fire (BS EN 13501-1) | Inherently A1 (Decision 94-611/EC) |
| Compressive Strength | 3200kg+ Per pedestal |
| Allowable Load | See Compatible System data |
| Biological/chemical | Resistant to corrosion, moulds, algae, alkali, bitumen, UV |
| Warranty | 30 years* |
| Design Life | 60 years |
*when used as part of a complete RYNO IGNO system
Part Information
| Part Code | Height Range | Weight | Pack Quantity |
|---|---|---|---|
| RP-FR-WU-1 | Height Range: 25-35mm | Weight: 0.46kg | Pack Quantity: 25 |
| RP-FR-WU-2 | Height Range: 35-50mm | Weight: 0.5kg | Pack Quantity: 25 |
| RP-FR-WU-3 | Height Range: 50-70mm | Weight: 0.53kg | Pack Quantity: 25 |
| RP-FR-WU-4 | Height Range: 70-115mm | Weight: 0.58kg | Pack Quantity: 25 |
| RP-FR-WU-5 | Height Range: 115-205mm | Weight: 0.92kg | Pack Quantity: 25 |
| RP-FR-WU-6 | Height Range: 205-305mm | Weight: 1.11kg | Pack Quantity: 18 |
| RP-FR-WU-7 | Height Range: 305-405mm | Weight: 1.28kg | Pack Quantity: 18 |
| RP-FR-WU-8 | Height Range: 405-505mm | Weight: 1.39kg | Pack Quantity: 18 |
Download
Datasheet
pdf 0.41 MB
RP-FR-WU Non-Combustible Wind Uplift Paving Support Pedestal
