RPS-FR-WU
Non-combustible Wind Uplift Stackable Paving Support Pad
£0.00

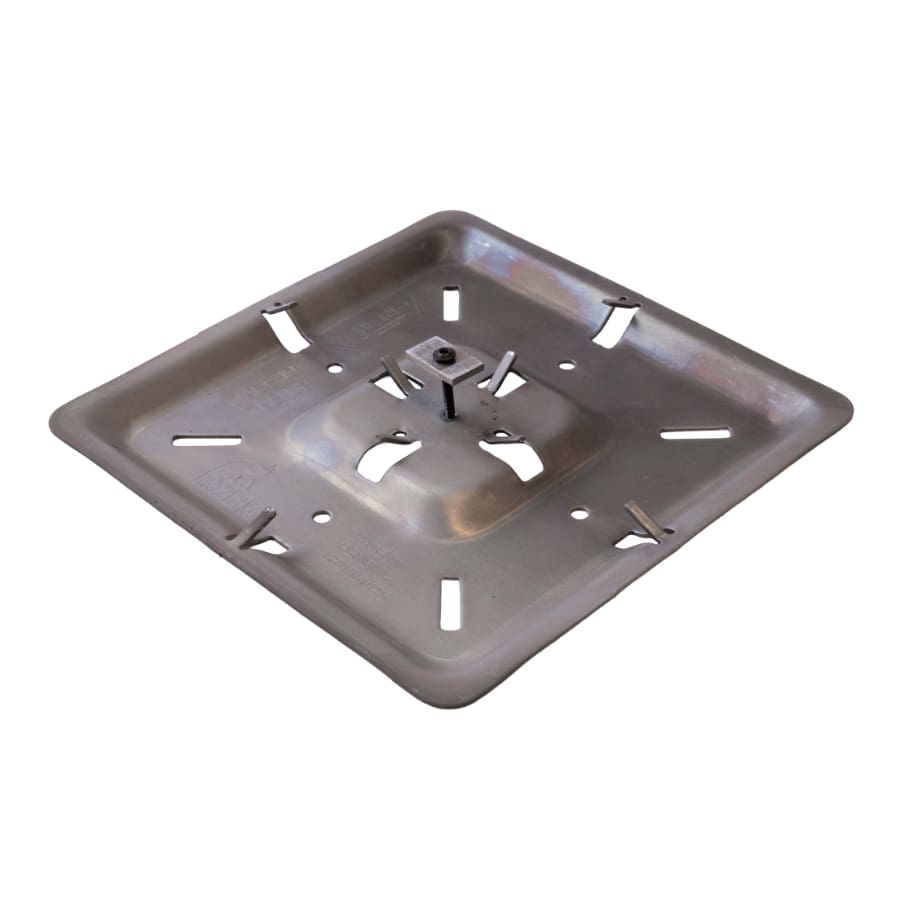

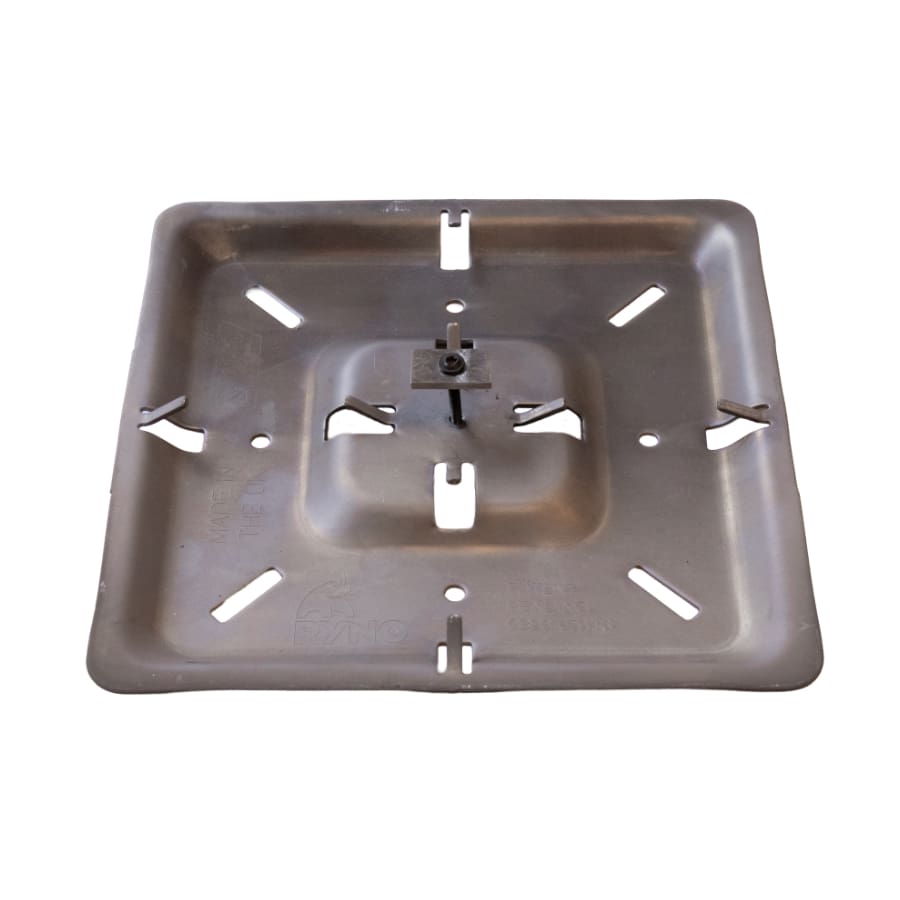

The RPS-FR Non-Combustible Stackable Paving Support Pad with Hidden Wind Uplift is an ultra-low paving pedestal designed for low-height applications where wind uplift requires mitigation. Crafted from steel and zinc-nickel electroplated for corrosion resistance, this patented design allows it to be stacked in two ways: in 2mm and 10mm increments, making it a flexible and exceptionally strong solution. It comes with a bespoke rectangular stainless steel washer and M4 screw assembly that is fastened into the centre of the support pad, which when installed with kerfed Ryno Porcelain Paving provides a high performance wind uplift restraint.
- Ideal for ultra-low height applications on terraces, podiums, roof decks, and inset balconies
- High performance wind uplift restraint
- Stacks in 2mm and 10mm increments
- Spacers bend down for flexibility
Patent Pending:
PCT/EP2021/078624
Details
| Material | Zinc-nickel electroplated mild steel |
|---|---|
| Dimensions | 170x170mm |
| Spacer tab thickness | 4mm |
| Height range | 10-100mm
Stacked* Directly - 2mm increments
Stacked* at 45 degrees - 10mm increments |
| Weight | 0.35kg/ea |
*when stacking, only the top paving support features the wind uplift fixing.
Performance
| Reaction to fire (BS EN 13501-1) | Inherently A1 (Decision 94-611/EC) |
|---|---|
| Compressive strength | 1000kg+ |
| Allowable load | Uniformly distributed >4.0kN/m2, concentrated 2kN |
| Wind uplift | ≤ 1.19kN (Static load test) |
| Biological and chemical | Resistant to moulds, algae, alkali, bitumen, UV |
| Warranty | 30 years |
| Design life | 60 years |
