Joist Hanger
JH
Joist Hanger
£0.00

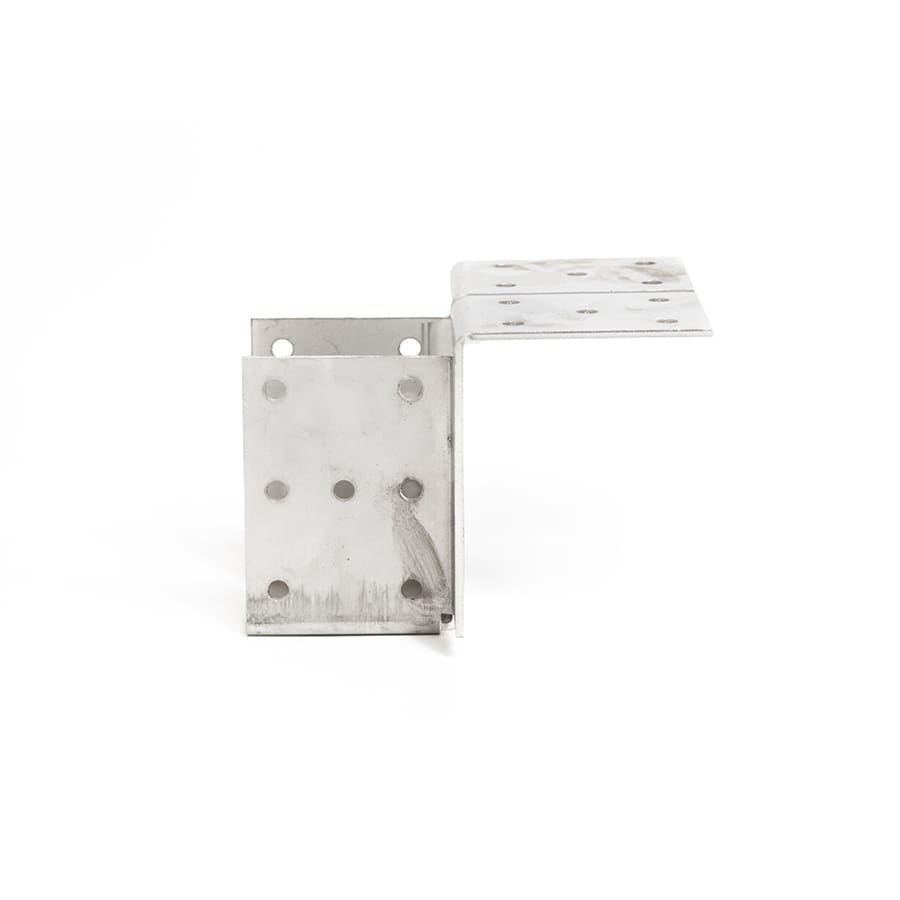

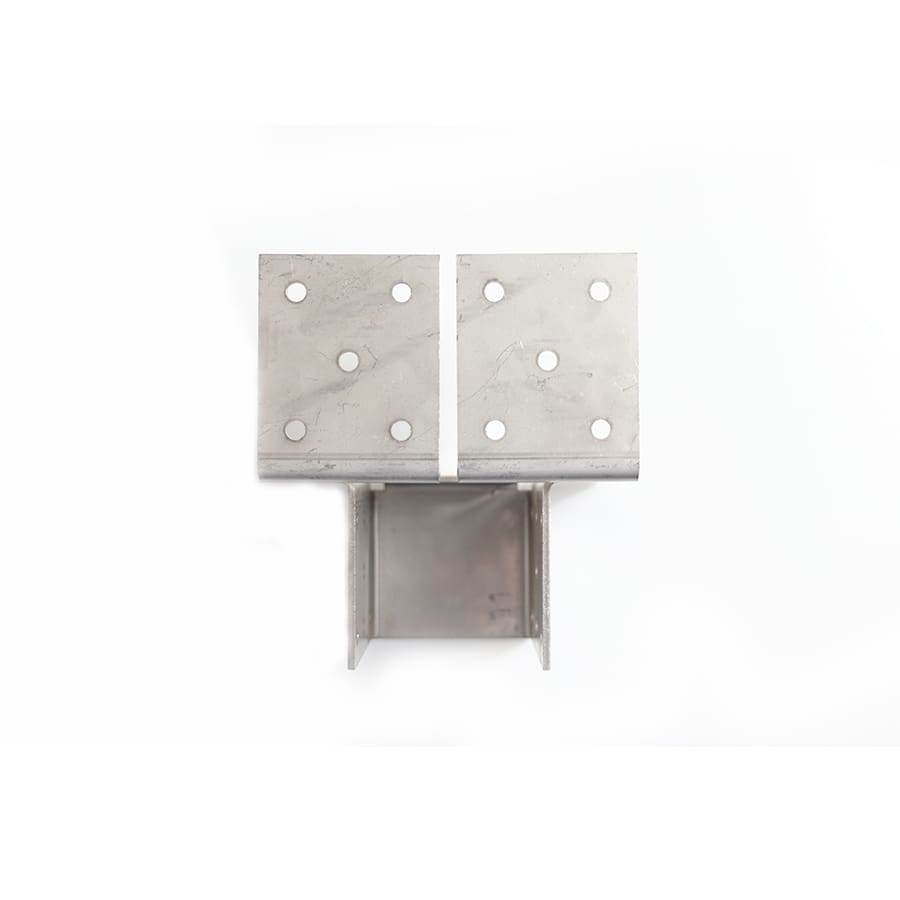

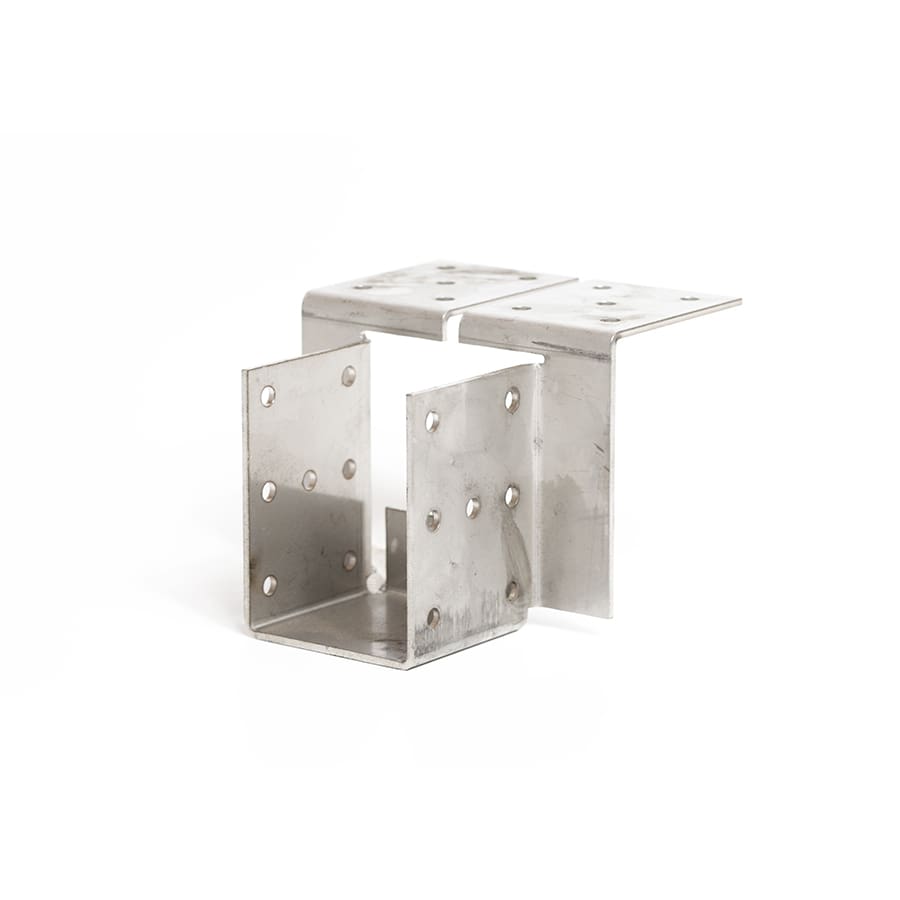

The Joist Hanger is a stainless steel support that enables the installation of aluminium joists onto an existing steel-framed balcony, ideal for replacing timber joists. aluminium joists are hung between the steels, enabling the top of the joist to be flush with the steel frame. These stainless steel hangers ensure a flush and secure installation when used with the standard DS joist profile.
- Secured to steel with Tek screws
- Compatible with the DS aluminium Joist
- Easily installed at customisable intervals
- Allows for height adjustment of joists
Details
| Material | Stainless Steel A2 |
|---|---|
| Dimensions | See “Part information” below |
| Weight | See “Part information” below |
| Joist width capacity | See “Part information” below |
Performance
| Reaction to fire (BS EN 13501-1) | Inherently A1 (Decision 94-611/EC) |
|---|---|
| Allowable load | Uniformly distributed >4.0kN/m², Concentrated 2kN |
| Warranty | 30 years* |
| Design life | 60 years |
*when used as part of a complete RYNO system
Part information
| Code | Dimensions | Weight | Joist width capacity |
|---|---|---|---|
| JH50 | Dimensions: 110 x 54 x 100mm | Weight: 246g | Joist width capacity: 50mm |
| JH75 | Dimensions: 110 x 79 x 100mm | Weight: 327g | Joist width capacity: 75mm |
