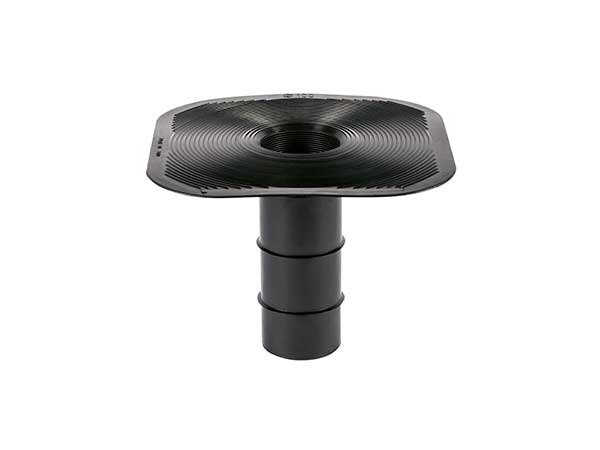

Flat Flange Outlet
£0.00
Versatile flat roof drainage outlets, available in six sizes.
Extremely cost-effective, they are ideal for use in new build or refurbishment applications.
- Available in EPDM for felt or asphalt applications, PVC for PVC membranes, PP for TPO membranes
- Suits all forms of flat roof
- Ribbed push-in downpipe provides a completely leakproof connection to pipework
- Suitable for use within wide temperature ranges
- Leaf guard and gravel grate available
Profiles
TPF2-100

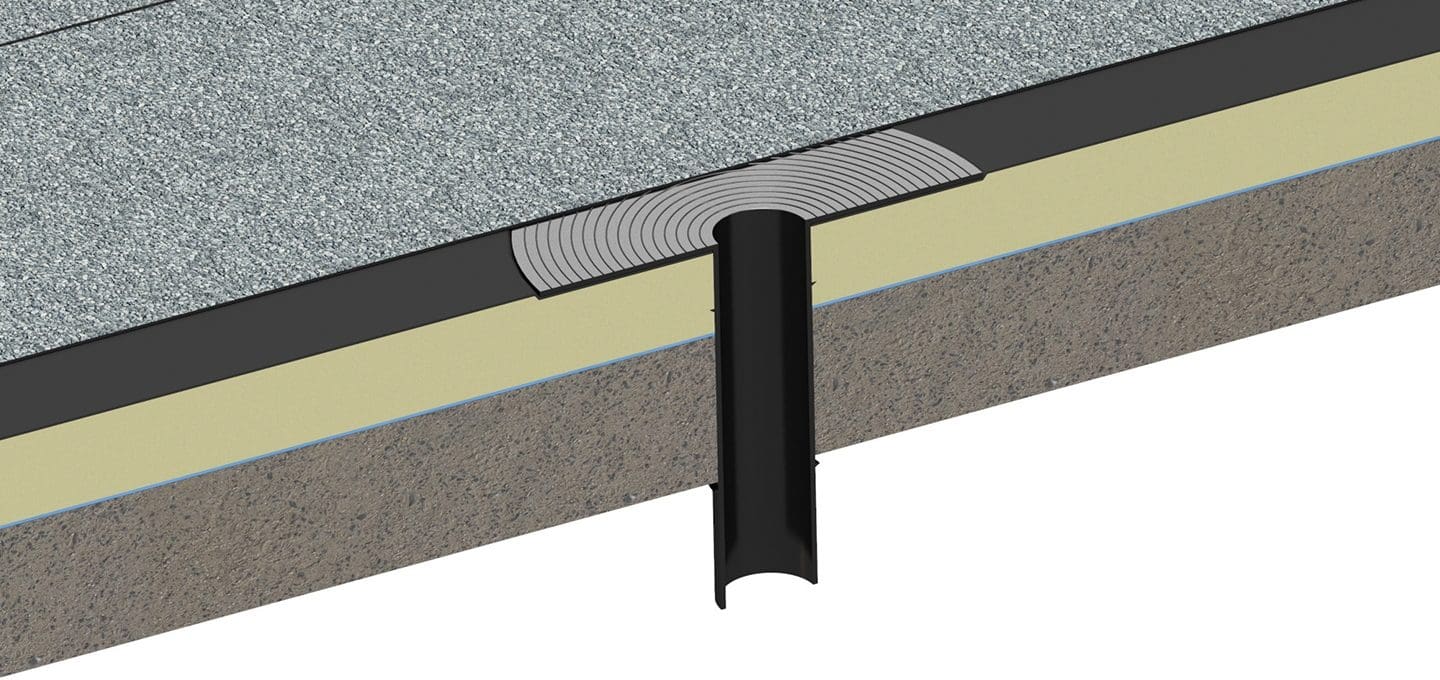

Typical application in a warm roof
Side Profile
TPF1-50, TPF2-62.5, TPF2-75, TPF2-100, TPF2-150
TPF/BG
Balloon guard
TPF/BG
TPF/BG
TPF/MS
Mounting spigot for leaf guard
TPF/MS
Mounting spigot for leaf guard
TPF/LG + TPF/MR
Leaf guard and mounting ring
TPF/LG
Leaf guard for flat flange outlet
TPF/MR
Mounting ring for leaf guard
Specification
| Ref | To suit pipe size (mm) | Available in |
|---|---|---|
| TPF1/50 | To suit pipe size (mm): 50 | Available in: EPDM |
| TPF2/62.5 | To suit pipe size (mm): 62.5 | Available in: EPDM |
| TPF2/75 | To suit pipe size (mm): 75 | Available in: EPDM, PVC, PP |
| TPF2/100 | To suit pipe size (mm): 100 | Available in: EPDM, PVC, PP |
| TPF2/110 | To suit pipe size (mm): 110 | Available in: EPDM |
| TPF2/150 | To suit pipe size (mm): 150 | Available in: EPDM |
| TPF/LG (leaf guard for flat flange outlet) | To suit pipe size (mm): - | Available in: - |
| TPF/MS (mounting spigot for leaf guard) | To suit pipe size (mm): - | Available in: - |
| TPF/MR (mounting ring for leaf guard) | To suit pipe size (mm): - | Available in: - |
| TPF/MR (mounting ring for leaf guard) | To suit pipe size (mm): - | Available in: - |
Download
Datasheet - RynoDrain Flat Flange Outlet
pdf 1.34 MB
Download the overview for the system for more information
