System overview
pdf 5.20 MB

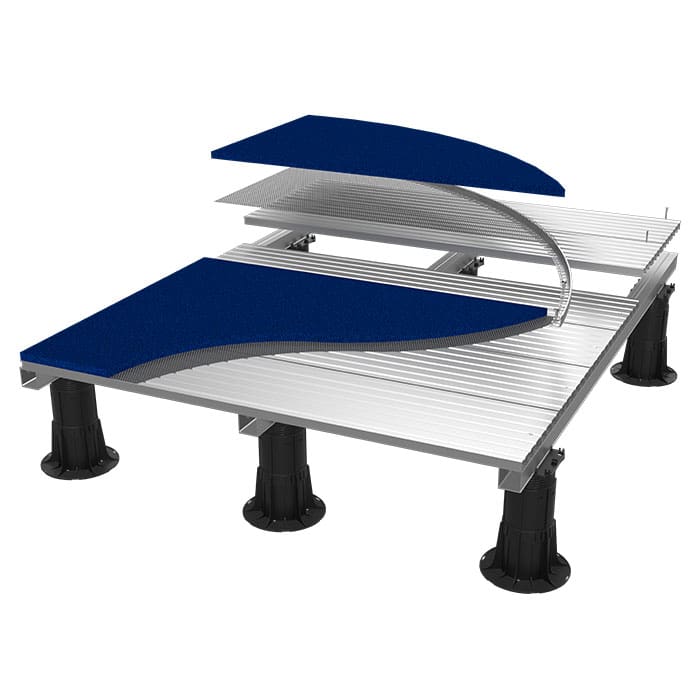

Standard
The Standard variant of the system is for use when there is no requirement for a fall safe base layer. This is quick to install and perfect for a general amenity space without children’s play equipment. RYNO® can assist with an assessment of suitability – let’s discuss.
- Wide range of colours available
- Rapid installation
- Super slip resistant

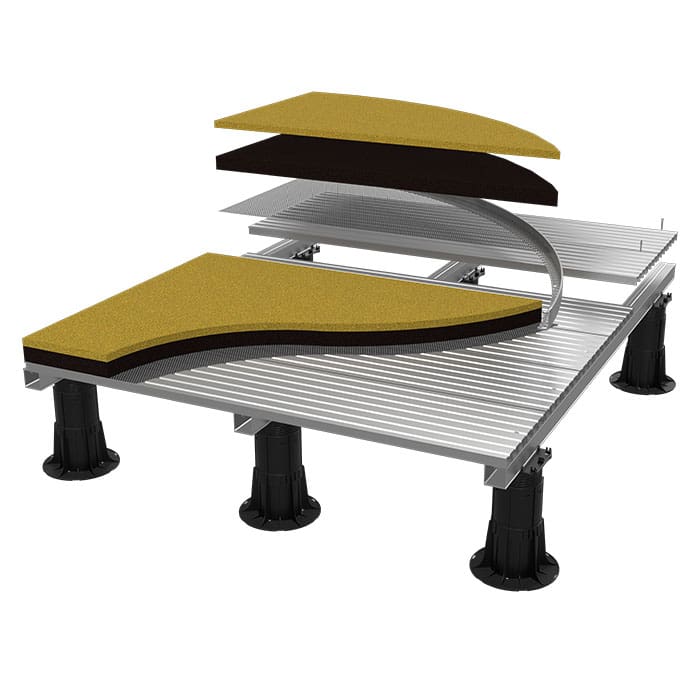

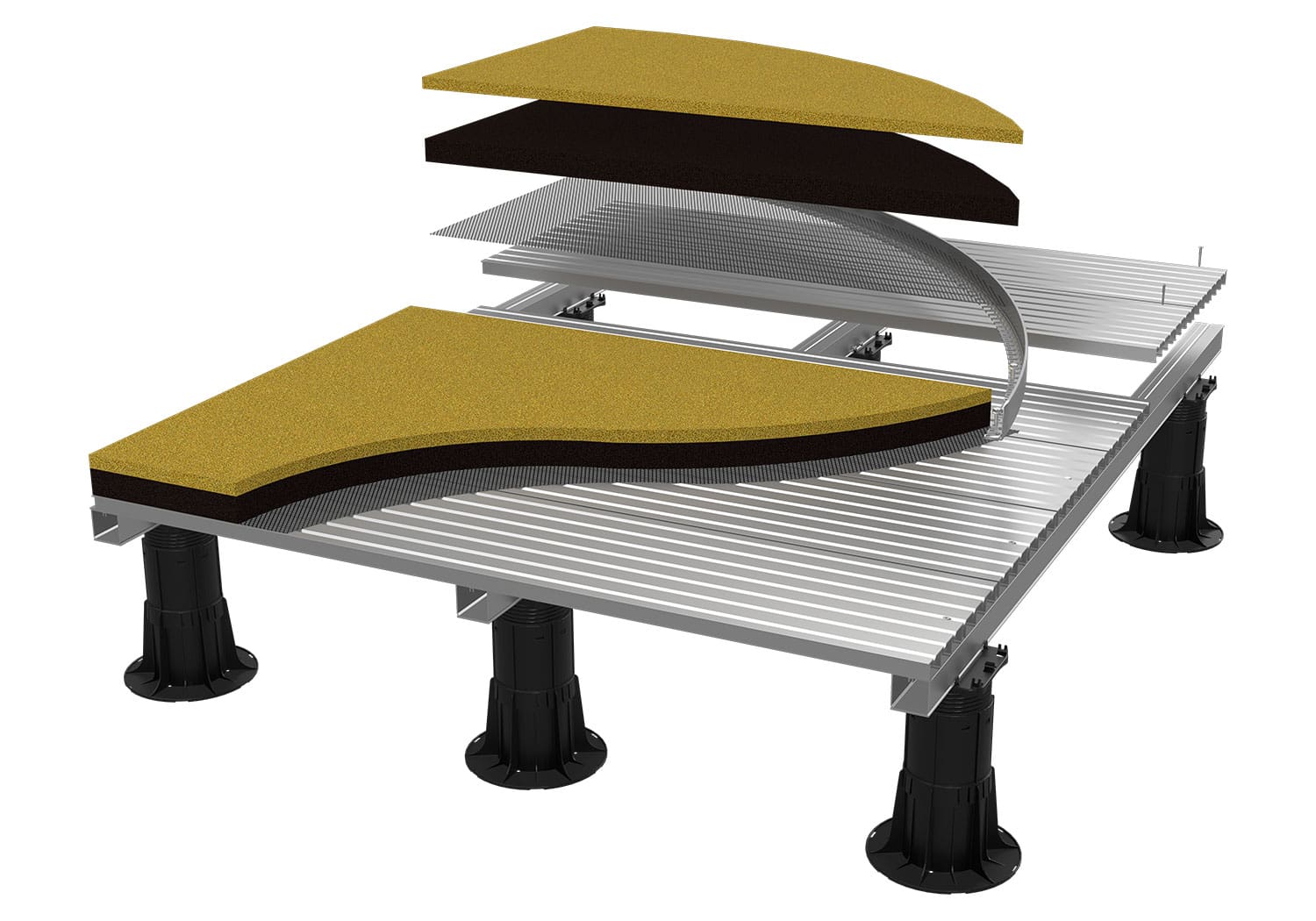

Fall Safe
The Fall Safe variant of the system is for use when there is requirement for a fall safe base layer due to children’s play equipment in the area. The thickness of the base layer should be determined in accordance with BS EN 1177 and BS 7188:+A2 2009, and is relative to the height of the play equipment. RYNO® can assist with a specification – let’s discuss.
- Wide range of colours available
- Fall safe cushioning base layer included
- Super slip resistant
Technical Information
| Reaction to Fire (to EN13501-5:2018) | Broof(t4) |
|---|---|
| System overall height range | 77-1160mm |
| Loading capability (to EN 1991-1:2002) | Concentrated load: >2.0kN as standard, available up to 4.5kN if required Uniformly distributed: >4.0kN as standard, available up to 7.5kN if required/m2 |
| Approx. system weight | 40-50kg/m2 |
| Warranty | 5 years* |

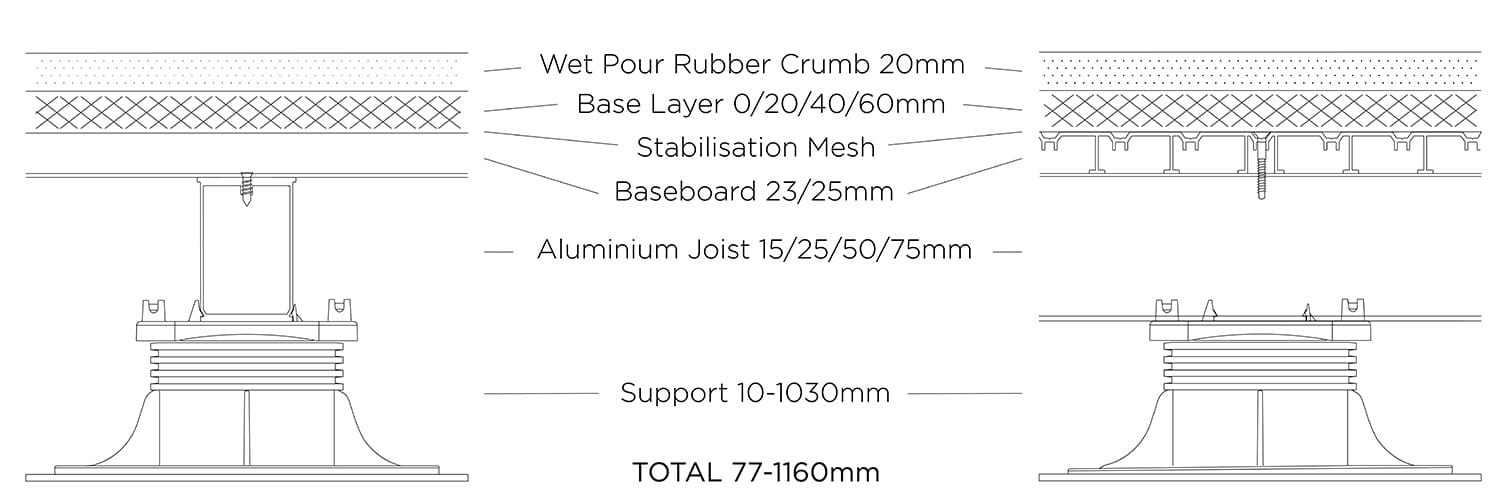

System height build-up
