Vantage Vertical Juliet Guarding

Vantage Vertical Juliet Guarding System

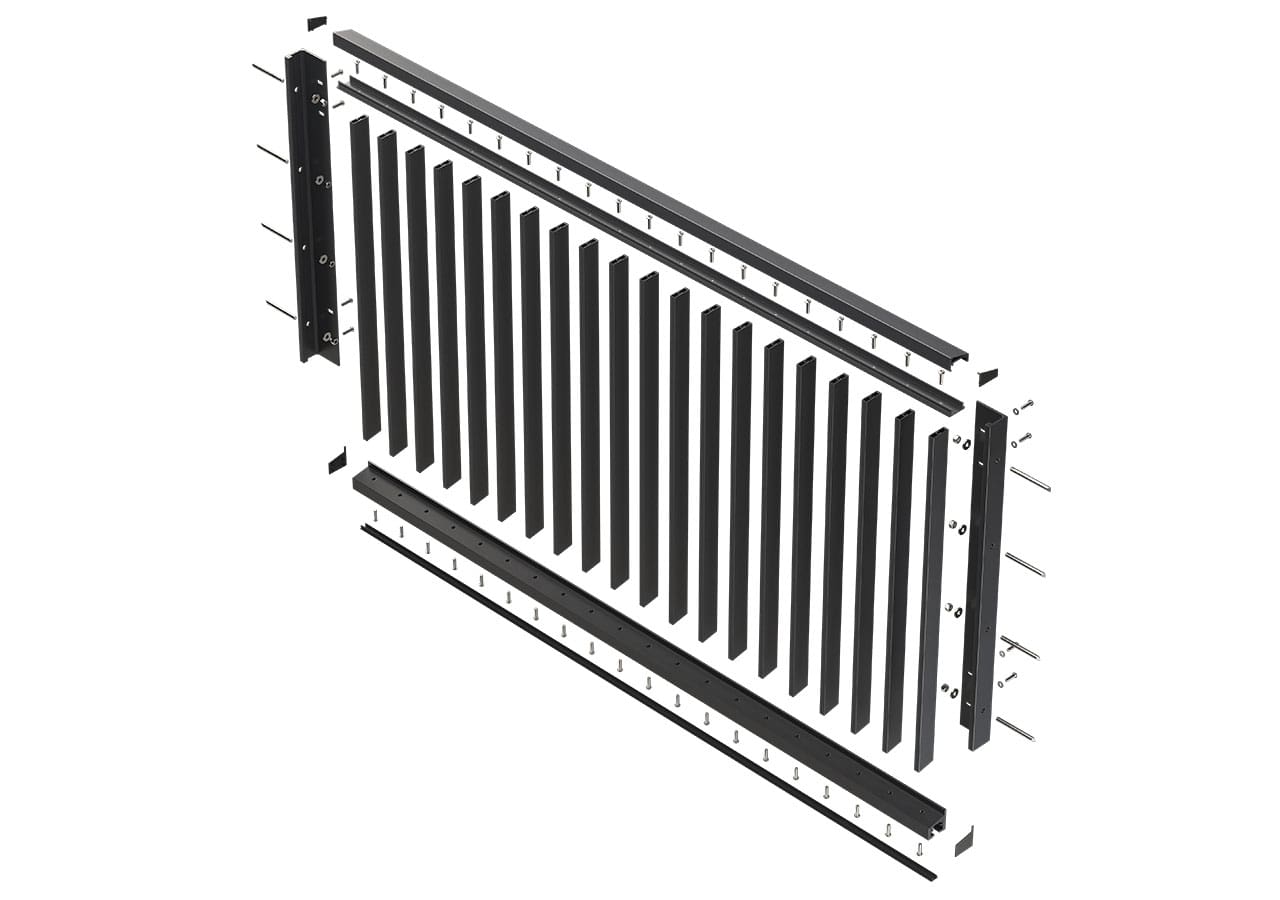

Modular Juliet guarding system designed for all façade connections
Vantage Vertical - Juliette Guarding System

System variants

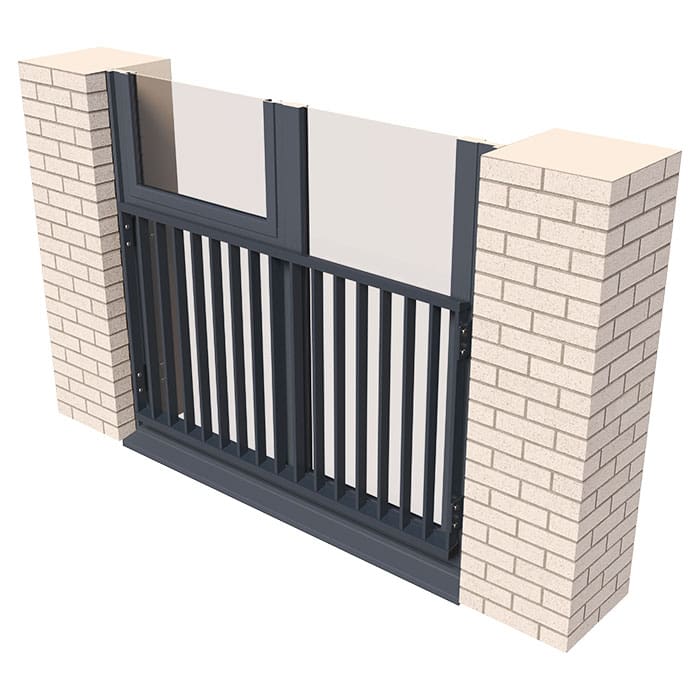

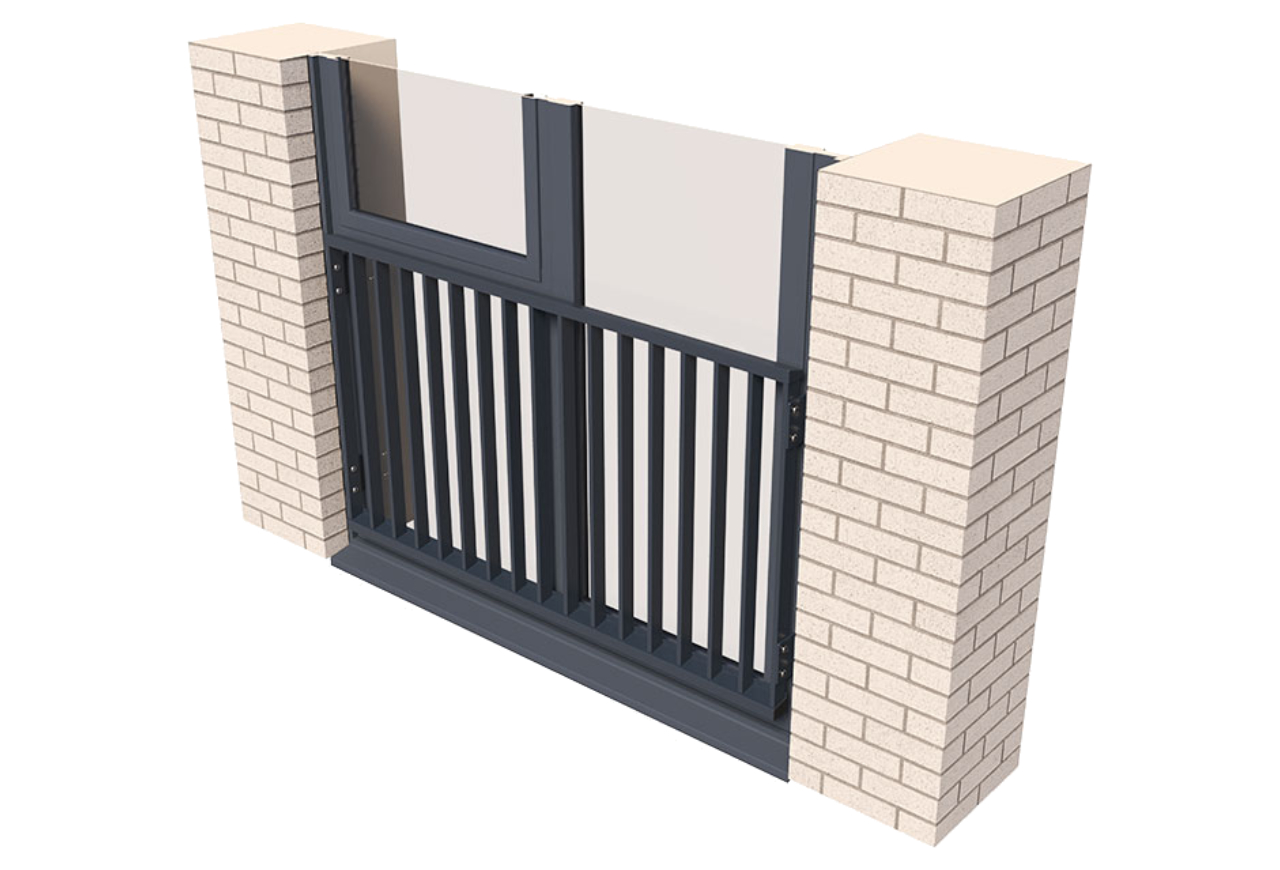

Brick Side Fix

The Side Fix variant is a fixing method for securing the balustrade to the brick facade within the door reveal.

  • Suitable for side fixing into brick facades
  • Simple construction

Downloads

Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 System Overview
(all variants) pdf 6.60MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 O&M Manual
(Aluminium profiles) pdf 0.37MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 Technical drawings
(.dwg & .pdf) zip 1.09MB

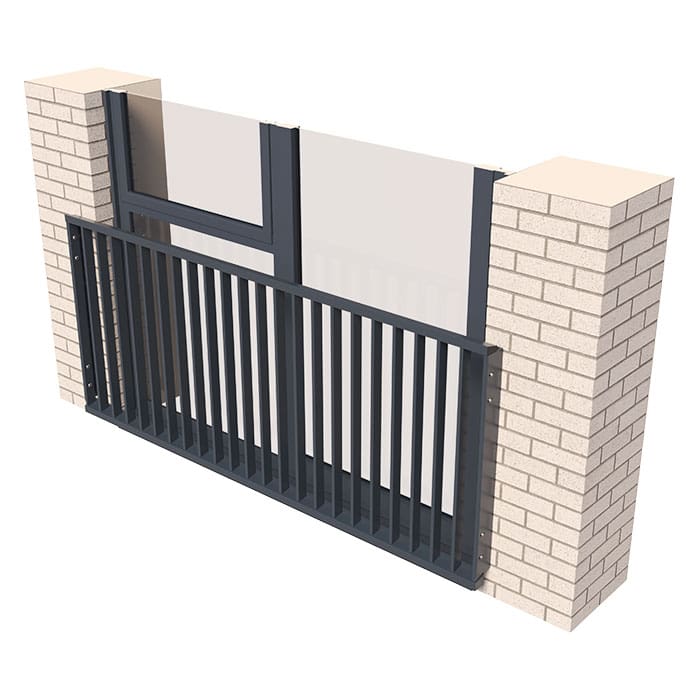

Brick Façade Face Fix

The Face Fix variant is a fixing method for securing the balustrade to the brick facade outside the door reveal.

  • Suitable for face fixing into brick façades
  • Simple construction

Downloads

Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 System Overview
(all variants) pdf 6.60MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 O&M Manual
(Aluminium profiles) pdf 0.37MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 Technical drawings
(.dwg & .pdf) zip 0.57MB

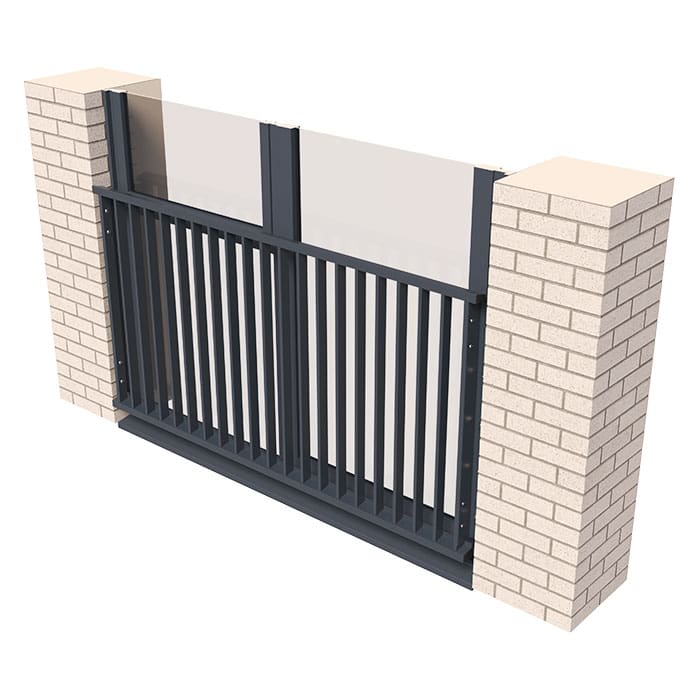

Fix to Window Frame

The Window Frame variant is a fixing method for securing the balustrade to the window frame.

  • Suitable for face fixing into window frames
  • Simple construction

Downloads

Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 System Overview
(all variants) pdf 6.60MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 O&M Manual
(Aluminium profiles) pdf 0.37MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 Technical drawings
(.dwg & .pdf) zip 0.35MB

Technical information

Horizontal Line Load0.74KN
Weight<20kg per l/m
Reaction to Fire (to EN13501-1:2018)A2-s1, dO
Design complianceCompliant with:

BS EN 1090-2 EXC 2
BS EN ISO 15609
BS 8579
MaterialSuperior strength aluminium – 6005A
CoatingQualicoat

Downloads

System Overview

pdf 6.60 MB

Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 Download

O&M Manual

pdf 0.37 MB

Aluminium profiles

Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

 Download
