System variants

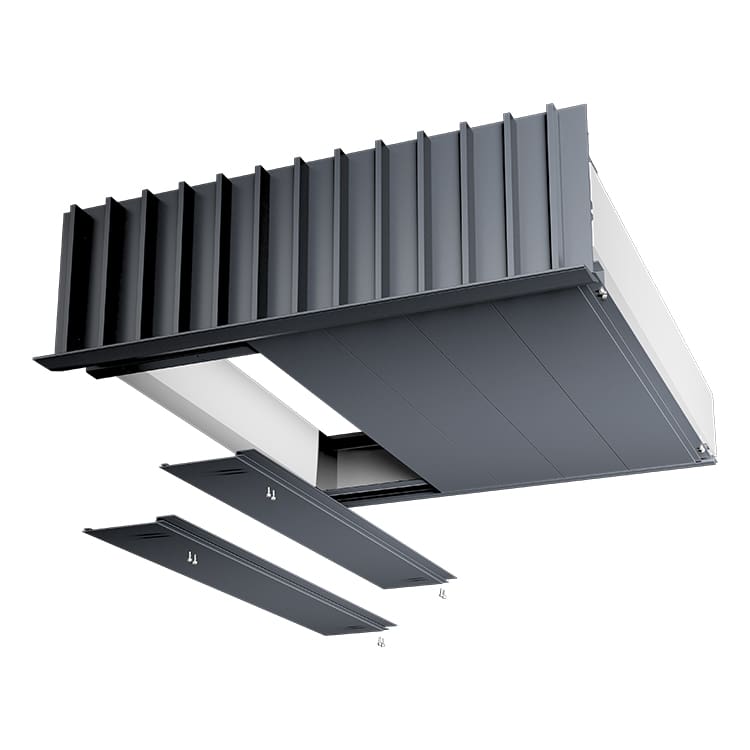

Edge Drainage
When paired with a free draining balcony flooring solution, the BalcaSmart Frameless Soffit System – Edge Drainage captures rainwater that falls through the floor and flows to a drip edge incorporated in the Linear Flow Balustrade at the edge of the balcony where it is directed away from the building. Designed in accordance with BS 8579:2020 and NHBC’s guidance, you can rest assured this is an entirely compliant solution.
- Complies with BS 8579:2020 for balconies projecting less than 2.5m
- Hidden fixing detail providing a seamless look
- 6 standard colours (any RAL colour available on additional lead-time)
- Non-combustible, class A fire rated

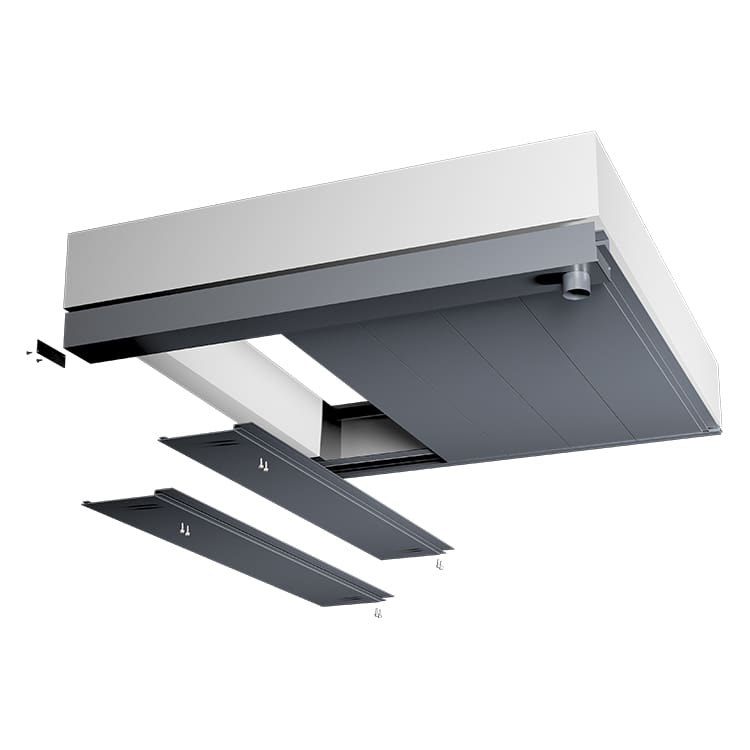

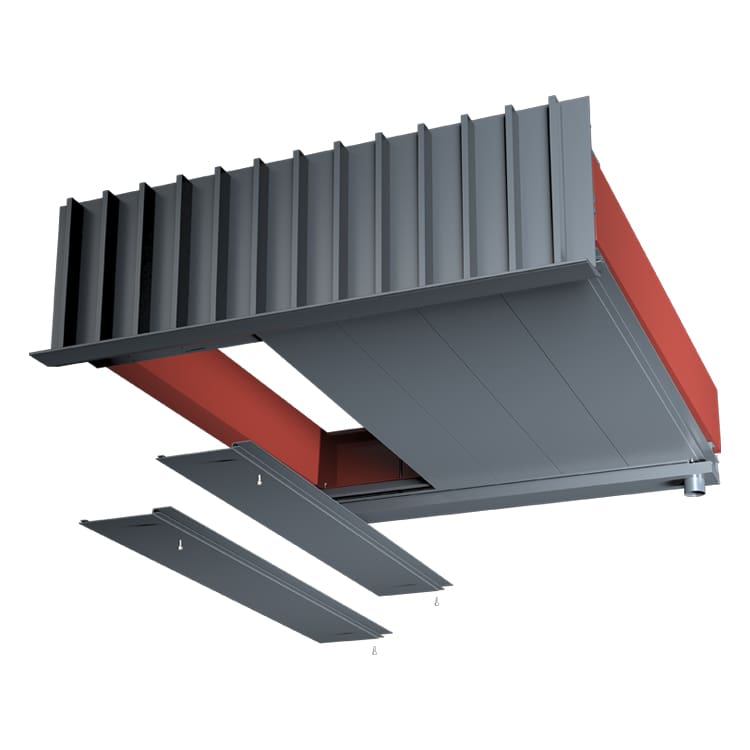

Positive Drainage
When paired with a free-draining balcony flooring solution, the BalcaSmart Frameless Soffit System – Positive Drainage captures rainwater that falls through the floor and directs it to a gutter which can be connected to the building’s drainage system. Designed in accordance with BS 8579:2020 and NHBC’s guidance, you can rest assured this is an entirely compliant solution.
- Aligns with the preferred drainage method set out in BS 8579:2020
- Hidden fixing detail providing a seamless look
- 6 standard colours (any RAL colour available on additional lead-time)
- Non-combustible, class A fire rated
Technical information
| Reaction to fire (to EN13501-1:2018) | A2-s1,d0 |
|---|---|
| Approx. system weight | 12kg/m2 |
| Warranty | 30 years* |
| Design life | 60 years* |
*Valid when used as part of a complete RYNO® IGNO® system
