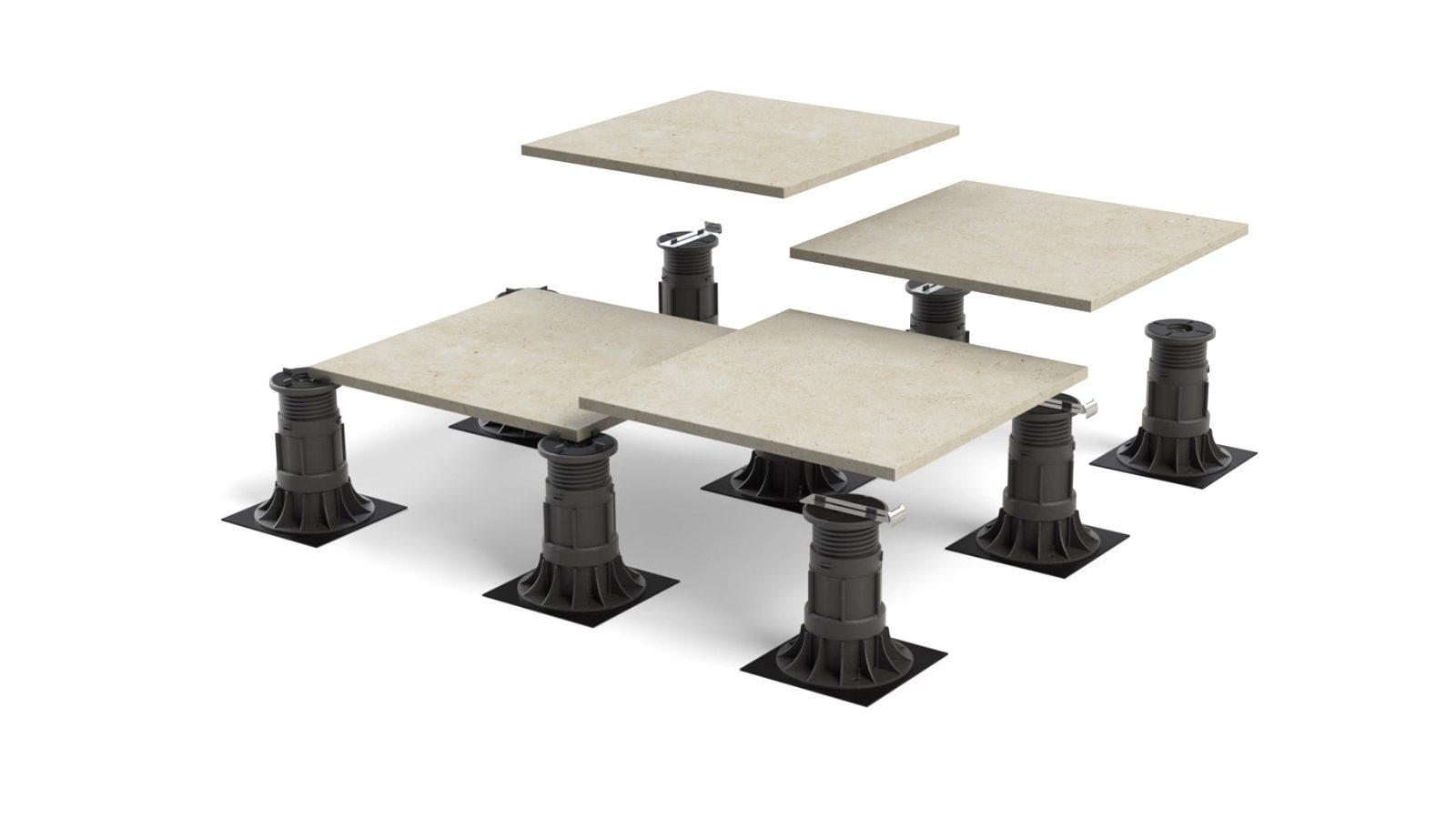

System overview – TerraSmart Pedestal
pdf 1.86 MB
Fixed Head

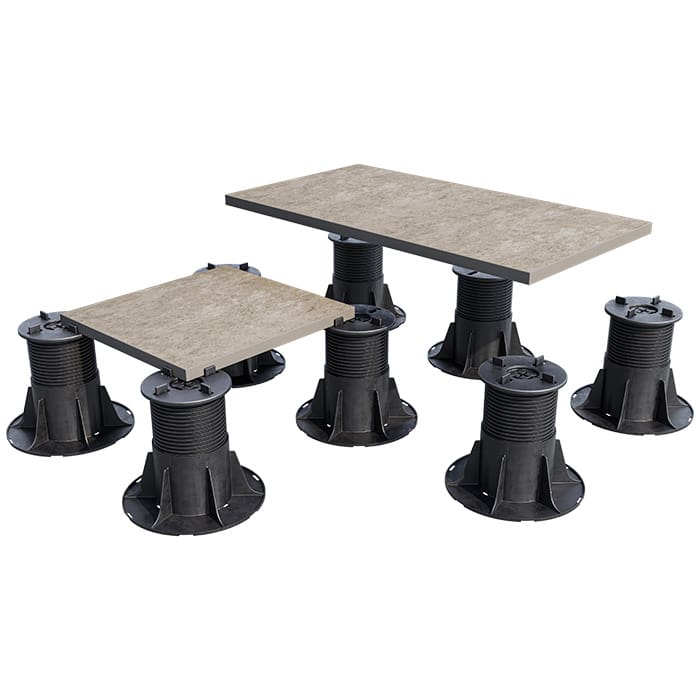

The Fixed Head variant is a practical and economical solution for projects with flat/level substrates or minimal falls.
- The most popular option
- Simple, rapid installation
- Cost effective solution
Self-Levelling

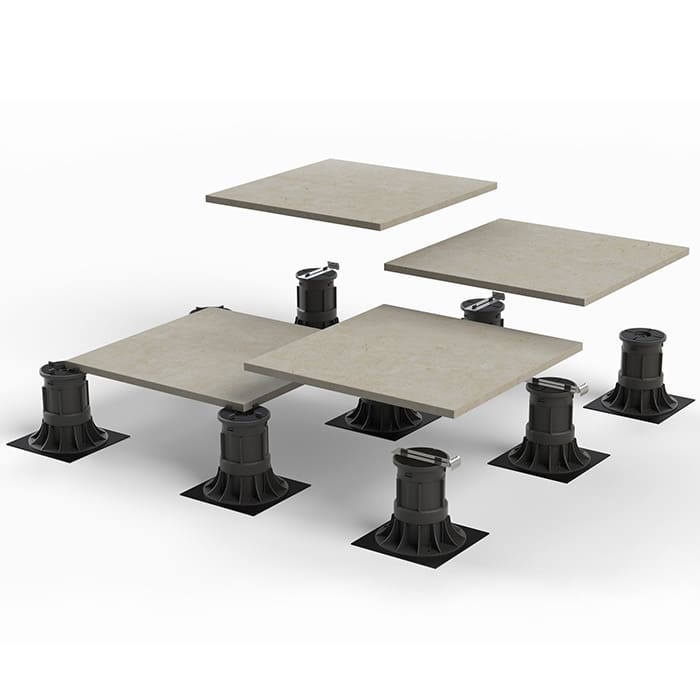

The Self-Levelling variant is the go-to solution for applications with a tapered waterproofed substrates, enabling slope correction up to 10.5%.
- Suitable for tapered flat roofs
- Slope correction up to 10.5%
- Self-weighted slope correction mechanism
Stackable

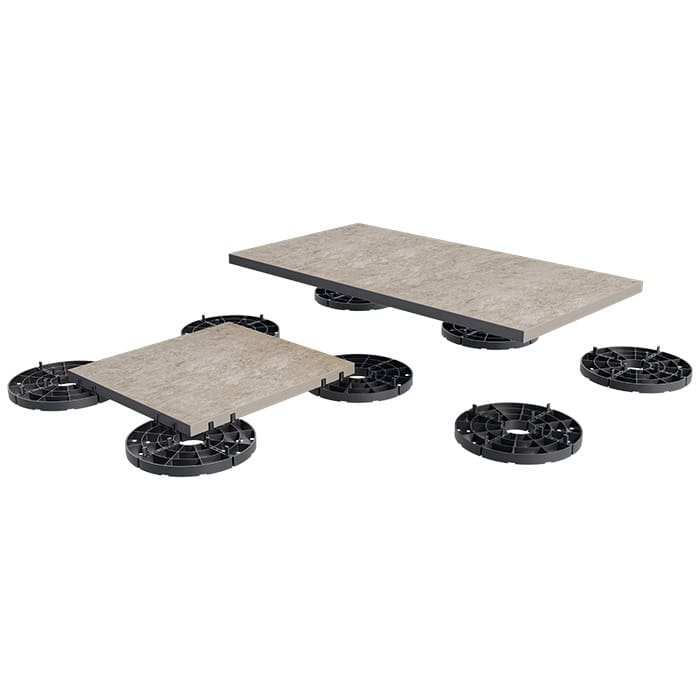

The Low-Height Stackable variant provides a vital solution for areas with limited height build-up. It can also be used in conjunction with other variants to overcome localised height build-up challenges.
- Super low-height full system build-up
- Simple stacked configuration
- Fine height adjustment achievable with shims
Technical Information
| Reaction to fire (to EN13501-5:2018) | Broof(t4) |
|---|---|
| System overall height range | 23mm to 1050mm as standard, custom heights available (incl. paving) |
| Loading capability (to EN 1991-1:2002) | Concentrated load: >2.0kN as standard, available up to 4.5kN if required Uniformly distributed: >4.0kN as standard, available up to 7.5kN if required/m2 |
| Approx. system weight | 45-55kg/m2 (with 20mm porcelain paving) 120-130kg/m2 (with 50mm concrete paving) |
| Wind uplift restraint available | Yes |
| Warranty | 10 years |
*Valid when used as part of a complete RYNO® system

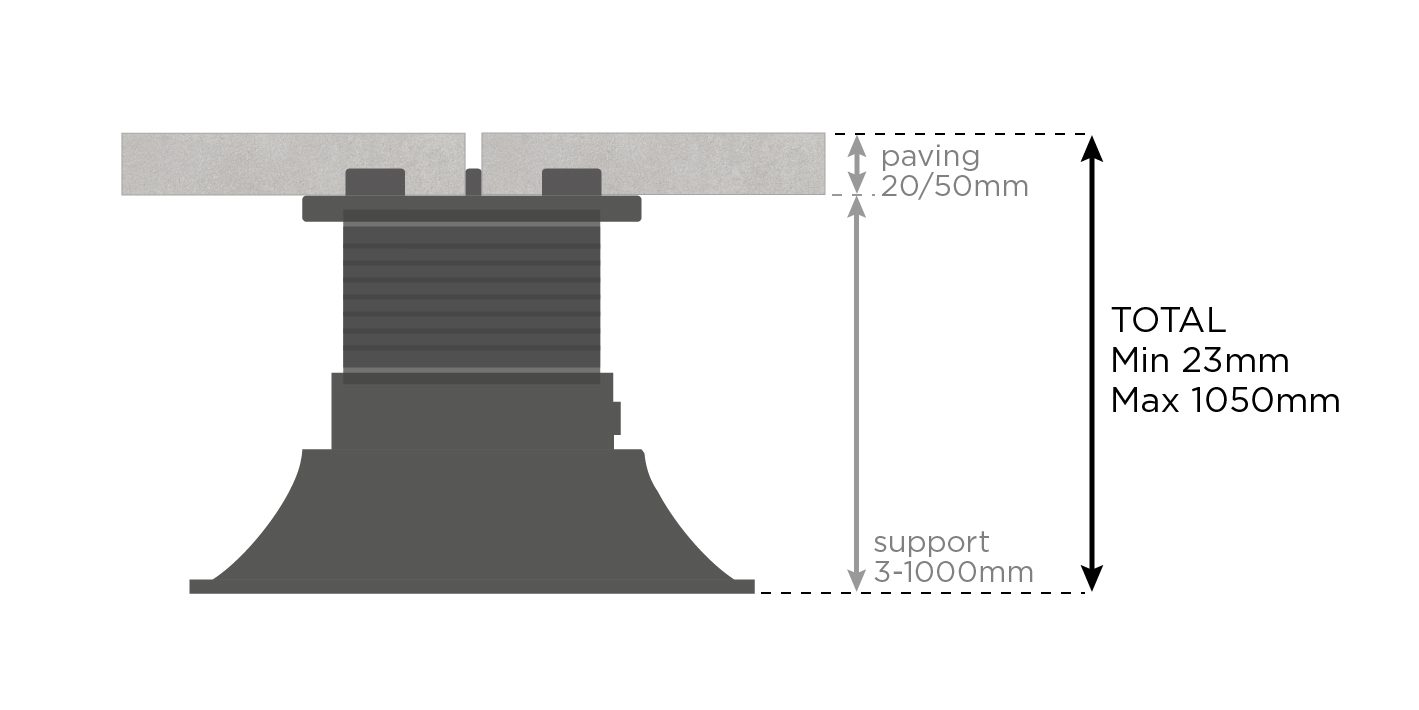

System Height Build Up
