System Overview – TerraSmart Pedestal IGNO
pdf 2.08 MB
System variants

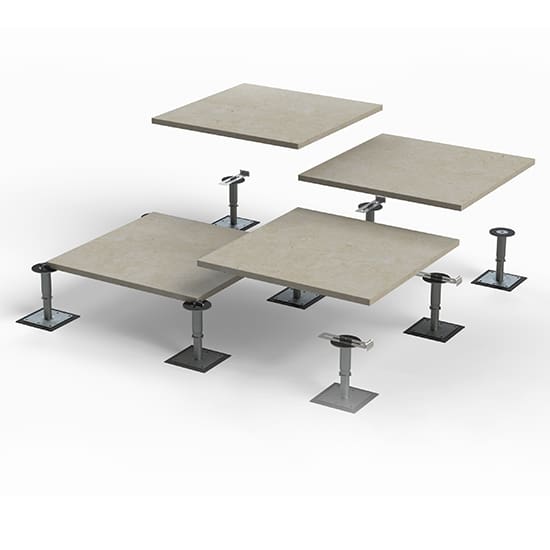

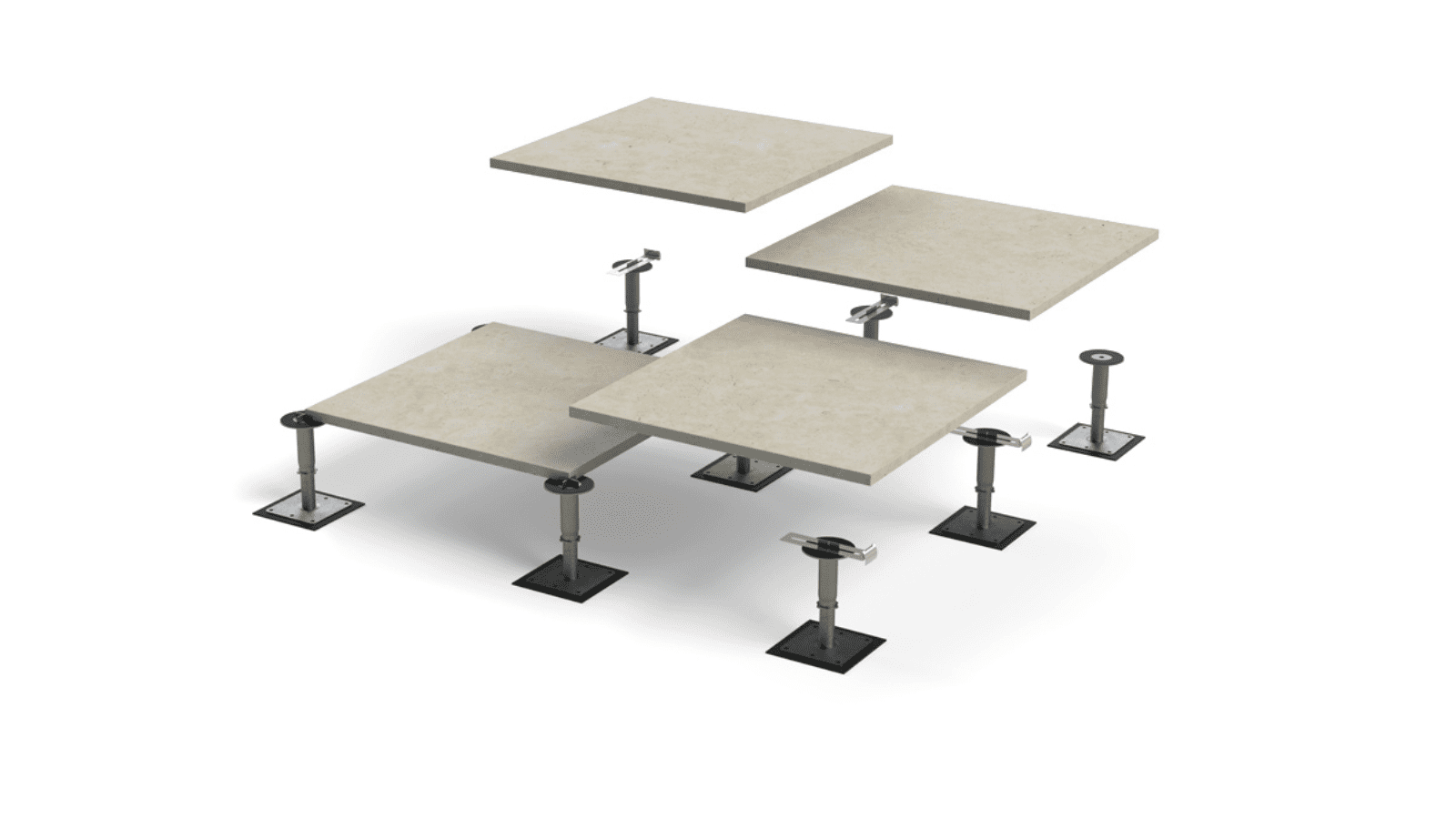

Fixed Head
The Fixed Head variant is a practical and efficient solution for projects with flat/level substrates or minimal falls.
- The most popular option
- Simple, rapid installation
- Independently rotating paving spacers

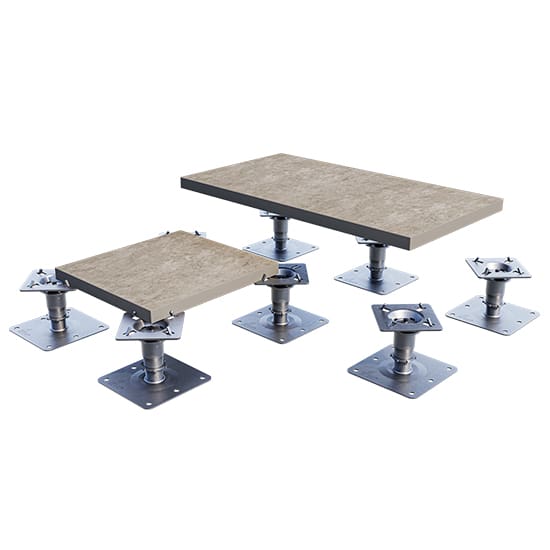

Self-Levelling
The Self-Levelling variant is the go-to solution for applications with a tapered waterproofed substrates, enabling slope correction up to 10.5%.
- Suitable for tapered flat roofs
- Slope correction up to 10.5%
- Lockable self-levelling mechanism

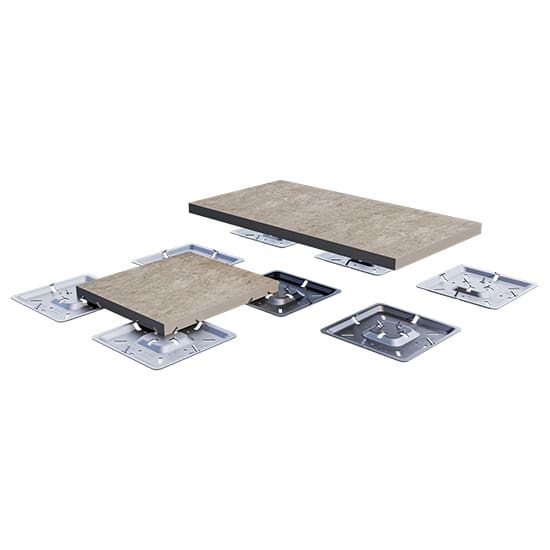

Low-Height Stackable
The Low-Height Stackable variant provides a vital solution for areas with limited height build-up. It can also be used in conjunction with other variants to overcome localised height build-up challenges.
- Super low-height full system build-up
- Support height as low as 10mm
- Stackable in both 2mm or 10mm increments

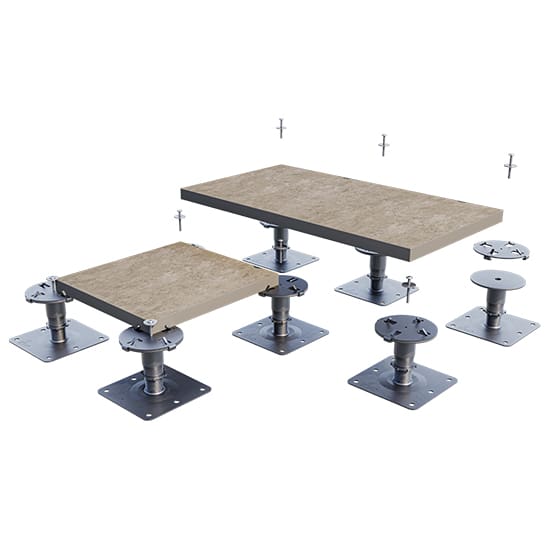

Visual Wind Uplift Restraint
The Visual Wind Uplift Restraint is specifically for areas with high wind loads. To ensure sufficient wind uplift mitigation, project specific calculations are recommended. RYNO™ can assist with these calculations – let’s discuss.
- Suitable for high wind applications
- Subtle mechanical restraint mechanism
- Pavers removable for maintenance
Technical Information
| Reaction to fire (to EN13501-1:2018) | A1 |
|---|---|
| System overall height range | 30mm to 555mm as standard, custom heights available (incl. paving) |
| Loading capability (to EN 1991-1:2002) | Concentrated load: >2.0kN as standard, available up to 4.5kN if required Uniformly distributed: >4.0kN as standard, available up to 7.5kN if required/m2 |
| Approx. system weight | 45-55kg/m2 (with 20mm porcelain paving) 120-130kg/m2 (with 50mm concrete paving) |
| Wind uplift restraint available | Yes |
| Warranty | 30 years* |
| Design life | 60 years* |
*Valid when used as part of a complete RYNO® IGNO® system

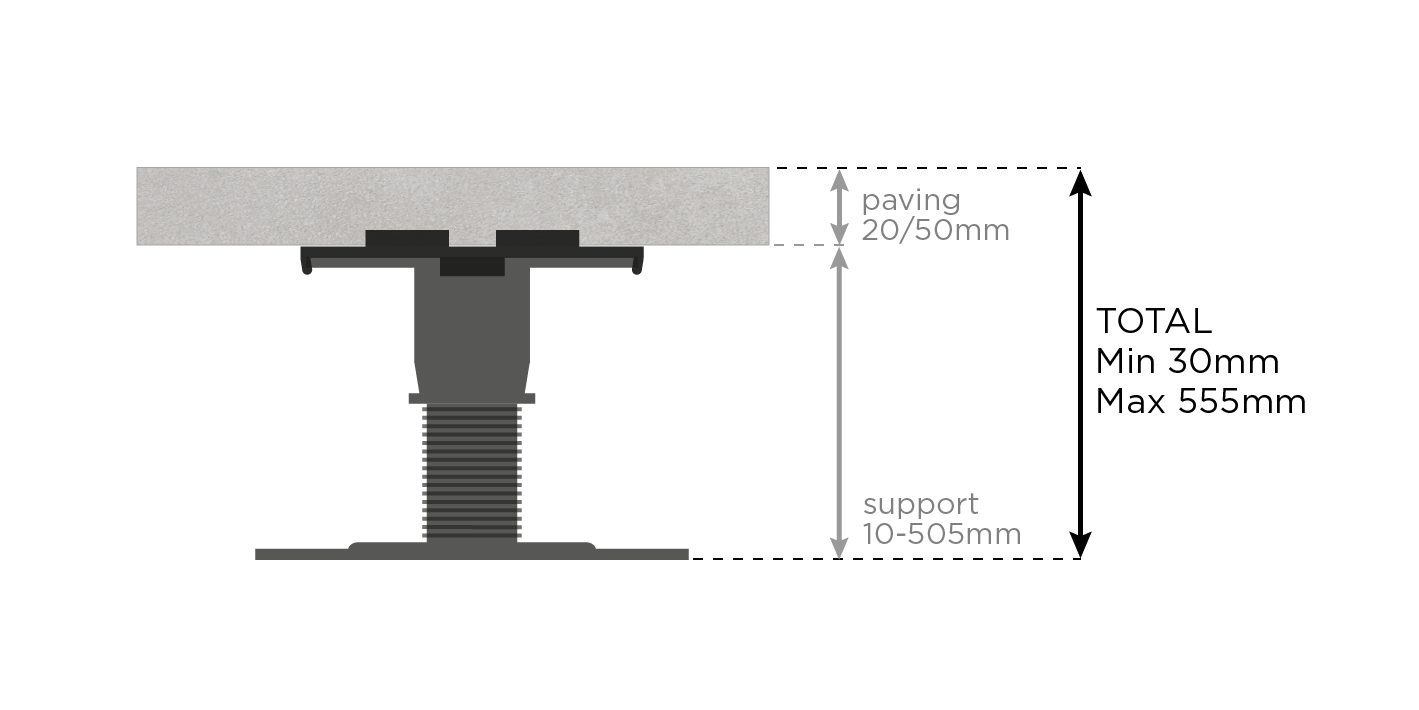

System Height Build Up
