System variants

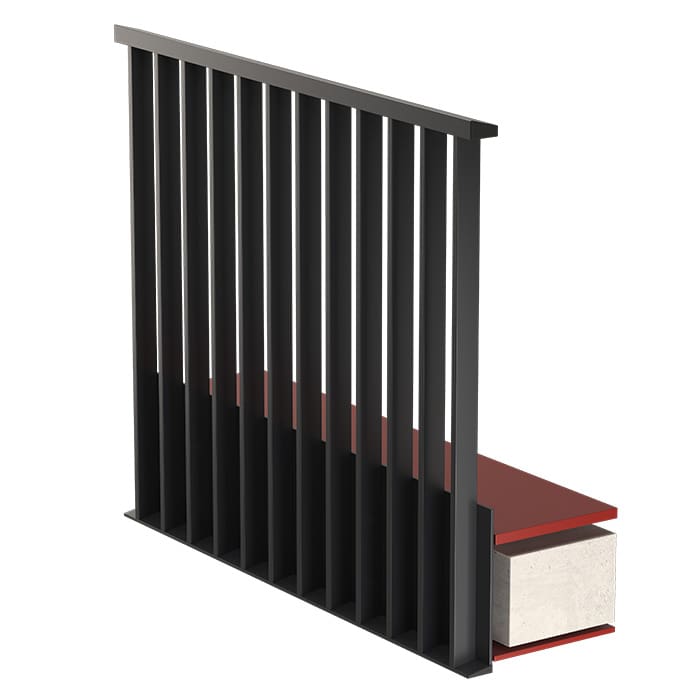

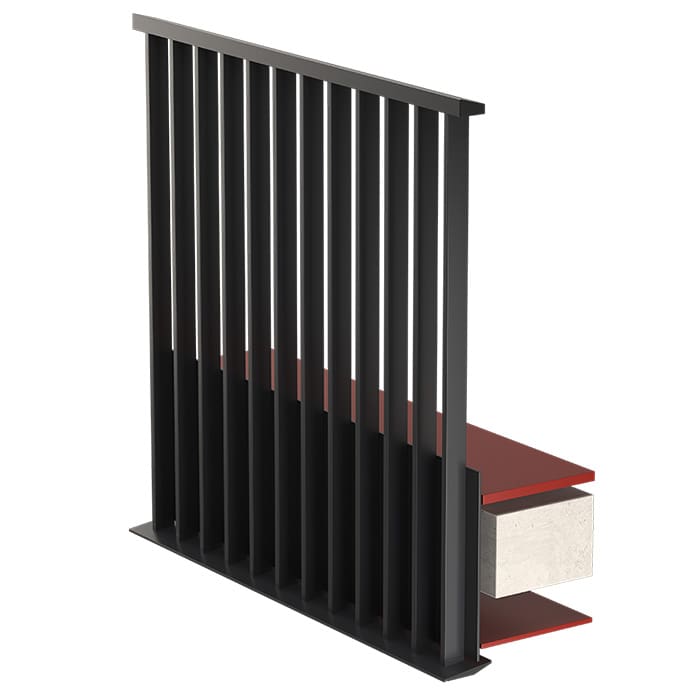

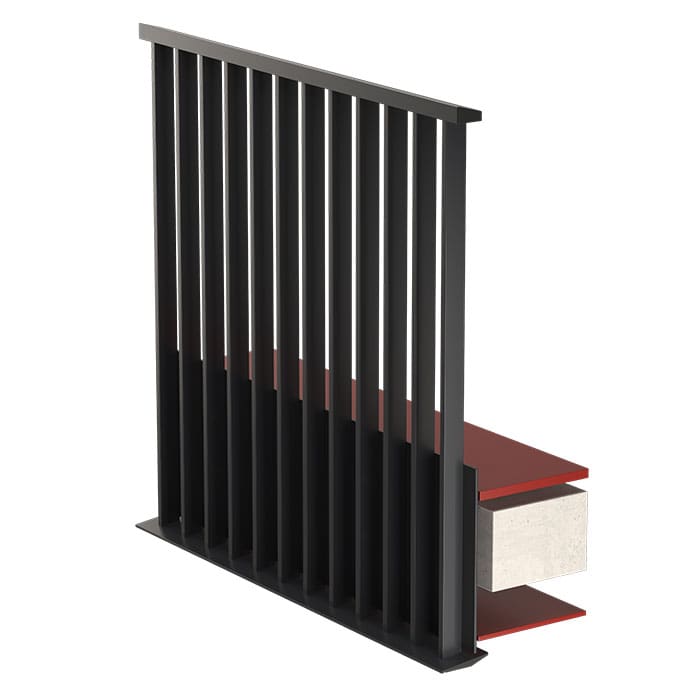

Concrete Face Fix
The Concrete Face Fix variant is for applications where the balustrade is securely anchored to the building’s concrete frame or parapet, ensuring a stable and durable connection.
- Discrete fixings into concrete
- Accurate fitting
- Rapid installation

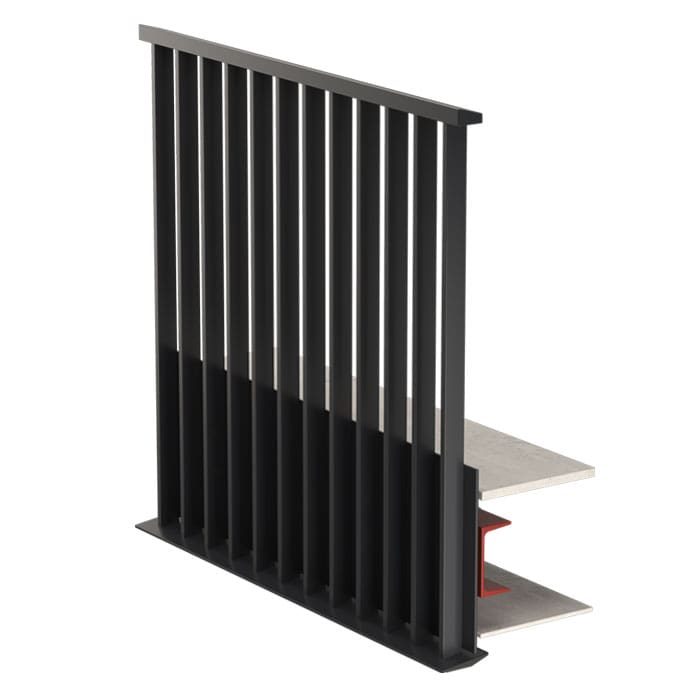

Steel Face Fix
The Steel Face Fix variant is for applications where the balustrade is securely fixed to a steel PFC section, ensuring a stable and durable connection.
- Discrete fixings into PFC
- Accurate fitting
- Rapid installation
Technical information
| Horizontal Line Load | 0.74KN |
|---|---|
| Weight | <20kg per l/m |
| Reaction to Fire (to EN13501-1:2018) | A2-s1, dO |
| Design compliance | Compliant with: BS EN 1090-2 EXC 2 BS EN ISO 15609 BS 8579 |
| Material | Superior strength aluminium – 6005A |
| Coating | Qualicoat |
