Datasheet
PDF 0.66 MB
Vitrified Composite® Decking Boards
Technical Information
| Reaction to fire (to EN13501-1:2018) | Materials used are classed as inherently non-combustible, in accordance with Decision 94-611/EC |
|---|---|
| System overall height range | 44-54mm (incl. decking) |
| Loading capability (to EN 1991-1:2002) | Concentrated load: >2.0kN as standard, available up to 4.5kN if required Uniformly distributed: >4.0kN as standard, available up to 7.5kN if required/m2 |
| Approx. system weight | 50-60kg/m2 |
| Wind uplift restraint available | Yes |
| Warranty | 30 years* |
| Design Life | 60 years* |
*Valid when used as part of a complete RYNO® system

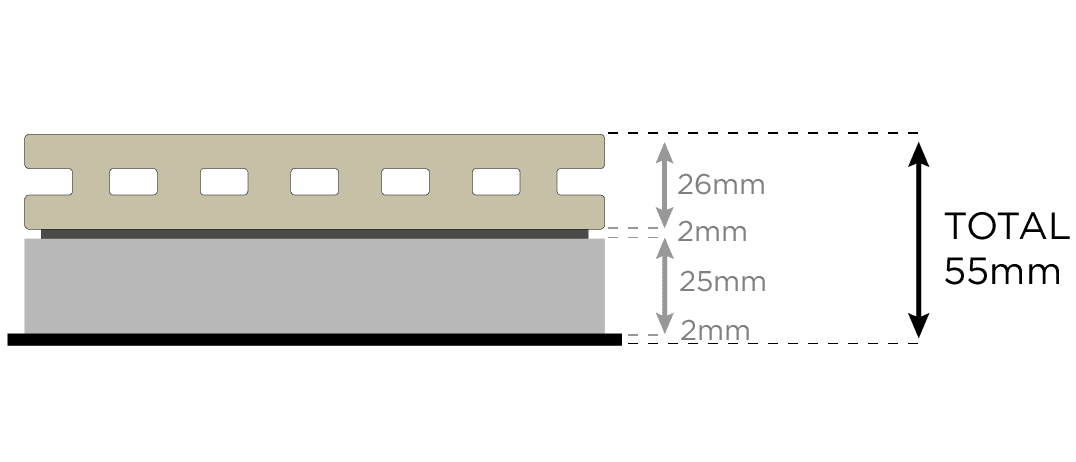

System Height Build Up
Downloads
O&M Manual
PDF 0.25 MB
Vitrified Composite® Decking Boards
Install guide
PDF 1.03 MB
Slip resistance test reports – BS7976
ZIP 8.80 MB
Load test report
PDF 2.04 MB
Modulus of rupture test report – BS EN ISO
PDF 0.12 MB
Technical drawings
(.dwg & .pdf)
ZIP 1.59 MB
