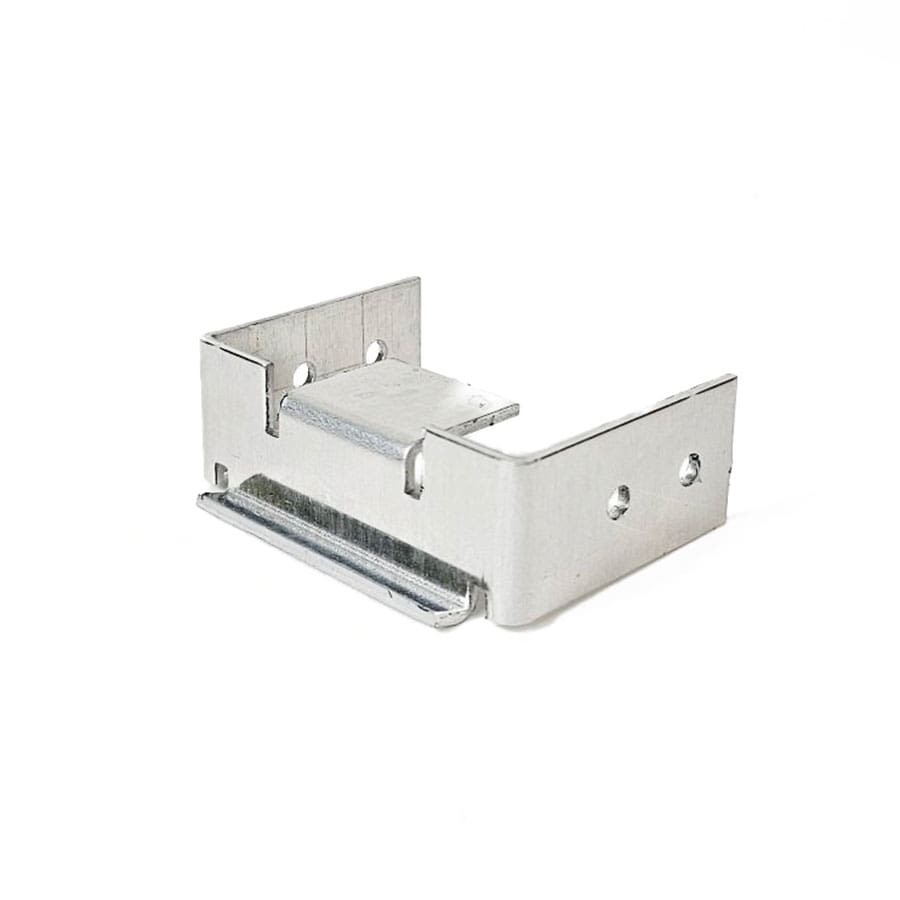

Mounting Bracket
Attached to the RST on the edges to secure pavers in place and minimise movement.
Vertical Paving Closure
£0.00

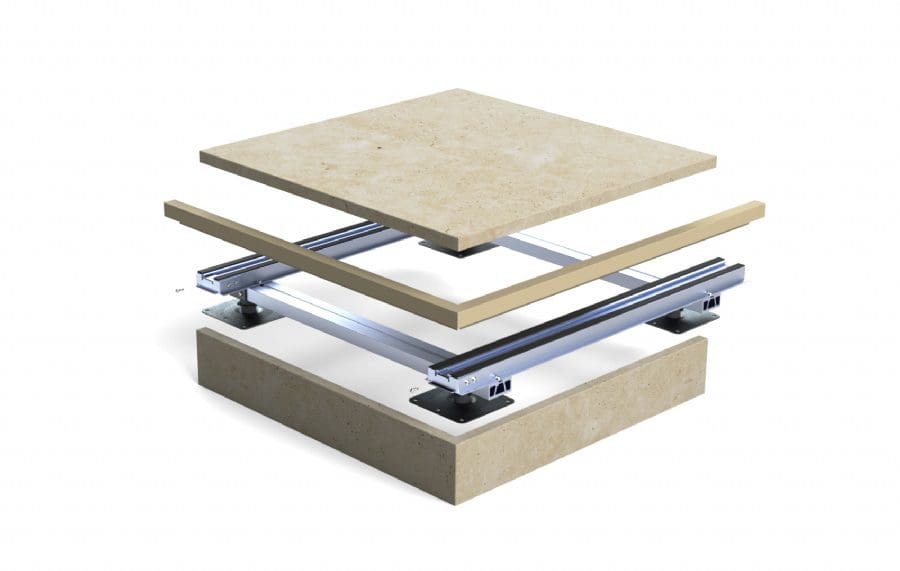

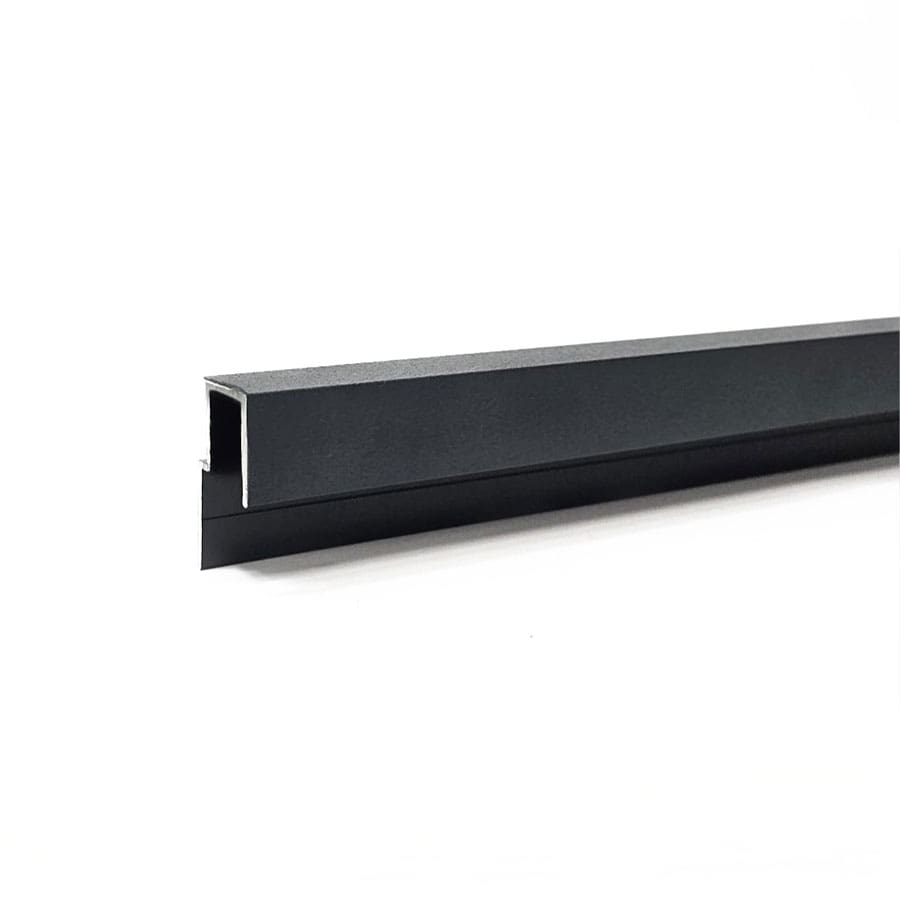

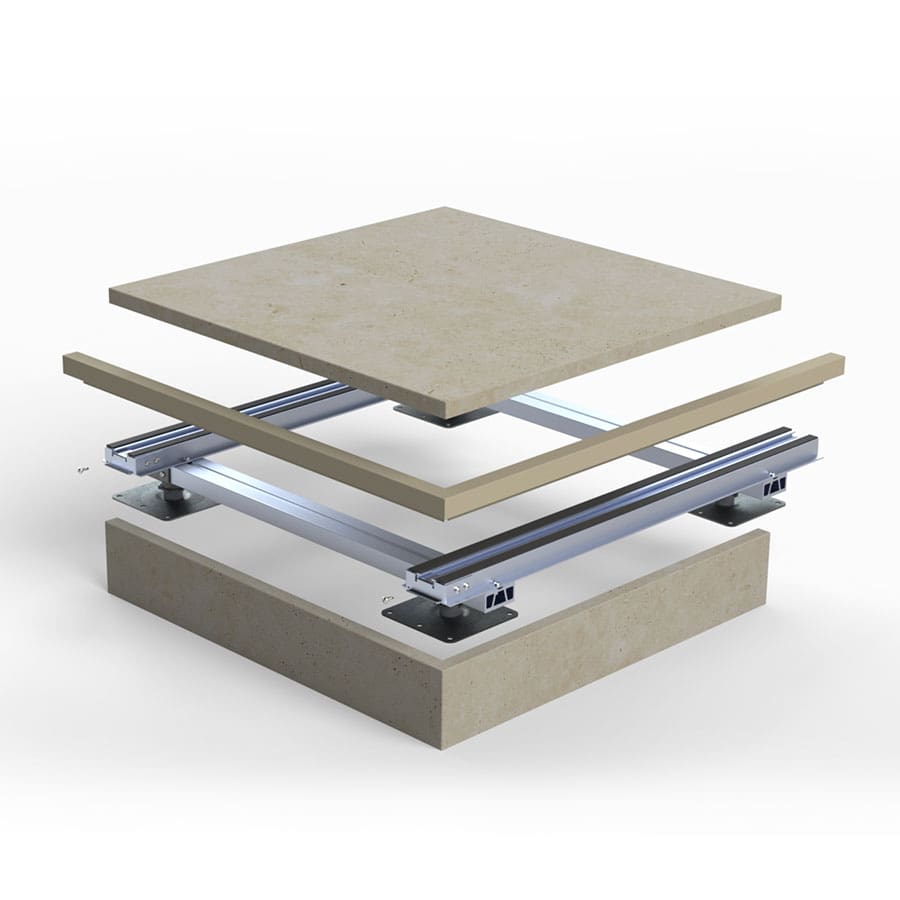

The vertical closure is fixed to the top rail and sits flush with the paving slab edge to create a uniform enclosure for steps or the vertical face of a paved area. The aluminium vertical closure profile locks the upright paving tile in place.
- 30 years warranty and 60 years design life
- Compatible with both edge variations of rail system
- Slip-resistant powder coated finish to match tile colour, providing a continuous, safe aesthetic trim
- Easy to install
- Secures vertical paver firmly in place
Accessories
Joist screw
4.2 x 13mm stainless steel A2, square drive pan-head, self-drilling.
Technical Specification
| Material | Aluminium alloy 6063-T6 |
|---|---|
| Coating/Finish | Profile – Powder coated to any Standard RAL colour with textured coating (brackets are not coated) |
| Reaction to fire | A1 |
| Dimensions | Visible profile face dimensions – 24mm top and side |
| Weight | Profile – 0.4Kg per metre |
Download
Datasheet - Vertical Closure
pdf 0.52 MB
Download the overview for the system for more information
