Datasheet - T25 Aluminium Support Rail
pdf 0.12 MB
An informational and technical product datasheet.
T

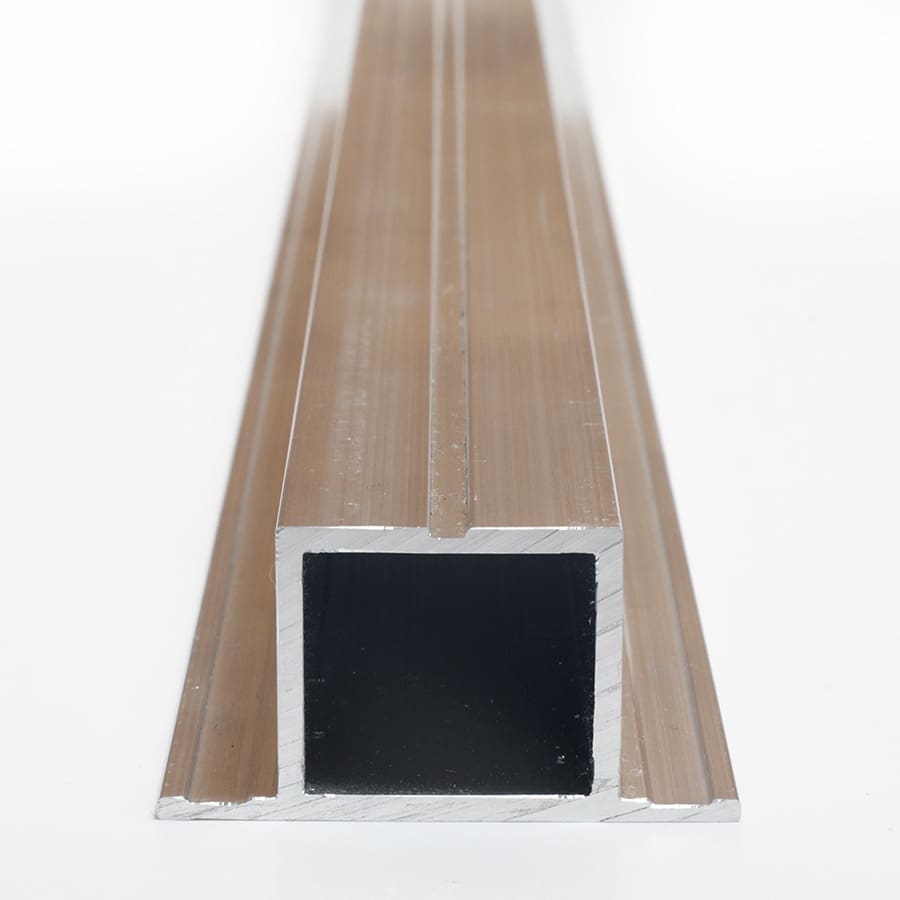

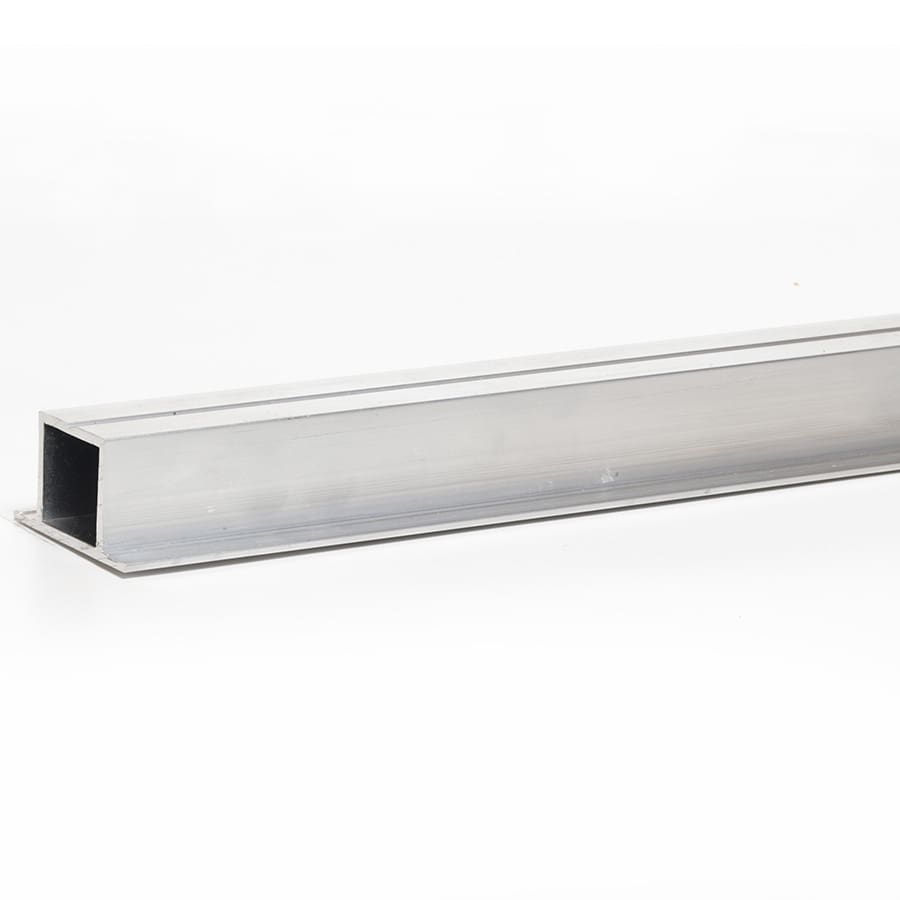

Aluminium Support Rail
£0.00
The Aluminium Support Rail is a non-combustible aluminium support rail designed to support RYNO decking boards. Support joists are designed to be secured directly to balcony steelwork, creating a fit-for-purpose height buildup where timber batten is being replaced or a low-height buildup is required.
- Class A1 fire rated
- Large fixing flanges for fixing into steelwork
- Manufactured from incredibly strong and lightweight aluminium
- Available in a mill finish or powder-coated
Performance
| Material | Aluminium alloy 6063 - T6 |
|---|---|
| Biological/Chemical | Resistant to moulds algae, alkali, bitumen, UV |
| Reaction to fire | Mill finish - A1 (inherently non-combustible) |
| Compatible Supports | ADB and DFB deckboards from the Ryno BalcaSmart Aluminium ranges |
| Warranty | 30 years* |
| Design life | 60 years* |
*Valid when used as part of a complete RYNO IGNO system
Dimensions
| Height | Width (top surface) | Width (total flange) | Stock Lengths | |
|---|---|---|---|---|
| T25 Rail | Height: 25mm | Width (top surface): 23mm | Width (total flange): 48mm | Stock Lengths: 3600mm |
