RAL 7037
Dusty Grey
SGP

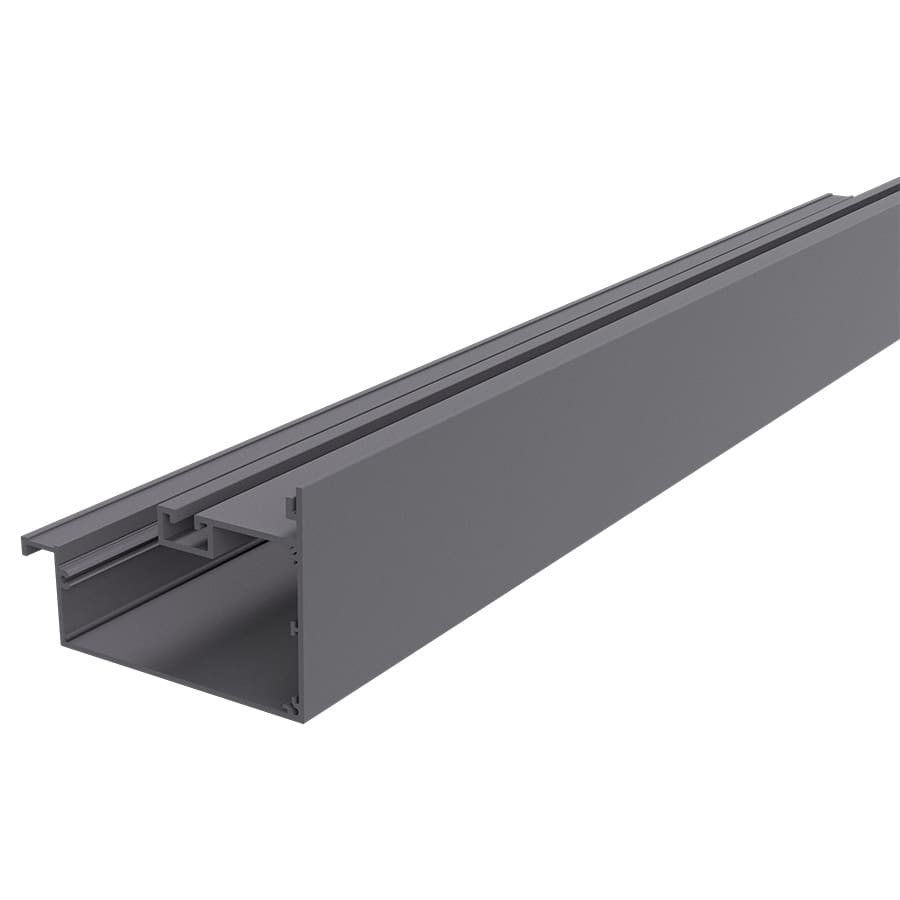

Soffit Gutter Profile
£0.00
The Soffit Gutter is typically fitted on the edge of the balcony soffit and is the primary rainwater collection layer. It is designed to be used with rainwater outlet(s) and overflow within the gutter, which enable connection to the building’s drainage system and ensure adequate drainage of the balcony. It is used with the edge profiles and soffit boards to create a complete positively drained soffit. It is made from high strength aluminium 6063 T6 and has a powder coated finish to match other components of the soffit.
- Compatible with Positive Drainage system
- Manufactured from high strength aluminium 6063 T6
- Powder coated finish
Finishes
RAL 7037
RAL 8014
Sepia Brown
RAL 7039
Quartz Grey
RAL 7040
Window Grey
RAL 8019
Grey Brown
RAL 7016
Anthracite Grey
Custom RAL colour options
Details
| Material | Aluminium 6063-T6 |
|---|---|
| Dimensions | 40x120x3600mm |
| Weight | 2.7kg/m |
| Coating | Qualicoat ‘Seaside’ Class 2 powder coating |
Performance
| Reaction to fire (BS EN 13501-1) | A2-s1, d0 |
|---|---|
| Biological and chemical | Resistant to moulds, algae, alkali, bitumen, UV |
| Warranty | 30 years* |
| Design life | 60 years |
*When used as part of a complete RYNO system
Fixing details**
| To steel | M8 x 150mm carriage bolt + 2x hex nuts |
|---|---|
| To SEC Edge Closure Profile | Horizontal Corner Bracket |
| To ASB Soffit Board (at corners) | 4.8x10mm sealed pop rivets stainless steel A2 |
| To ASB Soffit Board (to adjacent board) | PHS 4.8x13mm Pan head screw |
**Fixings supplied separately
