RAL 7037
Dusty Grey
SEC-F
Soffit Edge Closure Profile
£0.00

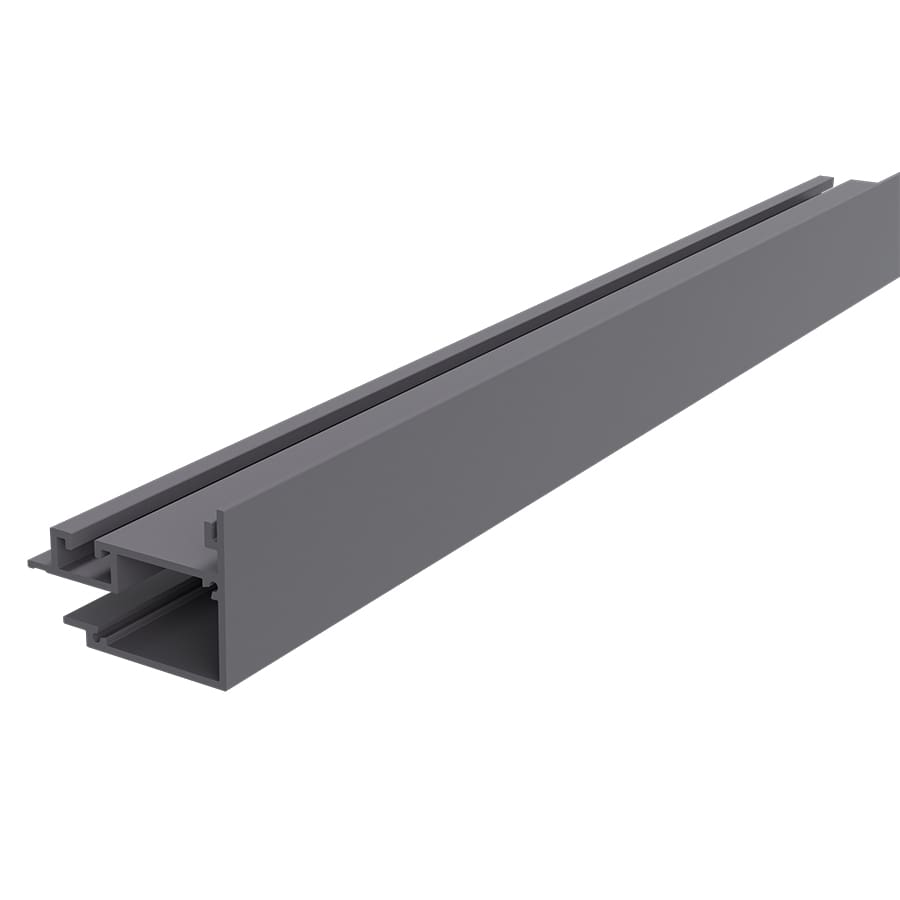

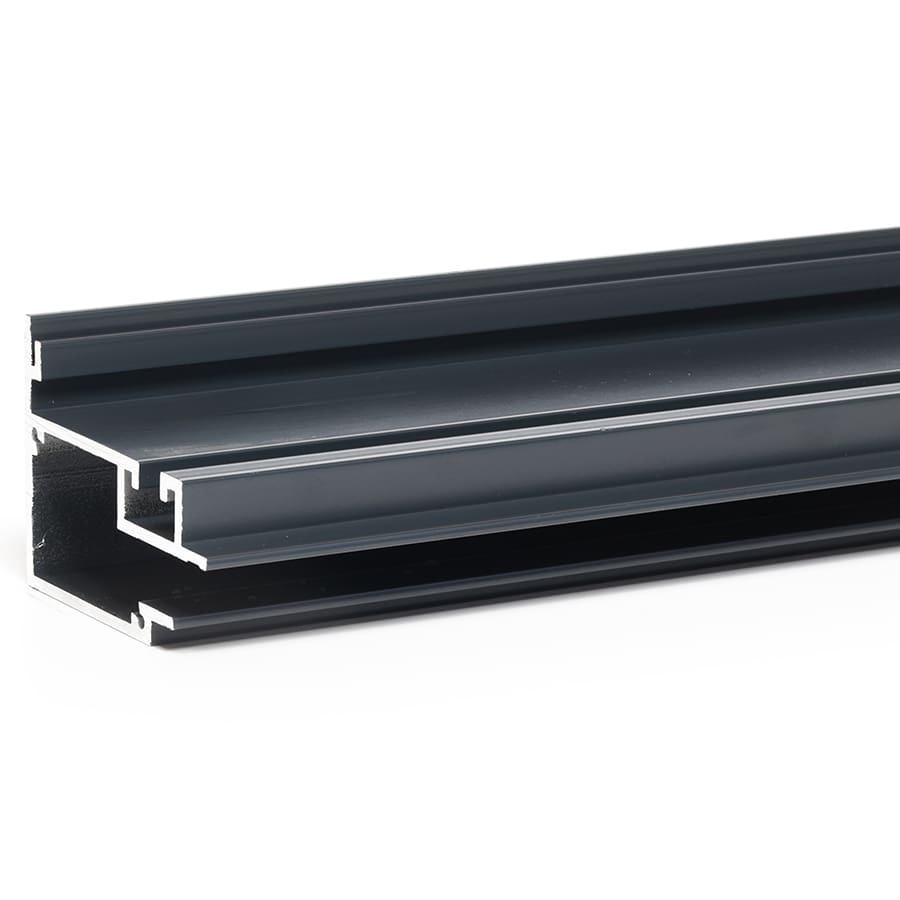

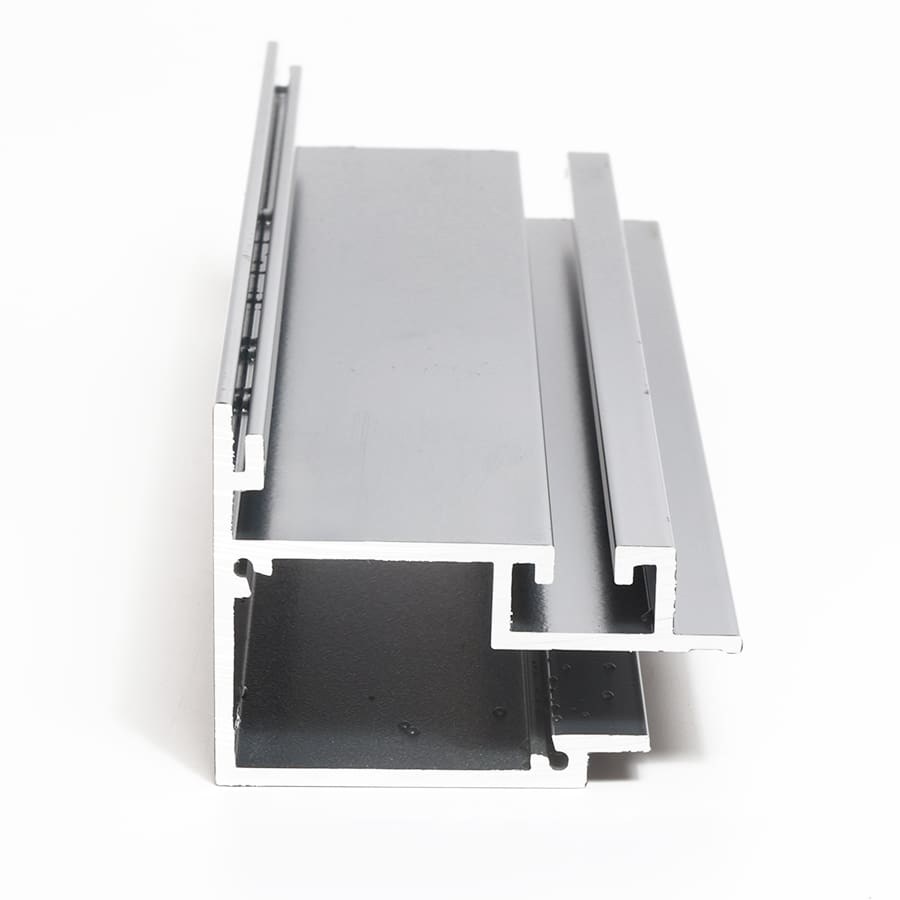

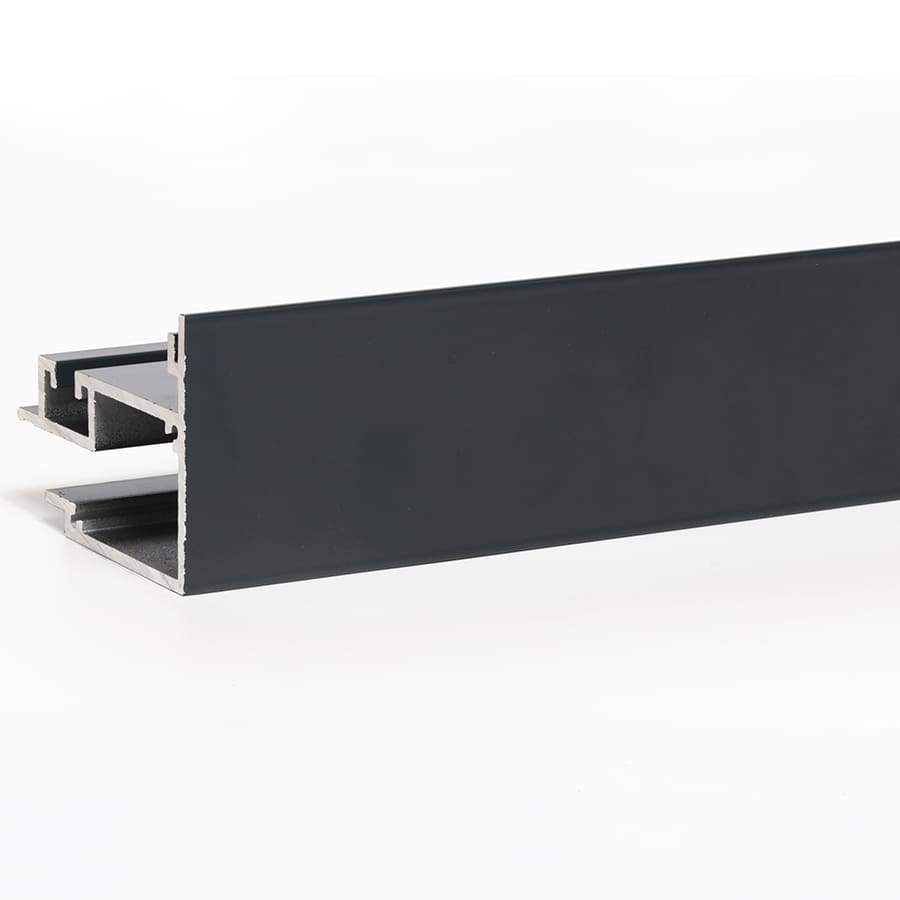

The Soffit Edge Closure is designed to provide both the carrier and closure detail for the soffit board around 3 sides of a typical balcony. It is used with either the drip edge or gutter profile and soffit boards to create a complete balcony soffit. It is made from high strength aluminium 6063 T6 and has a powder coated finish to match other components of the soffit.
- Compatible with both Edge Drainage and Positive Drainage systems
- Manufactured from high strength aluminium 6063 T6
- Powder coated finish
Finishes
RAL 7037
RAL 8014
Sepia Brown
RAL 7039
Quartz Grey
RAL 7040
Window Grey
RAL 8019
Grey Brown
RAL 7016
Anthracite Grey
Custom RAL colour options
Details
| Material | Aluminium 6063-T6 |
|---|---|
| Dimensions | 50x60x3600mm |
| Weight | 1.75kg/m |
| Coating | Qualicoat ‘Seaside’ Class 2 powder coating |
*When used as part of a complete RYNO system
Performance
| Reaction to fire (BS EN 13501-1) | A2-s1, d0 |
|---|---|
| Biological and chemical | Resistant to moulds, algae, alkali, bitumen, UV |
| Warranty | 30 years* |
| Design life | 60 years |
*when used as part of a complete RYNO system
Fixing details**
| To steel | M8 x 150mm carriage bolt + 2x hex nuts |
|---|---|
| To SDE Soffit Angle Drip Edge Profile | Horizontal Corner Bracket |
| To ASB Soffit Board (at corners) | 4.8x10mm sealed pop rivets stainless steel A2 |
| To ASB Soffit Board (to adjacent board) | PHS 4.8x13mm Pan head screw |
**Fixings supplied separately
Download
Datasheet
pdf 0.19 MB
