RPS

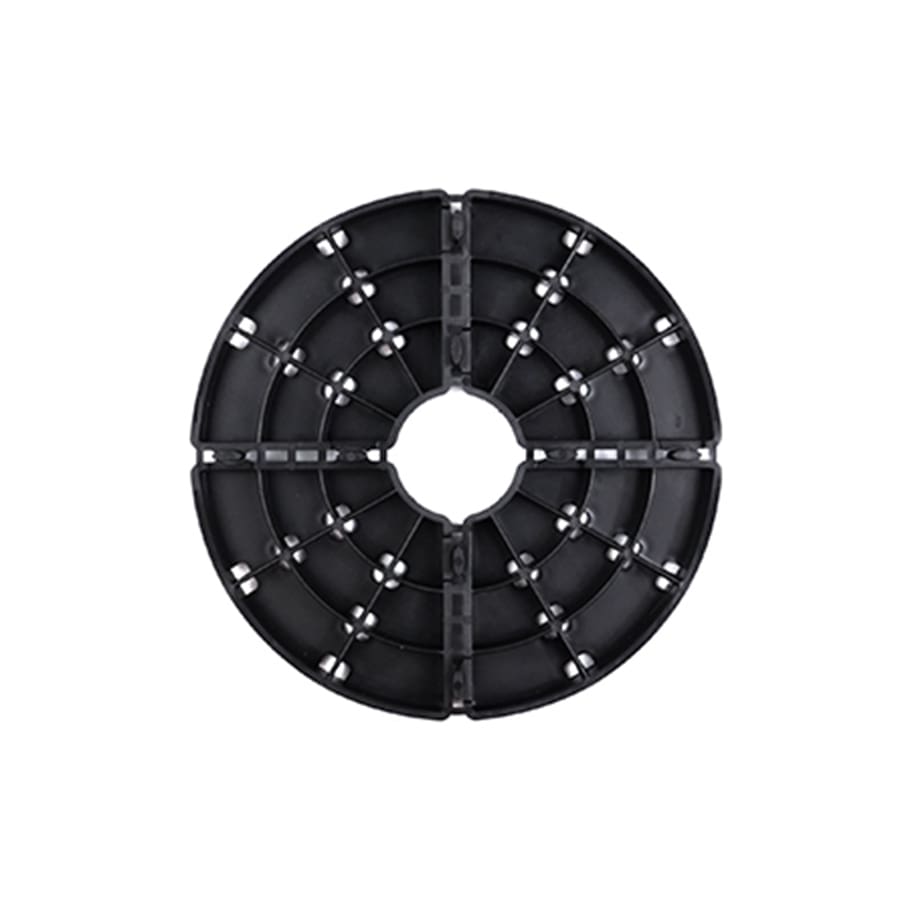

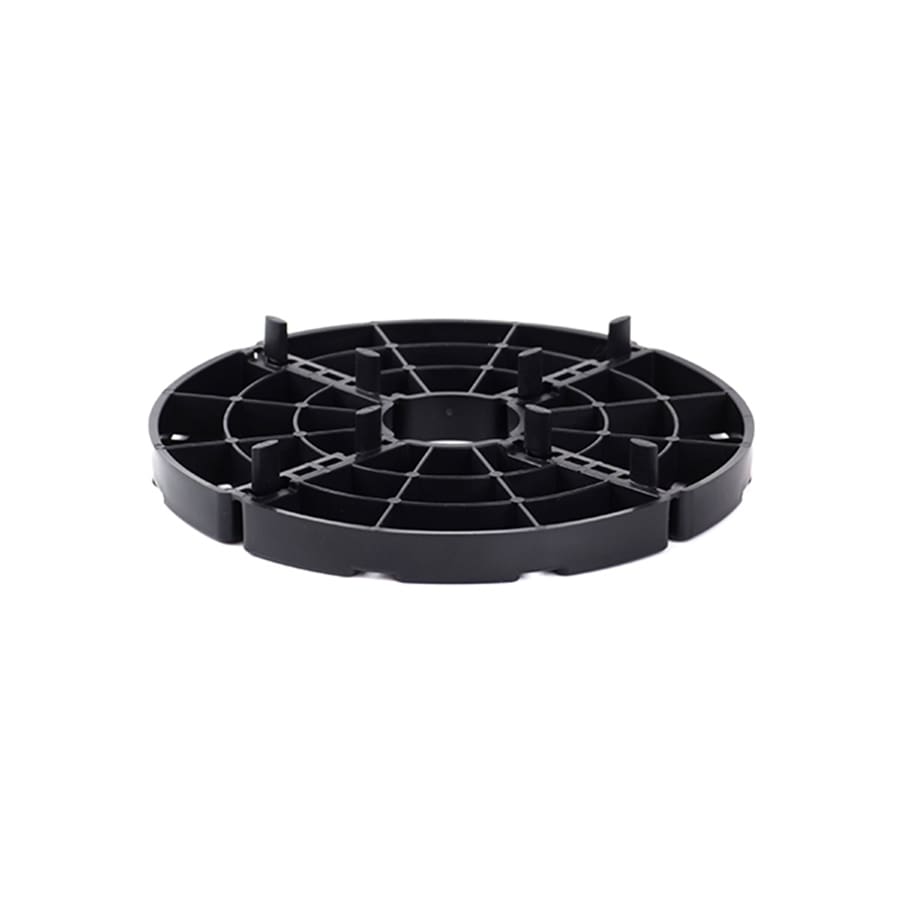

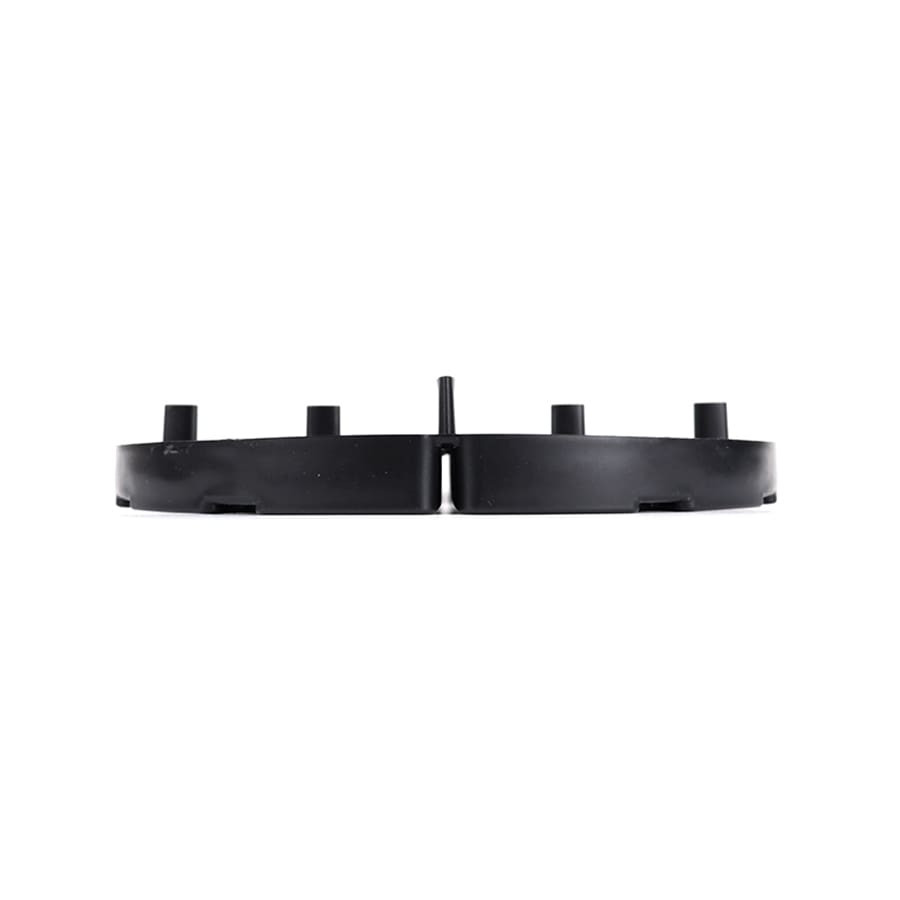

Stackable Paving Support Pad

£0.00

The RPS Stackable Paving Support Pad is a stackable paving support pedestal that is simple to install. Designed for use on totally flat surfaces, this support is a very economical way to create a clear space below paving, allowing for rapid water drainage.

  • Spacer tabs create a perfectly uniform gap between slabs
  • Drainage holes ensure fast and efficient rainwater drainage
  • Supports can be stacked to the desired height ā€“ up to 6 high for the RPS range, up to 10 high for the RPS-HD range
  • Supports can be snapped into halves or quarters for supporting slabs at edges or corners
  • Suitable for all calibrated paving types, including porcelain, concrete, and natural stone
Download the datasheet

Accessories

Edge spring clip

The edge spring clip fits on top of paving supports around the periphery of paved areas to ensure uniform spacing against wall abutments, helping ensure rapid drainage. By tensioning the tile bed, it counteracts creepage and movement.

Base shock pads

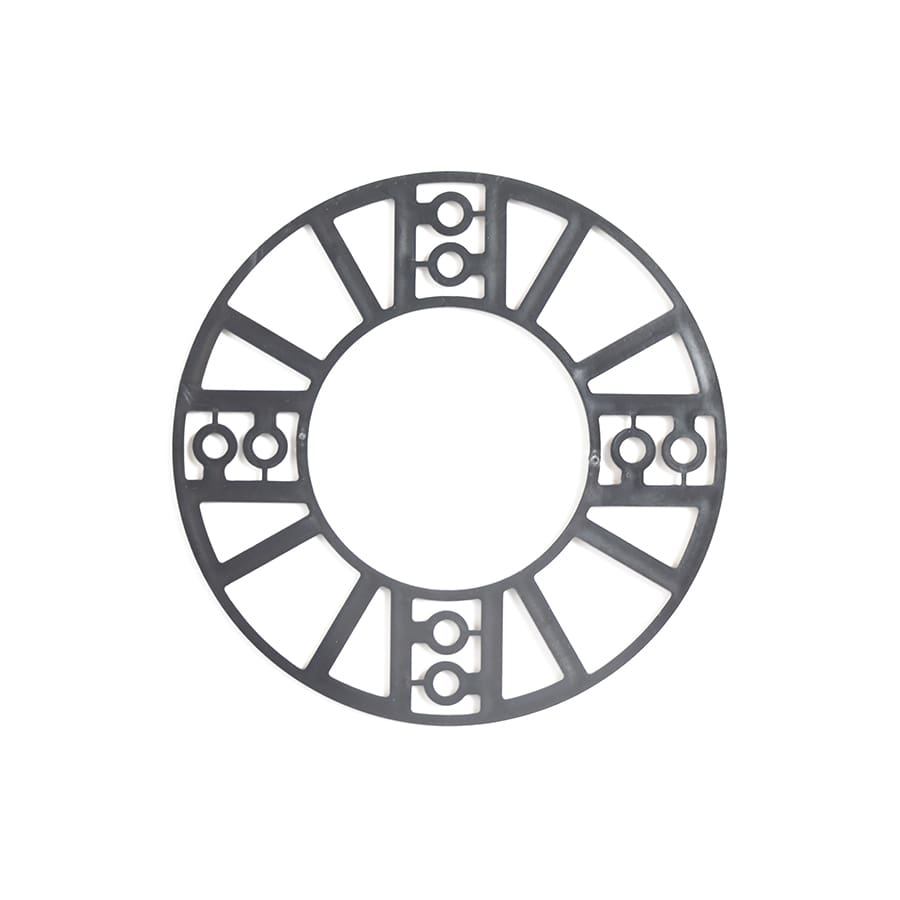

Base shock-absorbent membrane pads can be installed under the pedestal/support base to enhance acoustic properties, or to provide additional protection to the waterproof system.

Technical Specification

MaterialPolypropelene (recycleable)
Height range RPS-HD15-150mm
Height range RPS10-60mm
Compression RPS-HD1000kg
Compression RPS400kg
Spacer tab thickness4mm
Biological/chemicalResistant to moulds, algae, alkali, bitumen, UV

Sizes

CodeProduct
RPS-10Product: 10mm stackable paving support
RPS-15Product: 15mm stackable paving support

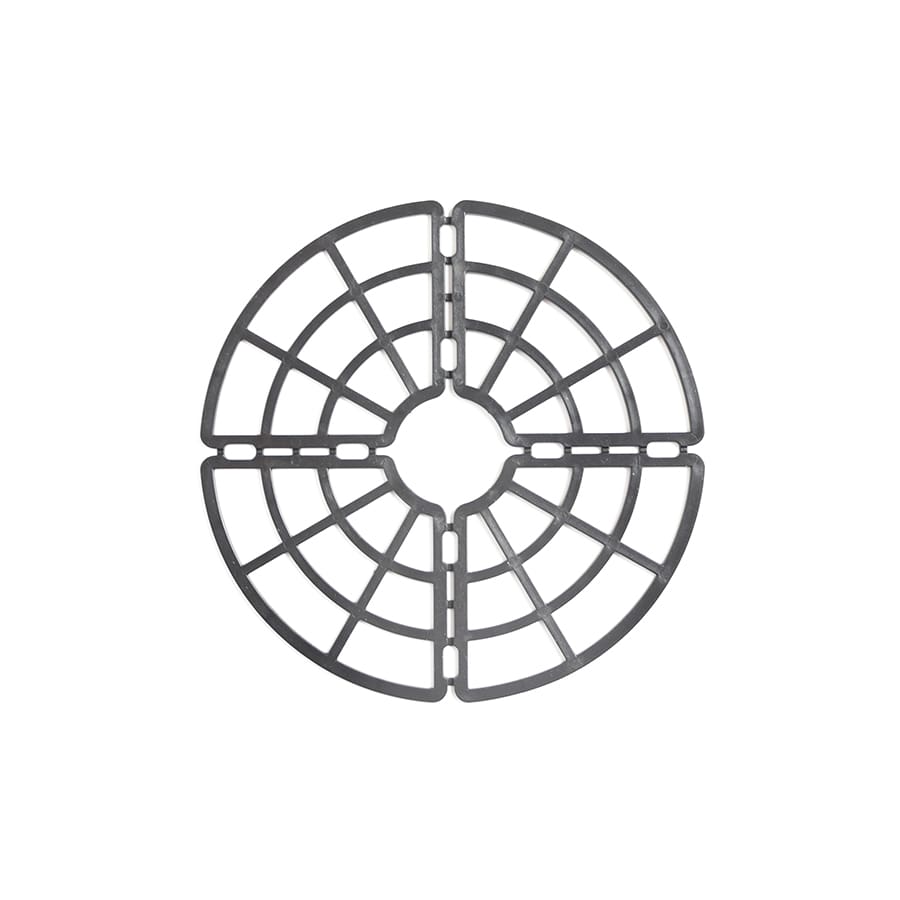

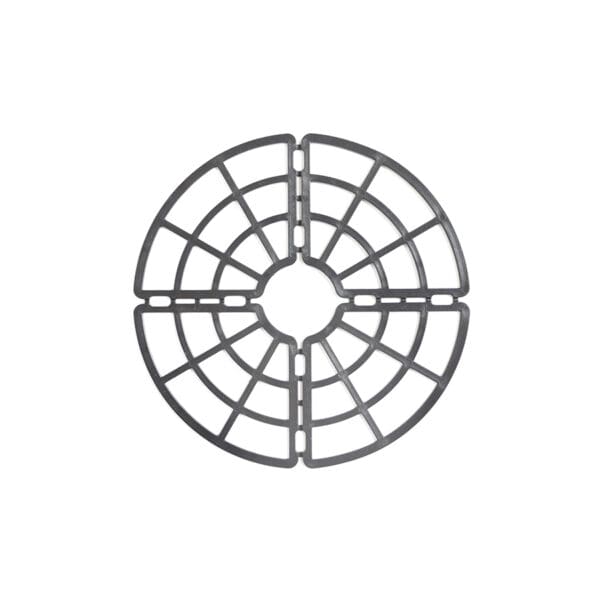

RPS-3Product: 3mm shim for finer height adjustment compatible with RPS-10/15
RPS-HD15Product: 15mm heavy-duty stackable paving support
RPS-HD2Product: 3mm heavy-duty shim for finer height adjustment compatible with RPS-HD15

Download

Datasheet - RPS Paving Support

pdf 0.44 MB

Download the overview for the system for more information
