RPF

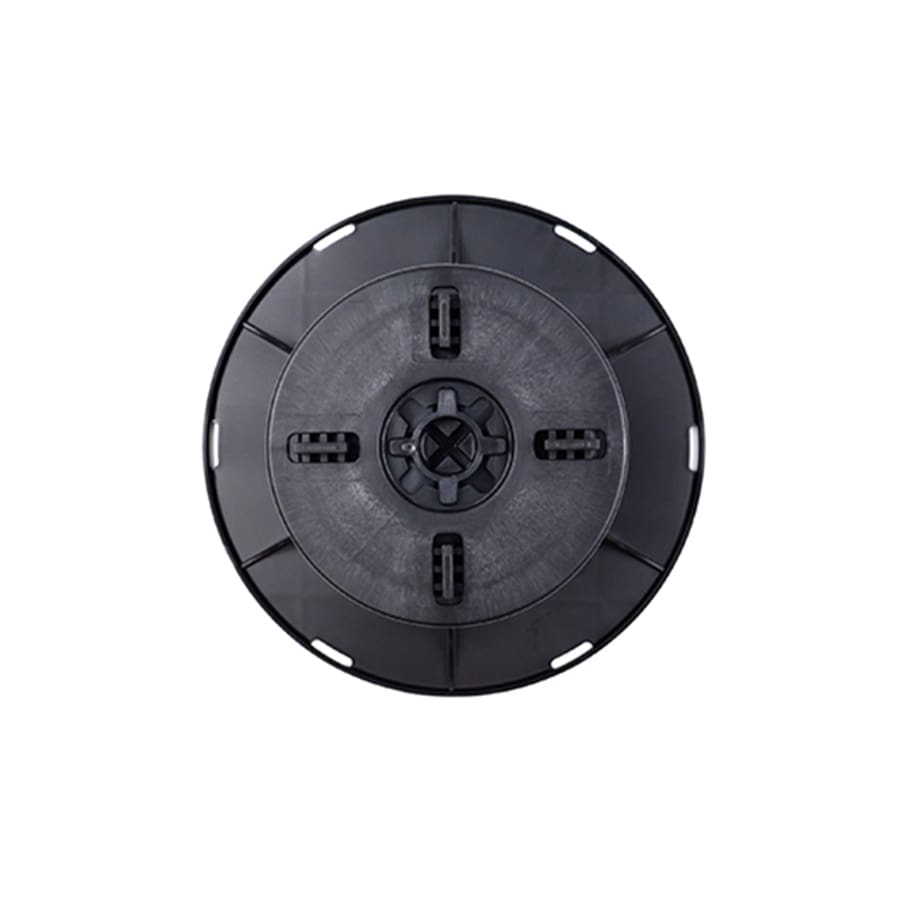

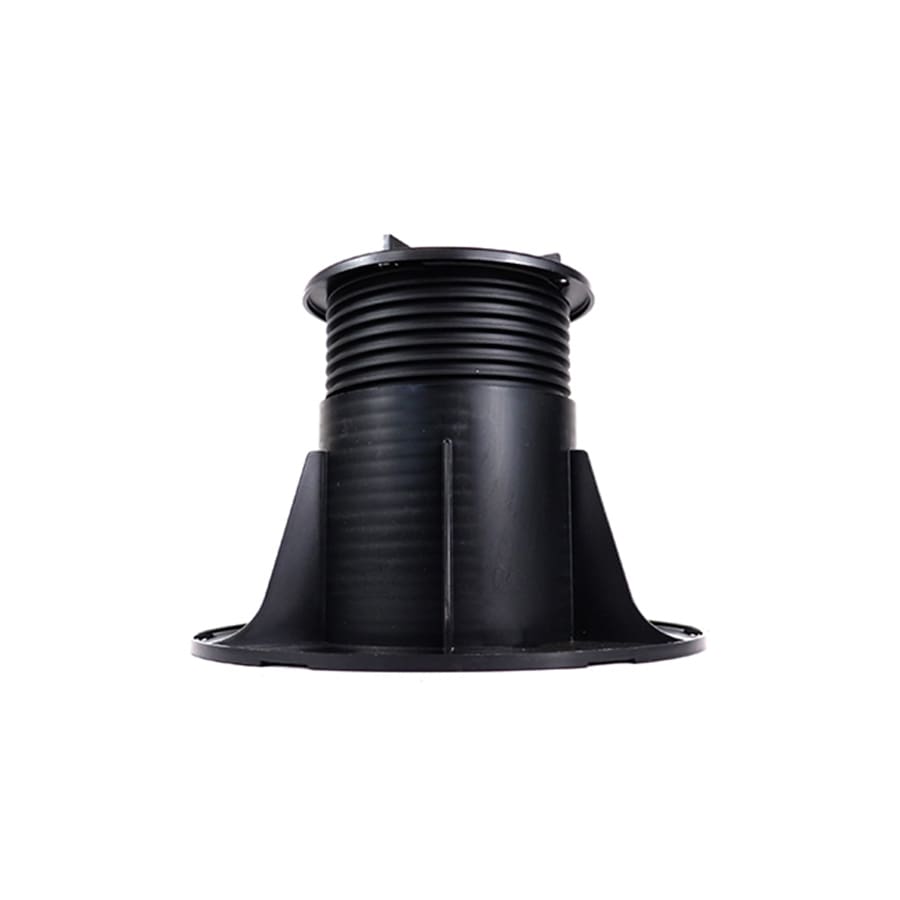

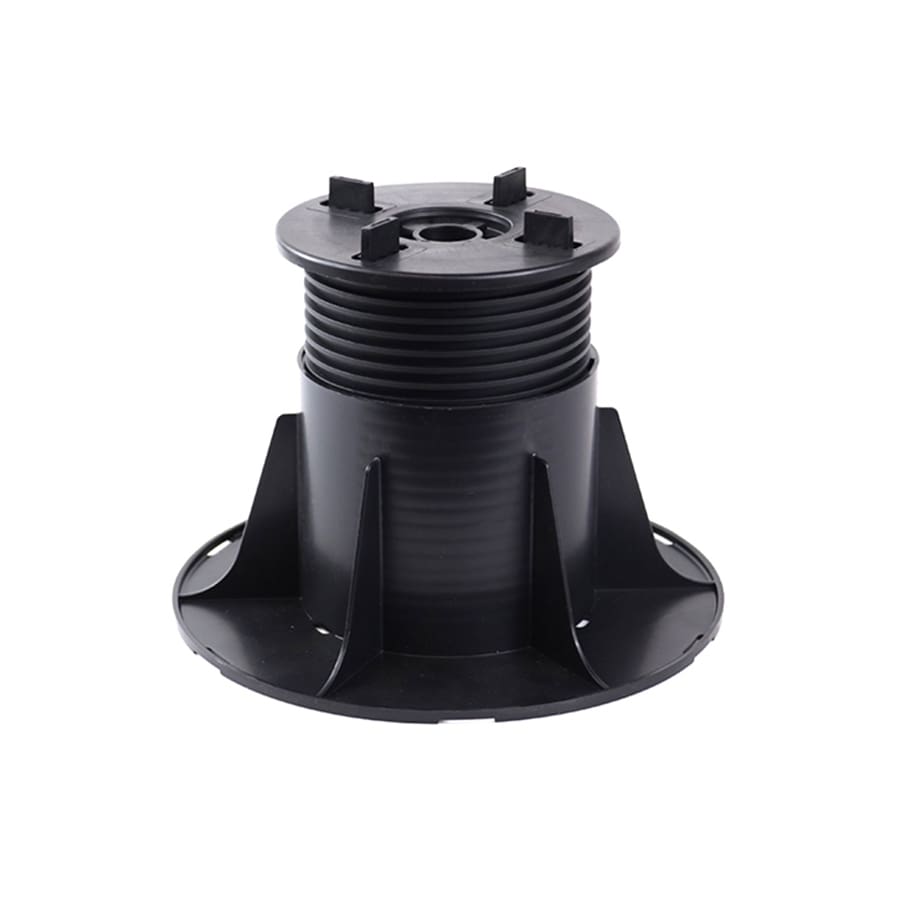

Fixed Head Adjustable Paving Support Pedestal
£0.00
The RPF Fixed Head Adjustable Paving Support Pedestal is a plastic support pedestal designed to support all types of calibrated paving. The adjustable thread provides millimetre-perfect adjustability across a large height range, making installation straightforward and rapid.
- Snap-off spacer tabs for consistent spacing and easy removal
- Large height range available
- A cut-off base allows for placement against the wall abutment
- Height extension collar raises the total height in 100mm increments
- Holes in the base allow for drainage and fixing to substrates
- Suitable for all calibrated paving types, including porcelain, concrete, and natural stone
Details
| Material | Polypropylene (recyclable) |
|---|---|
| Dimensions | Base size: 200mm Head size: 120mm (diameter) |
| Spacer tab thickness | 4mm (standard) |
| Spacer tab thickness options | 2mm/6mm/8mm/10mm |
| Height range | See “Part information” below |
| Weight | See “Part information” below |
Performance
| Reaction to fire (BS EN 13501-5) | BROOF(t4)* |
|---|---|
| Compressive strength | 1000kg + per pedestal |
| Allowable load | See "Compatible system" data |
| Biological and chemical | Resistant to moulds, algae, alkali, bitumen, UV |
| Warranty | 10 years* |
*when used as part of a complete RYNO system
Part information
| Code | Height range | Pack quantity | Base part | No. of extension collars |
|---|---|---|---|---|
| RPF-1 | Height range: 22-35mm | Pack quantity: 25 | Base part: 22-35mm | No. of extension collars: 0 |
| RPF-2 | Height range: 35-55mm | Pack quantity: 25 | Base part: 35-55mm | No. of extension collars: 0 |
| RPF-3 | Height range: 55-95mm | Pack quantity: 25 | Base part: 55-95mm | No. of extension collars: 0 |
| RPF-4 | Height range: 95-165mm | Pack quantity: 25 | Base part: 95-165mm | No. of extension collars: 0 |
| RPF-5 | Height range: 165-235mm | Pack quantity: 25 | Base part: 165-235mm | No. of extension collars: 0 |
| RPF-6 | Height range: 200-270mm | Pack quantity: 25 | Base part: 95-165mm | No. of extension collars: 1 |
| RPF-7 | Height range: 260-340mm | Pack quantity: 25 | Base part: 165-235mm | No. of extension collars: 1 |
| RPF-8 | Height range: 305-375mm | Pack quantity: 25 | Base part: 95-165mm | No. of extension collars: 2 |
| RPF-9 | Height range: 365-445mm | Pack quantity: 25 | Base part: 165-235mm | No. of extension collars: 2 |
| RPF-10 | Height range: 410-480mm | Pack quantity: 25 | Base part: 95-165mm | No. of extension collars: 3 |
| RPF-11 | Height range: 470-550mm | Pack quantity: 25 | Base part: 165-235mm | No. of extension collars: 3 |
