RPA
Self-Levelling Adjustable Paving Support Pedestal
£0.00

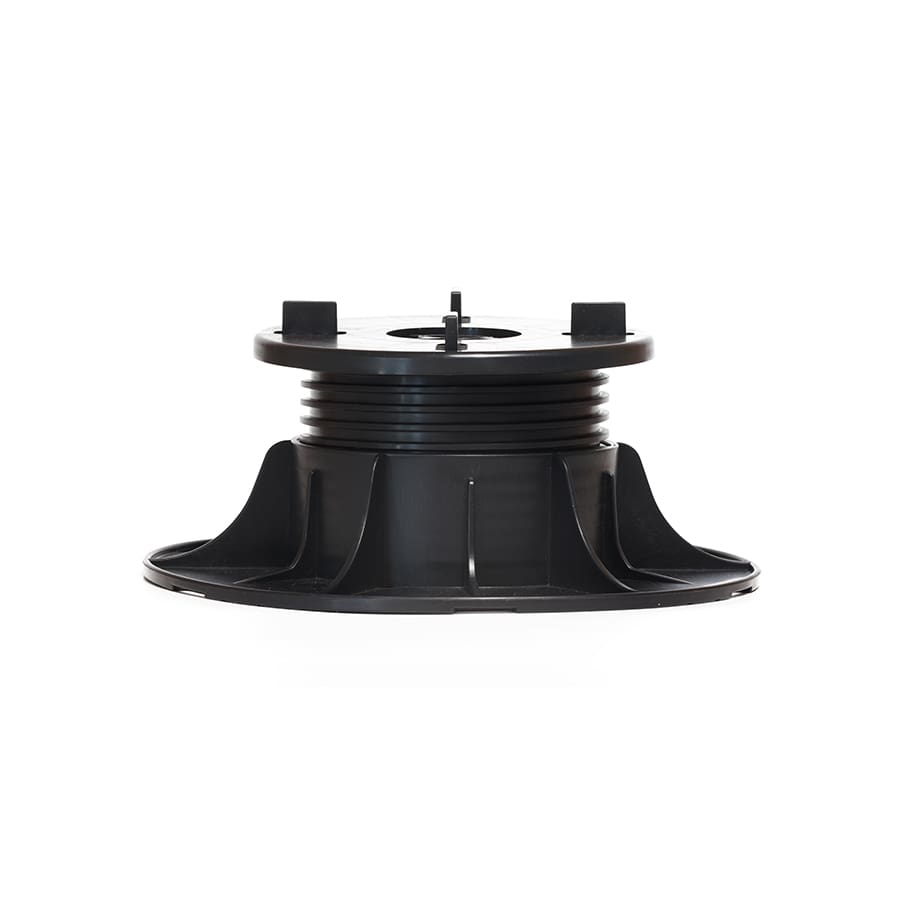

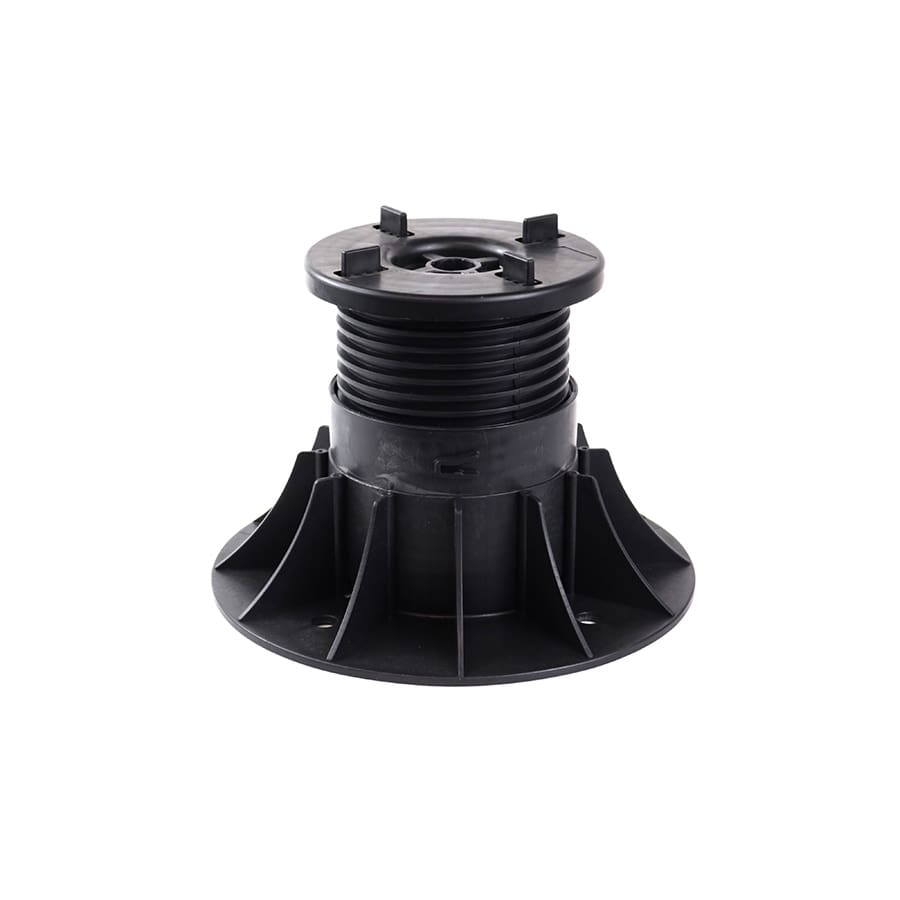

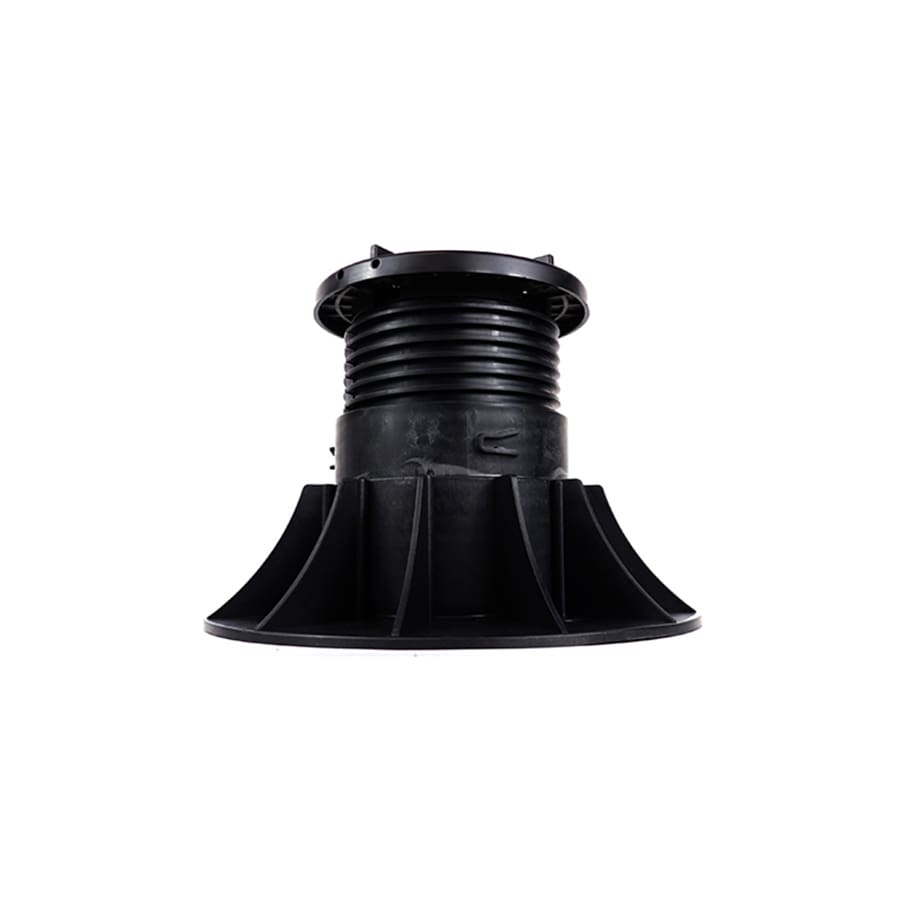

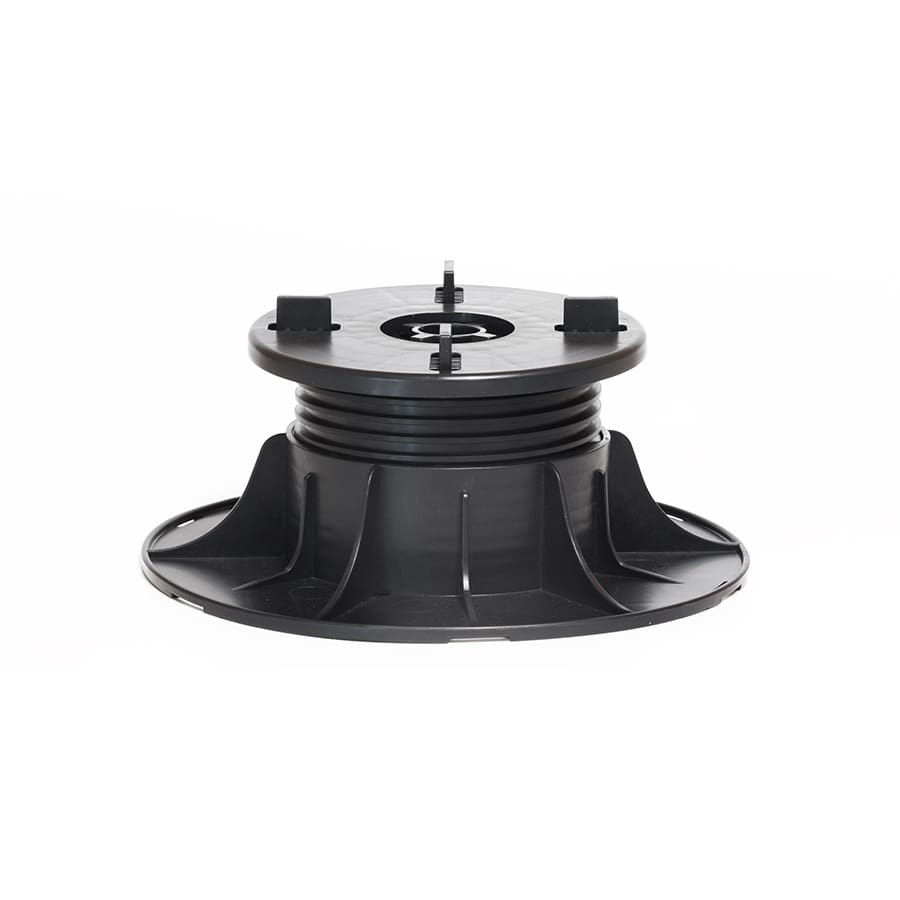

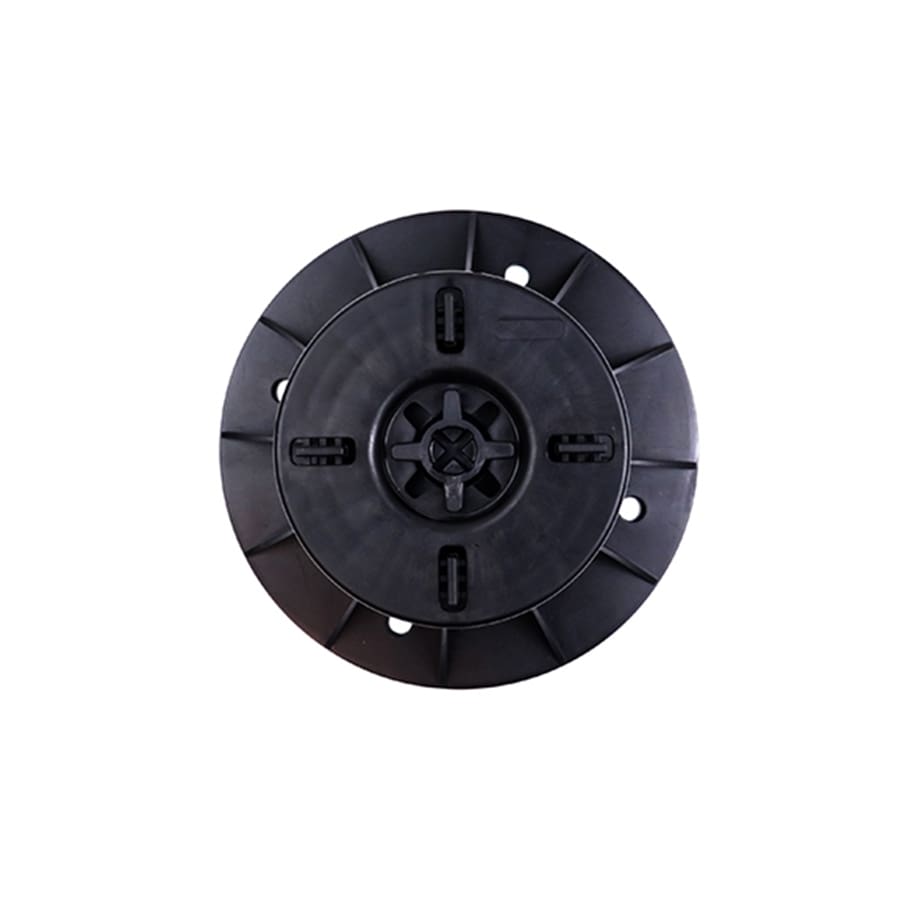

The RPA Self-Levelling Adjustable Paving Support Pedestal is a plastic support pedestal boasting a “ball and socket” floating head design, allowing for slope correction for paving on tapered roofs. The adjustable thread provides millimetre-perfect adjustability across a large height range, making installation straightforward and rapid.
- Suitable for all calibrated paving types, including porcelain, concrete, and natural stone
- Snap-off spacer tabs for consistent spacing and easy removal
- Large height range available
- A cut-off base allows for placement against the wall abutment
- Height extension collar raises the total height in 100mm increments
- Holes in the base allow for drainage and fixing to substrates
Details
| Material | Polyproylene (recyclable) |
|---|---|
| Dimensions | Base size: 200mm (diameter) Head size: 130mm (diameter) |
| Maximum slope correction | 5% (1:20 gradient) |
| Spacer tab thickness | 4mm (standard) |
| Spacer tab thickness options | 2mm/6mm/8mm/10mm |
Performance
| Reaction to fire (BS EN 13501-5) | BROOF(t4)* |
|---|---|
| Compressive strength | 1500kg+ per pedestal |
| Allowable load | See “Compatible system” data |
| Biological and chemical | Resistant to moulds, algae, alkali, bitumen, UV |
| Warranty | 10 years* |
*when used as part of a complete RYNO system
Part information
| Code | Height range | Box quantity | No. of extension collars |
|---|---|---|---|
| RPA-1 | Height range: 20-25mm | Box quantity: 25 | No. of extension collars: 0 |
| RPA-2 | Height range: 25-35mm | Box quantity: 25 | No. of extension collars: 0 |
| RPA-3 | Height range: 35-50mm | Box quantity: 25 | No. of extension collars: 0 |
| RPA-4 | Height range: 50-80mm | Box quantity: 25 | No. of extension collars: 0 |
| RPA-5 | Height range: 80-130mm | Box quantity: 25 | No. of extension collars: 0 |
| RPA-6 | Height range: 130-230mm | Box quantity: 25 | No. of extension collars: 0 |
| RPA-7 | Height range: 230-330mm | Box quantity: 25 | No. of extension collars: 1 |
| RPA-8 | Height range: 330-430mm | Box quantity: 25 | No. of extension collars: 2 |
| RPA-9 | Height range: 430-530mm | Box quantity: 25 | No. of extension collars: 3 |
| RPA-10 | Height range: 530-630mm | Box quantity: 25 | No. of extension collars: 4 |
| RPA-11 | Height range: 630-730mm | Box quantity: 25 | No. of extension collars: 5 |
| RPA-12 | Height range: 730-830mm | Box quantity: 25 | No. of extension collars: 6 |
| RPA-13 | Height range: 830-930mm | Box quantity: 25 | No. of extension collars: 7 |
| RPA-14 | Height range: 930-1030mm | Box quantity: 25 | No. of extension collars: 8 |
