Datasheet - Retrofit Wind Uplift Clip
pdf 0.21 MB
RFC-WU
Retrofit Wind Uplift Clip
£0.00
Patent Pending: GB2318686.9

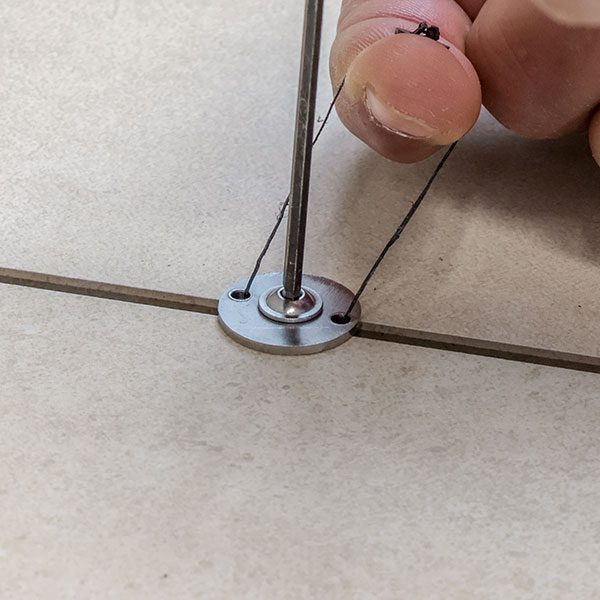

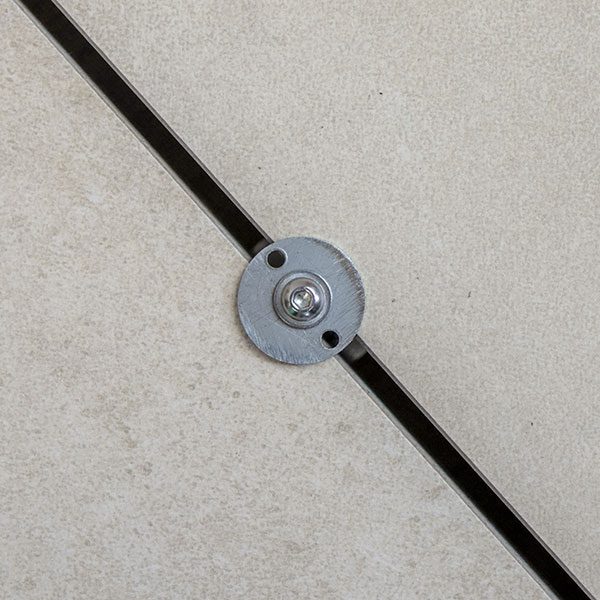

The Retrofit Wind Uplift Clip for paving can be installed on raised paving areas that have been laid in the past, without having to lift or move the paving. Designed to fit in a 4mm Paving gap, the clip ties the paved surface together and provides an effective wind uplift restraint.
- Retrofit capability, avoids the need for re-installation, saving significant cost and time
- Discreet dome head fixing for user comfort
- Removable tether for easy application
Details

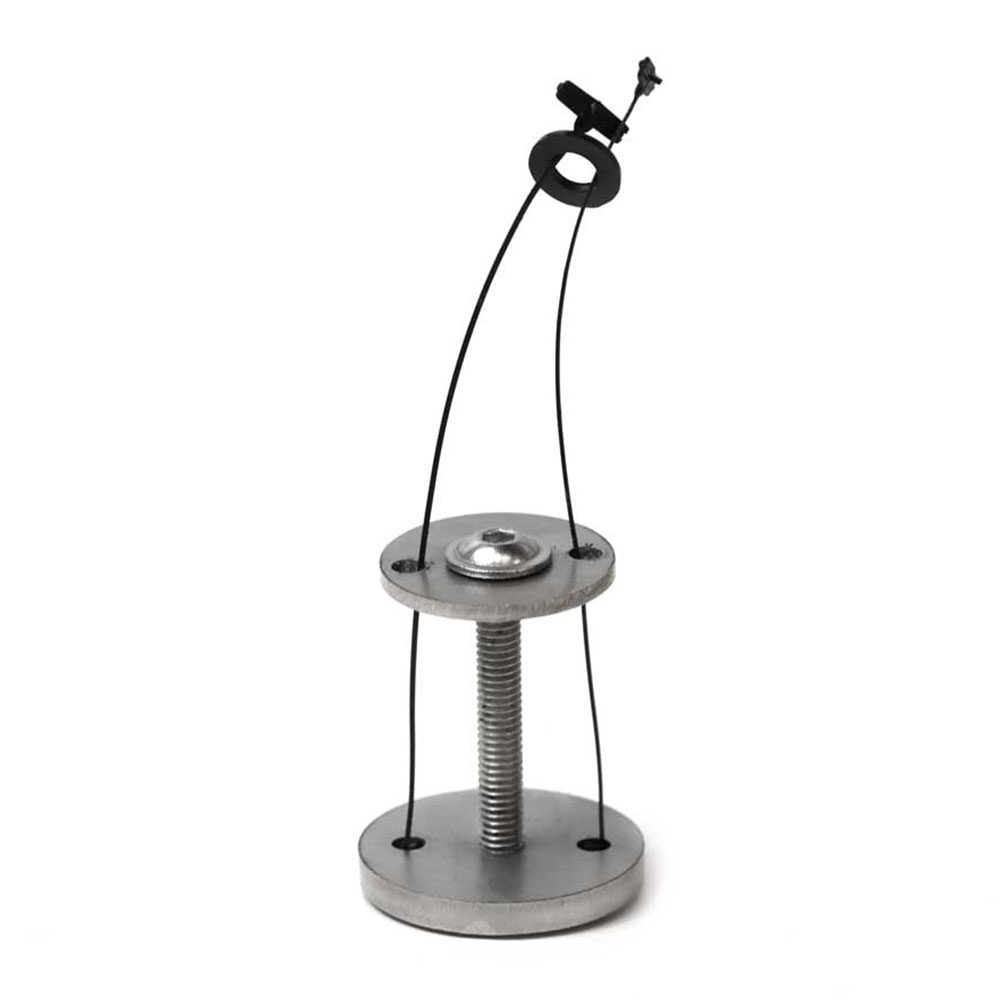

| Material | Top Washer - Stainless Steel A4 Bottom Washer - Stainless Steel A4 Flanged Head Fixing - Stainless Steel A2 |
|---|---|
| Dimensions | Top Washer: 20x0.85mm Bottom Washer: 25x2.5mm Flanged Head Fixing: M3x35mm |
| Drive Type | Hex drive 2mm |
Performance
| Reaction to fire (BS EN 13501-1) | Inherently A1 (Decision 94-611/EC) |
|---|---|
| Wind Uplift | Wind tunnel testing demonstrated successful product performance in sustained ≤120mph wind speeds* |
*wind uplift forces can be intensified by the surrounding built environment. A wind survey is essential to determine worst case pressures. Product performance cannot be guaranteed without confirming suitability through professional assessment.
**The Retrofit Wind Uplift Clip will work effectively with RYNO 20mm porcelain paving; variations possible in the manufacturing process mean other tiles cannot be guaranteed compatible.
***The clip works on the principle of combining the weight of all tiles; it is essential that perimeter paving is firmly locked in on all sides. Any potential for movement can open gaps and tiles could work loose.
**The Retrofit Wind Uplift Clip will work effectively with RYNO 20mm porcelain paving; variations possible in the manufacturing process mean other tiles cannot be guaranteed compatible.
***The clip works on the principle of combining the weight of all tiles; it is essential that perimeter paving is firmly locked in on all sides. Any potential for movement can open gaps and tiles could work loose.
Compatible Systems
