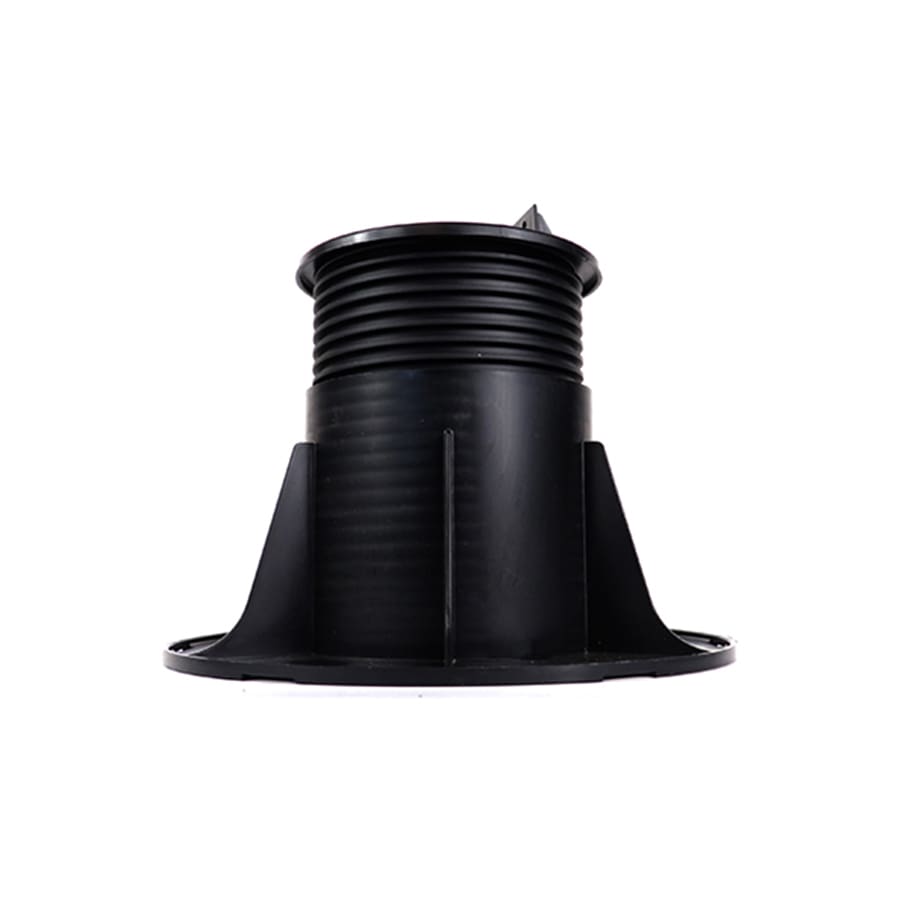

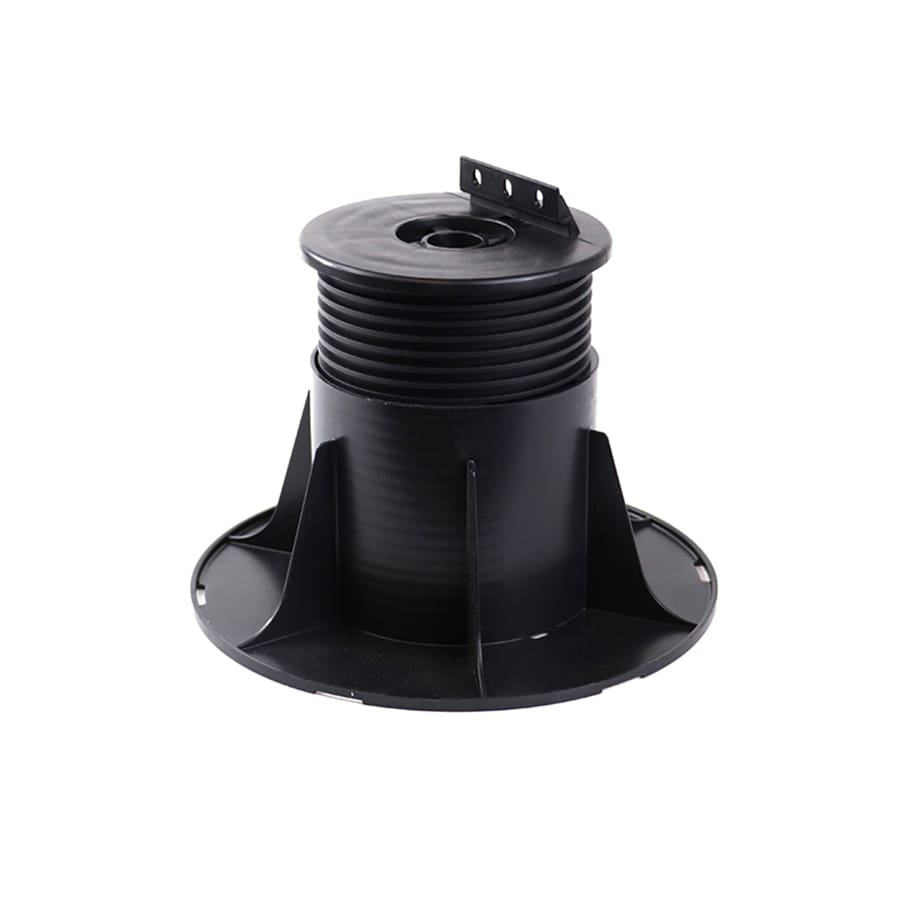

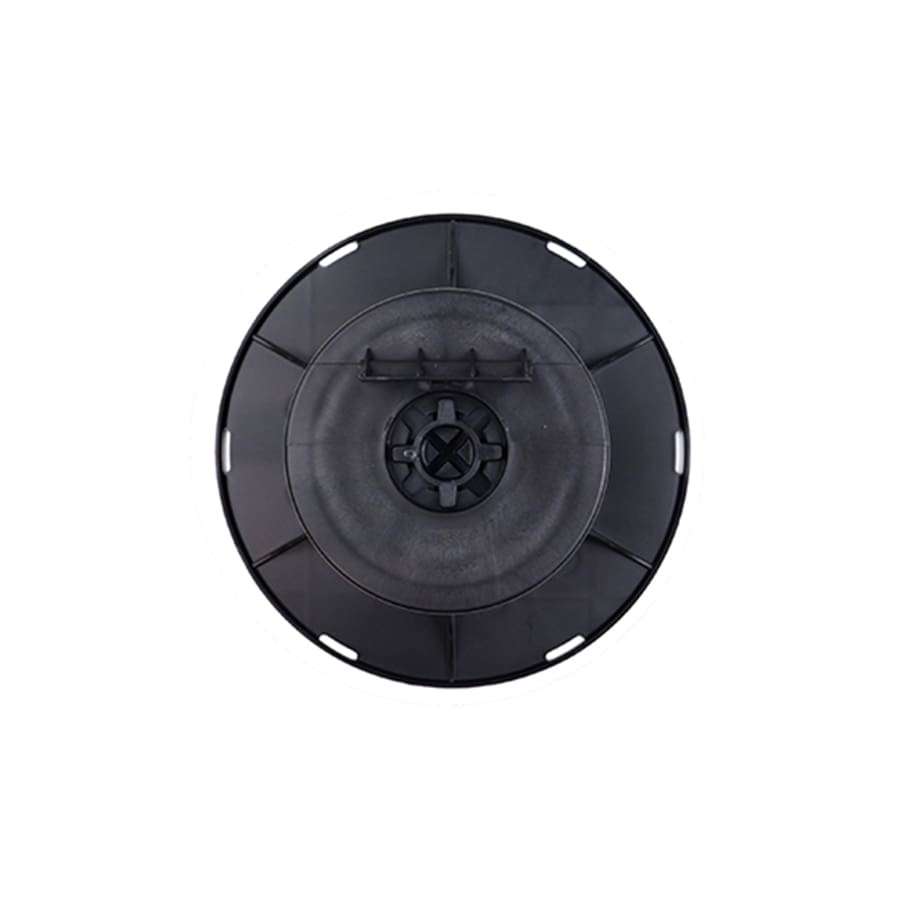

Fixed Head Adjustable Joist Support Pedestal
£0.00
The RDF Fixed Head Adjustable Joist Support Pedestal is a plastic support pedestal for decking and railing applications. The adjustable thread provides millimetre-perfect adjustability across a large height range, making installation straightforward and rapid.
- Accommodates joist width of up to 80mm
- Millimetre-perfect height adjustment
- Large height range available
- Cut-off base allows for placement against the wall abutment
- Height extension collar raises the total height in 100mm increments
- Holes in base allow drainage and fixing to substrates
Compatible components
BRSP
Base Rubber Shock Pad
PHS
Pan-Head Screw
Details
| Material | Polypropylene (recyclable) |
|---|---|
| Dimensions | Head size: 120mm (diameter) Base size: 200mm (diameter) |
| Height range | See “Part information” |
| Joist width capacity | 80mm |
Performance
| Reaction to fire (BS EN 13501-5) | BROOF(t4) |
|---|---|
| Compressive strength | 1000kg+ |
| Allowable load | See “Compatible system” data |
| Biological and chemical | Resistant to moulds, algae, alkali, bitumen, UV |
| Warranty | 10 years* |
*when used as part of a complete RYNO system
Part information
| Code | Adjustable height range | Pack quantity | Base part | Number of collars |
|---|---|---|---|---|
| RDF-1 | Adjustable height range: 22-35mm | Pack quantity: 25 | Base part: 22-35mm | Number of collars: 0 |
| RDF-2 | Adjustable height range: 35-55mm | Pack quantity: 25 | Base part: 35-55mm | Number of collars: 0 |
| RDF-3 | Adjustable height range: 55-95mm | Pack quantity: 25 | Base part: 55-95mm | Number of collars: 0 |
| RDF-4 | Adjustable height range: 95-165mm | Pack quantity: 25 | Base part: 95-165mm | Number of collars: 0 |
| RDF-5 | Adjustable height range: 165-235mm | Pack quantity: 25 | Base part: 165-235mm | Number of collars: 0 |
| RDF-6 | Adjustable height range: 200-270mm | Pack quantity: 25 | Base part: 95-165mm | Number of collars: 1 |
| RDF-7 | Adjustable height range: 260-340mm | Pack quantity: 25 | Base part: 165-235mm | Number of collars: 1 |
| RDF-8 | Adjustable height range: 305-375mm | Pack quantity: 25 | Base part: 95-165mm | Number of collars: 2 |
| RDF-9 | Adjustable height range: 365-445mm | Pack quantity: 25 | Base part: 165-235mm | Number of collars: 2 |
| RDF-10 | Adjustable height range: 410-480mm | Pack quantity: 25 | Base part: 95-165mm | Number of collars: 3 |
| RDF-11 | Adjustable height range: 470-550mm | Pack quantity: 25 | Base part: 165-235mm | Number of collars: 3 |
