DS
Aluminium Joist
RDC-F
Fixed Height Joist Cradle
£0.00

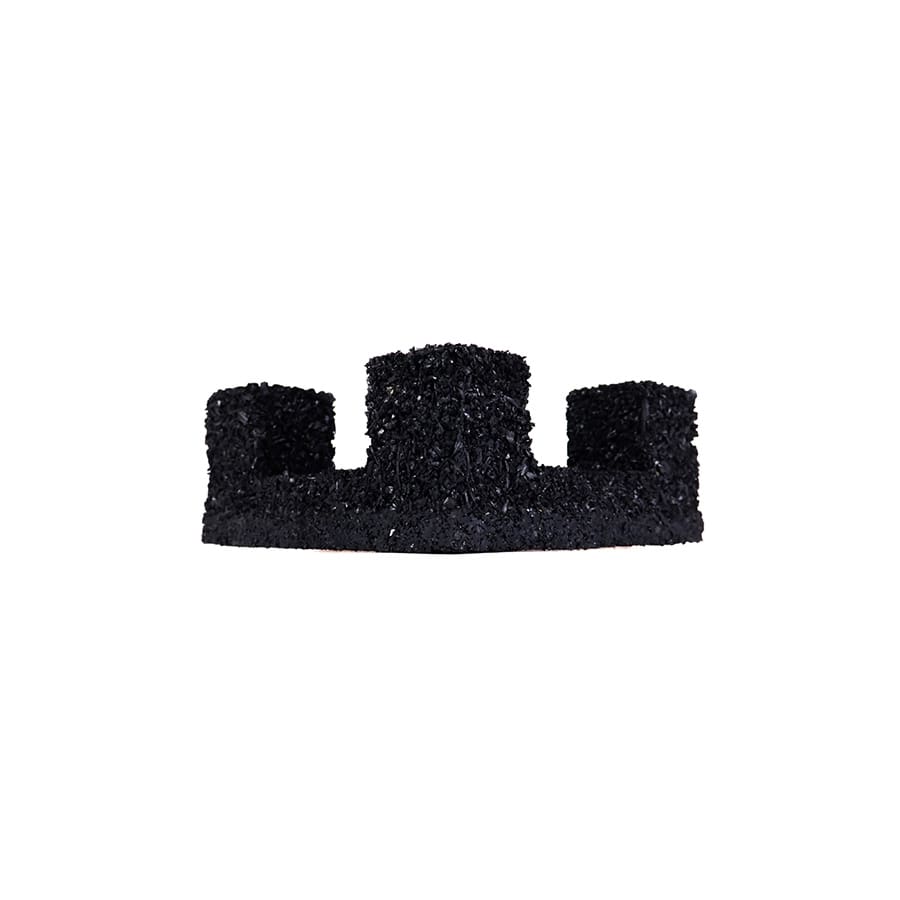

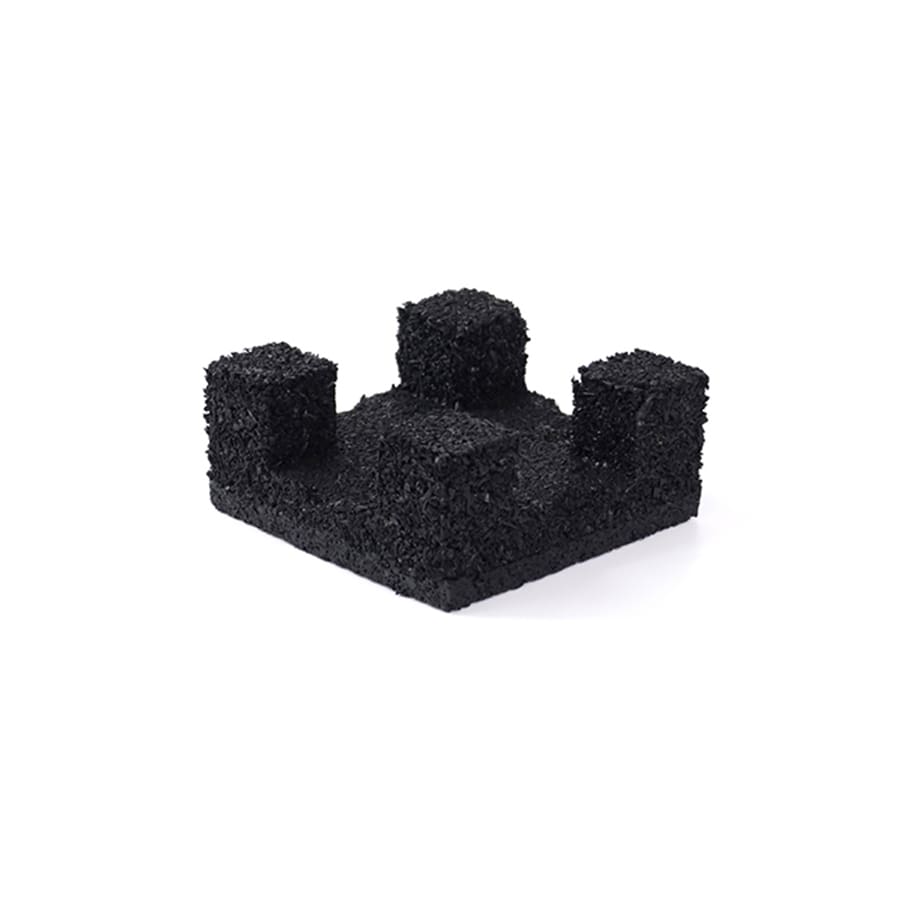

The Fixed Height Joist Cradle is a low-height pedestal designed to provide stable support to all conventional decking, railing, paving, and other flooring applications. The recycled rubber pedestal is suitable for use in both external and internal applications and offers incremental adjustment using shims.
- 10mm and 20mm options available
- 2mm and 5mm shims available
- Made using 92% recycled tire tread material
- Supports the joist at four contact points
Compatible components
BRSP
Base Rubber Shock Pad
Details
| Material | Rubber crumb (92% recycled tyre tread) |
|---|---|
| Dimensions | Base size: 100x100mm |
| Joist width capacity | 30-48mm |
Performance
| Compressive strength | 800kg per pedestal |
|---|---|
| Biological and chemical | Resistant to moulds, algae, alkali, bitumen |
| Warranty | 10 years* |
*when used as part of a complete RYNO system
Part information
| Part code | Height | Pack quantity |
|---|---|---|
| RDC-F 10 | Height: 10mm | Pack quantity: 3000 |
| RDC-F 20 | Height: 20mm | Pack quantity: 2880 |
Download
Datasheet
pdf 0.25 MB
RDC-F Fixed Height Joist Cradle
