RST
Aluminium Paving Support Rail
PSB-WU

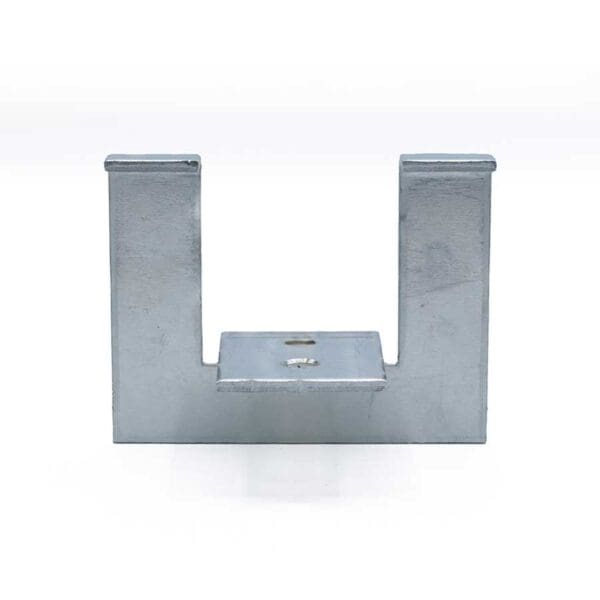

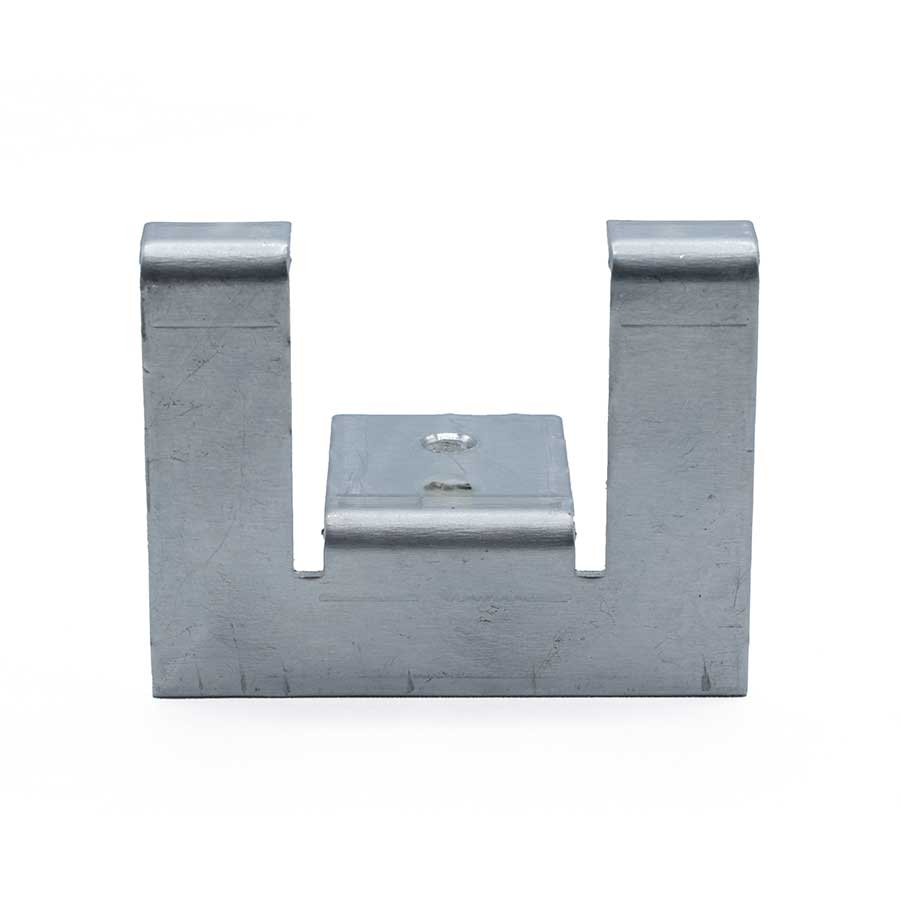

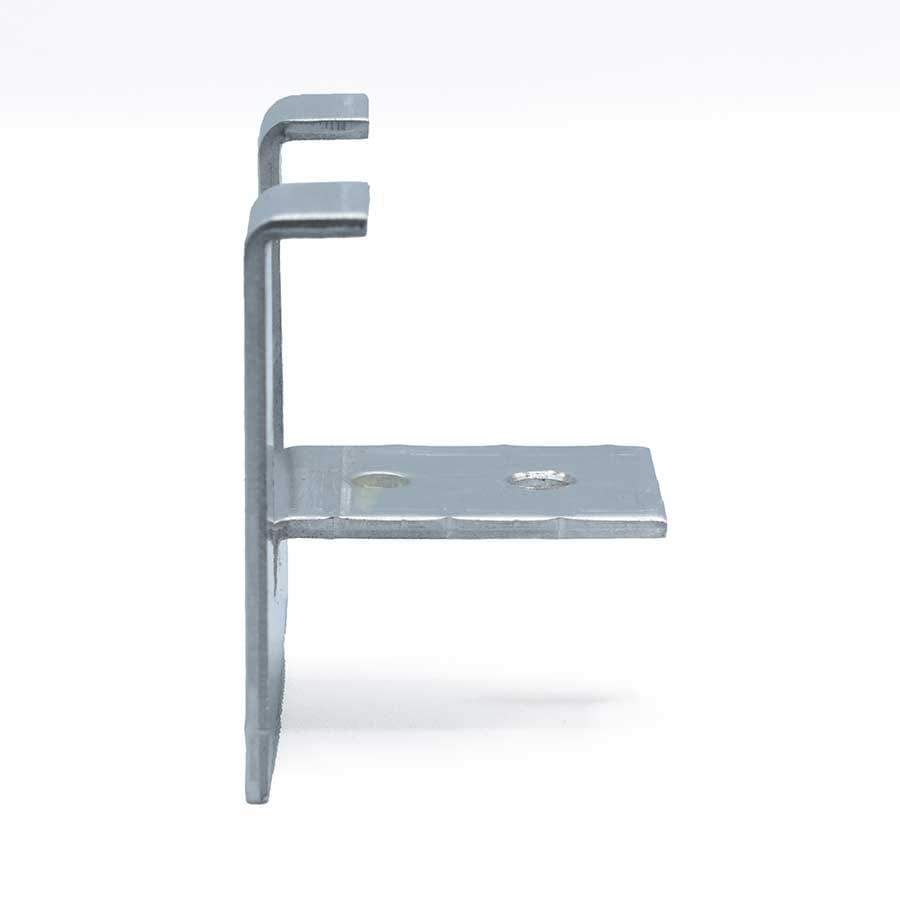

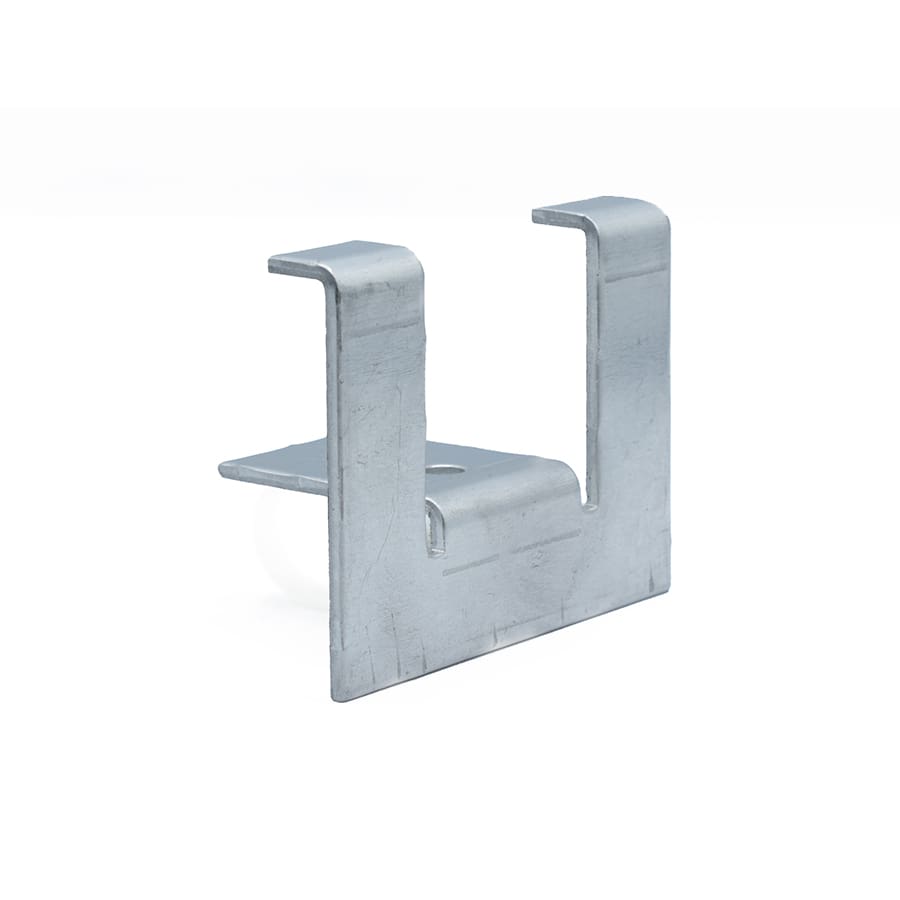

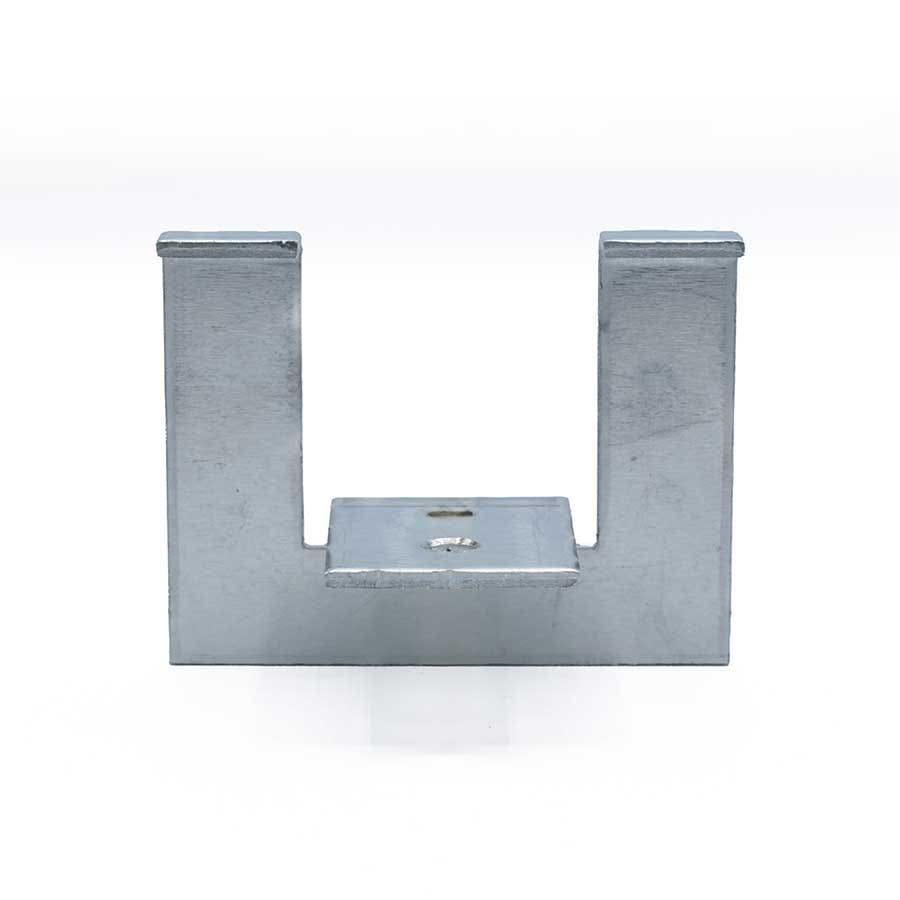

Paving Stop Bracket – Wind Uplift Restraint
£0.00
The Paving Stop Bracket – Wind Uplift Restraint is an innovative component that acts as both a paving stop, and an edge wind uplift restraint when used in conjunction with the RST Aluminium Paving Support Rail. The bracket comes in two formats: the end stop, which slides into the end of the rail, and the side stop, which is fixed into the side of the rail. Both made of high-grade aluminium, the paving stop brackets are a vital part of the rail paving systems RYNO® offers.
- Innovative paving stop component
- Wind Uplift Restraint
- Compatible with RST Aluminium Paving Support Rail
- Available as end stops and side stops
- Made of high-grade aluminium
- Essential for rail paving wind-uplift systems
Compatible components
PT-QU
Quadro Porcelain Paver
PHS
Pan-Head Screw
CP-AD
Adira Concrete Paver
Details
| Material | Aluminium 1050A H14 |
|---|---|
| Dimensions | 34x60x47mm |
Performance
| Cyclic wind load testing (EOTA Technical Report TR005:2003) | Product tested to a maximum of 6000 Pascals (6kPa) in pulsed cycles. No detrimental effects to any of the systems were found and no failures were observed during testing. Tested in accordance with EOTA Technical Report TR005:2003. Test report available on request. |
|---|---|
| Reaction to fire (BS EN 13501-1) | Inherently A1 (Decision 94-611/EC) |
| Biological and chemical | Resistant to moulds, algae, alkali, bitumen, UV |
| Warranty | 30 years* |
*when used as part of a complete RYNO system
Download
Datasheet
pdf 0.31 MB
PSB-WU - Paving Stop Bracket - Wind Uplift Restraint
