PHS

Pan-Head Screw

£0.00

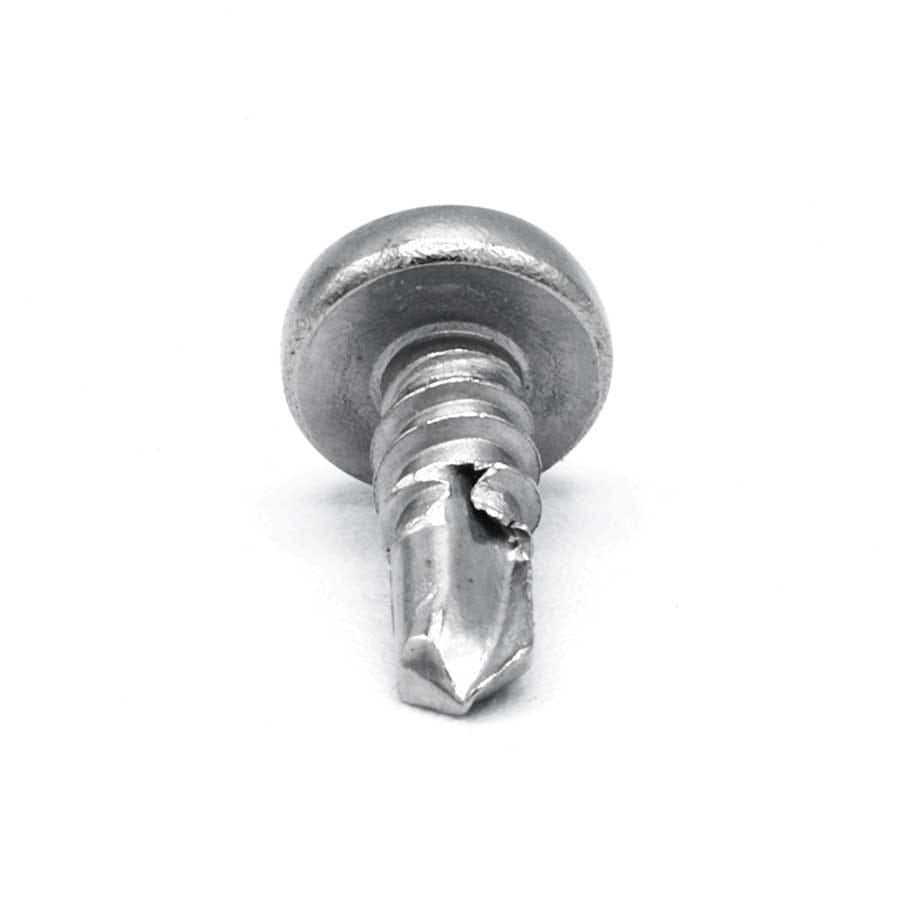

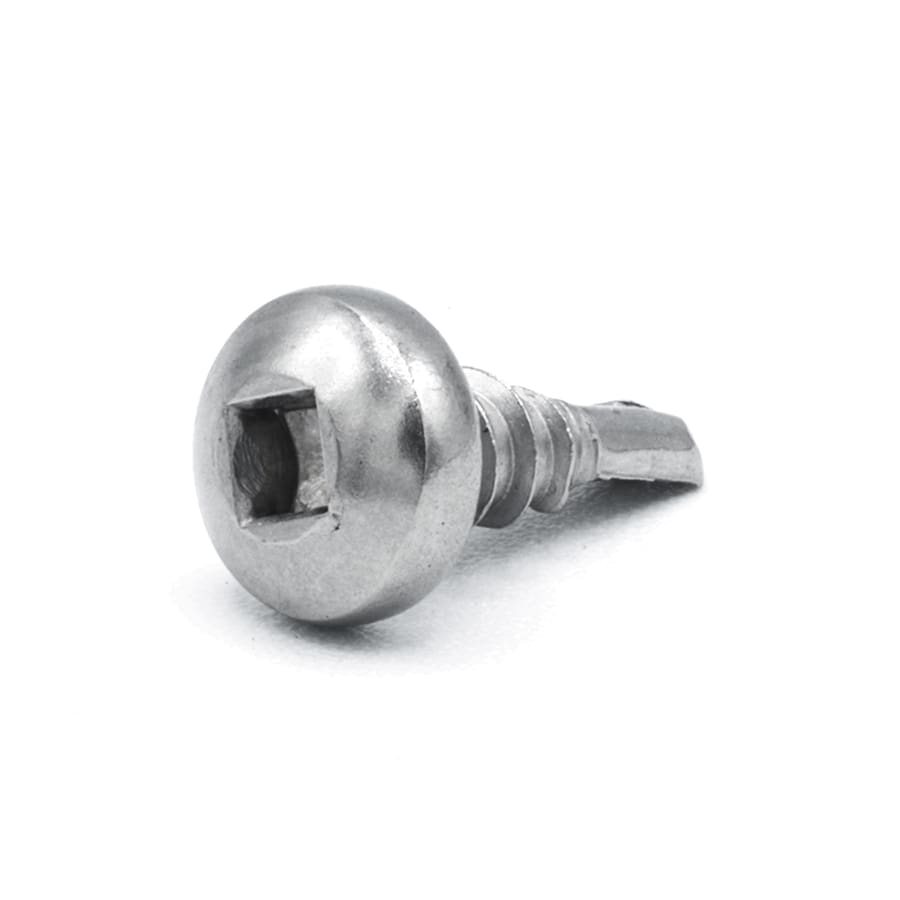

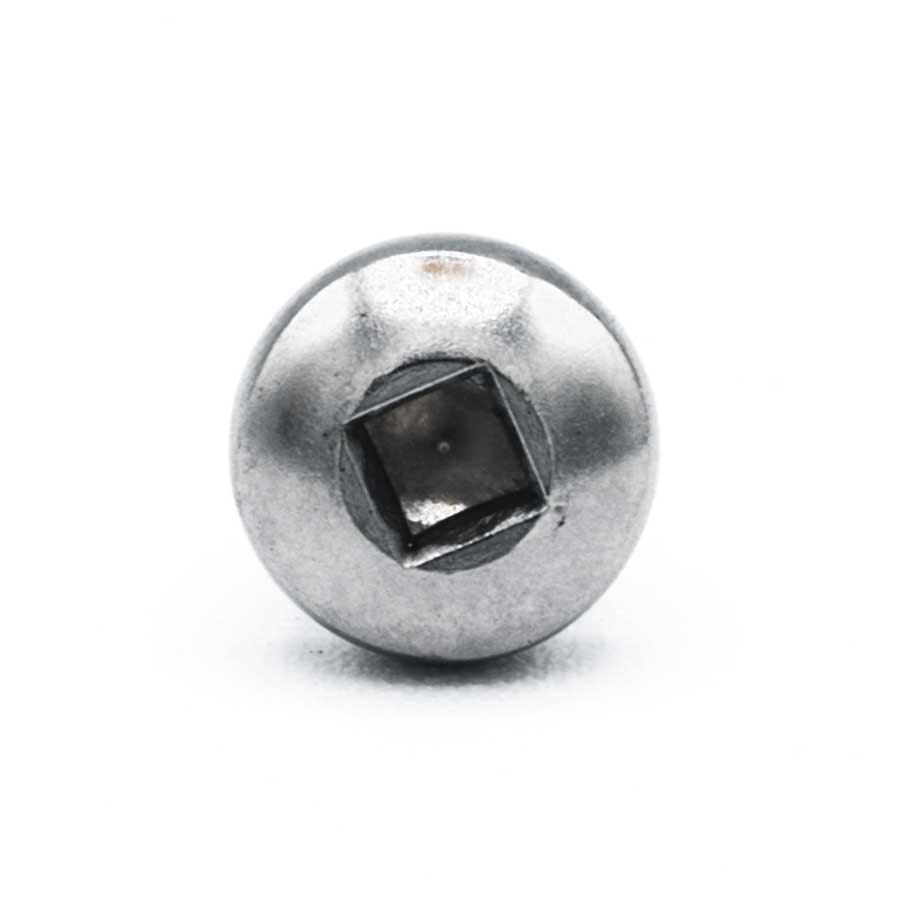

The Pan-head screw is small but mighty fixing used widely across the RYNO systems. The square drive screw is made of A4 stainless steel and self drills into many aluminium components provided by RYNO®.

  • Square drive
  • A4 Stainless Steel
  • Designed to self-drill into numerous RYNO® components
Download the datasheet

Compatible components

ADC Joist Support Cleat

ADC

Joist Support Cleat

DS Aluminium Joist

DS

Aluminium Joist

DSC Joist Connector Bracket

DSC

Joist Connector Bracket

RST Aluminium Paving Support Rail

RST

Aluminium Paving Support Rail

RD-FR-Non-Combustible Adjustable Joist Support Pedestal

RD-FR

Non-Combustible Adjustable Joist Support Pedestal

RDF Fixed Head Adjustable Joist Support Pedestal

RDF

Fixed Head Adjustable Joist Support Pedestal

RDA-C Self-levelling Adjustable Decking Pedestal Clip On Head

RDA-C

Self-levelling Adjustable Joist Support Pedestal with Clip-on Head

Details

MaterialStainless steel A4
Dimensions4.8mm diameter thread, overall length 13mm, effective length 4mm
Drive typeSquare drive #2

Performance

Reaction to fire (BS EN 13501-1)Inherently A1 (Decision 94-611/EC)
Allowable loadSee “Design resistance” below
Design resistance (EN 1999-1-4:2007 + AC:2010 + A1:2011)0.84kN per screw* (84kg)
Biological and chemicalCorrosion category C5 - Industry and coastal areas with high humidity and aggressive atmosphere. Constant condensation and heavily polluted atmosphere.
