HHS
Hex-Head Screw
£0.00

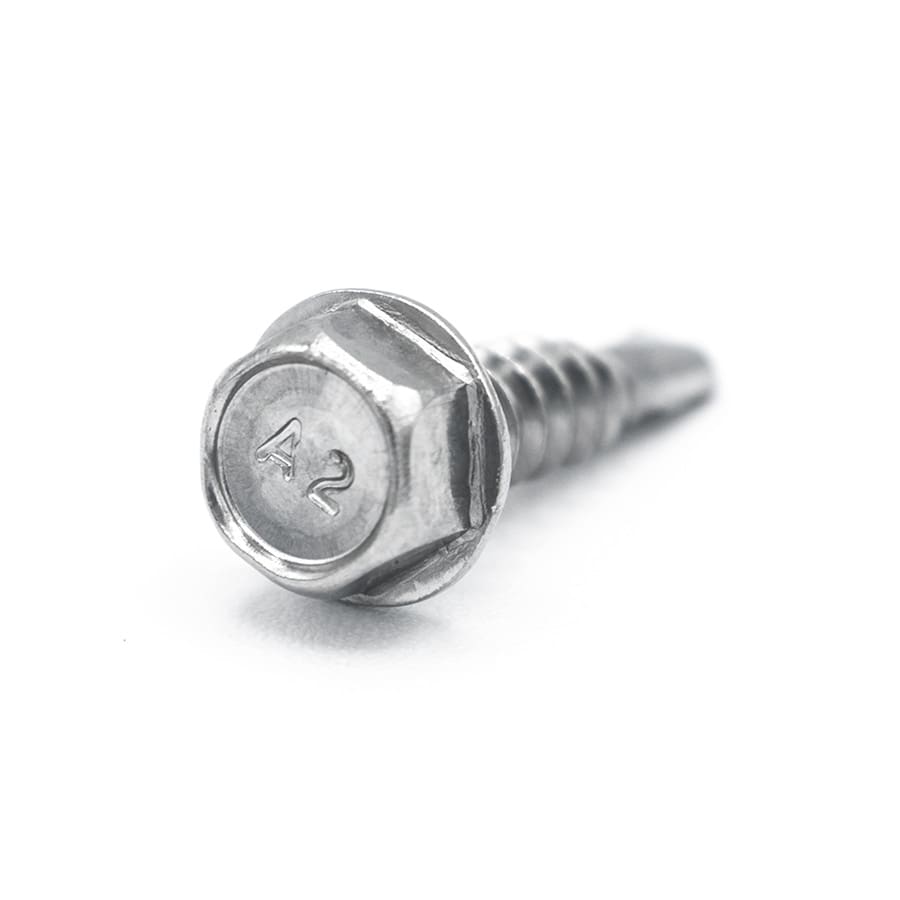

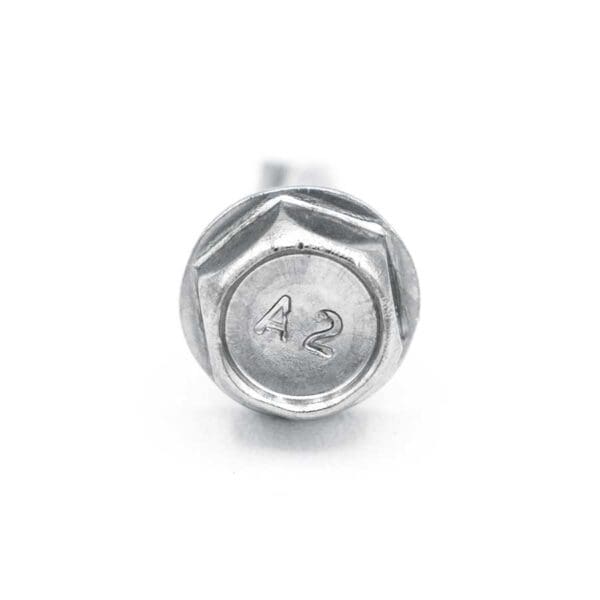

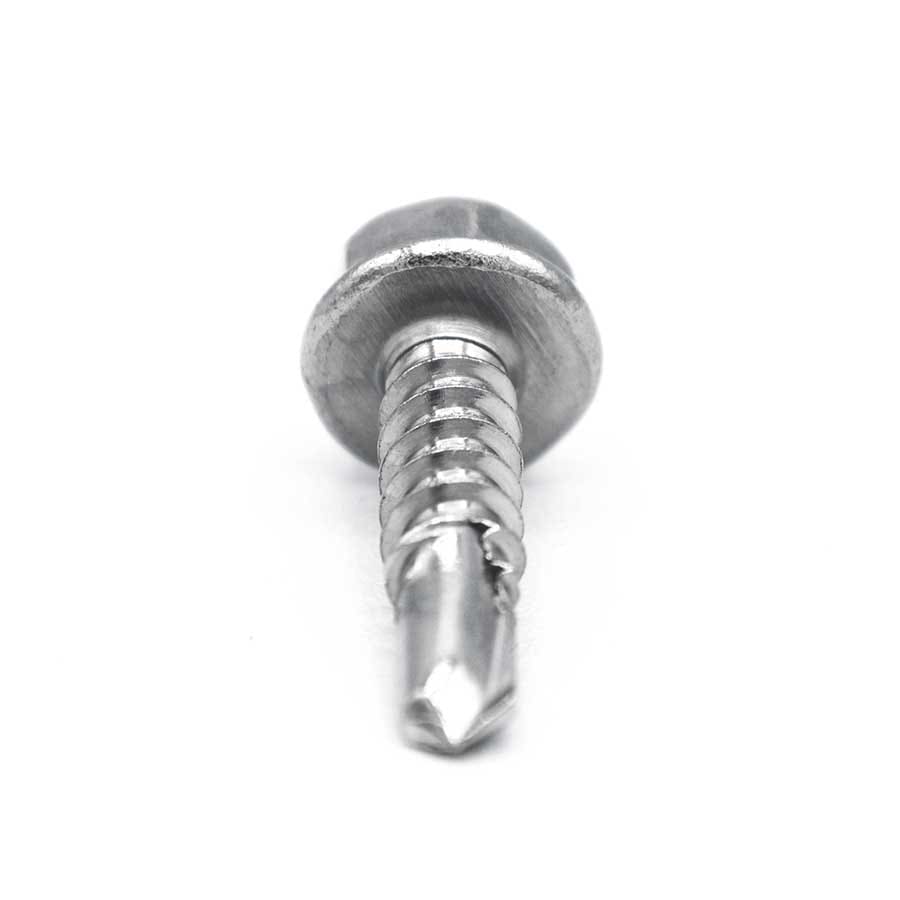

The Hex Head Screw is a super-strong and functional self-drilling screw for use with aluminium profiles and extrusions. The A2 stainless steel screw has an effective length of 10.5mm and is designed to self-drill into numerous RYNO® components.
- A2 Stainless Steel
- Designed to self-drill into numerous RYNO® components
- Super-strong little screw!
Compatible components
DS
Aluminium Joist
DFB-DR
Aluminium Decking Board - Direct Fix with Drainage
DFB
Aluminium Decking Board - Direct Fix
ADC
Joist Support Cleat
Details
| Material | Stainless Steel A2 |
|---|---|
| Dimensions | 4.8mm diameter thread, overall length 19mm, effective length 10.5mm |
| Drive type | Hex Head 8mm |
Performance
| Reaction to fire (BS EN 13501-1) | Inherently A1 (Decision 94-611/EC) |
|---|---|
| Allowable load | See “Design resistance” below |
| Design resistance (EN 1999-1-4:2007 + AC:2010 + A1:2011) | 0.84kN per screw* (84kg) |
| Biological and chemical | Corrosion category C4 - Industry and coastal areas with moderate salt content |
Download
Datasheet
pdf 0.38 MB
HHS Hex-Head Screw
