Quadro Crema
EPPR
Eiger Porcelain Planter Rail Kit
£0.00
The Eiger Porcelain Planter Rail kit is a patent-protected set of components that create a system of tracks to house the porcelain planter face tiles. Made from extruded aluminium, they feature 2 designs of top rail, Classic or Contemporary, and options of different angles to create a truly one of a kind planter system. The kit includes connector brackets to fix the track together, providing a complete, integrated system.
- 2 top rail profiles to enable design creativity
- Multiple corner profiles allowing unique planter shapes
- Can create inset benches
- Modular system can be adjusted on site
Please note: RAL colours may show slight variation in colour, tone and texture to porcelain finishes. Other RAL colours can be made to order to match or contrast with other finishes
Finishes
Quadro Argento
Quadro Nero
Details
| Material | Aluminium 6063 T6 & 6082 |
|---|---|
| Dimensions | See “Part information” below |
| Weight | See “Part information” below |
| Coating | Polyester powder coated |
Performance
| Biological and chemical | Resistant to corrosion, moulds, algae, alkali, bitumen, UV |
|---|---|
| Warranty | 30 years* |
| Design life | 60 years |
*when used as part of a complete RYNO system
Part information
| Part number | Description | Material | Dimensions | |
|---|---|---|---|---|

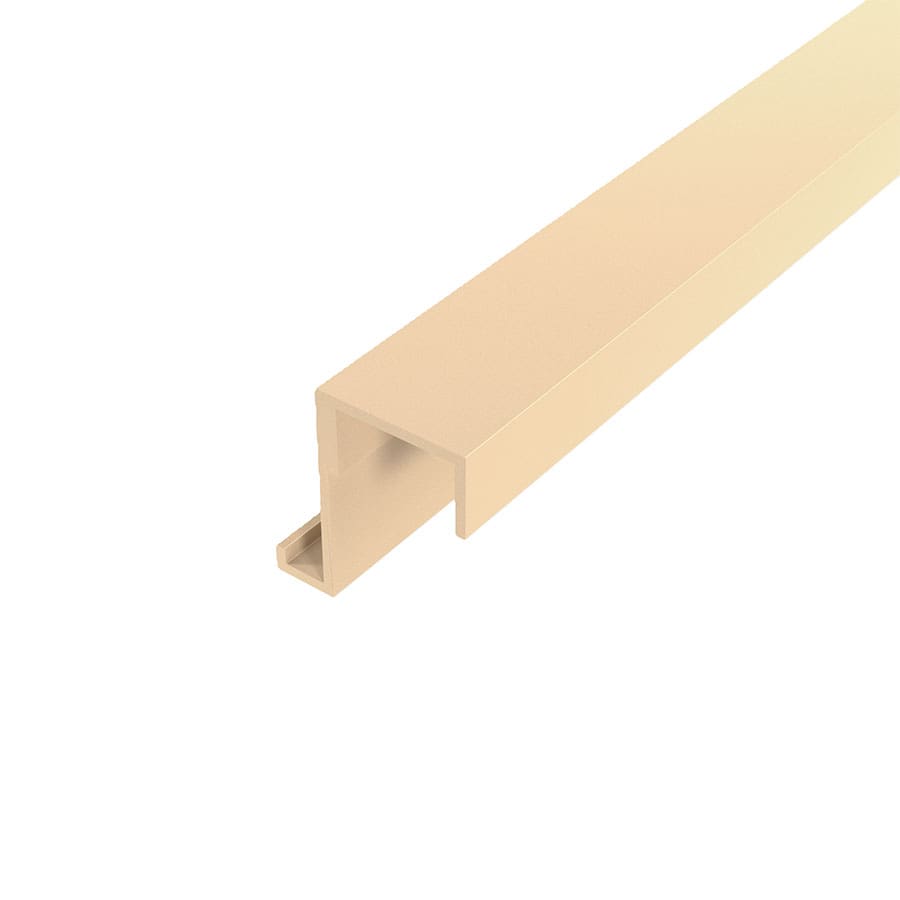

| 20.0010 | Description: Eiger Contemporary top rail | Material: Aluminium 6063 T6 | Dimensions: 30x29x3600mm | |

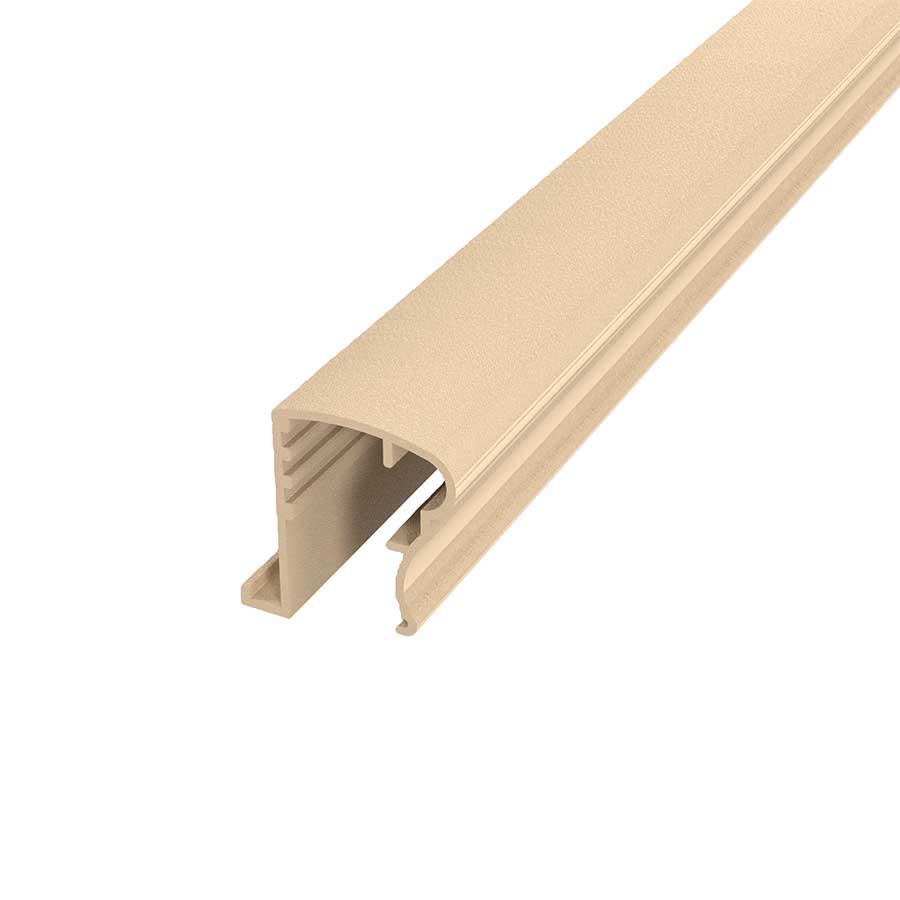

| 20.0011 | Description: Eiger Classic top rail | Material: Aluminium 6063 T6 | Dimensions: 47x41x3600mm | |

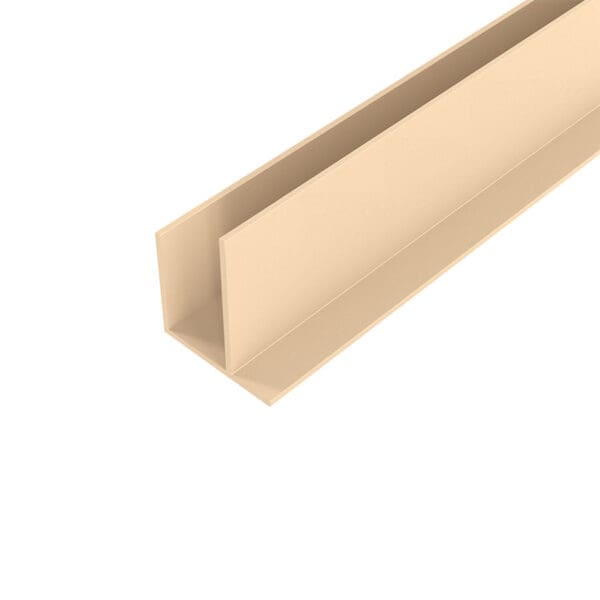

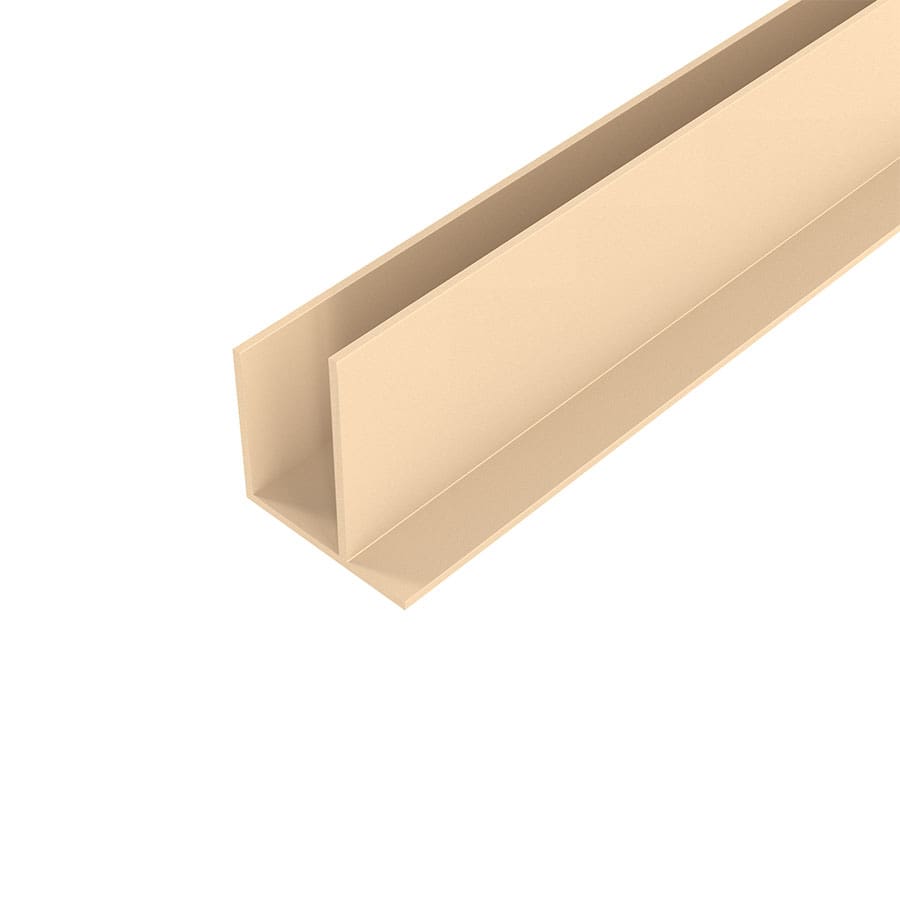

| 20.0012 | Description: Eiger bottom rail | Material: Aluminium 6063 T6 | Dimensions: 45x39x3600mm | |

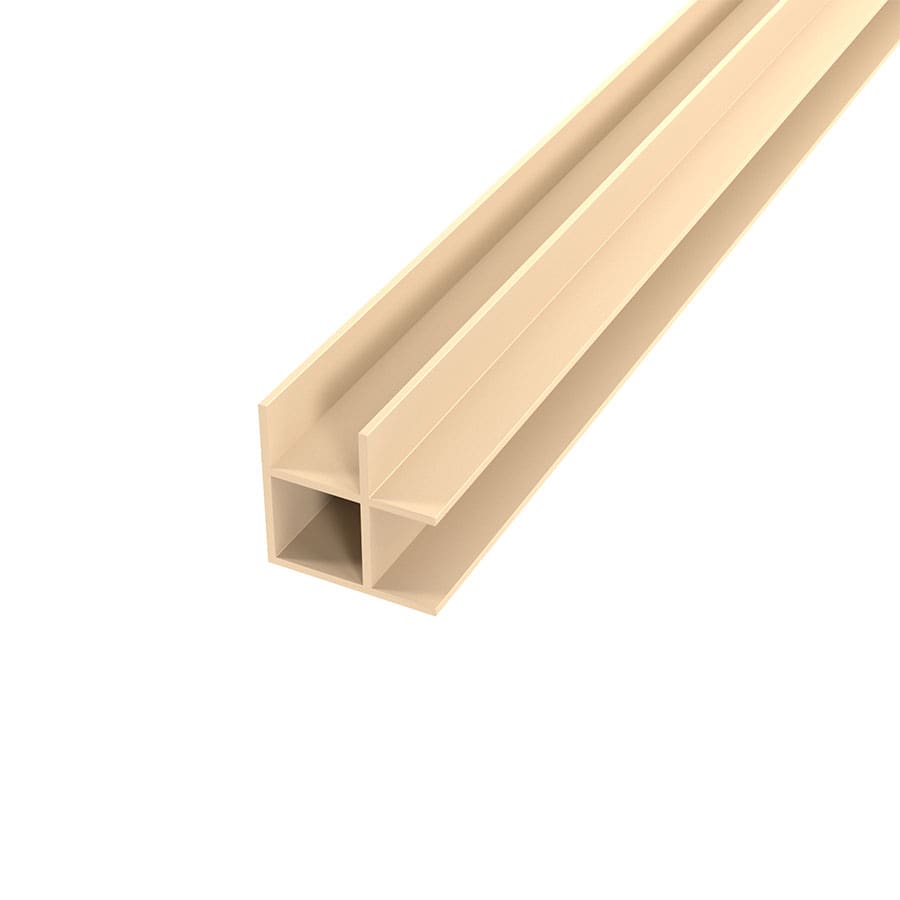

| 20.0013 | Description: Eiger 90° aluminium upright | Material: Aluminium 6063 T6 | Dimensions: 50x50x575mm | |

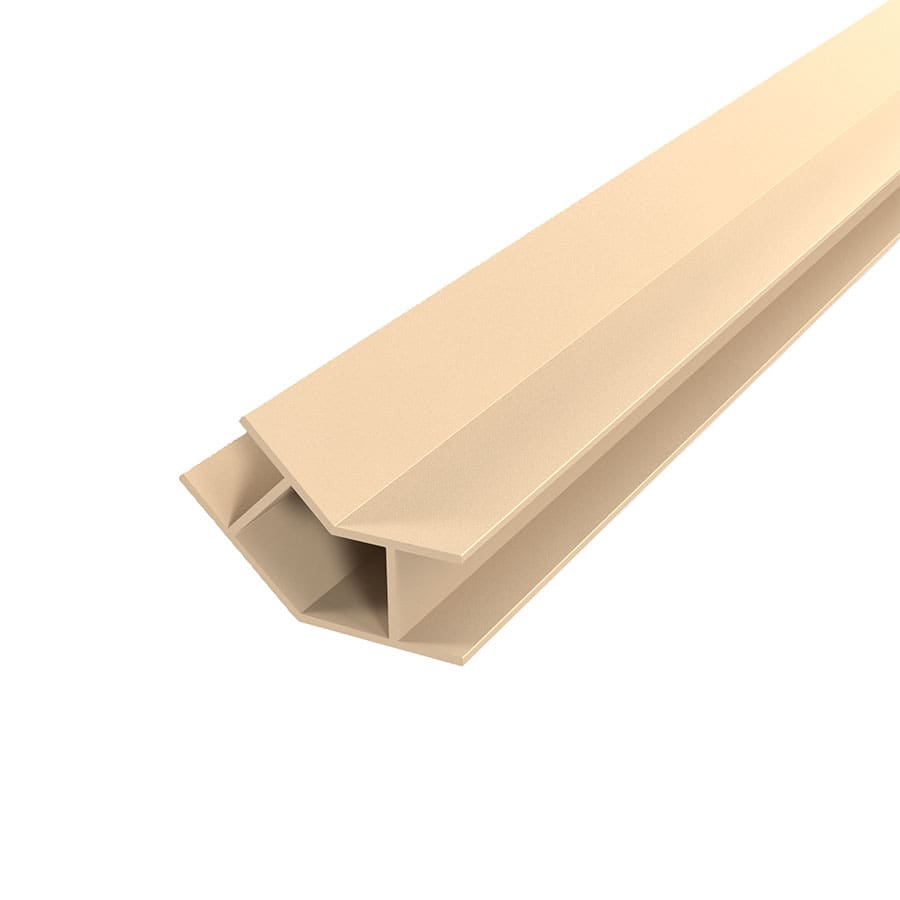

| 20.0014 | Description: Eiger 135° aluminium upright | Material: Aluminium 6063 T6 | Dimensions: 40x40x575mm |  |

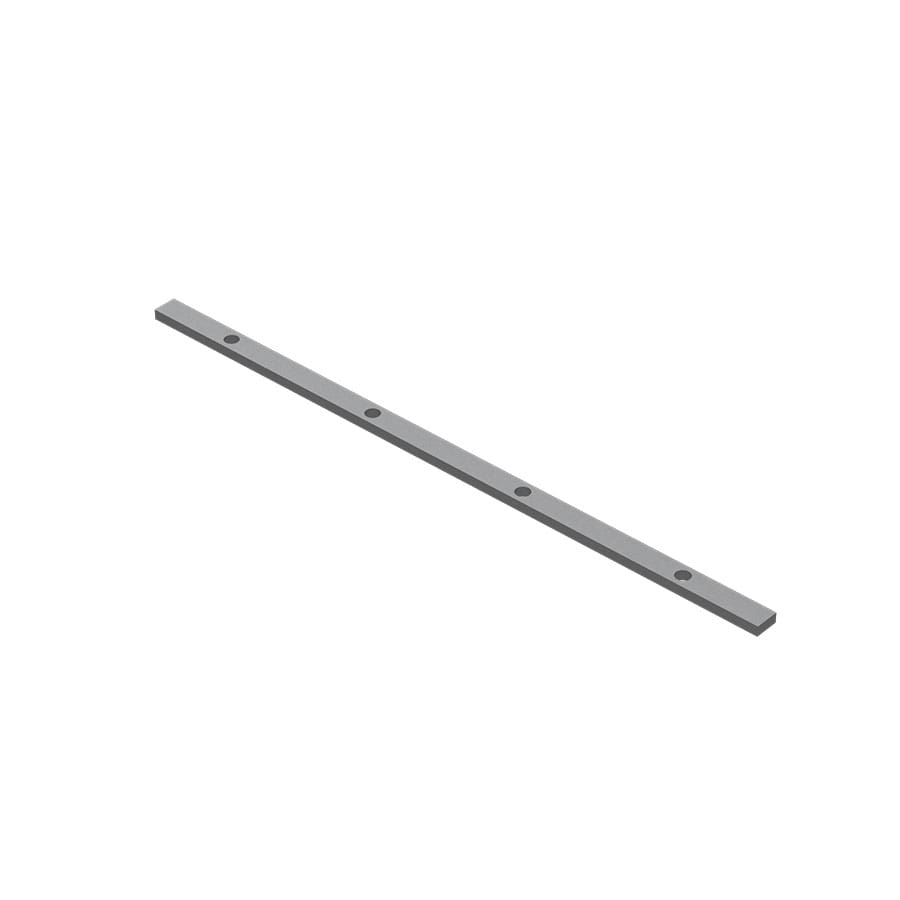

| 20.0021 | Description: Eiger Straight connector | Material: Aluminium 6082 | Dimensions: | |

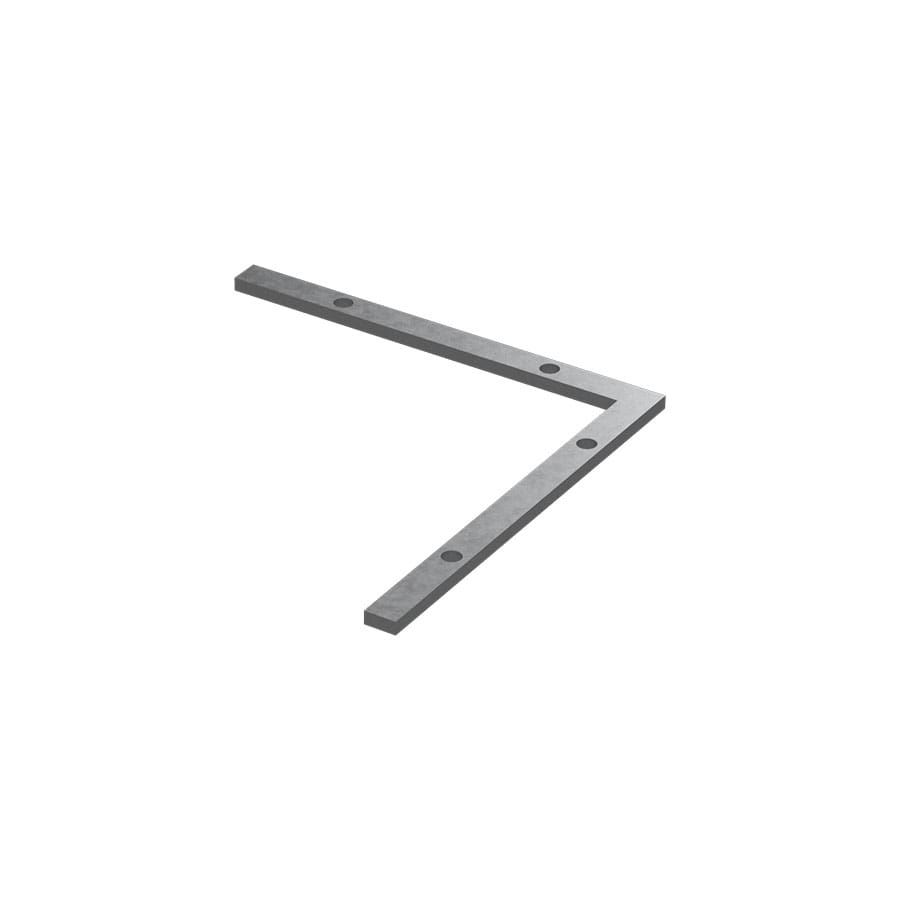

| 20.0022 | Description: Eiger 90° connector | Material: Aluminium 6082 | Dimensions: | |

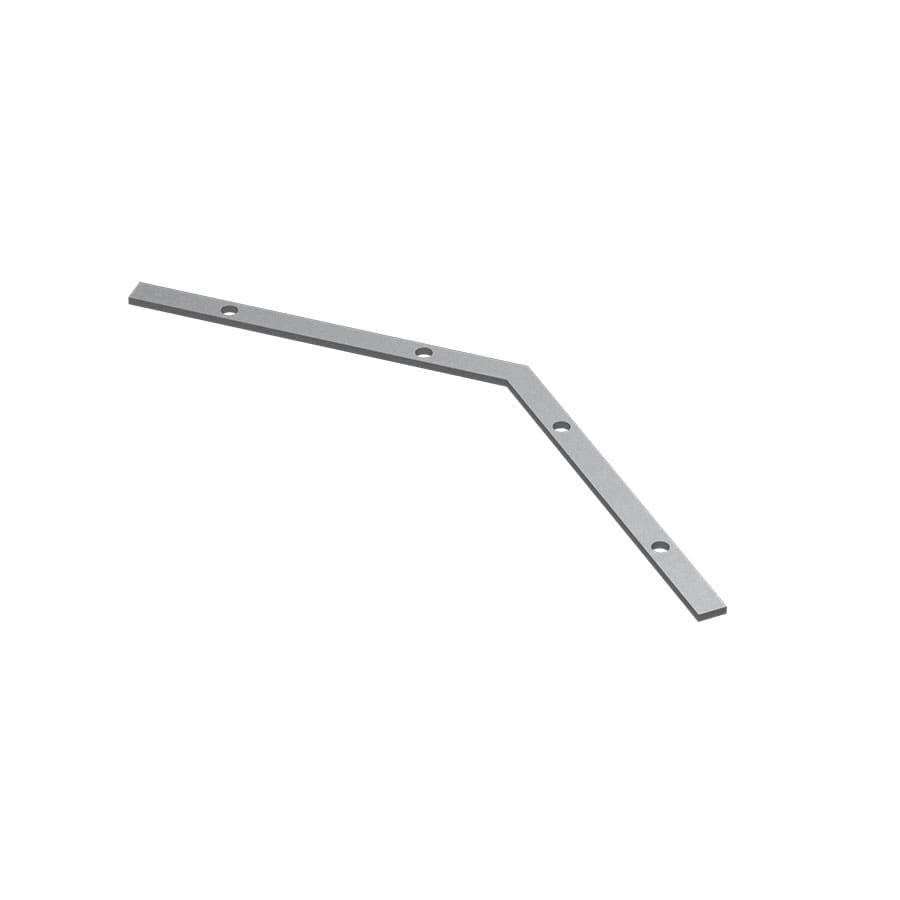

| 20.0023 | Description: Eiger 135° connector | Material: Aluminium 6082 | Dimensions: | |

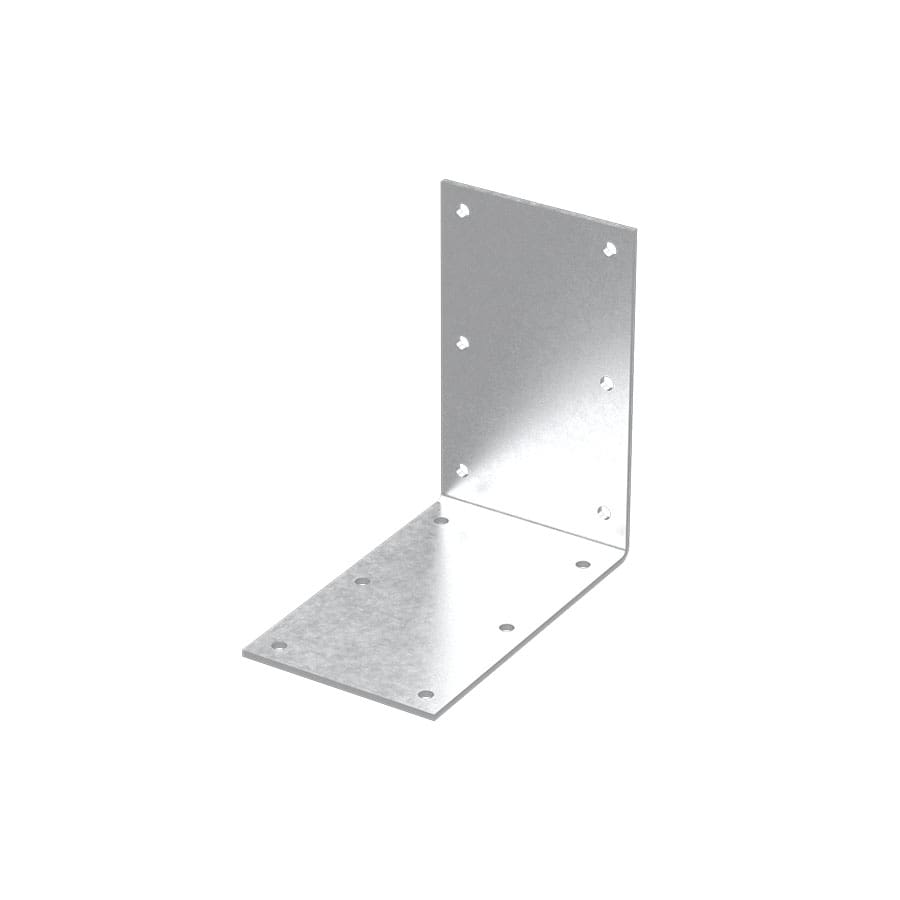

| 20.0024 | Description: Eiger Baseboard connector | Material: Aluminium 6082 | Dimensions: | |

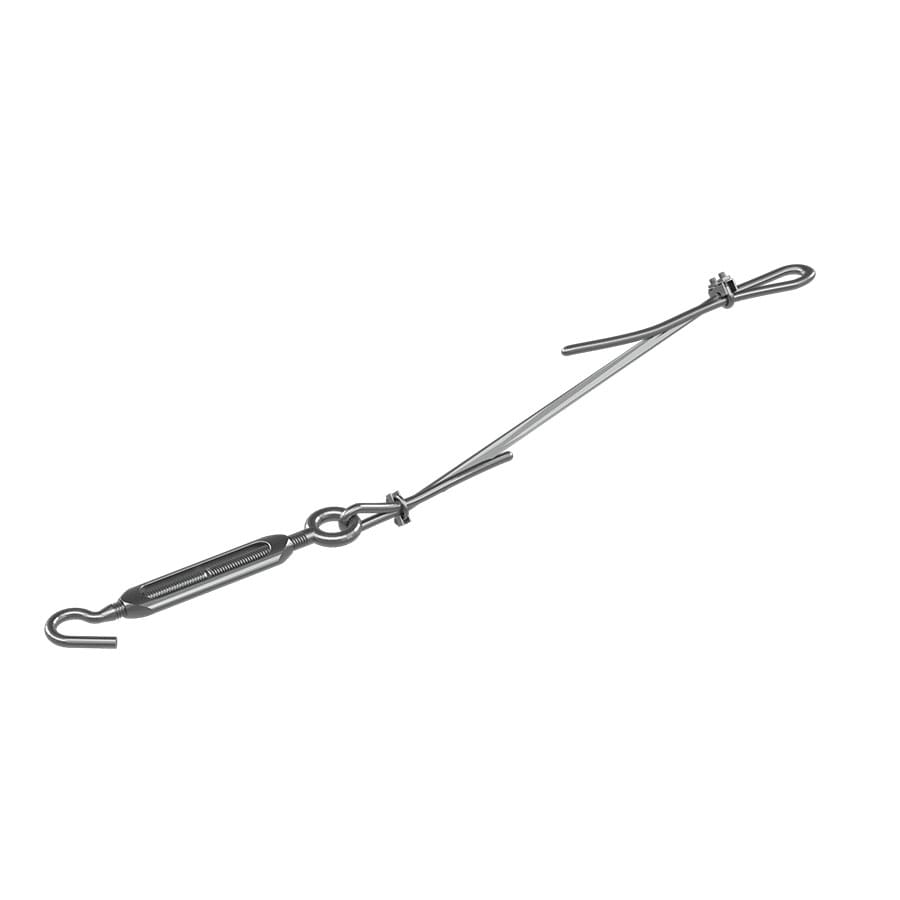

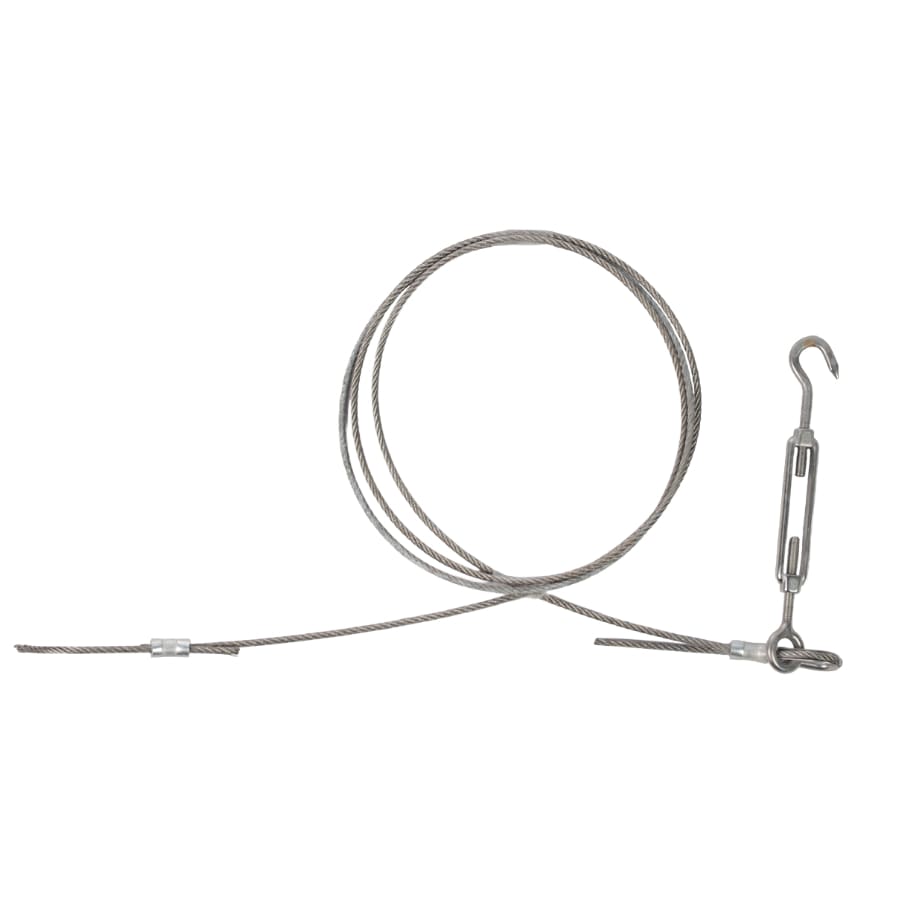

| Description: Tension wire kit | Material: Stainless steel | Dimensions: Various |  | |

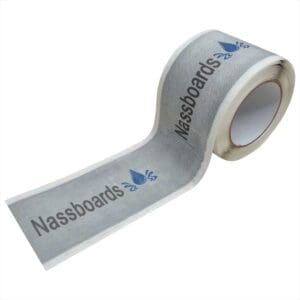

| Description: Tanking tape | Material: Butyl | Dimensions: 80mm wide x various lengths |  |
Download
Datasheet
pdf 0.51 MB
EPPR - Eiger Porcelain Planter Rail Kit
