EBS

End Board Support

£0.00

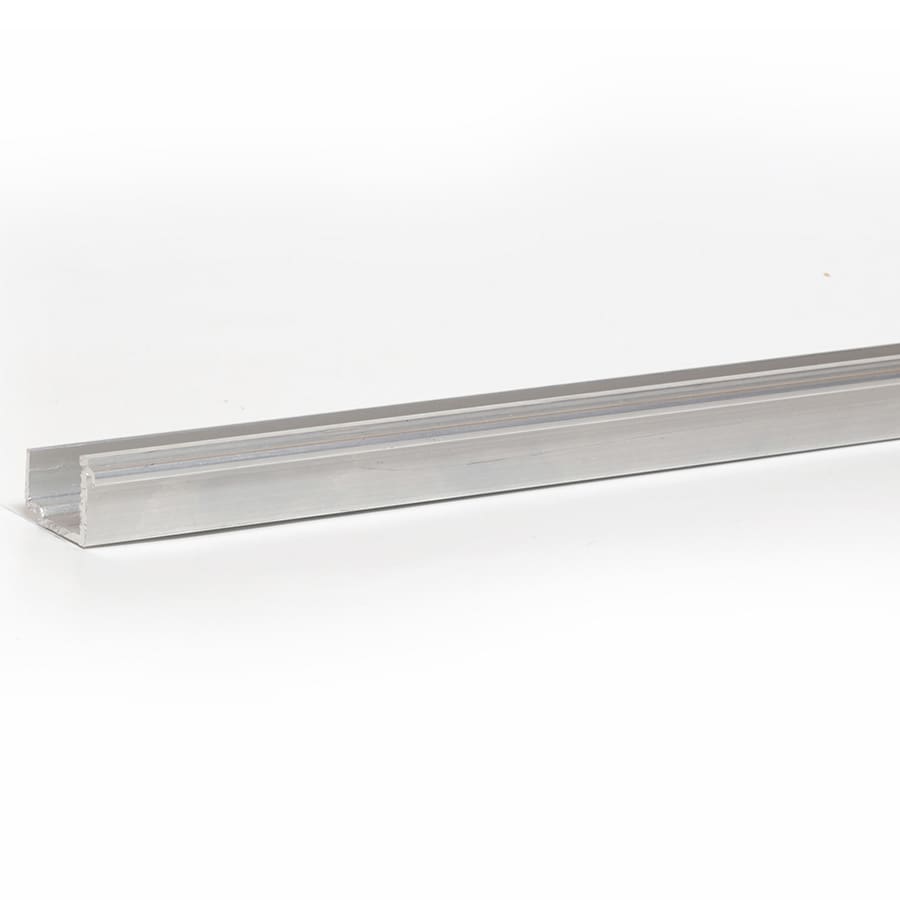

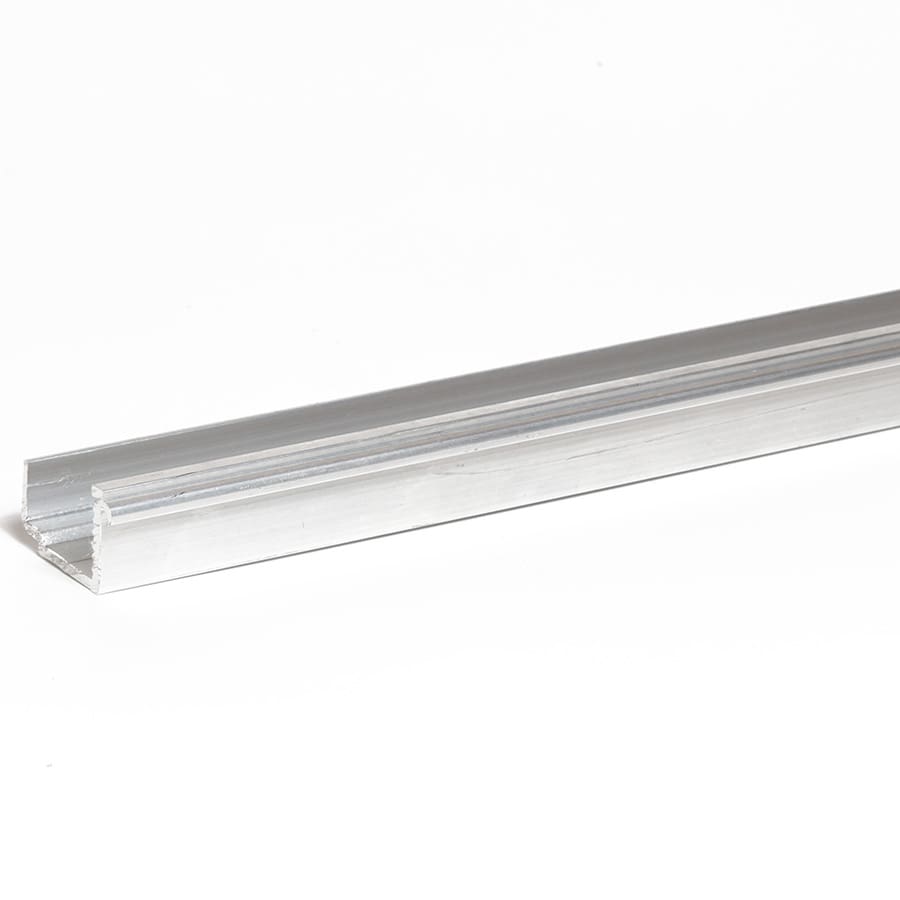

The End Board Support fits neatly under the cut edge of the aluminium deckboards, providing a secure fixing and solid surface right to the edge of the decking surface, regardless of the size the board needs to be trimmed down to. Available to suit all RYNO® aluminium decking boards, the innovative design allows this product to be used on its own or doubled up to support the smallest of cuts and reduce wastage across your decking project.

  • Supports ultra-narrow cuts
  • Ultimate versatility – use single or doubled up
  • Available to suit all RYNO® Direct Fix aluminium decking boards
Download the datasheet

Compatible components

DFB-Aluminium-Decking-Board

DFB

DFB60 LH / DFB80 LH / DFB60 / DFB100 / DFB120 / DFB150

DFB-DR Aluminium Decking Board Direct Fix With Drain

DFB-DR

DFB60-DR / DFB120-DR / DFB150-DR

Details

MaterialAluminium 6063-T6
DimensionsSupplied in 3.6m lengths
Height rangeSee “Part information” below
WeightSee “Part information” below

Performance

Reaction to fire (BS EN 13501-1)Inherently A1 (Decision 94-611/EC)
Biological and chemicalResistant to moulds, algae, alkali, bitumen, UV
Warranty30 years*

*when used as part of a complete RYNO IGNO system

Part information

CodeDescriptionWeightCompatible deckboard(s)
58.0060Description: End board support profile to suit 20mm aluminium deck boards, supplied in 3600mm lengthsWeight: 0.32kg/mCompatible deckboard(s): DFB60 LH
DFB80 LH
58.0061Description: End board support profile to suit 25mm high aluminium deck boards, supplied in 3600mm lengthsWeight: 0.38kg/mCompatible deckboard(s): DFB60
DFB60 DR
58.0062Description: End board support profile to suit 30mm aluminium deck boards, supplied in 3600mm lengthsWeight: 0.42kg/mCompatible deckboard(s): DFB100
DFB120
DFB120 DR
58.0063Description: End board support profile to suit 40mm aluminium deck boards, supplied in 3600mm lengthsWeight: 0.52kg/mCompatible deckboard(s): DFB150
DFB150DR

Download

Datasheet

pdf 0.28 MB

EBS - End Board Support
