DSC - Joist Connector Bracket
DSC
Joist Connector Bracket
£0.00

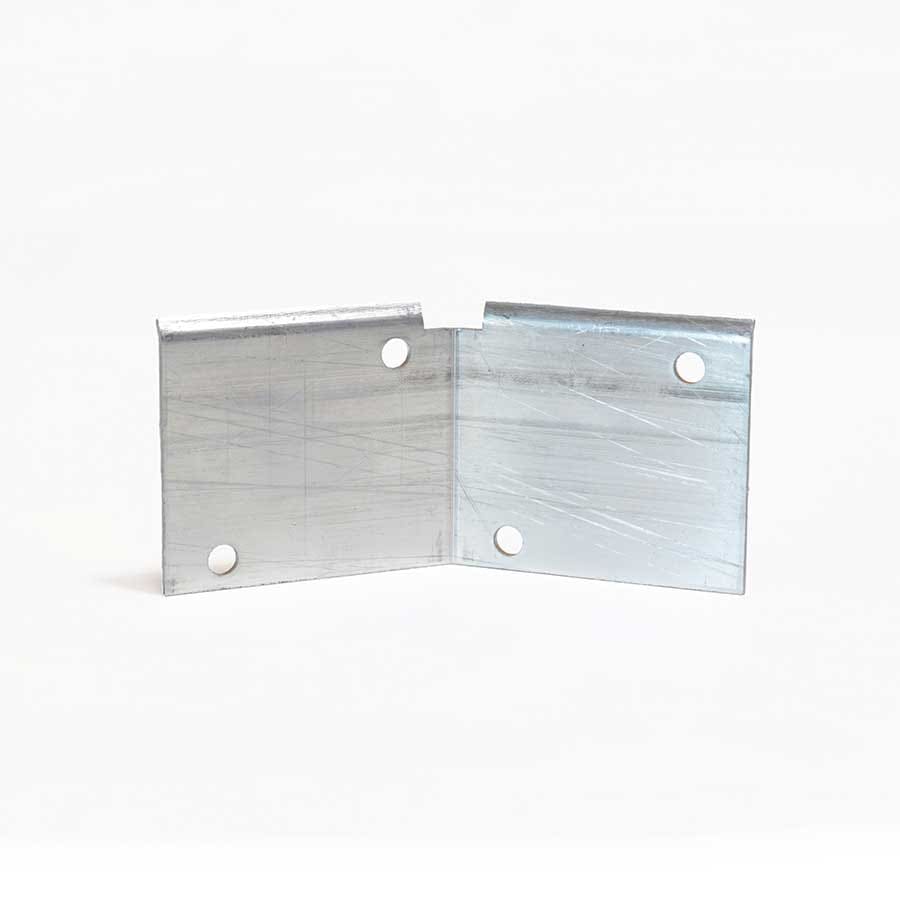

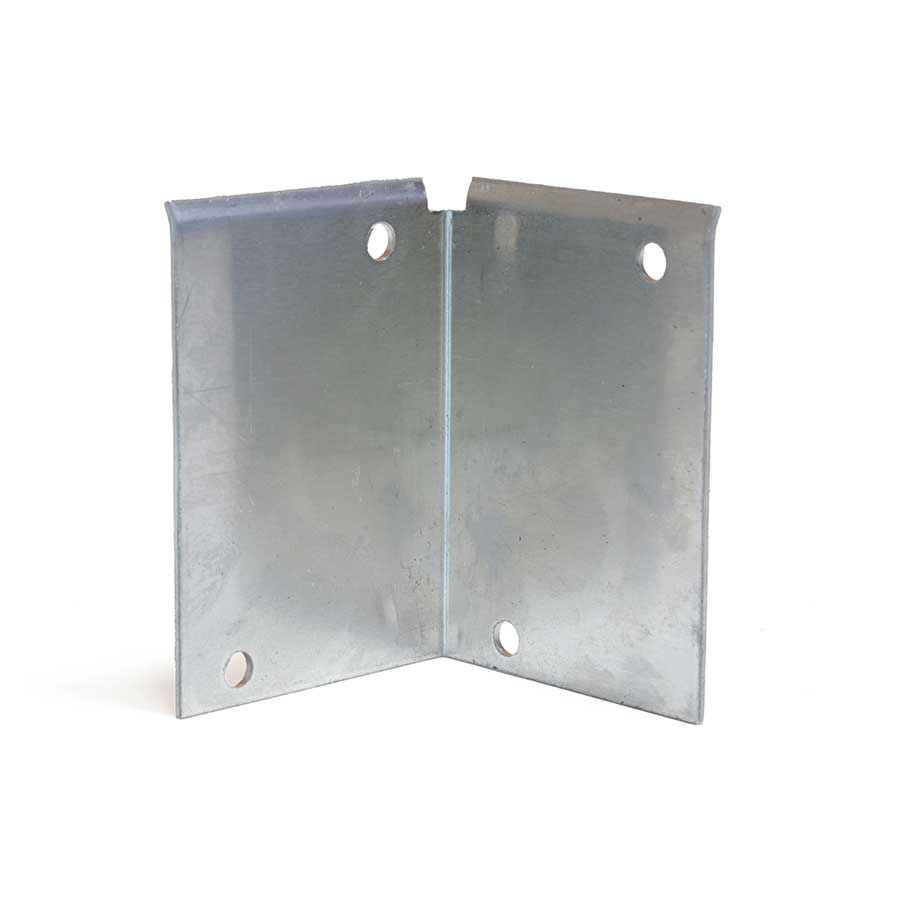

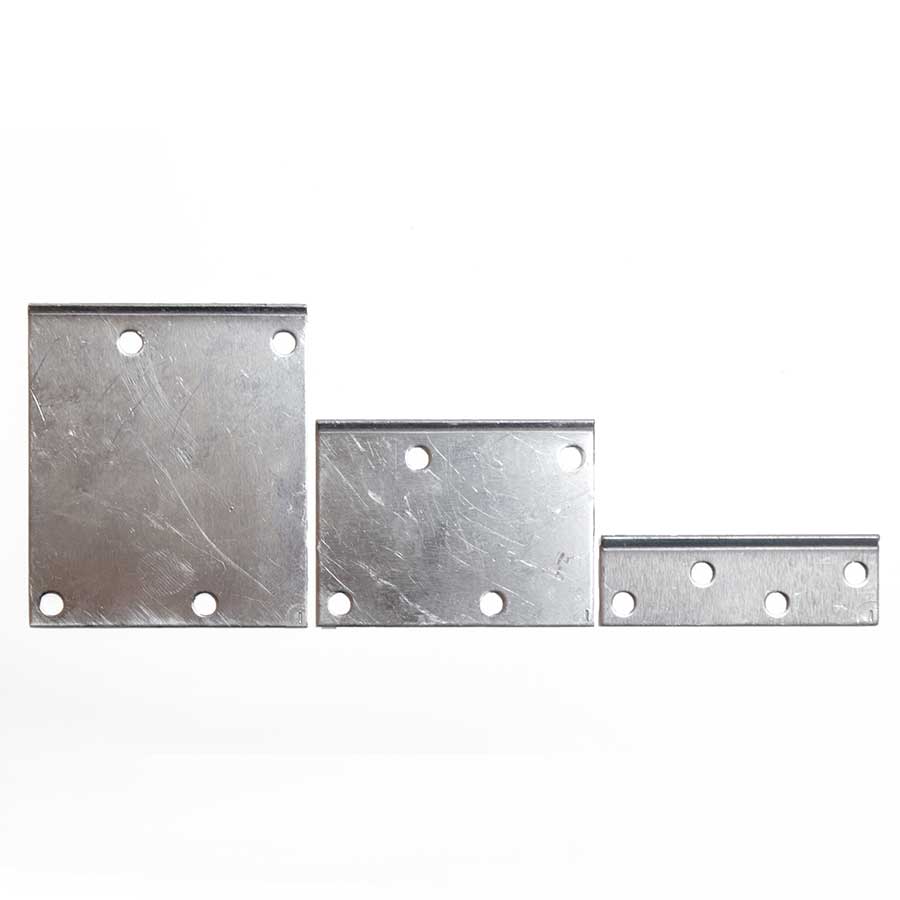

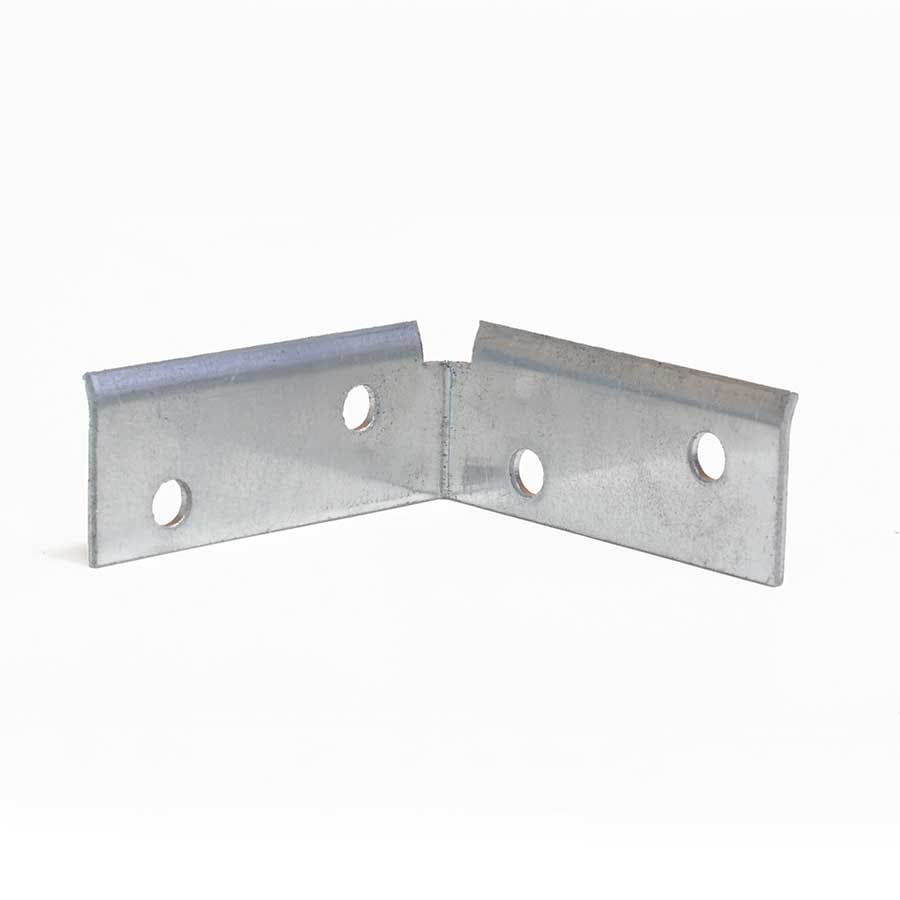

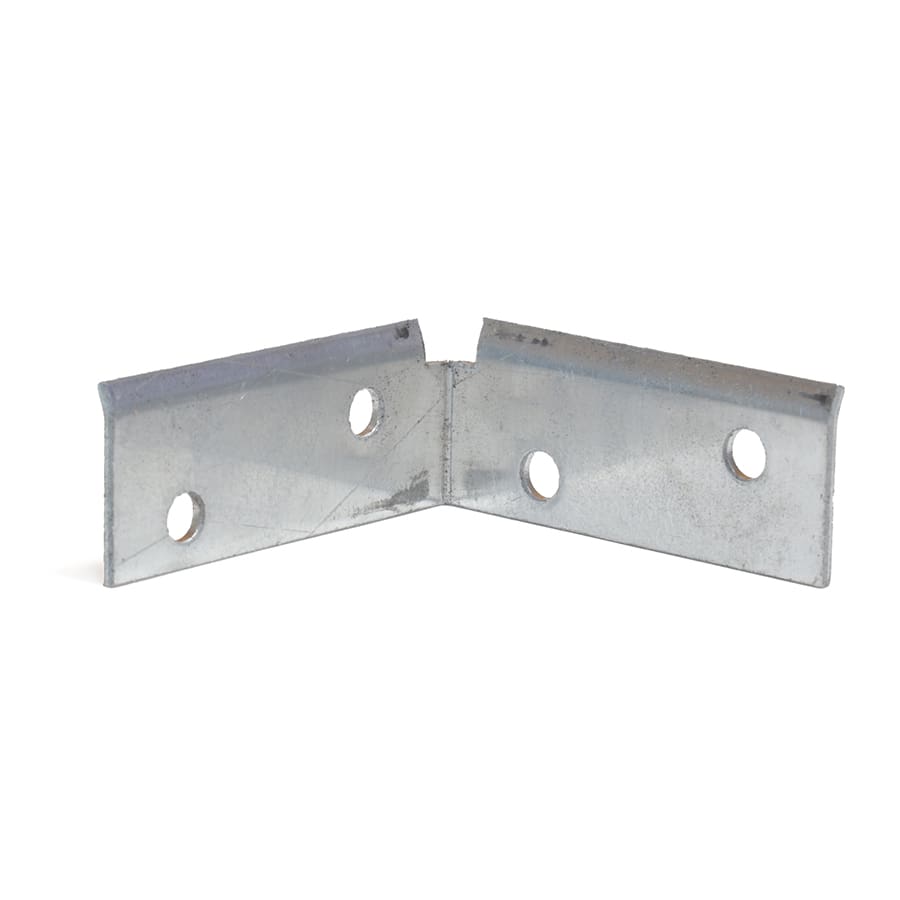

The Joist Connector Brackets are versatile aluminium components used to connect DS Aluminium Joists together. The angled detail at the base of the brackets fits neatly into the groove on the side of the joists, making installation quick and easy. Available to fit 25mm, 50mm, and 75mm joists and in 90-degree, 45-degree, and straight formats, these brackets can be bent to create bespoke angles.
- Available to fit 25mm, 50mm, and 75mm joists
- 90-degree, 45-degree, and straight formats
- Locator connection to DS Aluminium Joists
Details
| Material | Aluminium 1050A |
|---|---|
Performance
| Warranty | 10 years* |
|---|---|
*when used as part of a complete RYNO system
Part information
| Code | Description | Compatible joist |
|---|---|---|
| 58.3550 | Description: Corner Connector – 90 degrees | Compatible joist: DS25 |
| 58.3551 | Description: Straight Connector | Compatible joist: DS25 |
| 58.3552 | Description: Corner Connector – 90 degrees | Compatible joist: DS50C |
| 58.3553 | Description: Straight Connector | Compatible joist: DS50C |
| 58.3554 | Description: Corner Connector – 135 degrees | Compatible joist: DS50C |
| 58.3555 | Description: Corner Connector – 90 degrees | Compatible joist: DS75C |
| 58.3556 | Description: Straight Connector | Compatible joist: DS75C |
| 58.3557 | Description: Corner Connector – 135 degrees | Compatible joist: DS75C |
