DS-BC

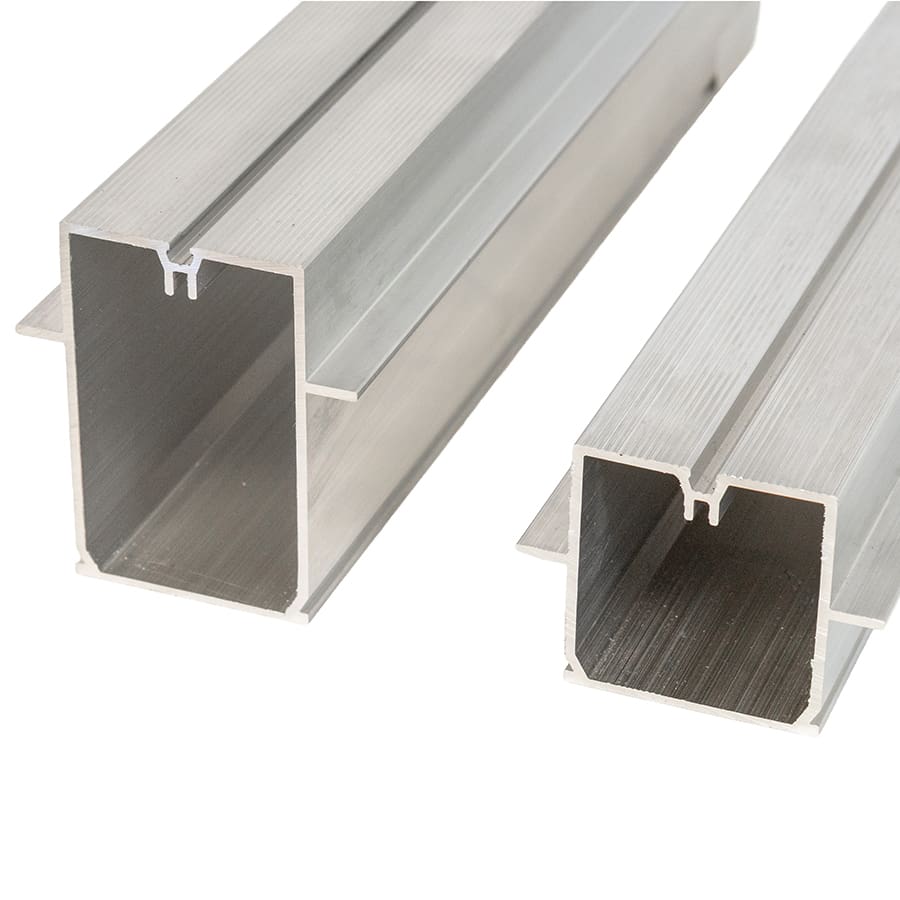

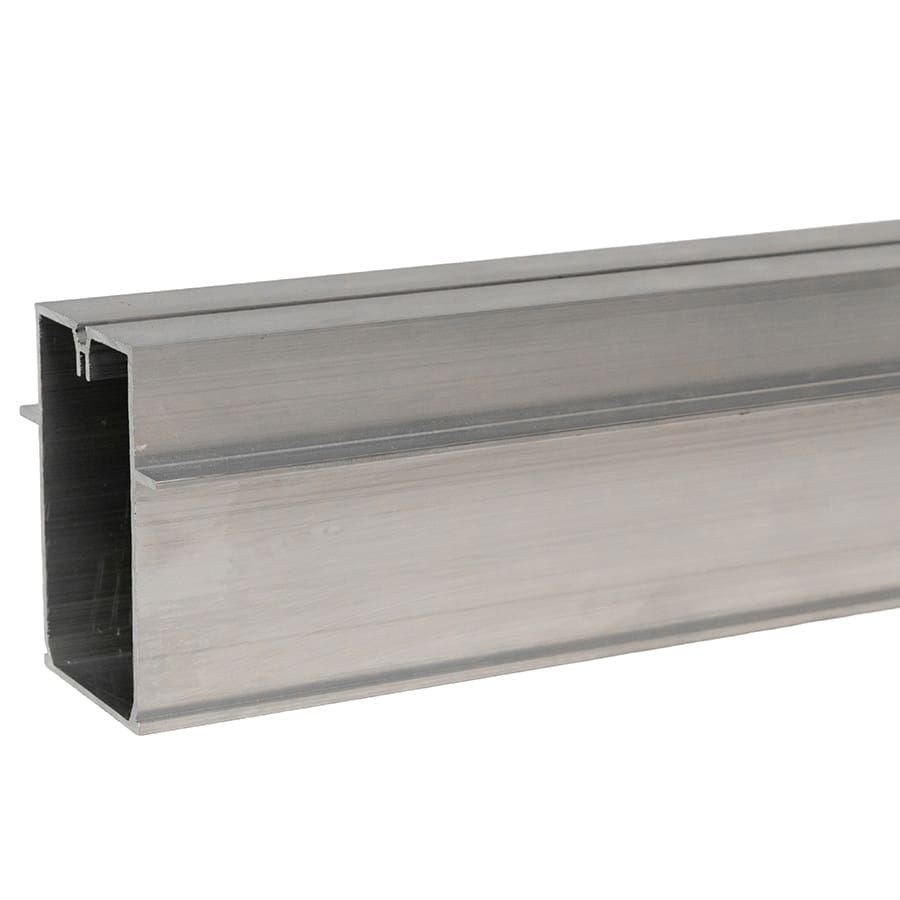

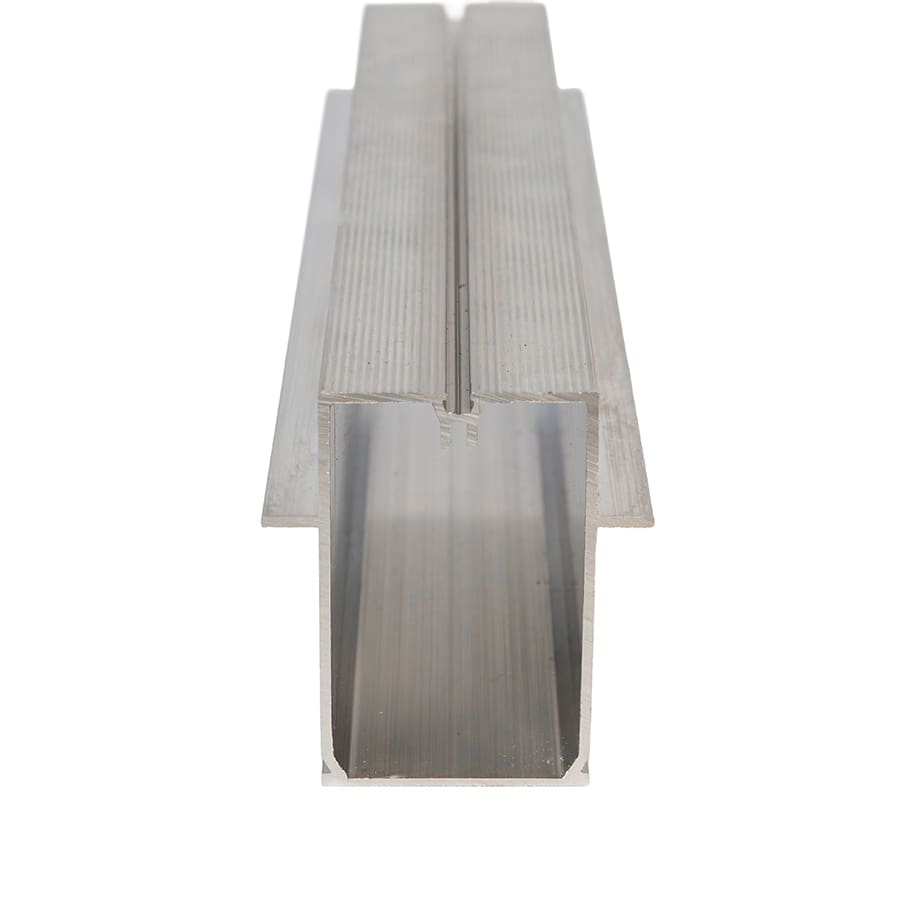

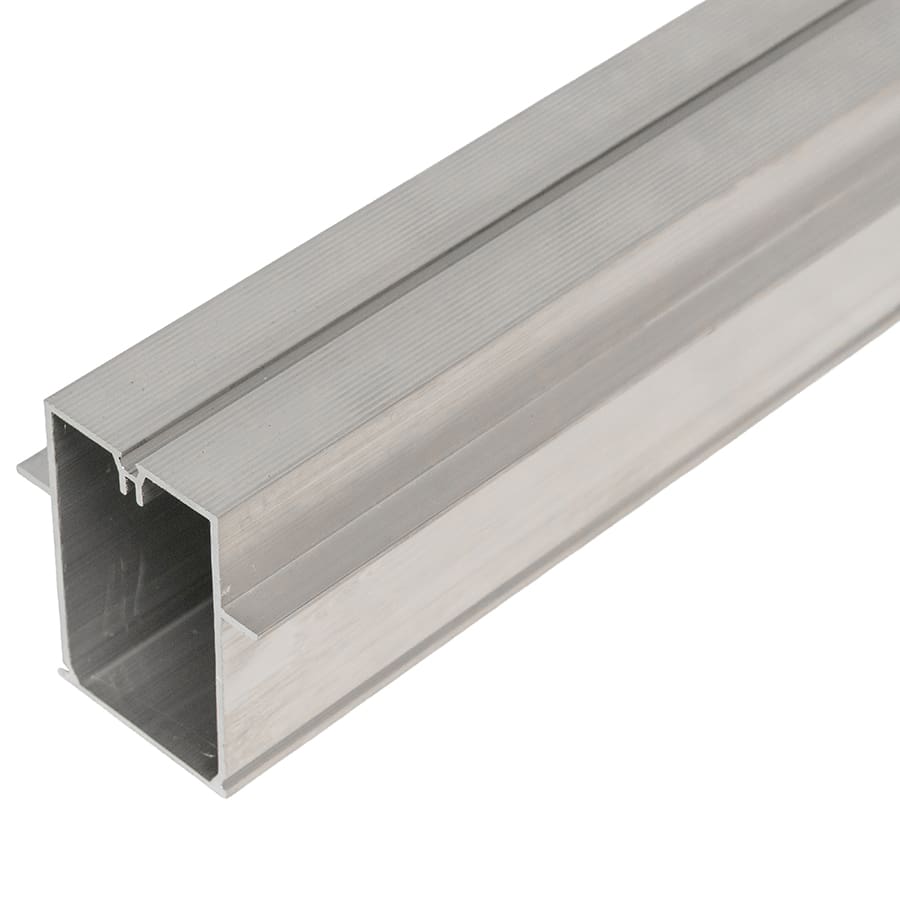

Aluminium Baseboard Carrier Joist
£0.00
The DS-BC Aluminium Baseboard Carrier Joist is a non-combustible aluminium support joist designed specifically for RYNO flooring systems that are integrating with other systems which require full surface support, e.g. Planters. Secure the support joists to decking pedestals or cleats to create a robust and durable support structure for your system, and secure Baseboard to the support flanges on the side of the joist to provide the full surface support structure. It also features a clever groove in the top surface to accommodate a sound-absorbing rubber gasket for ultimate quality.
- Multipurpose design – rapid installation
- Multiple joist depths available to suit various applications
- Manufactured from incredibly strong and lightweight aluminium
- Supports large allowable spans
- Available in a mill finish or powder coated
Details
| Material | Aluminium 6063-T6 |
|---|---|
| Dimensions | See “Part information” |
Performance
| Reaction to fire (BS EN 13501-1) | Inherently A1 (Decision 94-611/EC) |
|---|---|
| Allowable load | Uniformly distributed >4.0kN/m2, concentrated 2kN |
| Maximum spacing | 600mm centre to centre |
| Maximum span | See “Part information” |
| Biological and chemical | Resistant to moulds algae, alkali, bitumen, UV |
| Warranty | 30 years* |
| Design life | 60 years |
*when used as part of a complete RYNO IGNO system
Part information
| Code | Length | Width | Height | Weight | Maximum span |
|---|---|---|---|---|---|
| DS-BC50 | Length: 3600mm | Width: 50mm | Height: 50mm | Weight: 1.1kg/m | Maximum span: 1200mm |
| DS-BC75 | Length: 3600mm | Width: 50mm | Height: 75mm | Weight: 1.4kg/m | Maximum span: 1600mm |
