DSB

Decking Screw

£0.00

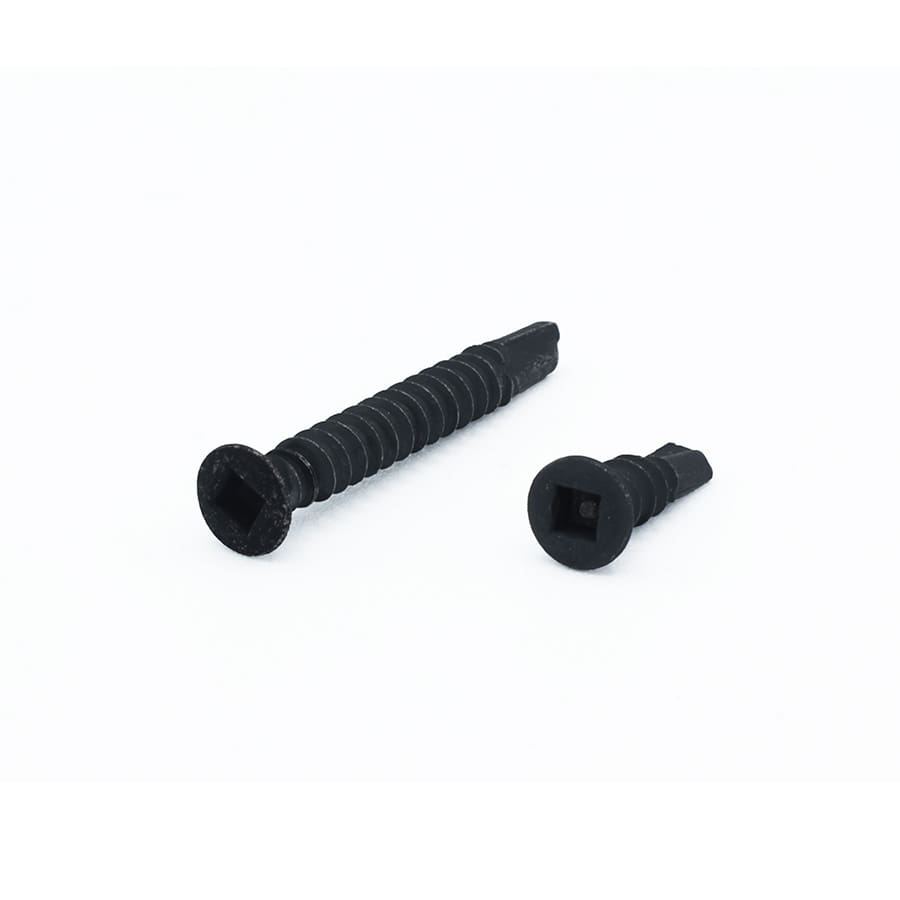

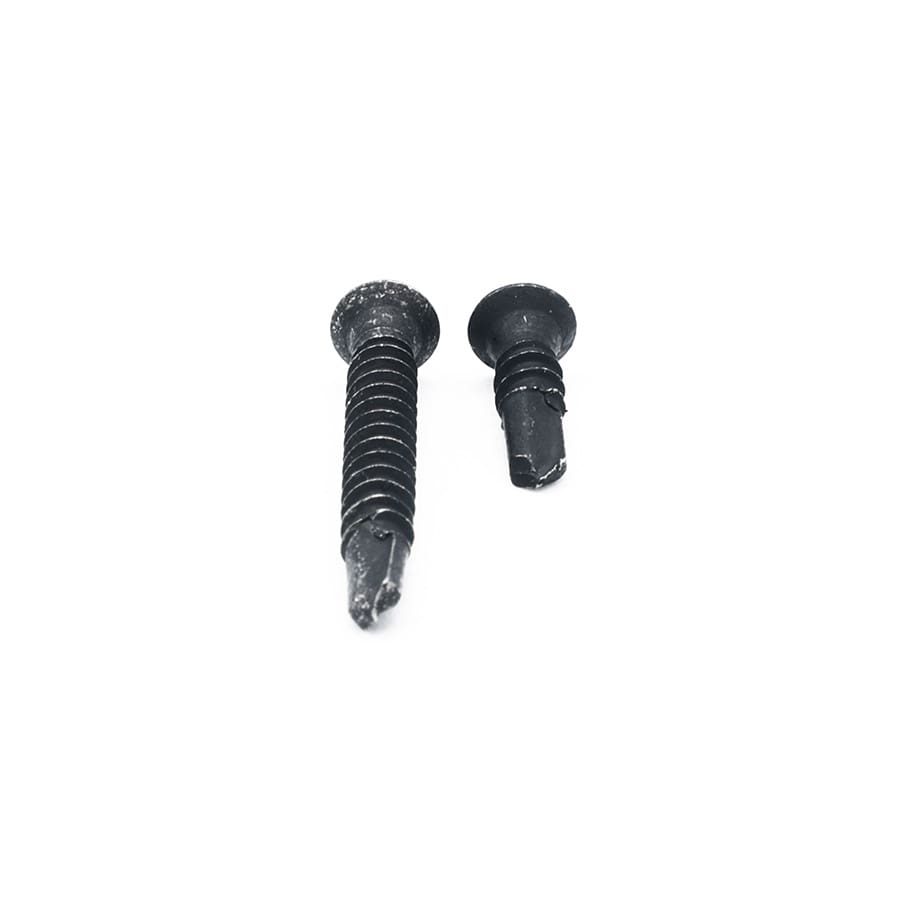

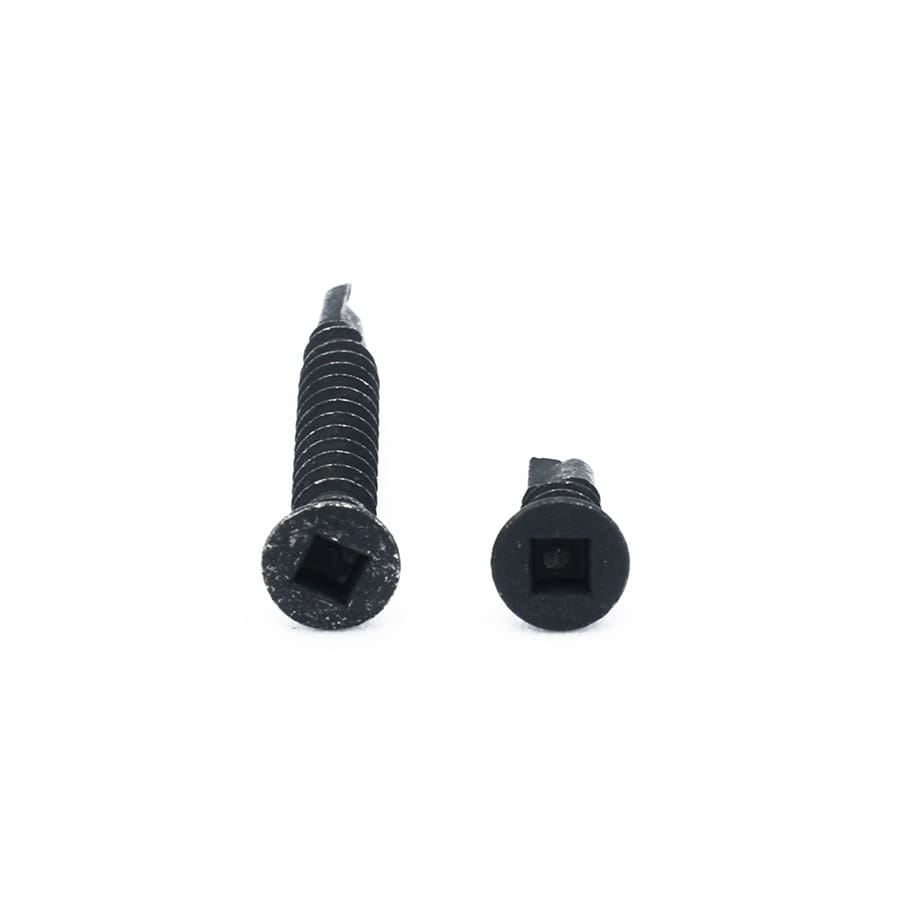

The Decking Screw is narrow head screw specifically designed to fit between decking boards. The square drive, specialist fixing is made from A4 stainless steel and comes in two lengths. The screw is black coated and self-drills into all RYNO® aluminium joists. An ultra-hard version is available to special order for fixing directly into balcony steels.

  • Square drive
  • A4 Stainless Steel
  • Self-drill into RYNO® joists
Download the datasheet

Compatible components

DS Aluminium Joist

DS

Aluminium Joist

AC AluClip

AC

AluClip

VCT Vitrified Composite Decking Clip

VCT

Decking Clip - Vitrified Composite

CTC Decking T-Clip - Composite

CTC

Decking T-Clip - Composite

CMC Decking Metal Clasp Clip

CMC

Decking Metal Clasp Clip

CSC Decking Starter/End Clip

CSC

Decking Starter/End Clip

Details

MaterialStainless Steel A4, with black surface treatment
Dimensions3.9mm diameter thread, available in 2 lengths, 15mm and 30mm, square drive number 1
Drive typeSquare Drive #1

Performance

Reaction to fire (BS EN 13501-1)Inherently A1 (Decision 94-611/EC)
Allowable loadSee “Design resistance” below
Design resistance (EN 1999-1-4:2007 + AC:2010 + A1:2011)0.75kN (75kg) per screw when fixed into 2mm thick materials.
Biological and chemicalCorrosion category C5 - Industry and coastal areas with high humidity and aggressive atmosphere. Constant condensation and heavily polluted atmosphere.

Download

Datasheet

pdf 0.34 MB

DSB - Decking Screw
