CDS

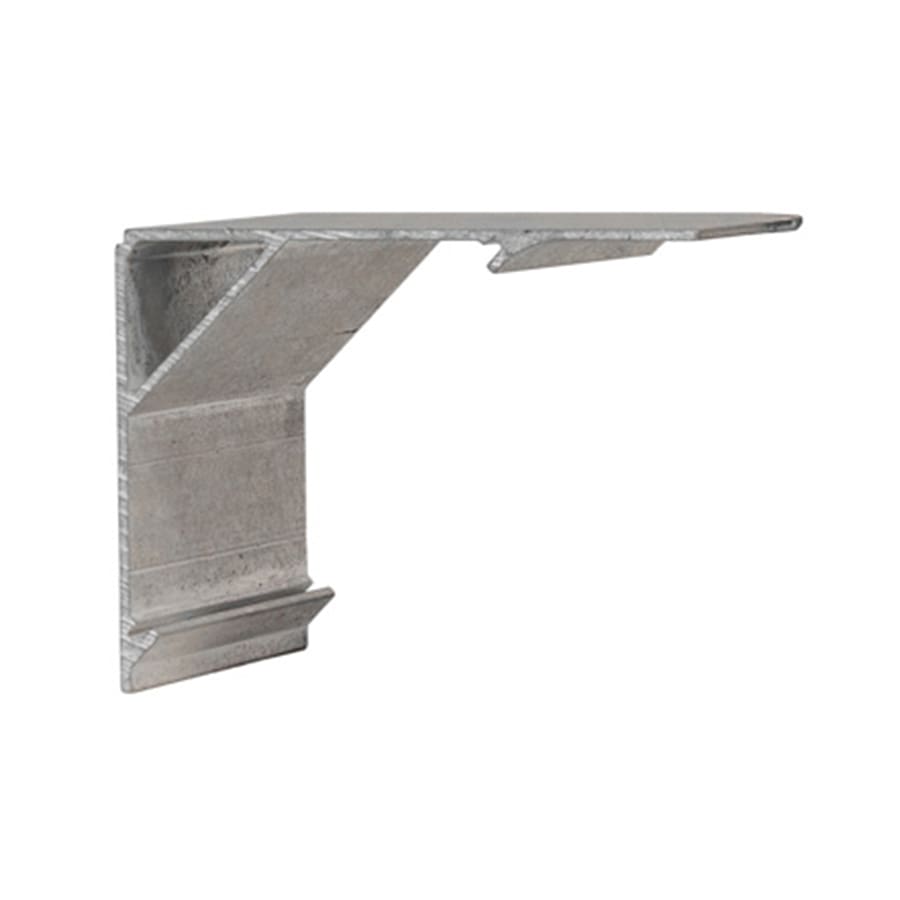

Cantilever Deckboard Support
£0.00
The Cantilever Deckboard Support is specifically designed for remediation projects to support deckboards that need to bridge a gap between the vertical façade of a building and the steelwork of a balcony, when the decking needs to be adjacent to the building façade. It is designed to provide up to 100mm of cantilever support. Made from 6063-t6 aluminium, an inherently non-combustible material, it is compatible with all RYNO BalcaSmart Aluminium Deckboards.
- Innovative problem-solving solution
- Ideal for remediation projects
- Inherently non-combustible
Details
| Material | Aluminium 6063-T6 |
|---|---|
| Dimensions | Supports up to 100mm cantilever 75mm width 75mm height |
| Weight | 0.129kg |
Performance
| Reaction to fire (BS EN 13501-1) | Inherently A1 (Decision 94-611/EC) |
|---|---|
| Maximum spacing | Determined by board span - see relevant datasheet |
| Biological and chemical | Resistant to moulds, algae, alkali, bitumen, UV |
| Warranty | 30 years* |
* When installed as part of a complete RYNO system
