RAL 8019
Grey Brown
BT
Aluminium Base Track
£0.00

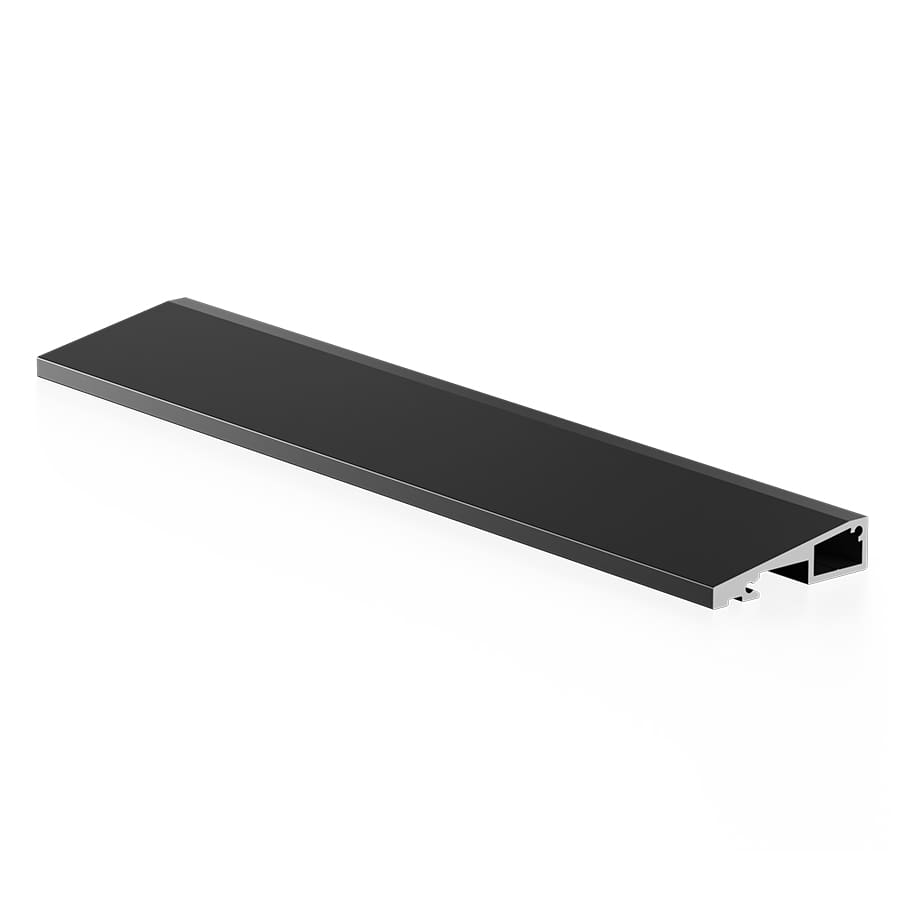

The Aluminium Base Track is a fully non-combustible base track designed to be compatible with all Ryno Linear Track and Vantage Juliet systems. The base track is made from structural grade aluminium 6005A T6, coated in Qualicoat Class 2 powder coating for superior durability. It features a 7 degree top surface to promote water flow away from the building structure. Each track provides a neat aesthetic, with hidden fixings.
- Non-combustible
- Qualicoat Class 2 powder coating
- 4 options for different scenarios
- Hidden fixings
Finishes
RAL 8019
RAL 7016
Anthracite Grey
RAL 7037
Dusty Grey
RAL 7039
Quartz Grey
RAL 7040
Window Grey
RAL 8014
Sepia Brown
Custom RAL colour options
Details
| Material | Aluminium 6005A T6 |
|---|---|
| Coating | Interpon D2000 series, Qualicoat Class 2 powder coating (non textured) |
Performance
| Reaction to fire (BS EN 13501-1) | A2-s1, d0 |
|---|---|
| Allowable load | See System data |
| Biological and chemical | Resistant to moulds, algae, alkali, bitumen, UV |
| Warranty | 12 years* |
| Design life | 60 years |
*Assembled product warranty
Fixing information
| Description | Driver size | Use case |
|---|---|---|
| Screw, Taptite Torx Pan Head, A2 stainless steel, M8 x 30mm | Driver size: TX30 | Use case: Fix through base track into infill bar |
| Aluminium Washer Plate | Driver size: n/a | Use case: Insert into BTa Base Track to fix to substrate |
| M16x50 Hexset bolt and Nyloc Nut | Driver size: HX M16 | Use case: Fixing BTa Base Track to substrate e.g. BaseLink |
Download
Datasheet
pdf 0.36 MB
