BP

Boundary Profile

£0.00

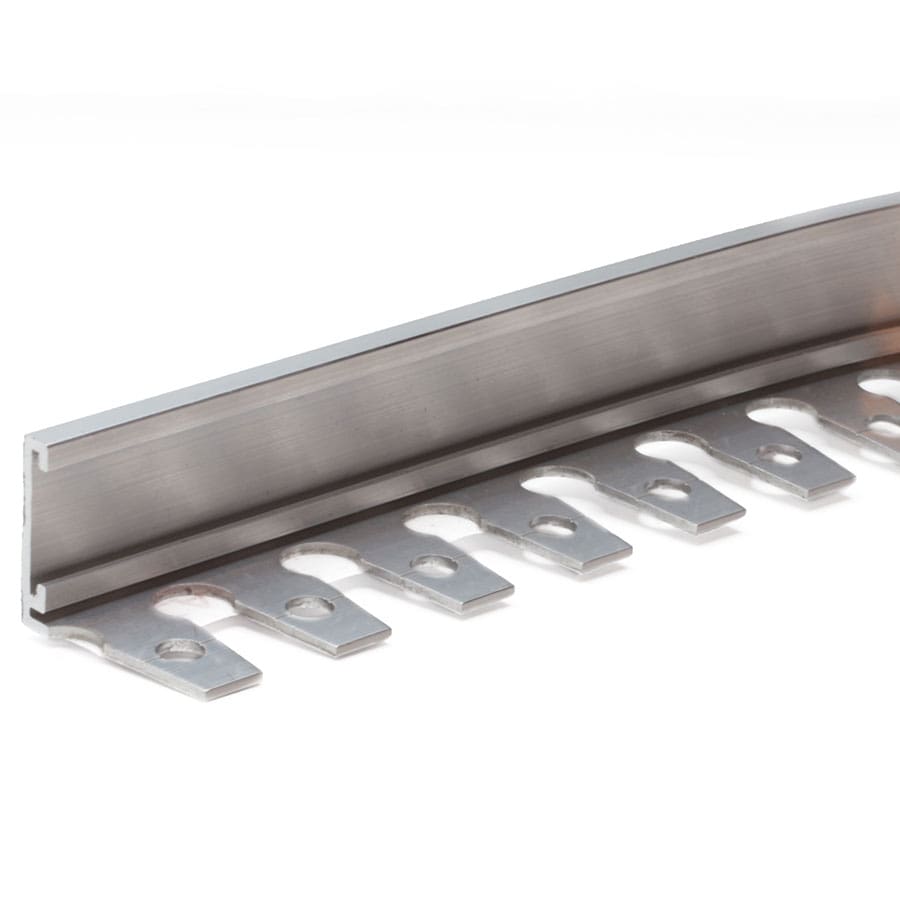

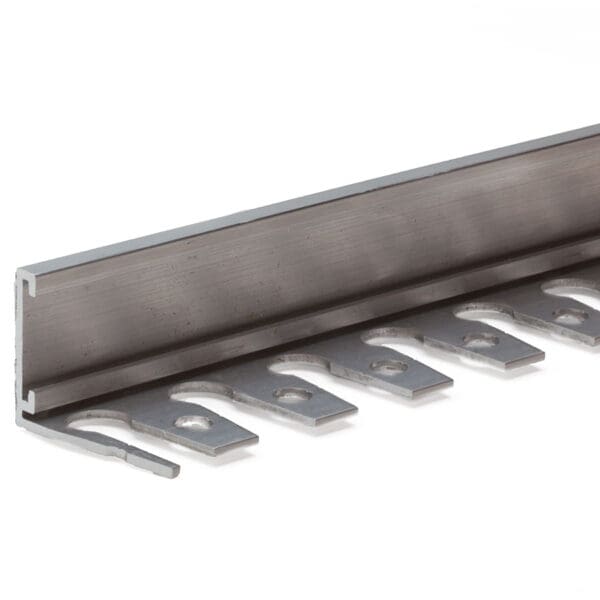

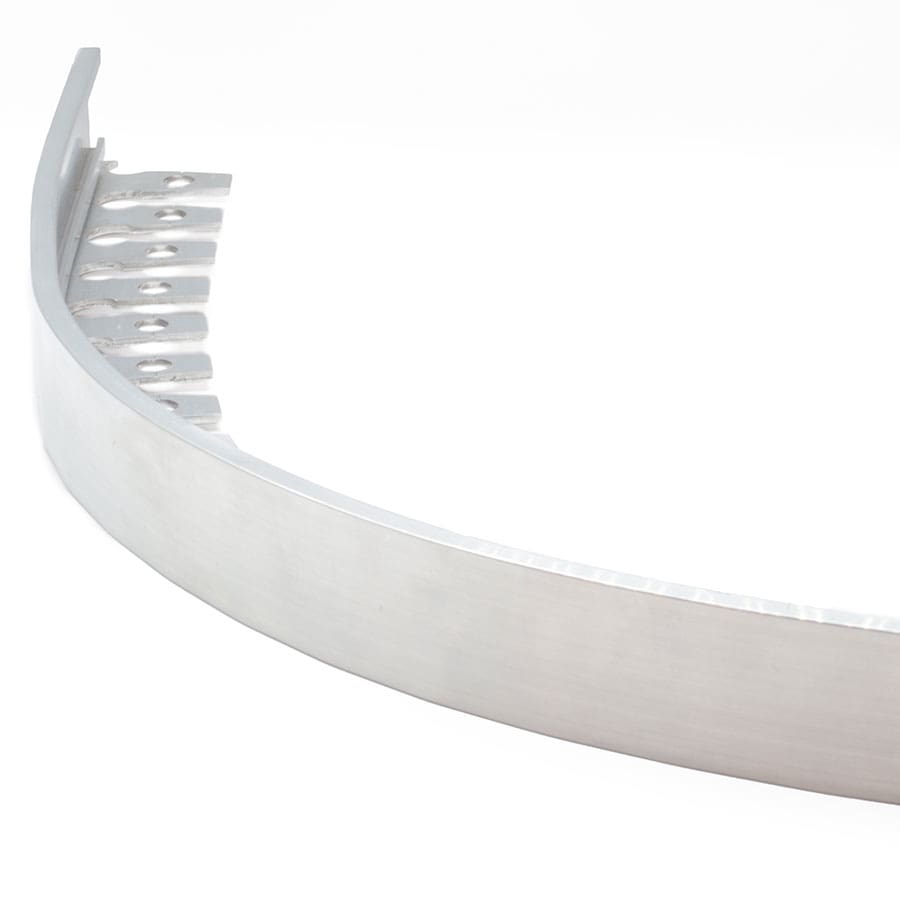

The Boundary Profile is an aluminium profile that is used as a retaining edge detail in a variety of applications to create a clean distinctive break between different surface materials.  It comes in straight lengths and machined lengths that enables curved edges to be created.

  • Mill finished aluminium, inherently non-combustible
  • Straight and flexible edge available
  • Clean, distinct lines between surface materials
Download the datasheet

Compatible components

RBG Resin Bound Gravel Kit

RBG

Resin Bound Gravel kit

BB Baseboard

BB

Baseboard

ADB Aluminium Deck Board

ADB

Aluminium Decking Board

VC Vitrified Composite Decking Board

VC

Vitrified Composite

Quadro Argento Paving Tile

PT-QU

Quadro Porcelain Paver

Tocco Concrete Coal Grey Porcelain Tile

PT-TC

Tocco Concrete Porcelain Paver

Tocco Stone Chalk White Porcelain Paver

PT-TS

Tocco Stone Porcelain Paver

Tocco Core Warm Beige Porcelain Paver

PT-TCO

Tocco Core Porcelain Paver

Details

MaterialsAluminium 6063-T6
DimensionsSupplied in 3.6m lengths
Weight0.6 – 1.6kg/m

Performance

Reaction to fire (BS EN 13501-5) BRoof (t4)

Part information

CodeHeight rangeProfile detailsTo suit material interface
BP22SHeight range: 22mmProfile details: StraightTo suit material interface: Resin Bound Gravel and 20mm Porcelain Paving
BP22CHeight range: 22mmProfile details: Suitable for curved edgesTo suit material interface: Resin Bound Gravel and 20mm Porcelain Paving
BP25SHeight range: 25mmProfile details: StraightTo suit material interface: Resin Bound Gravel and Vitrified Composite or Aluminium Decking
BP25CHeight range: 25mmProfile details: Suitable for curved edgesTo suit material interface: Resin Bound Gravel and Vitrified Composite or Aluminium Decking

Download

Datasheet

pdf 0.34 MB

BP - Boundary Profile
