DS
Aluminium Joist
BBR
Ballast Bracket
£0.00

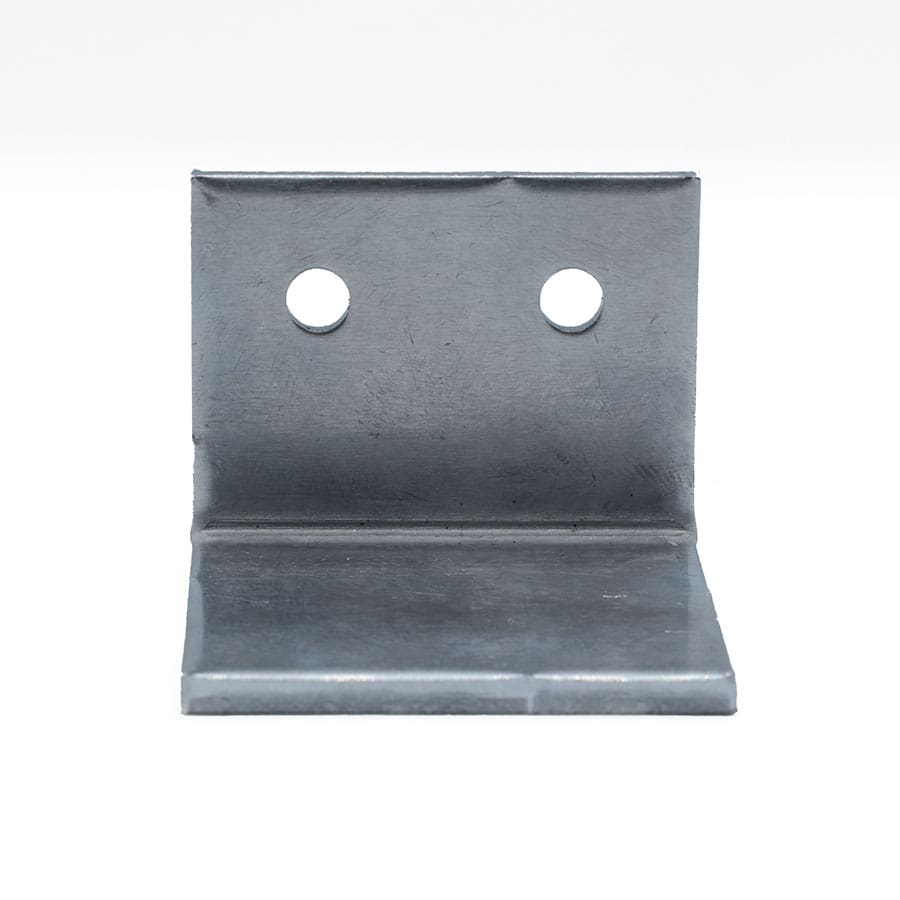

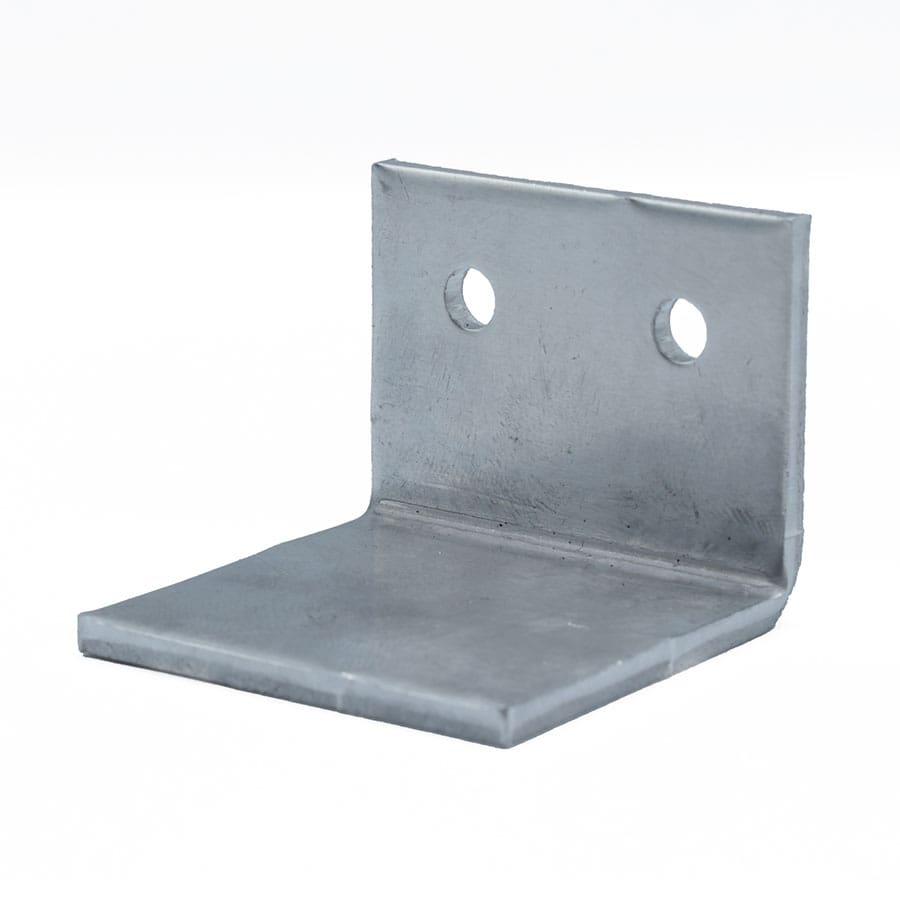

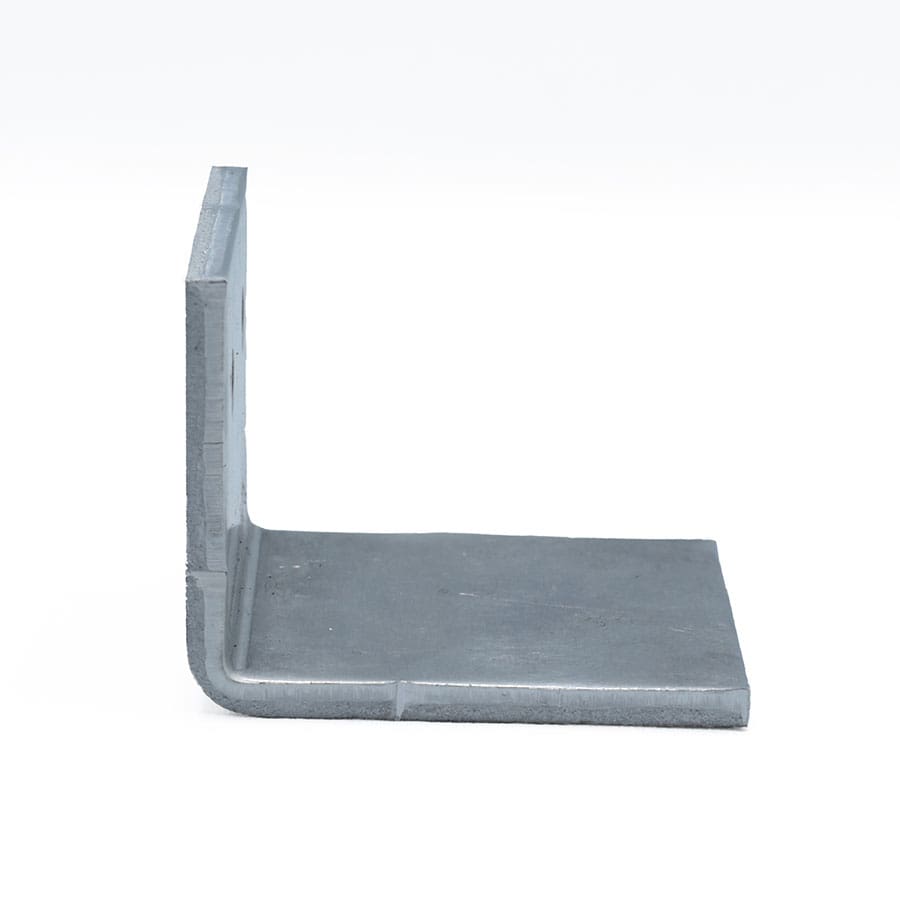

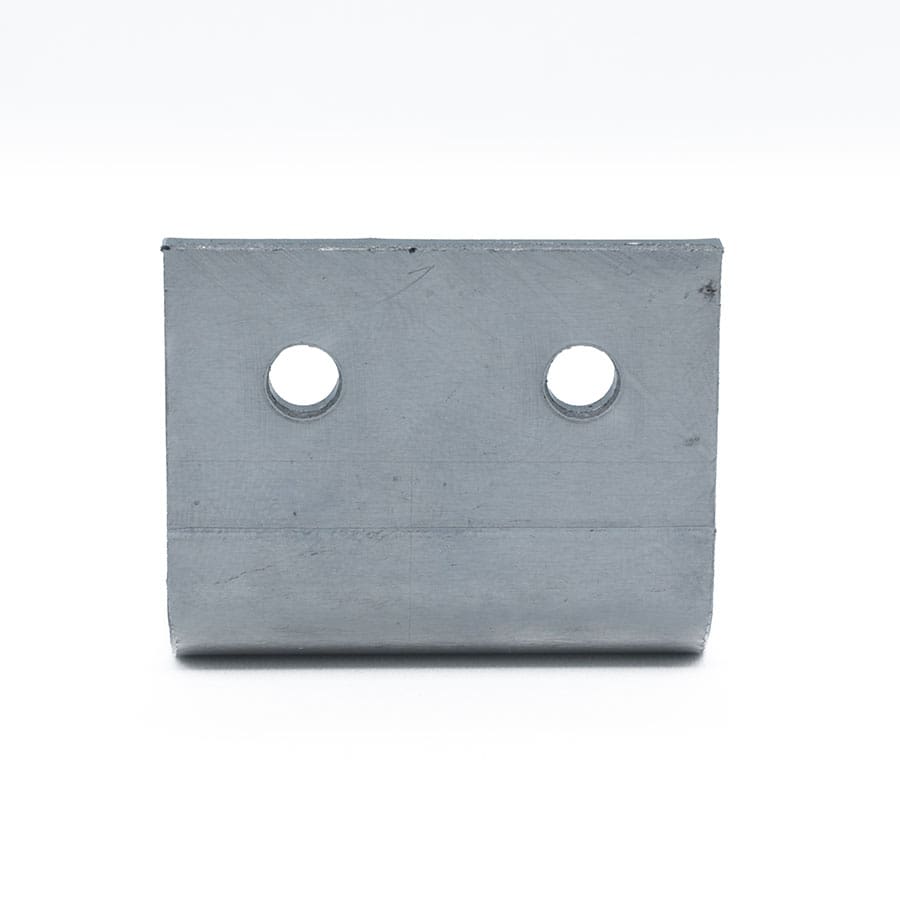

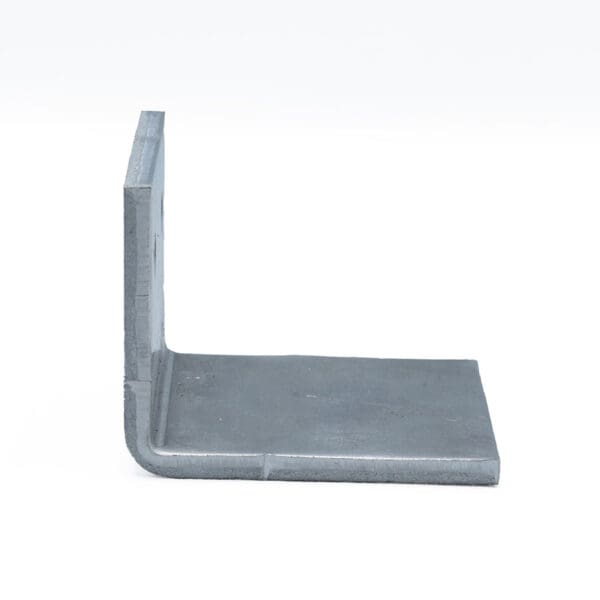

The Ballast Bracket is an aluminium bracket that works with all RYNO TerraSmart systems featuring the DS joists. Simply fixed to the side of the DS Aluminium Joists, it is designed to create a ‘shelf’ to carry 600x600mm concrete ballast slabs, beneath the finished deckboard surface. It is the simplest way of increasing resistance against the effects of wind uplift, by increasing the dead weight of the system being installed.
- Simple to install
- Quickly add dead weight to the system
- Increases resistance against wind uplift
- Compatible with DS Aluminium Joists
Compatible components
PHS
Pan-Head Screw
CP-AD
Adira Concrete Paver
Details
| Materials | Aluminium 1050A H14 |
|---|---|
| Dimensions | 40x40x32mm, 3mm thick |
Performance
| Reaction to fire (BS EN 13501-1) | Inherently A1 (Decision 94-611/EC) |
|---|---|
| Allowable load | >80kg per bracket |
| Biological and chemical | Resistant to moulds, algae, alkali, bitumen, UV |
Download
Datasheet
pdf 0.25 MB
BBR - Ballast Bracket
