AS
Angled Shim
£0.00

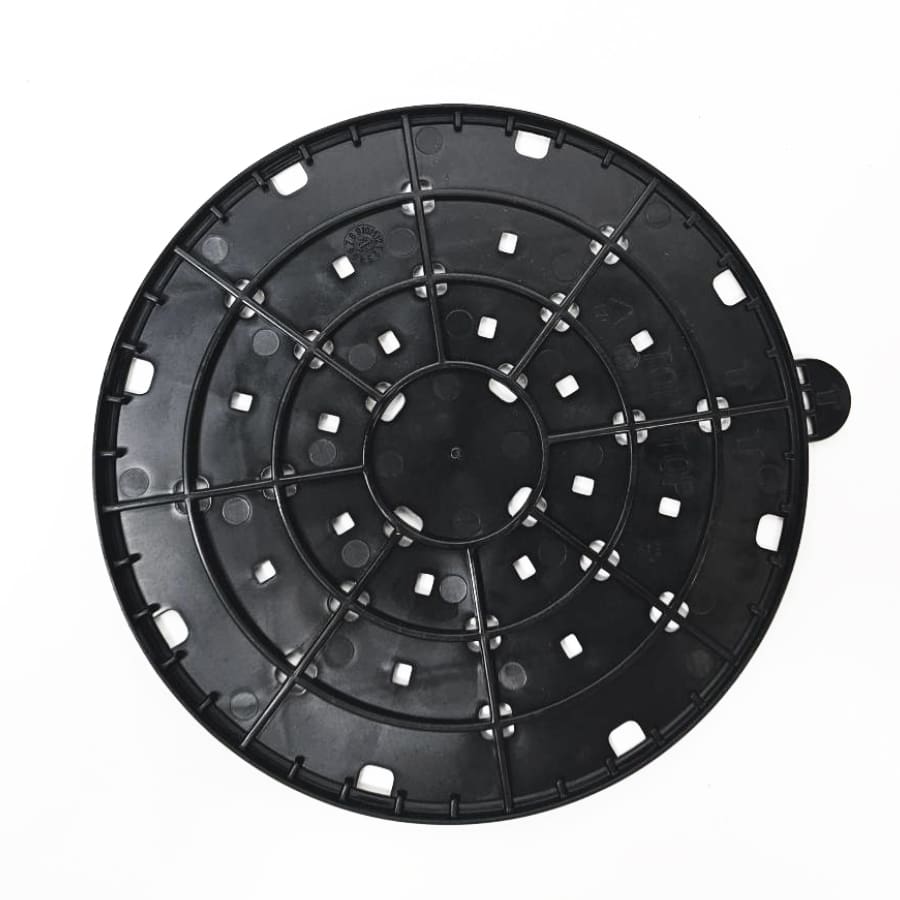

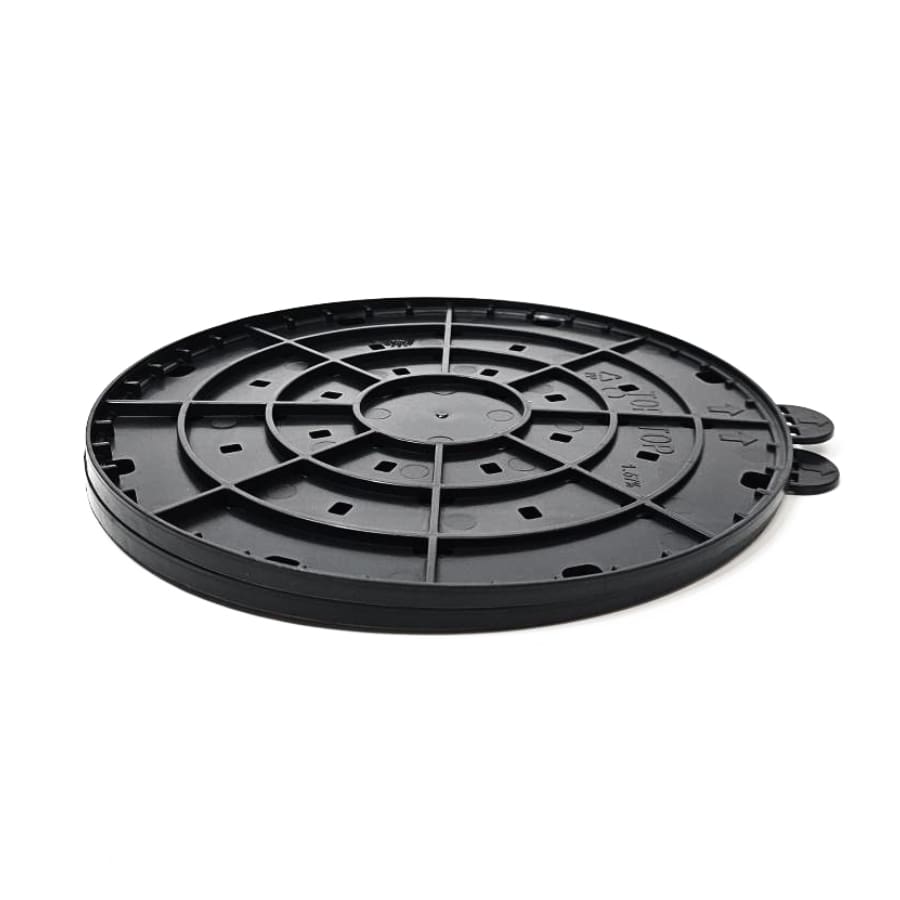

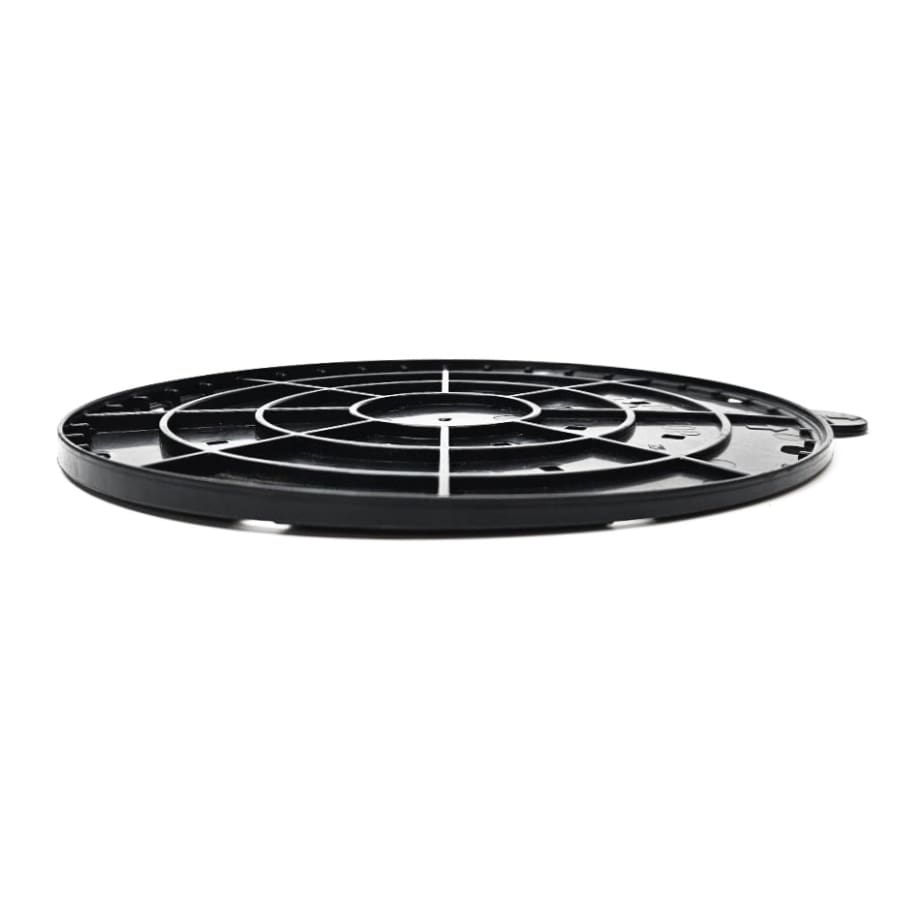

The Angled Shim is a handy component for use with fixed head paving and decking pedestals where correction of a fall is required. It comes in 3 iterations, each with a different angle, and they are stackable so can be combined to cover almost any gradient found on flat roof insulation. With a large diameter to spread load, these are a cost-effective simple solution where fixed head pedestals are being used in a cut to fall insulation scheme.
- Large diameter to spread load
- Multiple combinations possible
- Compatible with fixed head paving and decking pedestals
Details
| Materials | Polypropylene (recyclable) |
|---|---|
| Dimensions | Diameter - 200mm |
| Maximum slope correction | AS-1 Angled Shim, 1:100 Gradient / 1% Slope AS-2 Angled Shim, 1:60 Gradient / 1.67% Slope AS-3 Angled Shim, 1:50 Gradient / 2% Slope |
Performance
| Warranty | 10 years |
|---|---|
