RAL 7037
Dusty Grey
AF-SB
Aluminium Frame Soffit Board
£0.00

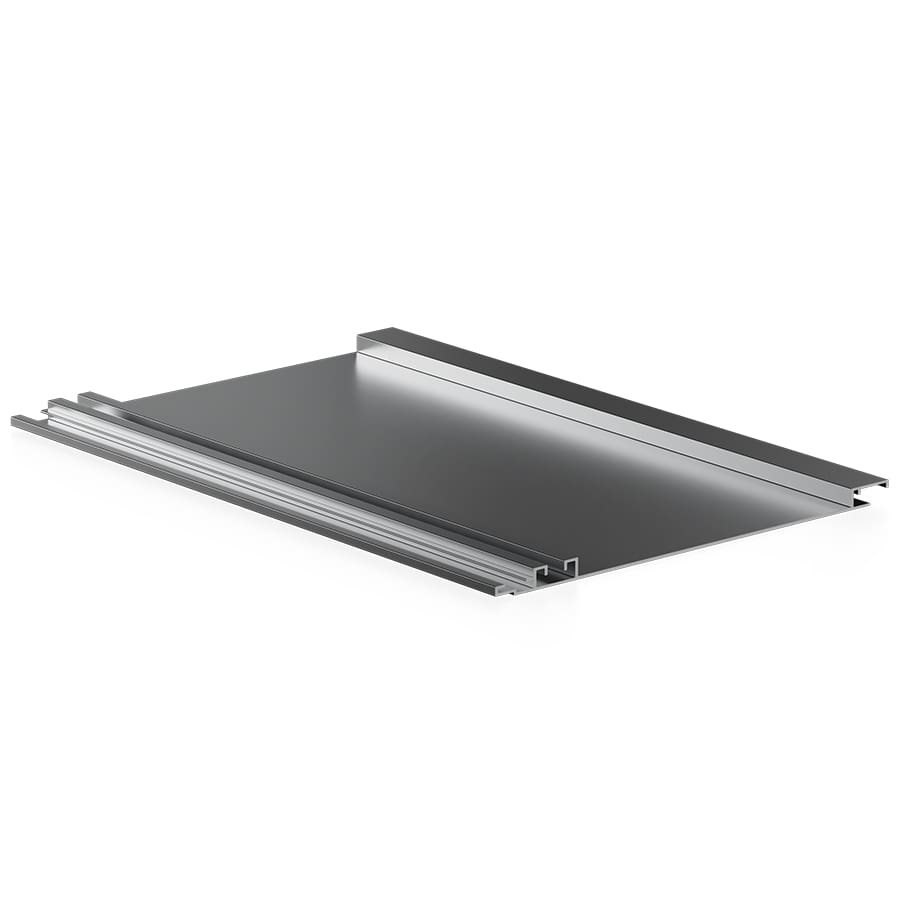

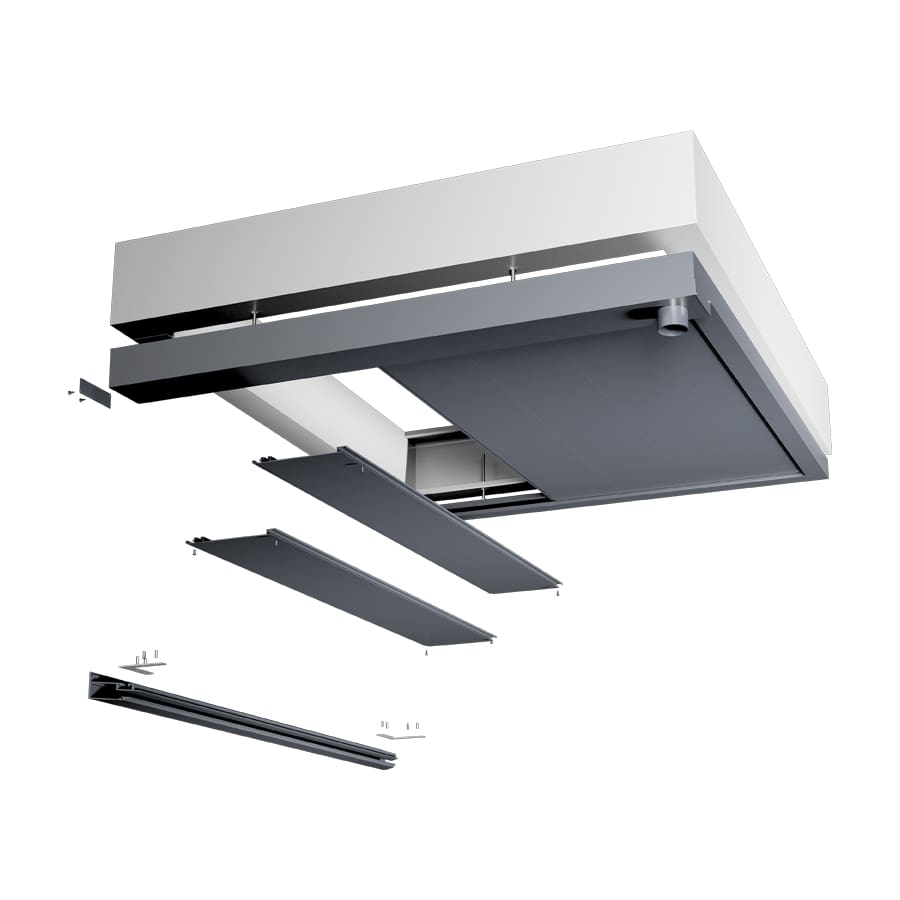

The Aluminium Frame Soffit Board is a sleek soffit designed for ultimate versatility, making it ideal for remediation projects with varying sizes and fixing details to overcome. It neatly integrates with the Drip Edge Closure Kit for an edge drained solution, and with the Gutter Kit for a controlled piped drainage solution. It is made from aluminium for ultimate fire resistance, and at 200mm wide enables a quick and easy installation.
- Versatile design for remediation
- Made from non-combustible aluminium
- Seamless integration with edge drainage or piped drainage
- 200mm wide boards for fast installation
Finishes
RAL 7037
RAL 8014
Sepia Brown
RAL 7039
Quartz Grey
RAL 7040
Window Grey
RAL 8019
Grey Brown
RAL 7016
Anthracite Grey
Custom RAL colour options
Details
| Material | Aluminium 6063-T6 |
|---|---|
| Dimensions | 200x3600mm |
| Weight | 1.36kg/m |
| Coating | Qualicoat ‘Seaside’ Class 2 powder coating |
Performance
| Reaction to fire (BS EN 13501-1) | A2-s1, d0 |
|---|---|
| Biological and chemical | Resistant to moulds algae, alkali, bitumen, UV |
| Warranty | 30 years* |
| Design life | 60 years |
*When used as part of a complete RYNO system
Part information
| Fixing details** | To SDE-F Soffit Angle Drip Edge Profile, Soffit Edge Closure, and Soffit Gutter Profiles: 4.8x10mm sealed pop rivets stainless steel A2 or PHS 4.8x13mm Pan head screw To adjacent AF-SB Soffit Board (to adjacent board): PHS 4.8x13mm Pan head screw |
|---|---|
**Fixings supplied separately
Fixing details**
| To SDE-F Soffit Angle Drip Edge Profile, Soffit Edge Closure, and Soffit Gutter Profiles | 4.8x10mm sealed pop rivets stainless steel A2 or PHS 4.8x13mm Pan head screw |
|---|---|
| To adjacent AF-SB Soffit Board (to adjacent board) | PHS 4.8x13mm Pan head screw |
**Fixings supplied separately
Download
Datasheet
pdf 0.16 MB
