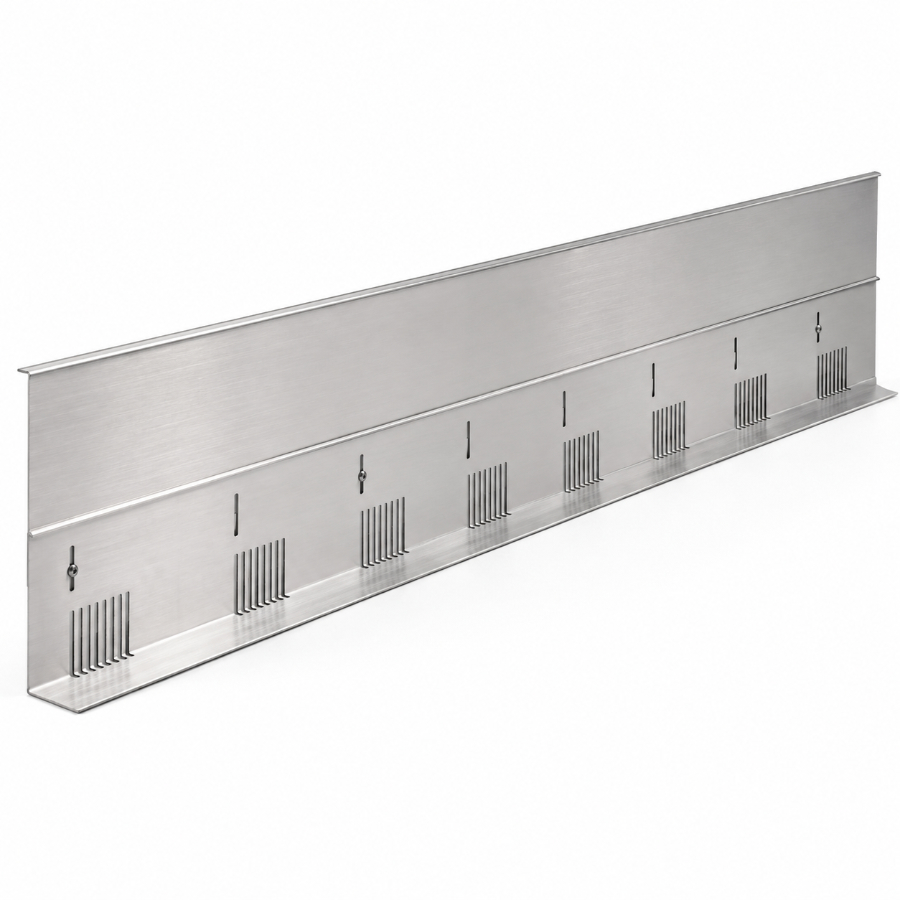

Adjustable Edge Restraint
£0.00
The Adjustable Edge Restraint is designed for use either as individual parts or to be doubled up with a bottom and a top part. When doubled up, height is adjustable by using vertical slots in the base profile (AER-B). The top sections (AER-T) can be fastened to the RYNO subframe structure if required. The profile can be notched out on the bottom flange to allow you to bend the aluminium to the shape required for curves or corners. The same applies for changes in height. Once the Adjustable Edge Restraint is in position it can then be loaded up with stones or any medium the edge is restraining.
- Mill finished aluminium, inherently non-combustible
- Can be cut for straight or corners / curves
- When used as a two-part edge, the height can be adjusted using the vertical slots
Details
| Materials | Aluminium 1050 |
|---|---|
| Dimensions | Supplied in 2.4m lengths |
| Height Range | See “Part Information” below |
| Weight | 0.6 – 1.6kg/m |
Part Information
| Code | Height Range | Profile Details |
|---|---|---|
| AER-B-75 | Height Range: 75mm | Profile Details: Straight
(can be cut for curves / corners) |
| AER-B-150 | Height Range: 150mm | Profile Details: Straight
(can be cut for curves / corners) |
| AER-T-125 | Height Range: 125-175mm
(when used in combination with AER-B-75) | Profile Details: Straight
(can be cut for curves / corners) |
| AER-T-225 | Height Range: 150-350mm
(when used in combination with AER-B-150) | Profile Details: Straight
(can be cut for curves / corners) |
