VJC

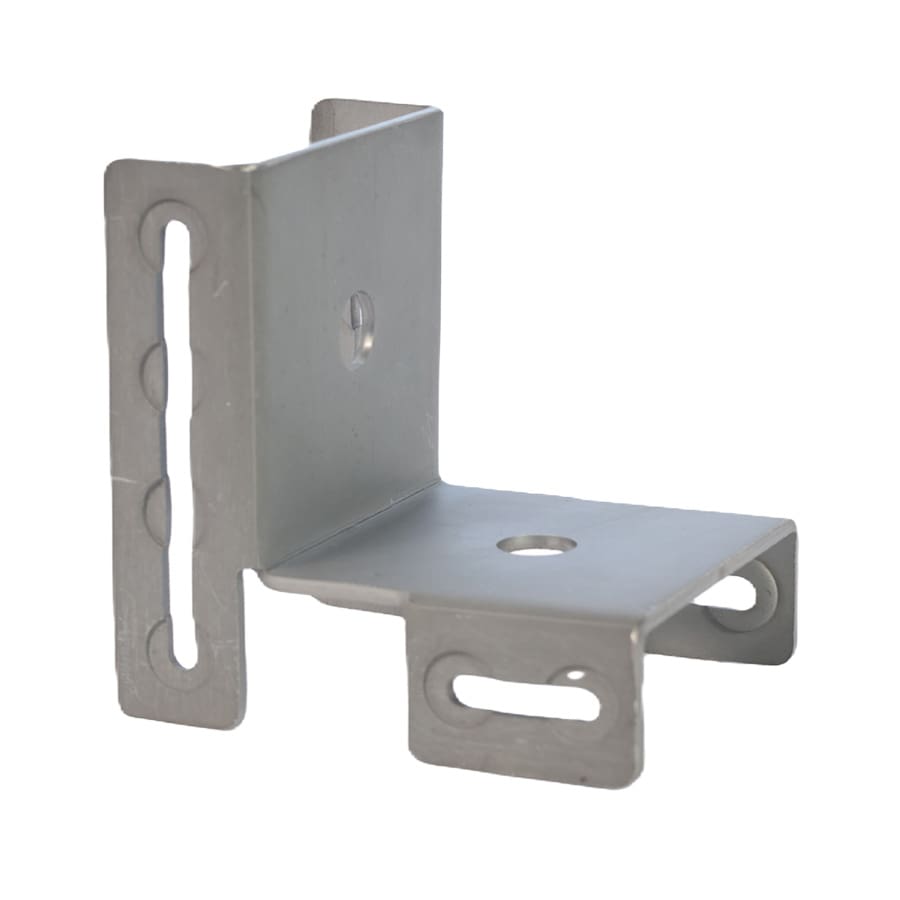

Vertical Joist Connector
The Vertical Joist Connector is a 90 degree bracket that integrates seamlessly with the DS joist system. It is designed to enable a super strong connection between horizontal and vertical substructure, making it quick and easy to create details that require a vertical finish, such as steps or visible perimeters. It is made from zinc-nickel electroplated steel which gives it ultimate durability, and it is non-combustible.
- Seamless transition between horizontal and vertical substructure
- Simplifies construction of subframe for steps
- Integrates with full range of joist profiles
- Zinc-nickel electroplated for ultimate durability
- Non-combustible
Details
| Material | Zinc-nickel electroplated mild steel |
|---|---|
| Dimensions | 50x50mm |
| Weight | 0.1kg |
| Joist width capacity | 50mm |
Performance
| Reaction to fire (BS EN 13501-1) | Inherently A1 (Decision 94-611/EC) |
|---|---|
| Biological and chemical | Resistant to corrosion, moulds, algae, alkali, bitumen, UV |
| Warranty | 30 years* |
| Design life | 60 years |
*when used as part of a complete RYNO IGNO system
