RAL 7037
Dusty Grey
AFL-SB

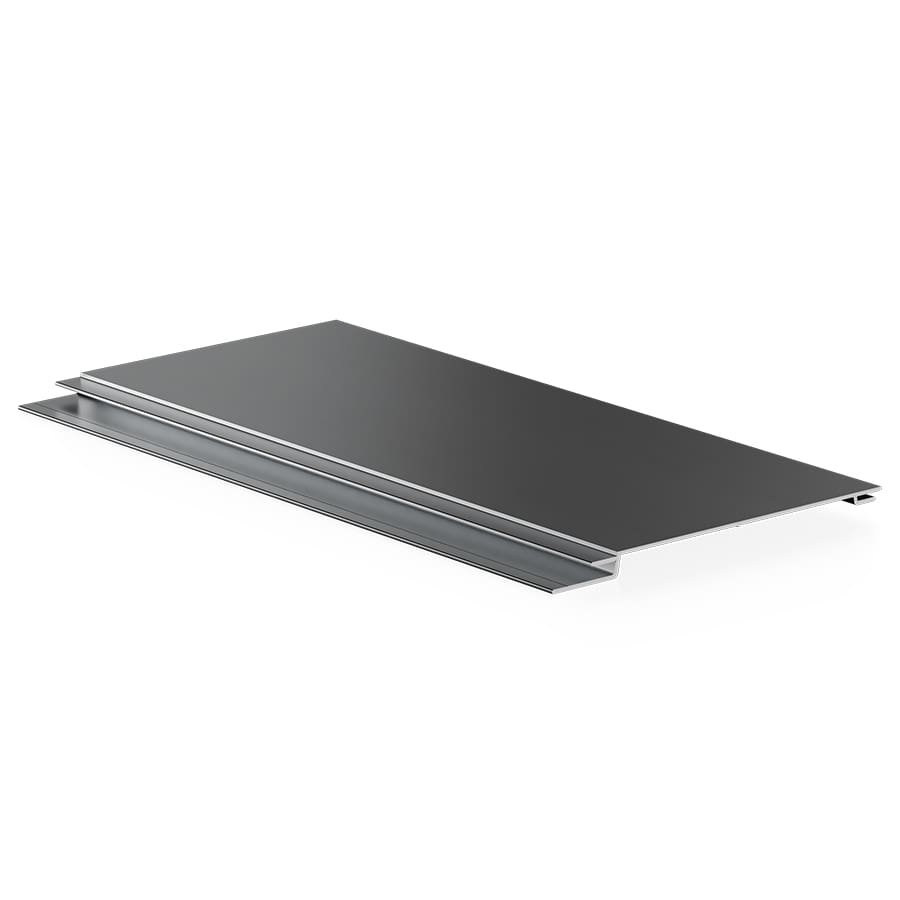

Aluminium Frameless Soffit Board
£0.00
The Aluminium Frameless Soffit Board is a sleek soffit with an innovative design compatibility with the Linear Flow Balustrade system, which enables a complete balcony dressing system to be achieved with maximum efficiency of materials. It neatly integrates with the Linear Flow drip edge base for an edge drained solution. Where the Linear Flow system is used but the drip edge feature is not desired due to entrance or exits below the balcony, the Gutter Kit can be installed for a controlled piped drainage solution. It is made from aluminium for ultimate fire resistance, and at 200mm wide enables a quick and easy installation.
- Material efficient design
- Made from non-combustible aluminium
- Seamless integration with edge drainage or piped drainage
- 200mm wide boards for fast installation
Finishes
RAL 7037
RAL 8014
Sepia Brown
RAL 7039
Quartz Grey
RAL 7040
Window Grey
RAL 8019
Grey Brown
RAL 7016
Anthracite Grey
Custom RAL colour options
Details
| Material | Aluminium 6063-T6 |
|---|---|
| Dimensions | 200x3600mm |
| Weight | 1.36kg/m |
| Coating | Qualicoat ‘Seaside’ Class 2 powder coating |
Performance
| Reaction to fire (BS EN 13501-1) | A2-s1, d0 |
|---|---|
| Biological and chemical | Resistant to moulds algae, alkali, bitumen, UV |
| Warranty | 30 years* |
| Design life | 60 years |
*When used as part of a complete RYNO system
Download
Datasheet
pdf 0.16 MB
